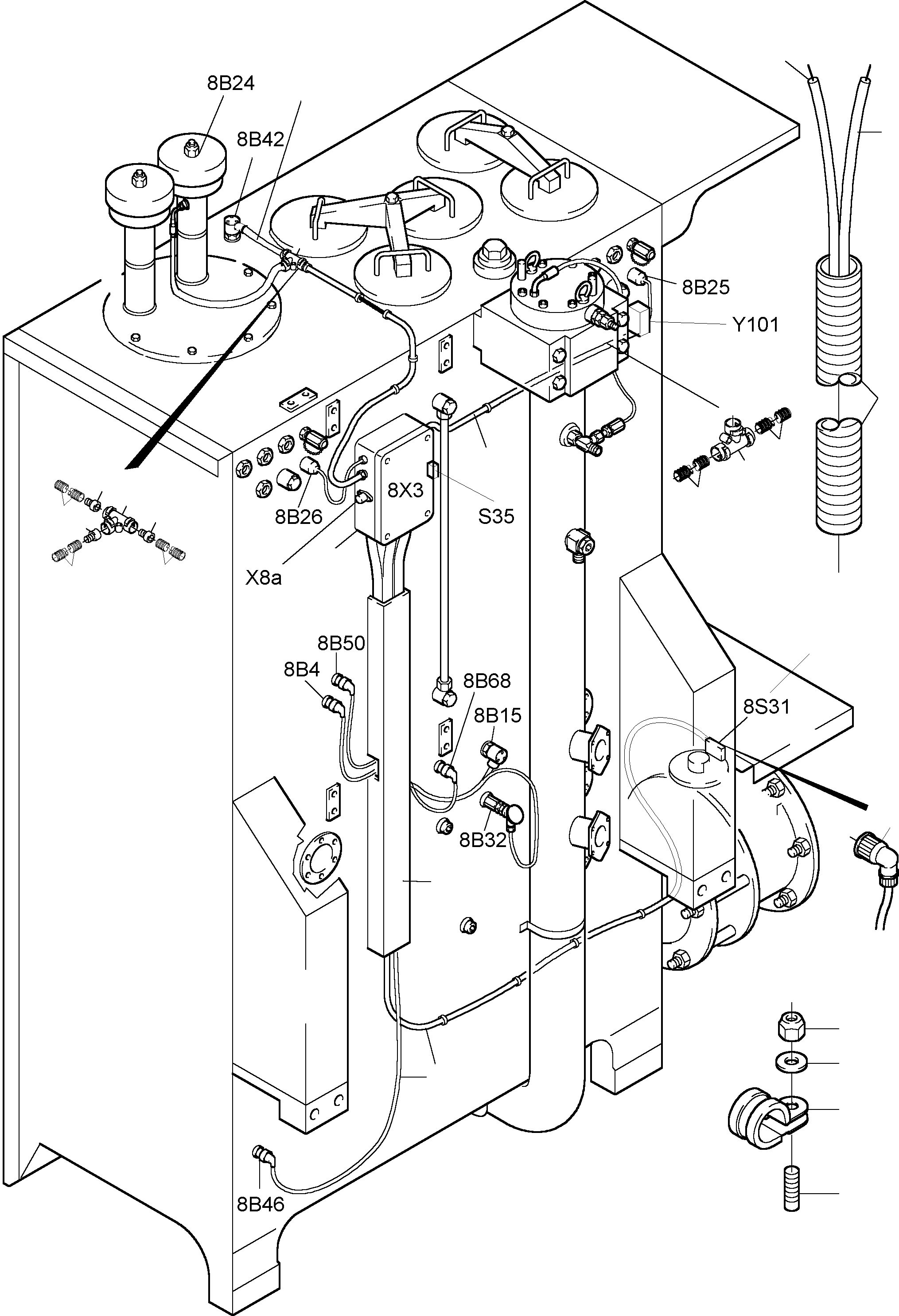

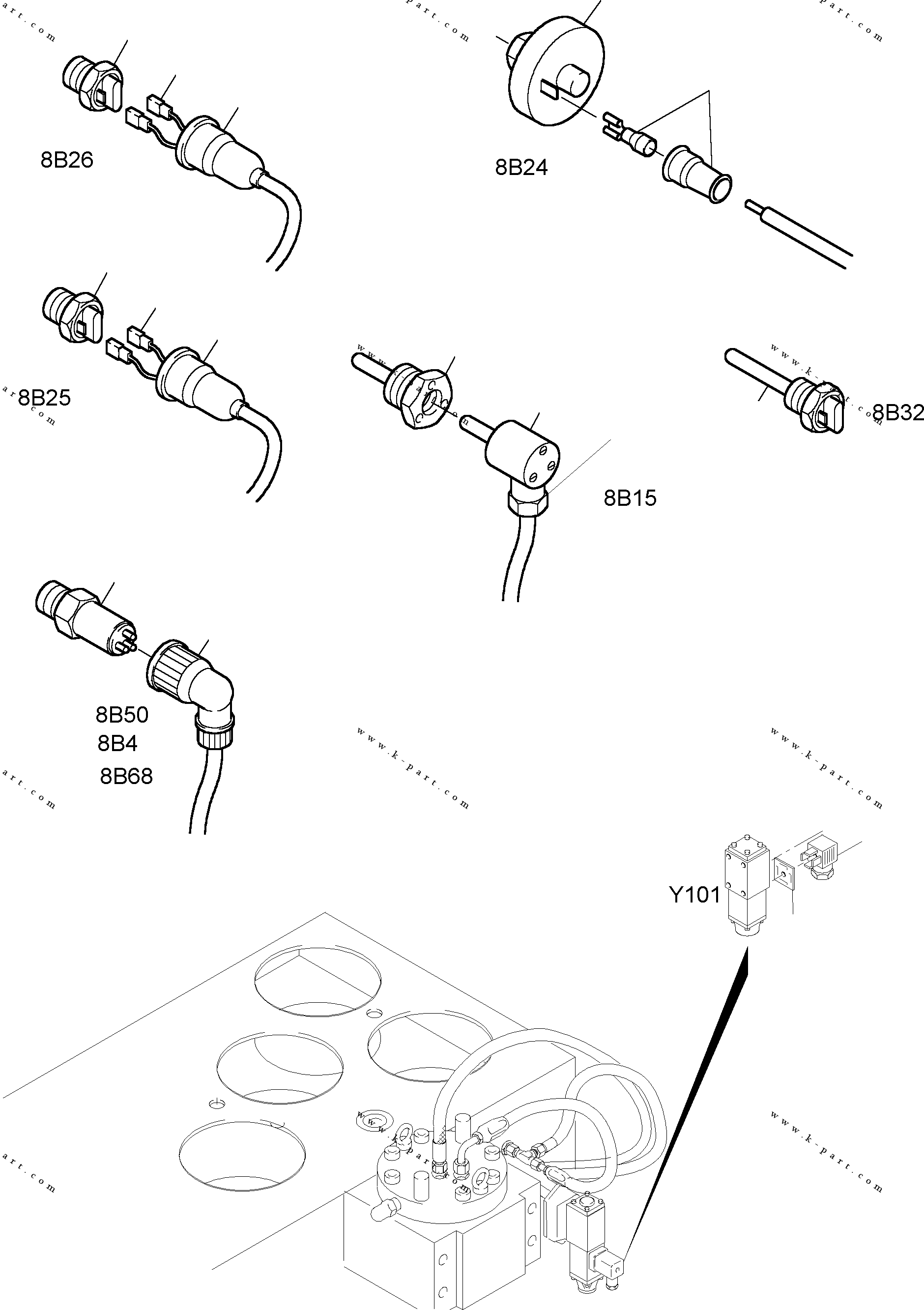

01 |
|
Junction box (8x3) |
1 |
|
515-2180a |
|
|
02 |
323 945 40
|
Thread pin |
-2 |
InternBDB: M6x15 /32501
|
|
|
|
03 |
621 753 40
|
Cable channel
Bulk ware, state length
required |
-2 |
InternBDB: LFG 50100 | InternKon: 903 383 40 / 62
|
|
|
|
04 |
006 302 98
|
Clamp |
-2 |
InternBDB: RSGU 1100 15/15
|
|
|
|
05 |
507 025 98
|
Nut |
-2 |
InternBDB: M 6 /985
|
|
|
|
06 |
346 499 99
|
Lock washer |
-2 |
InternBDB: 6 /128
|
|
|
|
07 |
655 652 40
|
Cable protection hose DN 23
Bulk ware, state length
required |
-2 |
InternBDB: PMA VCSG-23 B | InternKon: 903 383 40 / 2
|
|
|
|
08 |
655 649 40
|
Cable protection hose DN 10
Bulk ware, state length
required |
-2 |
InternBDB: PMA VCSG-10 B | InternKon: 903 383 40 / 46
|
|
|
|
09 |
654 652 40
|
Maintenance switch 80 mbar |
1 |
InternBDB: Ma. u. Hu. 390 807 0802 | InternKon: 903 344 40 / 20
|
|
|
|
10 |
651 461 40
|
Connection assy. |
1 |
InternKon: 903 383 40 / 70
|
|
|
|
11 |
515 213 40
|
Cable 1 qmm bl
Bulk ware, state length
required |
-2 |
InternKon: 903 383 40 / 36
|
|
|
|
12 |
515 214 40
|
Cable 2.5 qmm
Bulk ware, state length
required |
-2 |
InternKon: 903 383 40 / 35
|
|
|
|
13 |
592 600 40
|
Cable 2x0.75
Bulk ware, state length
required |
-2 |
InternBDB: AWG 12 sw. | InternKon: 903 383 40 / 38
|
|
|
|
14 |
440 151 99
|
Receptacle for tabs |
-2 |
|
|
|
|
15 |
621 338 40
|
Pressure switch 2 bar |
1 |
InternBDB: Suco 0166 407 01 1025 | InternKon: 903 344 40 / 22
|
|
|
|
16 |
490 554 40
|
Insulation kap |
2 |
InternBDB: Suco 0166 621 010 | InternKon: 903 383 40 / 18
|
|
|
|
17 |
604 732 40
|
Pressure switch 0.5 bar |
1 |
InternBDB: Suco 0166 403 02 1010 | InternKon: 903 344 40 / 21
|
|
|
|
18 |
654 913 40
|
Level probe |
3 |
InternBDB: Bedia 425 029 3/8-NPT | InternKon: 903 344 40 / 14
|
|
|
|
19 |
515 908 40
|
Coupling |
3 |
InternBDB: Bedia 21 673 | InternKon: 903 383 40 / 9
|
|
|
|
20 |
269 870 40
|
Cover tube |
1 |
InternBDB: Noris MX2-R12 R 1/2 | InternKon: 903 344 40 / 17
|
|
|
|
21 |
440 382 40
|
Sensor |
1 |
InternBDB: Noris TP 31 - PT 100 | InternKon: 903 344 40 / 15
|
|
|
|
22 |
431 168 40
|
Sensor |
1 |
InternBDB: Moto Meter 642.007.1006 | InternKon: 903 344 40 / 101
|
|
|
|
23 |
600 790 98
|
Reducing 11-9 |
-2 |
|
|
|
|
24 |
655 621 40
|
Cable union |
-2 |
InternBDB: PMA BVNV-P 090 T | InternKon: 903 383 40 / 37
|
|
|
|
25 |
356 263 40
|
Protection cap |
1 |
InternBDB: 1 350 558 014 | InternKon: 903 383 40 / 44
|
|
|
|
26 |
655 650 40
|
Cable protection hose DN 12
Bulk ware, state length
required |
-2 |
InternBDB: PMA VCST-12 B | InternKon: 903 383 40 / 10
|
|
|
|
27 |
655 628 40
|
T-Distributor |
1 |
InternBDB: PMA BFTL-10 10 10 TTT | InternKon: 903 383 40 / 31
|
|
|
|
28 |
655 631 40
|
Pipe adapter DN 12/10 |
2 |
InternBDB: PMA BAVR-12 T 10 T
|
|
|
|
29 |
604 286 40
|
Plug |
1 |
InternBDB: Murr MSUD 246543 | InternKon: 903 383 40 / 47
|
|
|
|
30 |
346 648 40
|
Seal |
1 |
InternBDB: GDM 3-17 | InternKon: 903 383 40 / 48
|
|
|
|
31 |
769 653 73
|
Switch for annular flap |
1 |
InternBDB: Type NJ5-18 GM 50-E2 20-28V IP67 /ESH-Armaturen
|
|
|
|
32 |
655 798 40
|
Cable union PG 9 |
1 |
InternBDB: Pflitsch 150 YNPM 4x3 | InternKon: 903 383 40 / 20
|
|
|
|
33 |
891 040 40
|
Plug with pins assy. |
1 |
InternKon: 903 383 40 / 23
|
|
|
|
34 |
891 032 40
|
Plug with bushings |
1 |
InternKon: 903 383 40 / 28
|
|
