DIESEL ENGINE - ELECTRIC | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

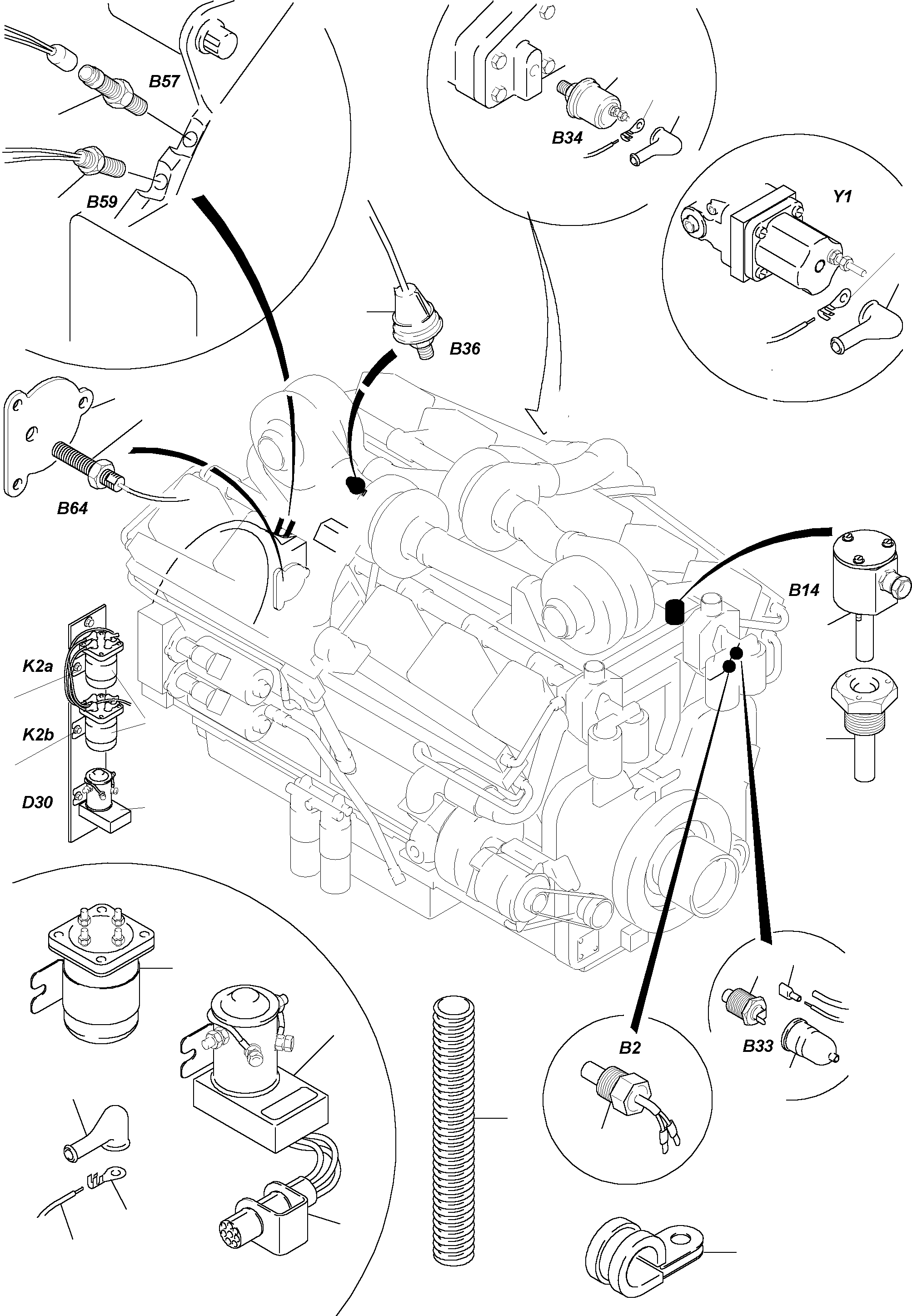

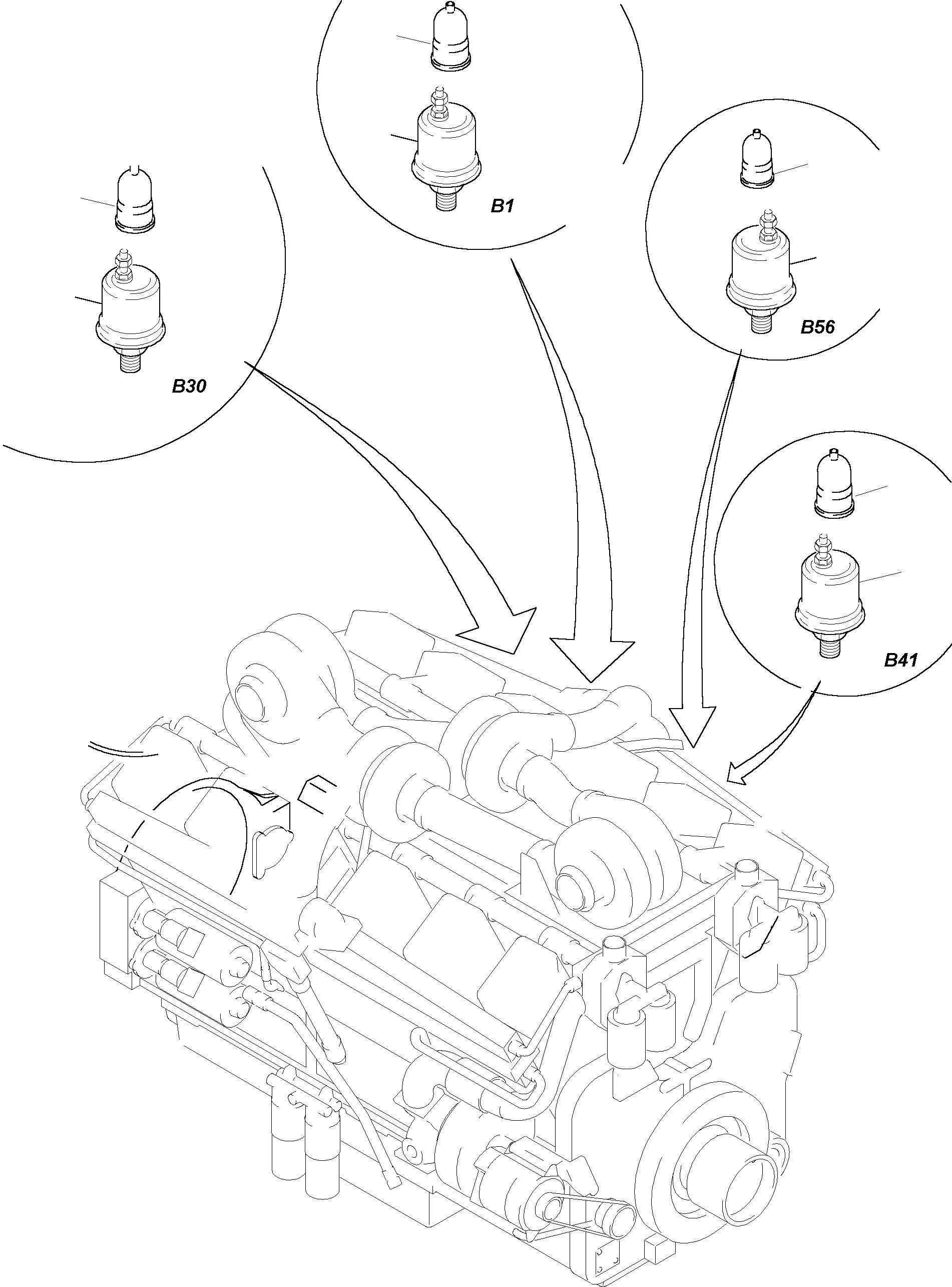

Diagram image 1 of 2

H455-SD S/N 15009

01 02 03 04 05 06 06 07 08 09 09 09 10 11 11 11 12 13 14 15 16 17 20 21 22 23 24 25 26 27 28 29 30 30 31 31 33

H455-SD S/N 15009

18 19 24 24 32 33 33 34

#	Part Number	Partname	Quantity	Options
01	696 832 73	Magnetic pickup	2	InternBDB: Flight Syst. 57-A 995-03 5/8-18 UNF
02	766 379 73	Magnetic pickup	2	InternBDB: Cummins 307 9604
03	461 350 40	Magnetic pickup	2	InternBDB: Cummins 303 4572 \| InternKon: 899 302 40 / 110
04	431 117 40	Cover	2
05	655 427 40	Pressure switch - crankcase pressure	2	InternBDB: 25 mbar /1312-007 0.02 \| InternKon: 899 303 40 / 110
06	765 579 73	Time lag relay	2	InternBDB: Cummins 362 8971
07	659 892 40	Starter relay assy.	4	InternKon: 899 302 40 / 111
08	766 502 73	Retainer	2	InternBDB: Cat 9G9 155
09	255 745 40	Rubber capsule	10	InternBDB: Bosch 3 130 558 000 \| InternKon: 899 302 40 / 39
10	055 103 40	Cable lug (M3)	20	InternBDB: Grote u. Hartmann 34 142
11	055 104 40	Cable lug (M4)	20
12	055 105 40	Cable lug (M6)	20	InternBDB: Grote u. Hartmann 33 511
13	502 609 98	Cable 1.0 Bulk ware, state length required	-2
14	308 977 40	Cable 1.5 Bulk ware, state length required	-2
15	471 729 99	Cable 2.5 Bulk ware, state length required	-2
16	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2	InternBDB: PMA-VCST 12 B
17	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2	InternBDB: PMA-VCST 23 B
18	655 431 40	Pressure switch 0,3 bar	2	InternBDB: Suco 0166 403 03 1011 \| InternKon: 899 302 40 / 176
19	655 428 40	Pressure switch - engine-oil pressure (low level idle running)	2	InternKon: 899 302 40 / 175
20	006 300 98	Clamp 10/15	-2	InternBDB: RSGU
21	006 302 98	Clamp 15/15	-2	InternBDB: RSGU
22	761 357 73	Sensor	2	InternBDB: Flight Syst. 57-5500-55
23	431 169 40	Sensor	2	InternBDB: Moto Meter 642.007.1009 \| InternKon: 899 302 40 / 104
24	490 554 40	Rubber capsule	2	InternBDB: Suco 1 166 621 010 \| InternKon: 899 302 40 / 40
25	323 960 40	Tab	10	InternBDB: Grote u. Hartmann 35 135 \| InternKon: 899 302 40 / 54
26	269 870 40	Cover tube	2	InternBDB: Noris \| InternKon: 899 302 40 / 17
27	440 382 40	Sensor	2	InternBDB: Noris TP 31 \| InternKon: 899 302 40 / 15
28	515 562 40	Oil pressure gauge (10 bar)	2	InternBDB: Moto Meter 675.002.1012 \| InternKon: 899 302 40 / 105
29	635 965 40	Relay	1	InternBDB: Cummins 305 0692 \| InternKon: 659 892 40 / 1
30	655 642 40	Circular bearing	2	InternBDB: Freudenberg A 5218 132 \| InternKon: 659 892 40 / 2
31	332 080 99	Nut	4	InternBDB: M 6 /934 \| InternKon: 659 892 40 / 3
32	655 430 40	Pressure switch	2	InternBDB: Suco 0166 407 03 1027 \| InternKon: 899 303 40 / 107
33	256 722 40	Grommet	6	InternBDB: 320 31 120
34	655 432 40	Pressure switch 1,0 bar	2	InternBDB: Suco 0166 403 03 1011 \| InternKon: 899 302 40 / 177
