CABLES - CONTROL-AND FILTER PLATE 2 | H455-SD S/N 15009

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

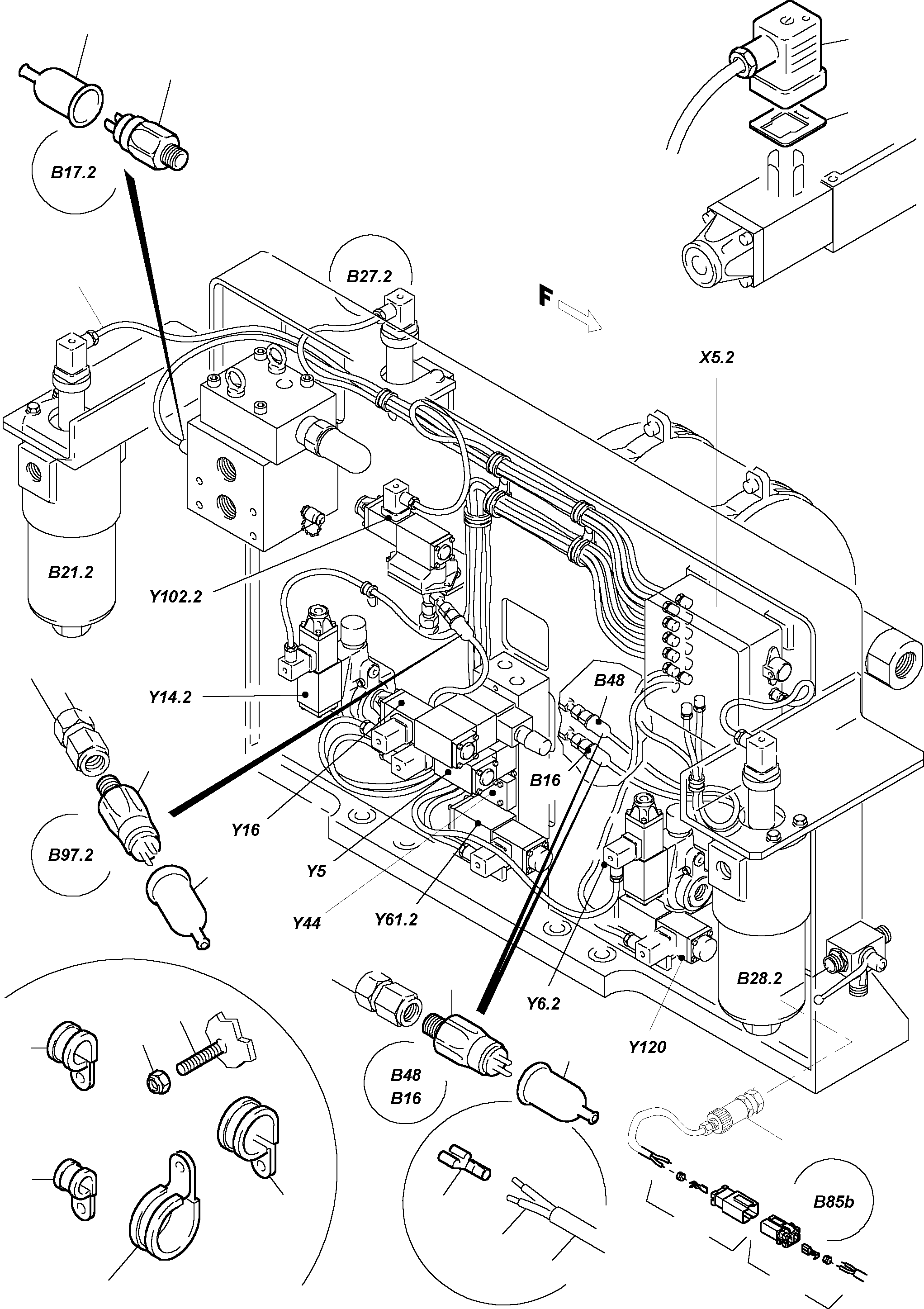

Diagram image 1 of 2

H455-SD S/N 15009

03 05 06 07 08 08 09 10 11 11 12 13 15 24 25 26 28 29 31 34 35 36 37 38

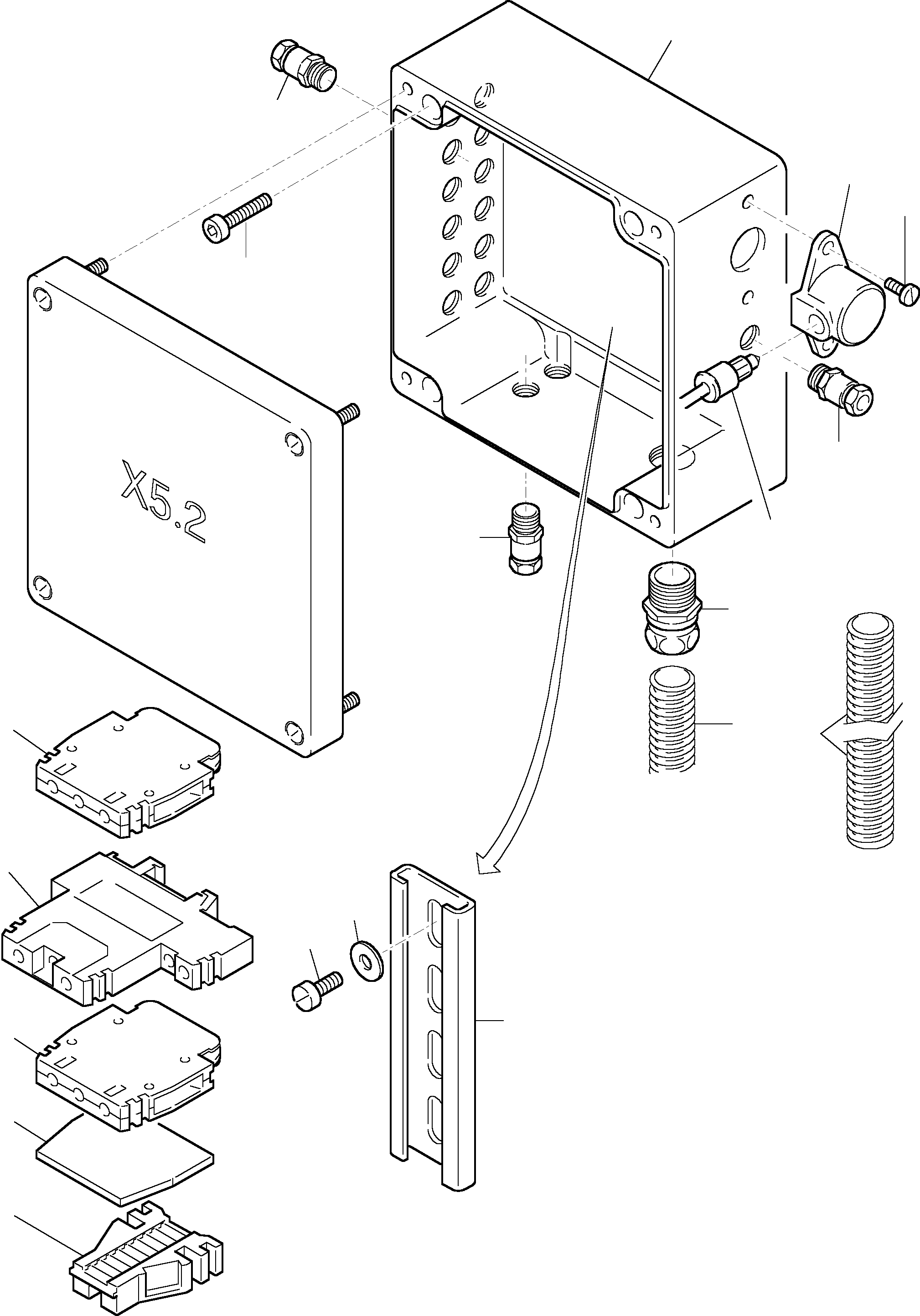

H455-SD S/N 15009

01 01 02 04 14 16 17 18 19 20 21 22 23 23 24 24 24 27 30 32 32 32 33

#	Part Number	Partname	Quantity	Options
01	655 696 40	Cable protection hose DN 29 Bulk ware, state length required	-2	InternBDB: PMA VCSG - 29 B \| InternKon: 903 383 40 / 1
02	320 816 99	Screw	4	InternBDB: AM5x10 /84
03	515 213 40	Cable 1 qmm bl. Bulk ware, state length required	-2	InternKon: 903 383 40 / 36
04	057 278 40	Socket	1	InternBDB: 0352 221 001 \| InternKon: 903 344 40 / 23
05	654 904 40	Pressure switch	1	InternBDB: Suco 0166 40403 1015 \| InternKon: 903 344 40 / 18
06	323 945 40	Thread pin	10	InternBDB: M6x15 /32501
07	507 025 98	Nut	10	InternBDB: M 6 /985
08	592 669 40	Pressure switch 24 bar	3	InternBDB: Suco 0166 41603 1063 \| InternKon: 674 927 40 / 44
09	006 300 98	Clamp	-2	InternBDB: RSGU-1100 10/15
10	006 302 98	Clamp	-2	InternBDB: RSGU 1100 15/15
11	490 554 40	Protection cap	3	InternBDB: Suco 1166621010 \| InternKon: 903 383 40 / 18
12	323 961 40	Receptacle for tabs	-2	InternBDB: 6,3x0,8
13	256 360 40	Shrinkdown tubing Bulk ware, state length required	-2	InternBDB: Atum 6/2-1200
14	655 697 40	Cable union DN 29	1	InternBDB: PMA BVNV-P 299 G \| InternKon: 903 383 40 / 15
15	356 263 40	Protection cap	2	InternBDB: 1 350 558 014 \| InternKon: 903 383 40 / 44
16	255 712 40	Housing, empty	1	InternBDB: Bopla A 125 \| InternKon: 903 383 40 / 5
17	356 265 40	Clamp	2	InternBDB: Entrelec 10300-26
18	356 264 40	Twin terminal	10	InternBDB: 115 271-22
19	356 266 40	Cover plate	2	InternBDB: 118 499-23
20	505 940 99	Assembly rail ca. 150mm Bulk ware, state length required	1	InternBDB: TS 32 /46277
21	320 819 99	Screw	4	InternBDB: AM 6x10 /84
22	346 499 99	Lock washer	4	InternBDB: 6 /128
23	490 372 40	Protective wire clip	4
24	505 117 98	Cable union PG 7	-2	InternBDB: PG 7 /46255 \| InternKon: 903 383 40 / 21
25	604 286 40	Valve plug with cable	-2	InternBDB: Murr MSUD-24 6543 Bauform A \| InternKon: 903 383 40 / 47
26	348 648 40	Seal	-2	InternBDB: Hirschmann GDM-3-17 \| InternKon: 903 383 40 / 48
27	320 975 99	Screw	2	InternBDB: AM 4x16 /84
28	006 304 98	Clamp	-2	InternBDB: RSGU 1100 20/25
29	534 092 98	Clamp	-2	InternBDB: RSGU 1100 8/15
30	440 305 99	Plug	1
31	896 529 40	Pressure measuring transducer 60 bar	1	InternBDB: Hydac HDA 4740-B100-142 \| InternKon: 674 927 40 / 70
32	502 825 98	Cable nut	-2	InternBDB: APG 7 /46258 \| InternKon: 903 383 40 / 39
33	501 654 98	Cable nut	1	InternBDB: APG 29 /46258 \| InternKon: 903 383 40 / 25
34	323 960 40	Tab	-2	InternBDB: 6,3x0,8 35135
35	891 039 40	Plug assy. with pins	1	InternKon: 903 383 40 / 29
36	891 031 40	Plug assy. with bushings	1	InternKon: 903 383 40 / 30
37	600 790 99	Reduction HPG 11-9	-2
38	502 921 98	Reduction HPG 9-7	-2
