H455-SD S/N 15009

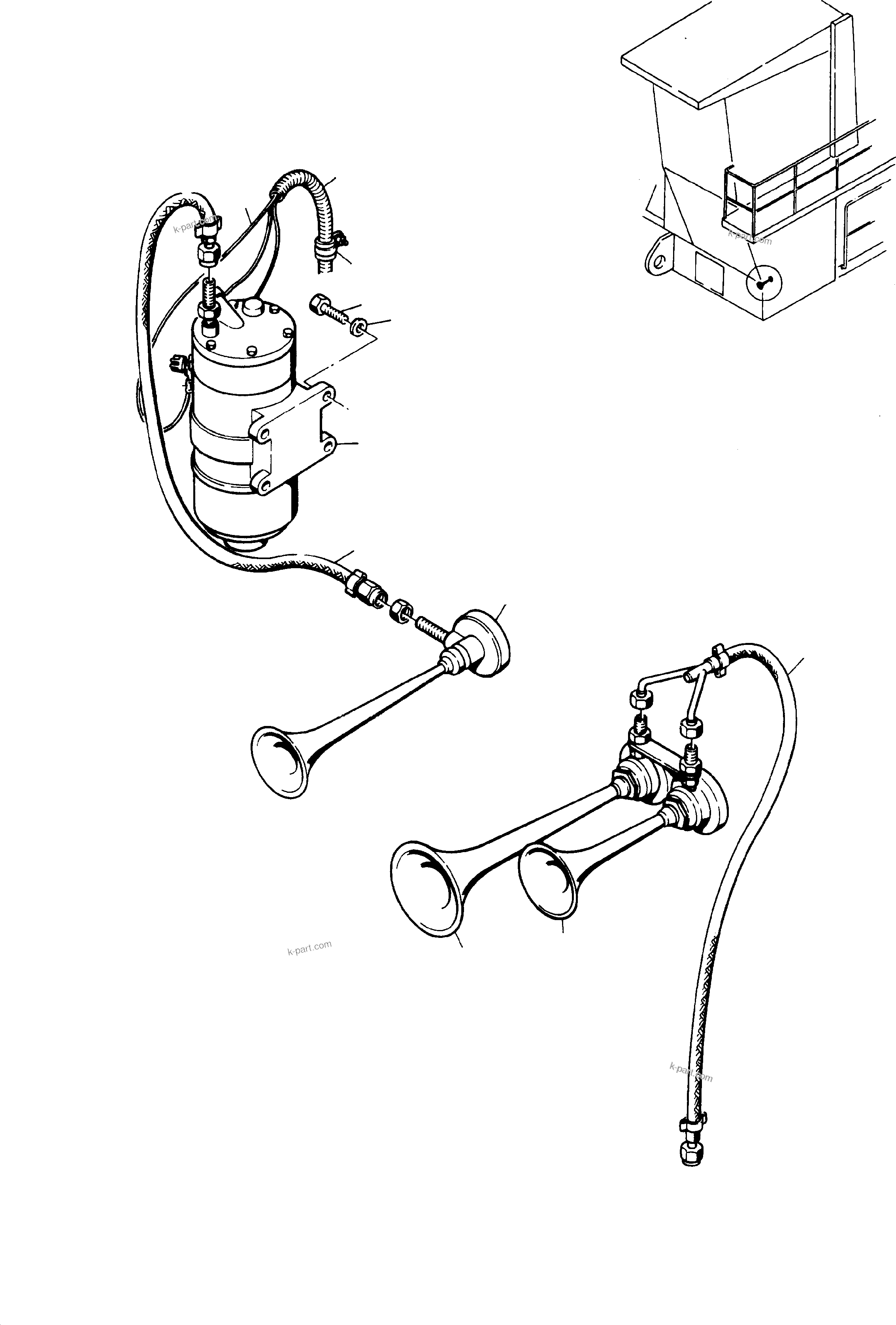

Komatsu parts book diagram for H455-SD S/N 15009: WARNING SYSTEM

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	256 886 40	Compressor-single ton-horn fig.-no: 03-05	1	InternBDB: Fa.Martin 2090 GM 440 Hz/24 V \| InternKon: 399 790 40 / 20
	?	270 960 40	Compressor-two ton-horn fig.-no: 05-08	-2	InternBDB: Fa.Martin 2092 GM 466/587 Hz 24 V
	?	966 953	Air horn 440Hz	1	InternBDB: 2510.04
	?	966 954	Hose 1000 lg.	1	InternBDB: 2561.03
	?	966 955	Compressor	1	InternBDB: fьr 2090 GM
	?	966 956	Air horn 466Hz	1	InternBDB: 2503.04
	?	966 957	Air horn 587Hz	1	InternBDB: 2502.04
	?	966 958	Hose 1000 lg.	1	InternBDB: 2566.03
	?	307 752 99	Screw	4	InternBDB: M8x20 /933
	?	340 507 99	Washer	4	InternBDB: 8,4 /125
	?	056 211 40	Conduit Bulk ware, state length required	-2	InternBDB: PG 7 Fa. Sievert 2010.101.007 \| InternKon: 399 790 40 / 65
	?	006 302 98	Clamp	10	InternBDB: RSGU /1100 15/15
	?	471 665 99	Cable ca. 1500 lg. Bulk ware, state length required	3	InternBDB: 4І
	?	055 111 40	Cable shoe	3	InternBDB: 4

Komatsu H455-SD S/N 15009 parts catalog PDF

WARNING SYSTEM (114-2150) in H455-SD S/N 15009. Diagram image and parts list.
