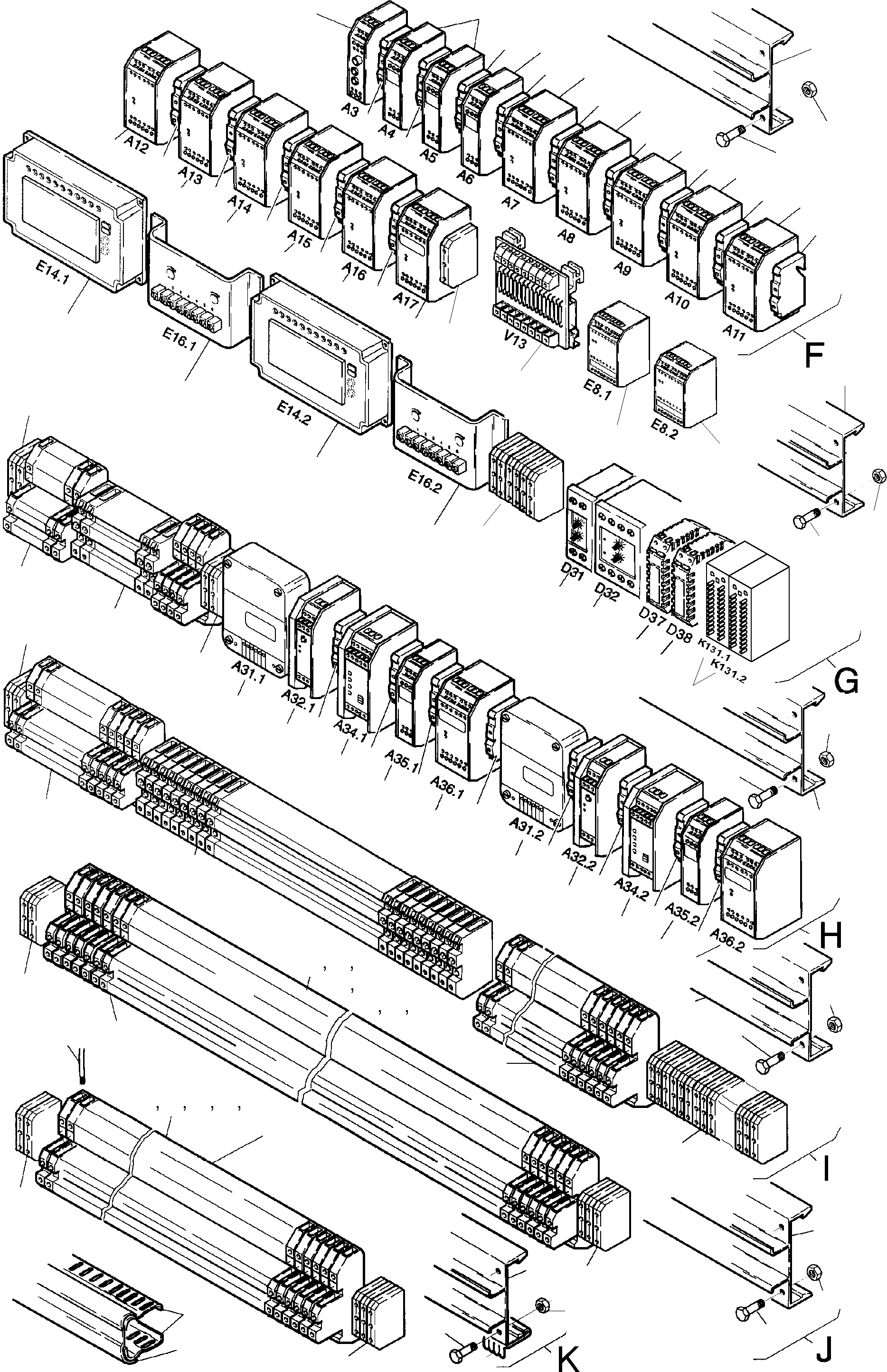

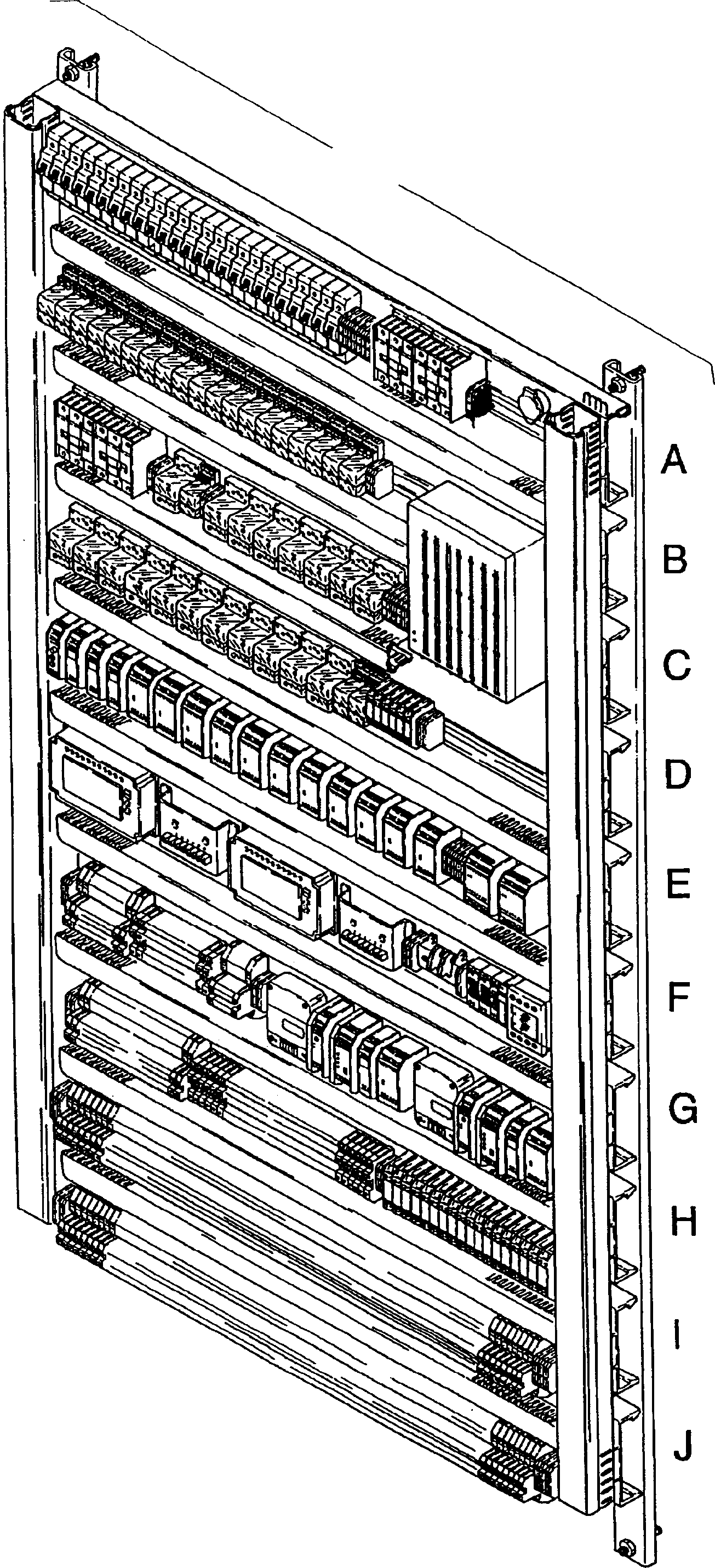

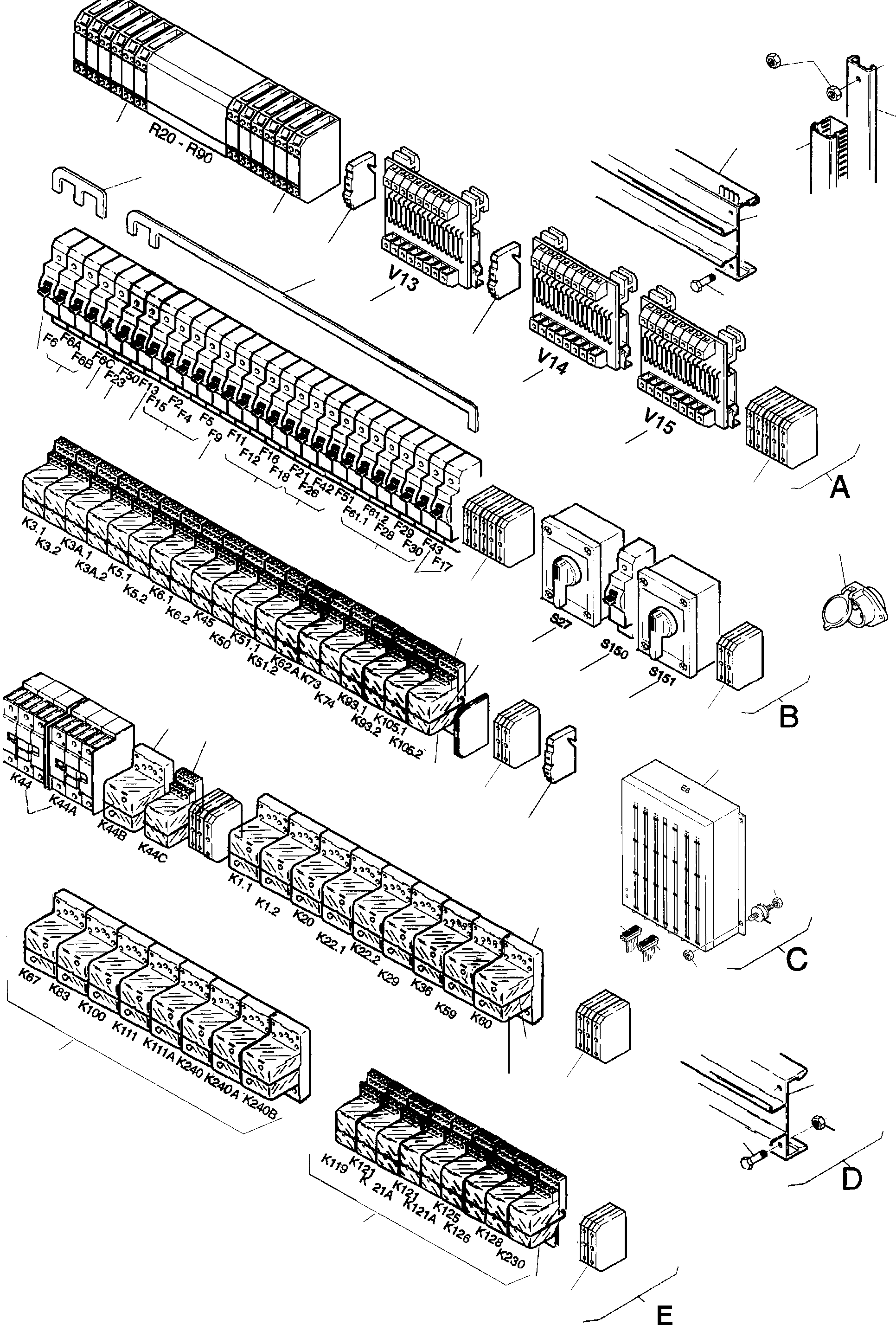

Diagram image 1 of 3

H455-SD S/N 15009

01 01 02 03 04 04 05 05 05 05 06 06 07 07 07 08 09 09 10 10 10 11 11 11 11 11 12 13 15 16 16 16 17 17 17 18 18 18 19 19 19 20 20 20 21 21 21 22 23 24 27 29 29 32 37 37 37 46 47 48 48 48 48 48 48 68

H455-SD S/N 15009

01 01 01 01 01 01 03 04 04 04 04 04 04 05 05 05 05 05 05 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 07 14 25 25 26 26 28 30 31 31 33 34 35 36 37 38 38 38 38 38 38 38 38 38 38 39 40 40 40 40 41 42 42 43 43 44 44 45 45 48 48 48 48 48 48 48 48 48 48 49 49 49 49 49 50 50 50 50 51 51 52 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68

#	Part Number	Partname	Quantity	Options
00	903 345 40	Switch framing with electr. parts	-2	InternKon: 903 344 40 / 1
01	655 416 40	Sectional plate	11	InternBDB: SNA 120x860 /330495 \| InternKon: 903 345 40 / 3
02	906 284 40	Assembly rail 1600 mm	2	InternBDB: 330 111 / WP \| InternKon: 903 345 40 / 2
03	323 237 40	Wiring terminal	5	InternBDB: KP 300 /33004 \| InternKon: 903 345 40 / 4
04	500 106 98	Bolt	44	InternBDB: M8x16 /933 \| InternKon: 903 345 40 / 18
05	334 599 99	Nut	48	InternBDB: M8 /985 \| InternKon: 903 345 40 / 19
06	655 500 40	Rail collector Bulk ware, state length required	-2	InternBDB: ABB SZ-KS 2/56 \| InternKon: 903 345 40 / 46
07	356 265 40	Clamp	-2	InternBDB: 116 535-04 \| InternKon: 903 345 40 / 48
08	604 221 40	Cable channel ca. 1600 mm Bulk ware, state length required	-2	InternBDB: 60x100 /BA 660 100
09	654 856 40	Breaker 25 A	2	InternBDB: ABB S 271 - K 25 \| InternKon: 903 345 40 / 12
10	654 298 40	Breaker 16 A	10	InternBDB: ABB S 271 - K 16 \| InternKon: 903 345 40 / 13
11	654 854 40	Breaker 6 A	9	InternBDB: ABB S 271 - K 6 \| InternKon: 903 345 40 / 14
12	654 855 40	Breaker 10 A	5	InternBDB: ABB S 271 - K 10 \| InternKon: 903 345 40 / 17
13	908 425 40	SPC control	1	InternBDB: E-ST /901 366 40 \| InternKon: 903 345 40 / 15
14	654 439 40	Time-lag module	1	InternBDB: Dold BA 7924.21/002 DC 24V 1S \| InternKon: 903 345 40 / 21
15	603 368 40	Connection cable analog	3	InternKon: 903 345 40 / 16
16	356 184 40	Relay	18	InternKon: 903 345 40 / 43
17	323 910 40	Relay socket	18	InternKon: 903 345 40 / 44
18	323 911 40	Retainer	18	InternKon: 903 345 40 / 45
19	399 773 40	Relay	26	InternKon: 903 345 40 / 10
20	592 338 40	Relay socket	26	InternBDB: ZG 78700 \| InternKon: 903 345 40 / 9
21	414 369 40	Spring retainer	26	InternKon: 903 345 40 / 11
22	603 346 40	Voltage measuring terminal	1	InternBDB: TL \| InternKon: 903 345 40 / 26
23	603 345 40	Resistor terminal	63	InternBDB: TL \| InternKon: 903 345 40 / 23
24	323 590 40	Switch modul	1	InternBDB: 1040.6 / EGT 2 \| InternKon: 903 345 40 / 20
25	603 342 40	Frequency/current transformer	2	InternBDB: DKG Rohteil 621 266 40 \| InternKon: 903 345 40 / 22
26	399 723 40	Ramp generator	2	InternBDB: DYN 2-9000 \| InternKon: 903 345 40 / 25
27	634 173 40	Electronic - connecting cable, binary	3	InternBDB: Intercontrol 4306.02.008 \| InternKon: 903 345 40 / 42
28	490 680 40	Time lag relay	1	InternBDB: 010 515-15 \| InternKon: 903 345 40 / 1
29	896 488 40	Camswitch	2	InternBDB: T0-1-8220 /IVSM \| InternKon: 903 345 40 / 99
30	655 895 40	Time lag relay	1	InternBDB: Finder 87.11.0.240 \| InternKon: 903 345 40 / 105
31	694 669	Electronic relay	1	InternBDB: Cummins P/N 303 7359 S/NE 44052
32	896 581 40	System power braker	2	InternBDB: Entrelec 1.367.245.06 DL 15 KDC \| InternKon: 903 345 40 / 27
33	323 233 40	Wiring profile Bulk ware, state length required	-2	InternBDB: 33002 \| InternKon: 903 345 40 / 5
34	323 234 40	Cover 25 BN Bulk ware, state length required	-2	InternBDB: 30071 \| InternKon: 903 345 40 / 6
35	896 546 40	Time lag relay	1	InternBDB: Finder 87.61.0.240 \| InternKon: 903 345 40 / 107
36	891 073 40	Measuring transducer with switch box	2	InternBDB: Deuta Merk BWS 6 MY \| InternKon: 903 345 40 / 106
37	655 748 40	Diode array	3	InternBDB: DGE-16-6045 Luetze 716 045 \| InternKon: 903 345 40 / 104
38	634 575 40	Amplifier	10	InternBDB: VT 11550-21 \| InternKon: 903 345 40 / 24
39	461 039 40	Amplifier	1	InternBDB: VT 11015-1x \| InternKon: 903 345 40 / 87
40	621 735 40	Capacitor	5	InternBDB: VT 11110-11 \| InternKon: 903 345 40 / 86
41	621 506 40	Module	1	InternBDB: ESG \| InternKon: 903 345 40 / 93
42	494 014 40	Amplifier	2	InternBDB: 461 039 40 VT 11015-1x \| InternKon: 903 345 40 / 91
43	494 011 40	Main supply unit	2	InternBDB: 449 965 40 DBM / EPM \| InternKon: 903 345 40 / 88
44	482 221 40	PID-governor	2	InternBDB: 490 893 40 DBM / ELL \| InternKon: 903 345 40 / 90
45	603 383 40	Engine transmitter	2	InternBDB: 621 645 40 / ERM \| InternKon: 903 345 40 / 89
46	461 029 40	Circular bearing	4	InternBDB: B 5218-195 11 MN 60 \| InternKon: 903 345 40 / 41
47	057 278 40	Socket	1	InternBDB: 0352 221 001
48	490 372 40	Protective wire clip	80
49	356 264 40	Twin terminal	300	InternBDB: 115 271-22 \| InternKon: 903 345 40 / 47
50	356 266 40	Cover plate	-2	InternBDB: 118 499-23 \| InternKon: 903 345 40 / 49
51	461 321 40	Terminal	60	InternBDB: 115 212-17 \| InternKon: 903 345 40 / 96
52	461 322 40	Cover plate	-2	InternBDB: 113 137-02 \| InternKon: 903 345 40 / 97
53	356 276 40	Separator	-2	InternBDB: 113 003-10 \| InternKon: 903 345 40 / 59
54	323 943 40	Sleeve marker	-2	InternKon: 903 345 40 / 38
55	323 942 40	Sleeve marker	-2	InternKon: 903 345 40 / 37
56	270 318 40	Sleeve marker	-2	InternKon: 903 345 40 / 39
57	323 944 40	Sleeve marker	-2	InternKon: 903 345 40 / 40
58	997 892 73	Marking strip set	-2
59	515 189 40	Cable 1 qmm Bulk ware, state length required	-2
60	471 731 99	Cable 6 qmm Bulk ware, state length required	-2
61	356 267 40	Cross connection 2	-2	InternKon: 903 345 40 / 50
62	356 268 40	Cross connection 3	-2	InternKon: 903 345 40 / 51
63	356 269 40	Cross connection 4	-2	InternKon: 903 345 40 / 52
64	356 270 40	Cross connection 10	-2	InternKon: 903 345 40 / 53
65	356 273 40	Cross connection 10	-2	InternKon: 903 345 40 / 56
66	356 279 40	Cross connection 4	-2	InternKon: 903 345 40 / 62
67	356 280 40	Cross connection 10	-2	InternKon: 903 345 40 / 63
68	659 872 40	Connection cable ECS assy.	1	InternKon: 903 383 40 / 66

Komatsu H455-SD S/N 15009 parts catalog PDF

SWITCH FRAMING IN CABSUPPORT (515-2165e) in H455-SD S/N 15009. Diagram image and parts list.
