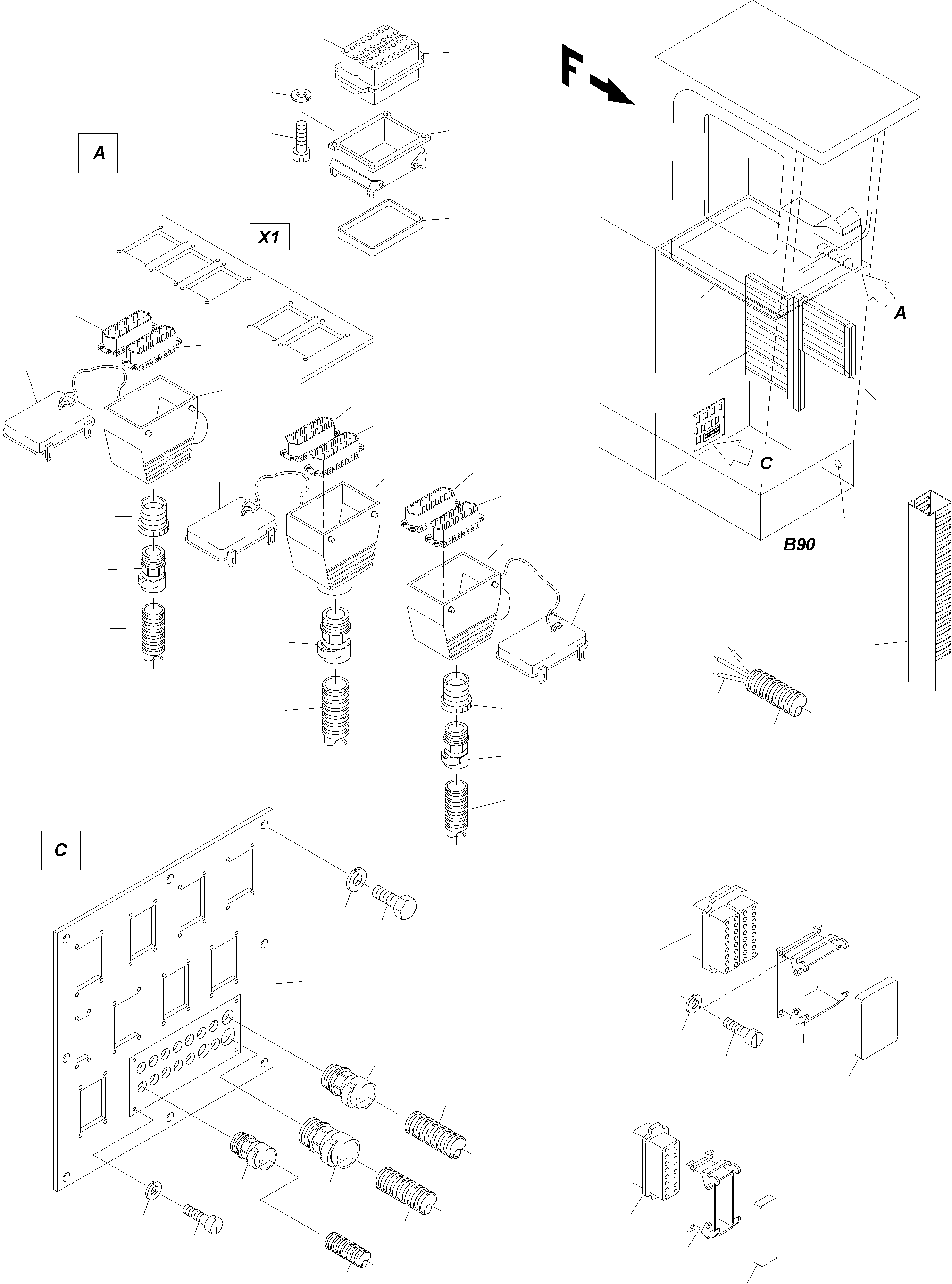

ELECTRIC - CAB SUPPORT | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Switch framing	1	InternBDB: 903 345 40 \| InternKon: 903 344 40 / 1	515-2165e
02	655 416 40	Sectional plate	2	InternBDB: SNA 120x860 /330 945
03	323 237 40	Wiring terminal	2	InternBDB: KP 300 /33004
04	323 233 40	Wiring profile	-2	InternBDB: 33002
05	323 234 40	Cover 25 BN	-2
06	440 382 40	Sensor	1	InternBDB: TP 31 \| InternKon: 903 344 40 / 15
07	269 870 40	Cover tube	1	InternBDB: MX 2 R 12 G 1/2 \| InternKon: 903 344 40 / 17
08	600 790 98	Reducing 11-9	-2
09	500 106 98	Bolt	8	InternBDB: M8x16 /933
10	334 599 99	Nut	8	InternBDB: M 8 /985
20	385 224 40	Socket	5	InternBDB: Contact 10.5830 \| InternKon: 903 383 40 / 11
21	385 264 40	Safety cover	5	InternBDB: 10.4816
22	385 223 40	Mounting box	11	InternBDB: 10.4720
23	358 263 40	Safety cover	11	InternBDB: 10.4815 \| InternKon: 903 383 40 / 56
24	385 225 40	Plug insert	-2	InternBDB: 10.5330 H-A 16 BS (1-16) \| InternKon: 903 383 40 / 12
25	385 226 40	Plug insert	-2	InternBDB: 10.5430 H-A 16 BS (17-32) \| InternKon: 903 383 40 / 13
26	385 227 40	Insert	-2	InternBDB: 10.5320 H-A 16 SS (1-16) \| InternKon: 903 383 40 / 54
27	385 228 40	Insert	-2	InternBDB: 10.5420 H-A 16 SS (17-32) \| InternKon: 903 383 40 / 55
28	896 747 40	Cable channel	-2	InternBDB: LKV 100/100 \| InternKon: 903 383 40 / 71
29	515 213 40	Cable 1.0	-2	InternKon: 903 383 40 / 36
30	887 027 40	Plate	1	InternKon: 903 344 40 / 165
31	320 975 99	Screw	-2	InternBDB: AM 4x16 /84
32	346 508 99	Lock washer	-2	InternBDB: 4 /128
33	600 815 99	Reducing 29-21	4	InternBDB: Sievert 246 6452 H-PG 29-21/DIN 46320
34	655 624 40	Cable union DN 23	-2	InternBDB: PMA BVNV-P 213 G \| InternKon: 903 383 40 / 8
35	515 214 40	Cable 2.5 qmm	-2	InternKon: 903 383 40 / 35
36	655 652 40	Cable protection hose DN 23	-2	InternBDB: VCSG-23 B \| InternKon: 903 383 40 / 2
37	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 903 383 40 / 46
38	461 731 40	Encoder	-2	InternKon: 903 383 40 / 51
39	592 600 40	Cable 2x0.75	-2	InternKon: 903 383 40 / 38
40	655 696 40	Cable protection hose DN 29	-2	InternBDB: VCSG-29 B \| InternKon: 903 383 40 / 1
41	635 677 40	Cable 4x1	-2	InternKon: 903 383 40 / 52
42	655 697 40	Cable union DN 29	-2	InternBDB: PMA BVNV-P 299 G \| InternKon: 903 383 40 / 15
43	324 217 40	Mounting box	6	InternBDB: 10.4620
44	655 621 40	Cable union DN 10	-2	InternBDB: PMA BVNV-P 090 T \| InternKon: 903 383 40 / 37
45	358 261 40	Safety cover	-2	InternBDB: 10.4695
46	307 777 99	Bolt	9	InternBDB: M10x25 /933
47	346 500 99	Lock washer	9	InternBDB: 10 /128
