H455-SD S/N 15009

Komatsu parts book diagram for H455-SD S/N 15009: CABLES CONTROL BLOCKS,CONTROL PLATE - H.P. FILTER

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Junction box	1		515-2185a
	?	600 790 99	Reducing nut	30	InternBDB: HPG 11-9 / 46320-MS
	?	600 849 99	Reducing nut	20	InternBDB: HPG 16-11 / 46320-MS
	?	655 621 40	Cable union DN 10	20	InternBDB: BVNV-P 090 T \| InternKon: 903 383 40 / 37
	?	896 435 40	Cable union DN 10-90°	10	InternBDB: BVWV-P 090 T \| InternKon: 903 383 40 / 65
	?	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2	InternBDB: PMA VCST-10 B \| InternKon: 903 383 40 / 46
	?	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2	InternBDB: PMA VCSG-23 B \| InternKon: 903 383 40 / 2
	?	621 752 40	Cable channel Bulk ware, state length required	-2	InternBDB: LFG 400 60/0 Tehalit \| InternKon: 903 383 40 / 61
	?	515 213 40	Cable 1 qmm bl. Bulk ware, state length required	-2	InternKon: 903 383 40 / 36
	?	896 530 40	Pressure measuring transducer 500 bar	4	InternBDB: Hydac HDA 4740-B-600-142
	?	635 677 40	Cable 4x1 Bulk ware, state length required	-2	InternKon: 903 383 40 / 36
	?	515 214 40	Cable 2.5 Bulk ware, state length required	-2	InternKon: 903 383 40 / 35
	?	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2	InternBDB: VCSG-17 B \| InternKon: 903 383 40 / 7
	?	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2	InternBDB: PMA VCST-12 B \| InternKon: 903 383 40 / 10
	?	891 031 40	Plug with bushings 2-pole	4	InternKon: 903 383 40 / 30
	?	891 039 40	Plug with pins 2-pole	4	InternKon: 903 383 40 / 29

Komatsu H455-SD S/N 15009 parts catalog PDF

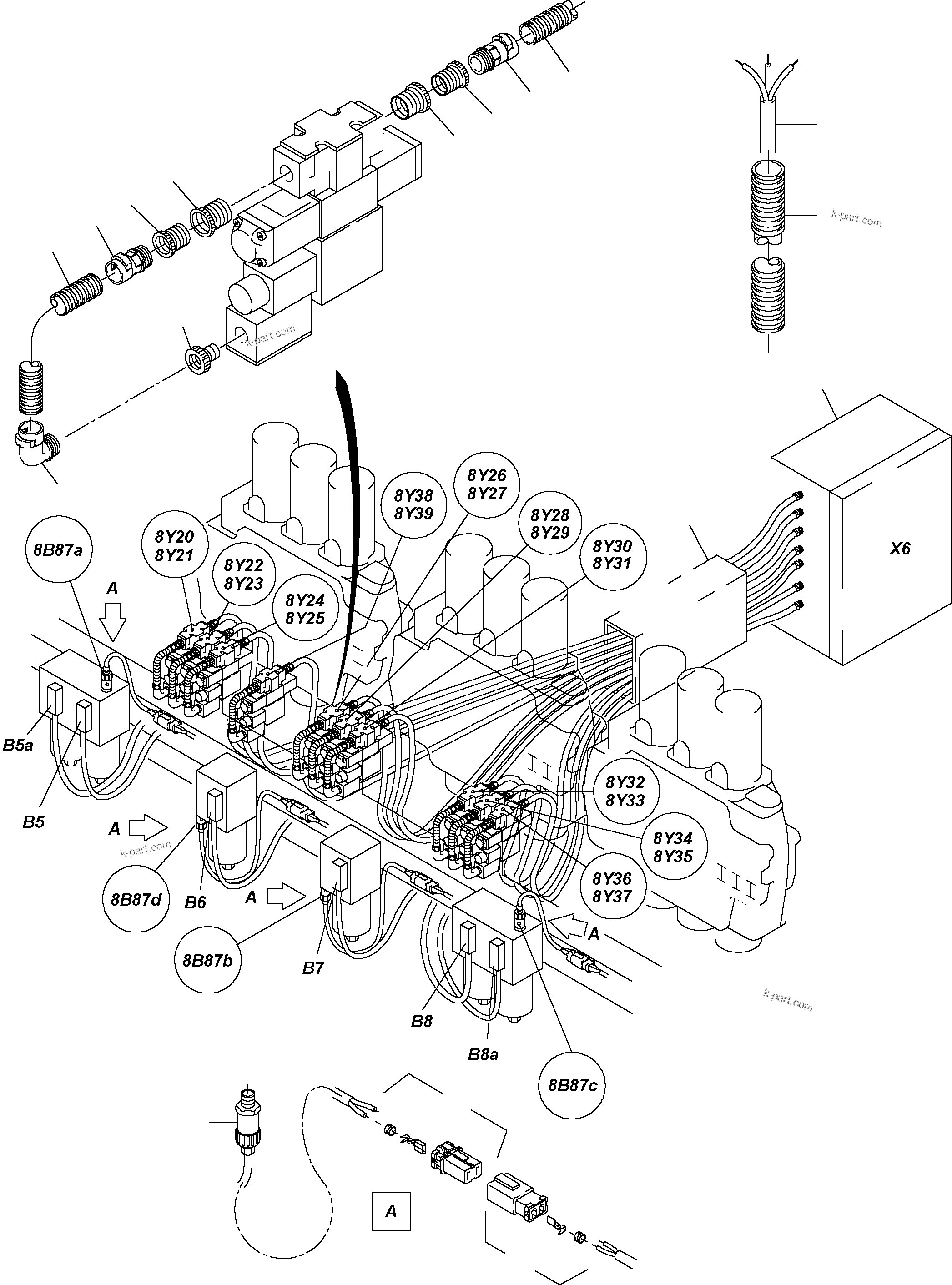

CABLES CONTROL BLOCKS,CONTROL PLATE - H.P. FILTER (515-2145a) in H455-SD S/N 15009. Diagram image and parts list.
