Diagram image 1 of 2

PC3000-6 S/N 46174

05 05 60 61 62 63 64 65 66 67 67 68

PC3000-6 S/N 46174

01 02 03 04 07 08 09 09 10 15 19 20 20 21 22 22 22 22 22 22 23 24 27 29 30 30 32 33 34 35 36 36 37 38 39 40 40 41 41 42 42 42 43 44 45 46 47 48 49 50 51 52 53 54 55 70 70 71 72 72

#	Part Number	Partname	Quantity	Options
01	923 934 40	Frame	1	InternBDB: OELKUEHLERRAHMEN 55' MB PC 3000- 6 \| InternKon: 930 845 40 / 1
02	937 946 40	Radiator mounting assy. fig.-nos. 40, 42-55	1	InternBDB: OELKUEHLERRAHMEN ZUS PC 3000- 6 \| InternKon: 930 845 40 / 2
03	561 720 40	Radiator mounting assy. fig.-nos. 41-55	1	InternBDB: OELKUEHLERRAHMEN ZUS H 185-2 \| InternKon: 930 849 40 / 3
04	930 846 40	Oil cooler door	1	InternBDB: KUEHLERTUER PC 3000- 6 \| InternKon: 930 845 40 / 4
05	390 641 40	Hinge	9	InternBDB: SCHARNIER H 485 \| InternKon: 930 849 40 / 5
07	911 486 40	Fan cowl	2	InternBDB: HUTZE PC 3000- 6 \| InternKon: 930 845 40 / 7
08	937 852 40	Fan Cage Top	1	InternBDB: LUEFTERSCHUTZ OBEN KPL PC 3000- 6 \| InternKon: 930 845 40 / 8
09	924 700 40	Fan Cage Bottom	2	InternBDB: LUEFTERSCHUTZ UNTEN PC 3000- 6 \| InternKon: 930 845 40 / 9
10	937 869 40	Fan Cage Top	1	InternBDB: LUEFTERSCHUTZ OBEN KPL PC 3000- 6 \| InternKon: 930 845 40 / 10
15	904 322 40	Angle 127X179	4	InternBDB: KANTBLECH \| InternKon: 930 845 40 / 15
19	487 647 40	Profiled joint	4	InternBDB: ZELLKAUTSCHUK15X 30X1600 NK20 \| InternKon: 930 845 40 / 19
20	487 648 40	Profiled joint	8	InternBDB: ZELLKAUTSCHUK15X 30X1100 NK20 \| InternKon: 930 845 40 / 20
21	515 433 40	Profiled joint	4	InternBDB: ZELLKAUTSCHUK15X 15X1600 NK20 \| InternKon: 930 845 40 / 21
22	256 952 40	Adhesive	1	InternBDB: KLEBER TEROKAL 3958 \| InternKon: 930 845 40 / 22
23	324 741 40	Plug	2	InternBDB: VERSCHL-STOPFEN F 26 \| InternKon: 930 845 40 / 23
24	509 588 98	Bolt	2	InternBDB: M24X610 10.9 DIN00931 \| InternKon: 930 849 40 / 24
27	504 193 98	Nut	2	InternBDB: M24 10 DIN985
29	307 805 99	Bolt	24	InternBDB: M12X35 8.8 DIN00933 \| InternKon: 930 845 40 / 29
30	307 802 99	Bolt	24	InternBDB: M12X25 8.8 DIN00933 \| InternKon: 930 845 40 / 30
32	307 754 99	Bolt	8	InternBDB: M8X25 8.8 DIN00933 \| InternKon: 930 845 40 / 32
33	334 600 99	Nut	24	InternBDB: M12 8 DIN00985 \| InternKon: 930 845 40 / 33
34	334 599 99	Nut	8	InternBDB: M 8 8 DIN00985 \| InternKon: 930 845 40 / 34
35	350 757 99	Washer	2	InternBDB: R26,0 ST DIN 00440 \| InternKon: 930 845 40 / 35
36	341 337 99	Washer	64	InternBDB: 13,5 100HV DIN 00436 \| InternKon: 930 845 40 / 36
37	346 498 99	Lock washer	8	InternBDB: A 12 FST DIN 00128 \| InternKon: 930 845 40 / 37
38	551 485 40	Profiled joint	4	InternBDB: 25X25X1100 NK20 \| InternKon: 930 849 40 / 38
39	551 486 40	Profiled joint	4	InternBDB: 25X25X1600 NK20 \| InternKon: 930 849 40 / 39
40	937 947 40	Radiator mounting w/o hinge	1	InternBDB: KUEHLERRAHMEN PC 3000- 6 \| InternKon: 937 946 40 / 1
41	509 295 40	Radiator mounting w/o hinge	1	InternBDB: KUEHLERRAHMEN H 185-2 \| InternKon: 561 720 40 / 1
42	655 483 40	Oil cooler	4	InternBDB: OELKUEHLER 0571.482.0000 SCHWEISSNAHTVERSTAERKUNG \| InternKon: 561 720 40 / 2
43	898 375 40	Angle	16	InternBDB: KANTBLECH QST52-3N \| InternKon: 561 720 40 / 3
44	490 066 40	Elastic element	16	InternBDB: GUMMIMETALLKONUS STALISTIC-GM-KONUS 60SHORE K 74M \| InternKon: 561 720 40 / 4
45	341 333 99	Washer	16	InternBDB: 17,5 100HV DIN 00436 \| InternKon: 561 720 40 / 5
46	308 603 99	Bolt	32	InternBDB: M12X45 8.8 DIN00931 \| InternKon: 561 720 40 / 6
47	510 748 98	Resilient sleeve	32	InternBDB: 13/25X20 42CRMO4-TQ+T WN 34194840 \| InternKon: 561 720 40 / 7
48	308 638 99	Bolt	16	InternBDB: M16X100 8.8 DIN00931 \| InternKon: 561 720 40 / 8
49	340 469 99	Washer	16	InternBDB: B17,0 140HV DIN00125 \| InternKon: 561 720 40 / 9
50	334 601 99	Nut	16	InternBDB: M16 8 DIN00985 \| InternKon: 561 720 40 / 10
51	307 780 99	Bolt	64	InternBDB: M10X35 8.8 DIN00933 \| InternKon: 561 720 40 / 11
52	340 465 99	Washer	64	InternBDB: B10,5 140HV DIN00125 \| InternKon: 561 720 40 / 12
53	507 037 98	Nut	64	InternBDB: M10 8 DIN00985 \| InternKon: 561 720 40 / 13
54	360 873 40	Plug	8	InternBDB: VSTI M26x1,5ED WN34191340 \| InternKon: 561 720 40 / 14
55	173 495 40	Plug	8	InternBDB: VSTI M48X2,0ED ST ZN WN 34191340 \| InternKon: 561 720 40 / 15
60	621 107 40	Pin	1	InternKon: 390 641 40 / 1
61	390 642 40	Round bar steel	2	InternKon: 390 641 40 / 2
62	390 643 40	Round bar steel	1	InternKon: 390 641 40 / 3
63	340 619 99	Washer	1	InternBDB: 30 / 1440 \| InternKon: 390 641 40 / 4
64	342 121 99	Cotter pin	1	InternBDB: 8x50 \| InternKon: 390 641 40 / 5
65	350 562 99	Grease nipple	1	InternBDB: AM 10x1 \| InternKon: 390 641 40 / 6
66	502 082 98	Bolt (Standard)	4	InternBDB: M30x250 /931 \| InternKon: 919 903 40 / 32
66	513 028 98	Bolt (Cold weather design)	2	InternBDB: M30X250 10.9 KALTZ DIN 00931 \| InternKon: 919 903 40 / 32
67	255 057 40	Washer	8	InternBDB: Ш 31 \| InternKon: 919 903 40 / 29
68	302 552 99	Bolt (Standard)	4	InternBDB: M 30x120 \| InternKon: 919 903 40 / 31
68	500 982 98	Bolt (Cold weather design)	4	InternBDB: M30X120 10.9 KALTZ DIN 00931
70	925 166 40	Rod	2	InternKon: 928 810 40 / 1
71	925 164 40	Rod	1	InternKon: 930 848 40 / 1
72	344 635 99	Pin	3	InternBDB: 5x30 / 1473 \| InternKon: 930 848 40 / 3

Komatsu PC3000-6 S/N 46174 parts catalog PDF

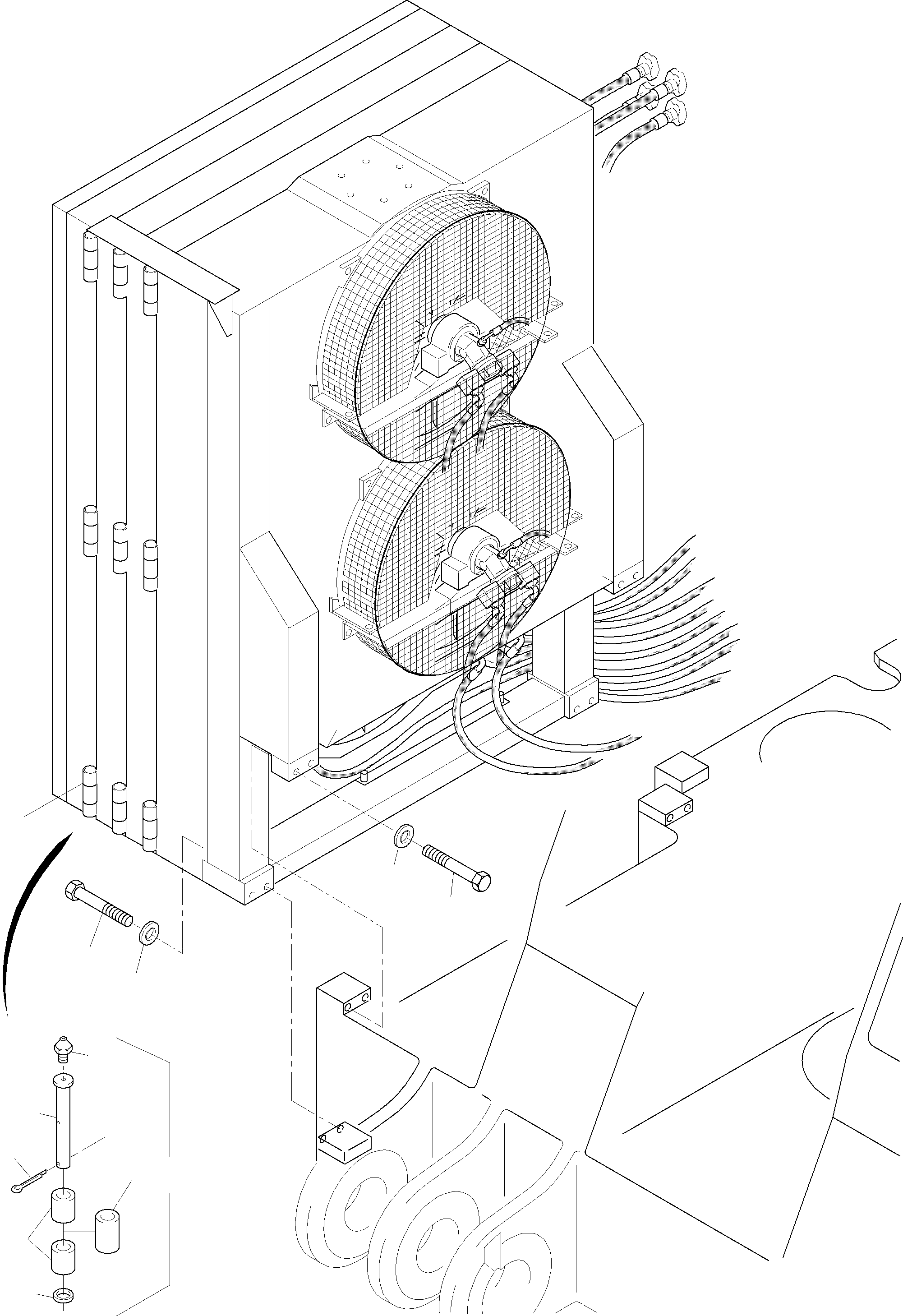

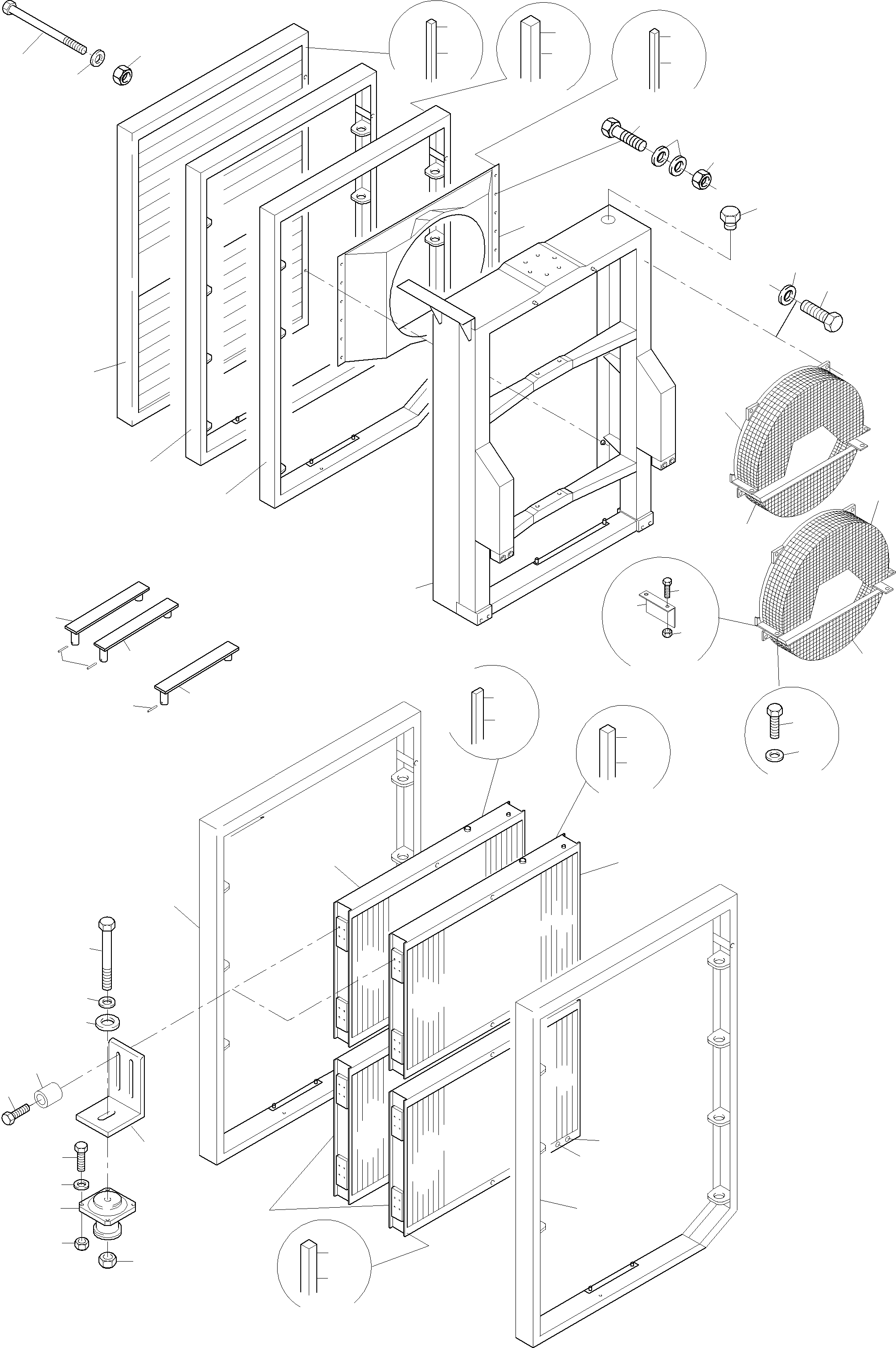

OIL COOLER SYSTEM 55 DEGREE (485-1813f) in PC3000-6 S/N 46174. Diagram image and parts list.
