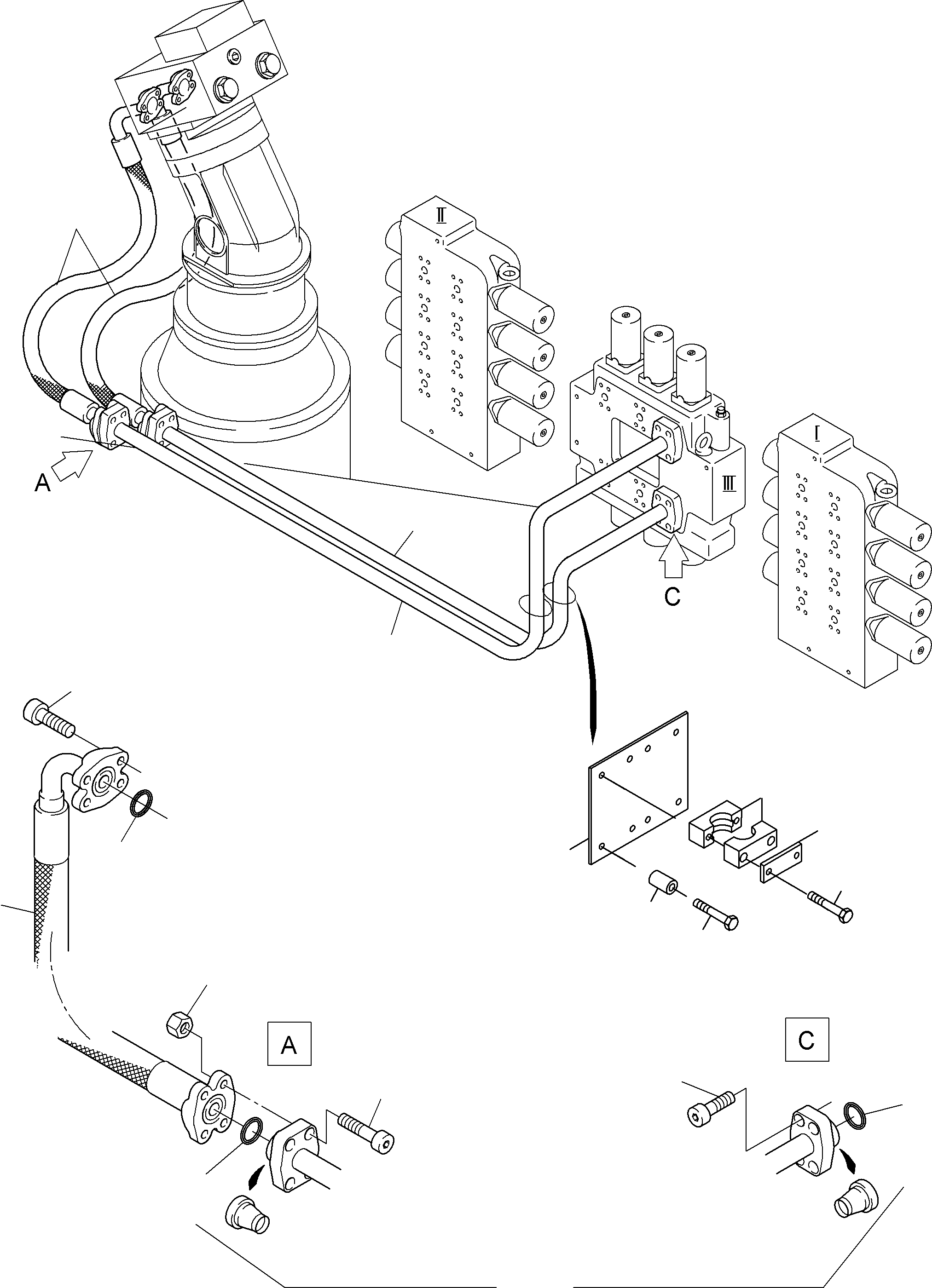

Komatsu parts book diagram for PC3000-6 S/N 46174: PRESSURE LINES (P) -SLEW GEAR

01 01 03 04 05 06 06 06 10 10 11 11 15 20 21 22 23 24 25

	#	Part Number	Partname	Quantity	Options	Reference
	01	517 748 98	Hose assy. DN 40x1130	2	InternBDB: SHL350 40X 1130 FS11/2 FS11/2 90 WN 34195140 \| InternKon: 935 281 40 / 18
	03	319 292 99	Bolt	8	InternBDB: M16x90 / DIN 912 \| InternKon: 935 281 40 / 94
	04	512 813 98	Bolt	8	InternBDB: M16x50 / DIN 912 \| InternKon: 935 281 40 / 95
	05	332 355 99	Nut	8	InternBDB: M 16 / DIN 934 \| InternKon: 935 281 40 / 99
	06	356 209 40	Flange seal	8	InternBDB: 1 1/2 90 NBR \| InternKon: 935 281 40 / 61
	10	793 462 73	Pipe Ш 50 assy.	1	InternBDB: 50x6x2252 / 915 470 40 \| InternKon: 935 242 40 / 21
	11	793 463 73	Pipe Ш 50 assy.	1	InternBDB: 50x6x1918 / 915 471 40 \| InternKon: 935 242 40 / 22
	15	319 289 99	Bolt	16	InternBDB: M16x60 /912 \| InternKon: 935 242 40 / 47
	20	510 746 98	Resilient sleeve	8	InternBDB: 13 / 25x40 \| InternKon: 935 281 40 / 193
	21	502 977 98	Pair of clamps	2	InternBDB: S-4-G-50 / DIN 3015 \| InternKon: 935 281 40 / 124
	22	534 008 99	Cover plate	2	InternBDB: S-DP-A-4 / 3015 \| InternKon: 935 281 40 / 125
	23	308 434 99	Bolt	4	InternBDB: M 12x115 / DIN 931 / 10.9 \| InternKon: 935 281 40 / 195
	24	308 437 99	Bolt	3	InternBDB: M 12x65 / DIN 931 / 10.9 \| InternKon: 935 281 40 / 196
	25	935 258 40	Plate	1	InternBDB: 12x220x248 \| InternKon: 935 281 40 / 179

Komatsu PC3000-6 S/N 46174 parts catalog PDF

PRESSURE LINES (P) -SLEW GEAR (485-1867c) in PC3000-6 S/N 46174. Diagram image and parts list.
