RETURN LINES - MANIFOLD (BE) | PC3000-6 S/N 46174

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

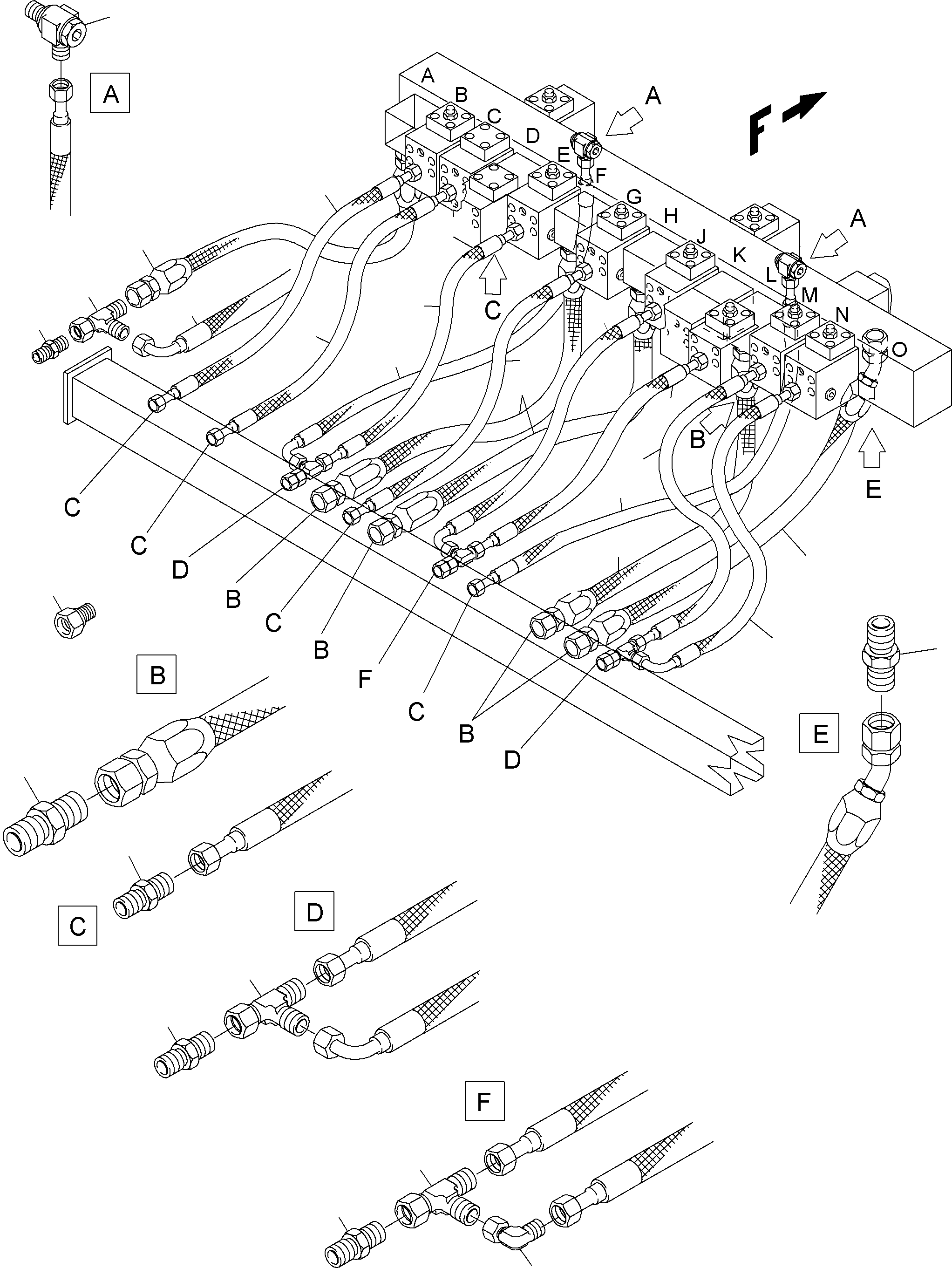

Diagram image 1 of 2

PC3000-6 S/N 46174

01 02 03 04 05 05 05 06 07 08 09 10 10 10 11 11 11 12 12 13 14 15 16 25 35 36 40

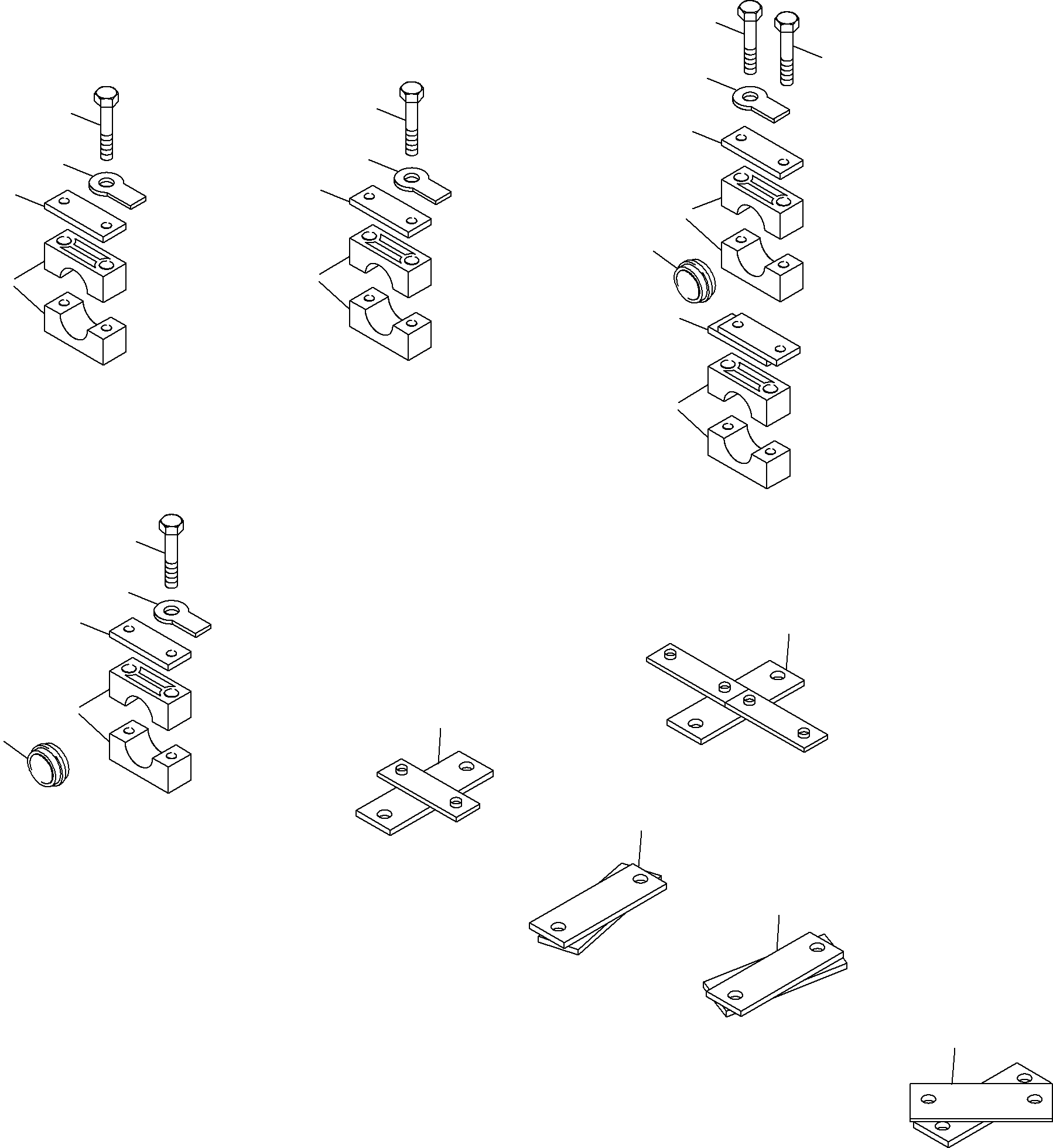

PC3000-6 S/N 46174

17 18 18 19 20 21 22 23 24 26 26 27 27 28 28 28 29 29 29 30 31 32 33 34 41 43

#	Part Number	Partname	Quantity	Options
01	517 019 98	Hose assy. DN 40x1440	1	InternBDB: 120 DOL 42 DOL 42 45° /341 951 40 \| InternKon: 935 242 40 / 60
02	516 209 98	Hose assy. DN 40x1820	1	InternBDB: 025 DOL 42 DOL 42 45° \| InternKon: 935 242 40 / 6
03	516 210 98	Hose assy. DN 40x1600	1	InternBDB: 025 DOL 42 DOL 42 45° \| InternKon: 935 242 40 / 7
04	516 211 98	Hose assy. DN 40x1720	2	InternBDB: 025 DOL 42 DOL 42 \| InternKon: 925 720 40 / 33
05	516 452 98	Hose assy. DN 20x1690	3	InternBDB: DOS 20 DOS 20 \| InternKon: 925 720 40 / 36
06	516 453 98	Hose assy. DN 20x1800	1	InternBDB: 350 DOS 20 / DOS 20-90 \| InternKon: 935 242 40 / 9
07	516 454 98	Hose assy. DN 20x1600	1	InternBDB: DOS 20 DOS 20 \| InternKon: 935 242 40 / 10
08	516 455 98	Hose assy. DN 20x1610	1	InternBDB: DOS 20 DOS 20-90 \| InternKon: 935 242 40 / 11
09	516 456 98	Hose assy. DN 20x1820	1	InternBDB: DOS 20 DOS 20 \| InternKon: 935 242 40 / 12
10	374 415 99	Socket	13	InternBDB: SDS-L42xM48x2 / ISO 8434 \| InternKon: 935 242 40 / 49
11	374 413 99	Socket	15	InternBDB: S 20 B-M / DIN 3901 \| InternKon: 935 242 40 / 50
12	516 180 98	Union	4	InternBDB: SWRT-S 20 / ISO 8434-4 \| InternKon: 935 242 40 / 51
13	906 926 40	Union	2	InternBDB: 20-SM / OMD \| InternKon: 935 242 40 / 52
14	516 449 98	Hose assy. DN 20x1740	1	InternBDB: 350 DOS 20 / DOS 20 \| InternKon: 925 720 40 / 35
15	516 450 98	Hose assy. DN 20x1630	1	InternBDB: DOS 20 DOS 20 \| InternKon: 935 242 40 / 56
16	517 904 98	Hose assy. DN 20x1400	1	InternBDB: 350 DOS 20 / DOS 20 45 \| InternKon: 925 720 40 / 31
17	534 009 99	Weld on plate	2	InternBDB: S-AP-A-4 / DIN 3015 \| InternKon: 925 709 40 / 6
18	505 729 98	Insert	3	InternBDB: S-4-53,4 \| InternKon: 925 709 40 / 10
19	506 371 98	Pair of clamps	2	InternBDB: S-4-E \| InternKon: 925 709 40 / 7
20	518 036 98	Pair of clamps	9	InternBDB: S-3-G-32 PA \| InternKon: 925 709 40 / 9
21	534 004 99	Cover plate	9	InternBDB: S-DP-A-3 / DIN 3015 \| InternKon: 925 709 40 / 12
22	308 581 99	Bolt	18	InternBDB: M10x70 / DIN 931 \| InternKon: 925 709 40 / 8
23	343 005 99	Washer	18	InternBDB: 10,5 / DIN 93 \| InternKon: 925 709 40 / 22
24	308 599 99	Bolt	2	InternBDB: M12x105 / DIN 931 \| InternKon: 925 709 40 / 15
25	516 165 98	Union	1	InternBDB: SWE-S 20 / ISO 8434-4 \| InternKon: 925 720 40 / 57
26	512 885 98	Pair of clamps	14	InternBDB: S-4-R-50 / DIN 3015 \| InternKon: 925 709 40 / 8
27	534 008 99	Cover plate	16	InternBDB: S-DP-A-4 / DIN 3015 \| InternKon: 925 709 40 / 11
28	308 612 99	Bolt	32	InternBDB: M12x100 / DIN 931 \| InternKon: 925 709 40 / 16
29	343 006 99	Washer	34	InternBDB: 13 / DIN 93 \| InternKon: 925 709 40 / 21
30	909 934 40	Retainer	3	InternKon: 925 709 40 / 2
31	909 935 40	Retainer	7	InternKon: 925 709 40 / 5
32	904 903 40	Retainer r.h.	1	InternKon: 925 709 40 / 3
33	904 904 40	Retainer l.h.	1	InternKon: 925 709 40 / 4
34	894 718 40	Retainer	1	InternKon: 925 709 40 / 1
35	173 495 40	Plug	2	InternBDB: VSTI M48x2 ED \| InternKon: 925 720 40 / 34
36	517 693 98	Hose assy. DN 40x2400	1	InternBDB: 120 DOL 42 DOL 42 90° \| InternKon: 925 720 40 / 37
40	516 178 98	Union	1	InternBDB: SWRT-L 42 \| InternKon: 935 242 40 / 61
41	506 371 98	Pair of clamps	1	InternBDB: S-4-E / DIN 3015 \| InternKon: 925 720 40 / 41
43	534 008 99	Cover plate	1	InternBDB: S-DP-A-3 / DIN 3015 \| InternKon: 925 720 40 / 43
