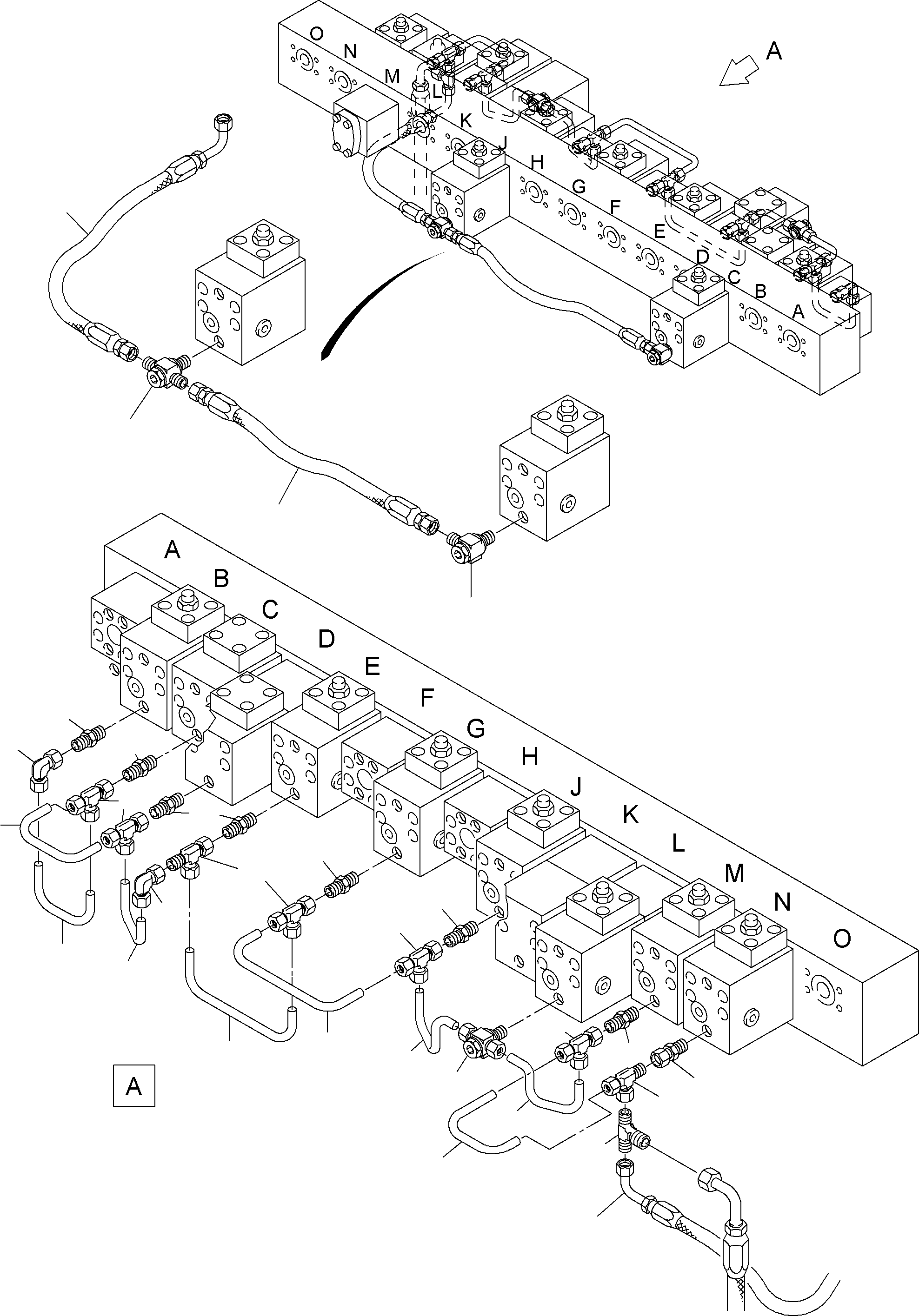

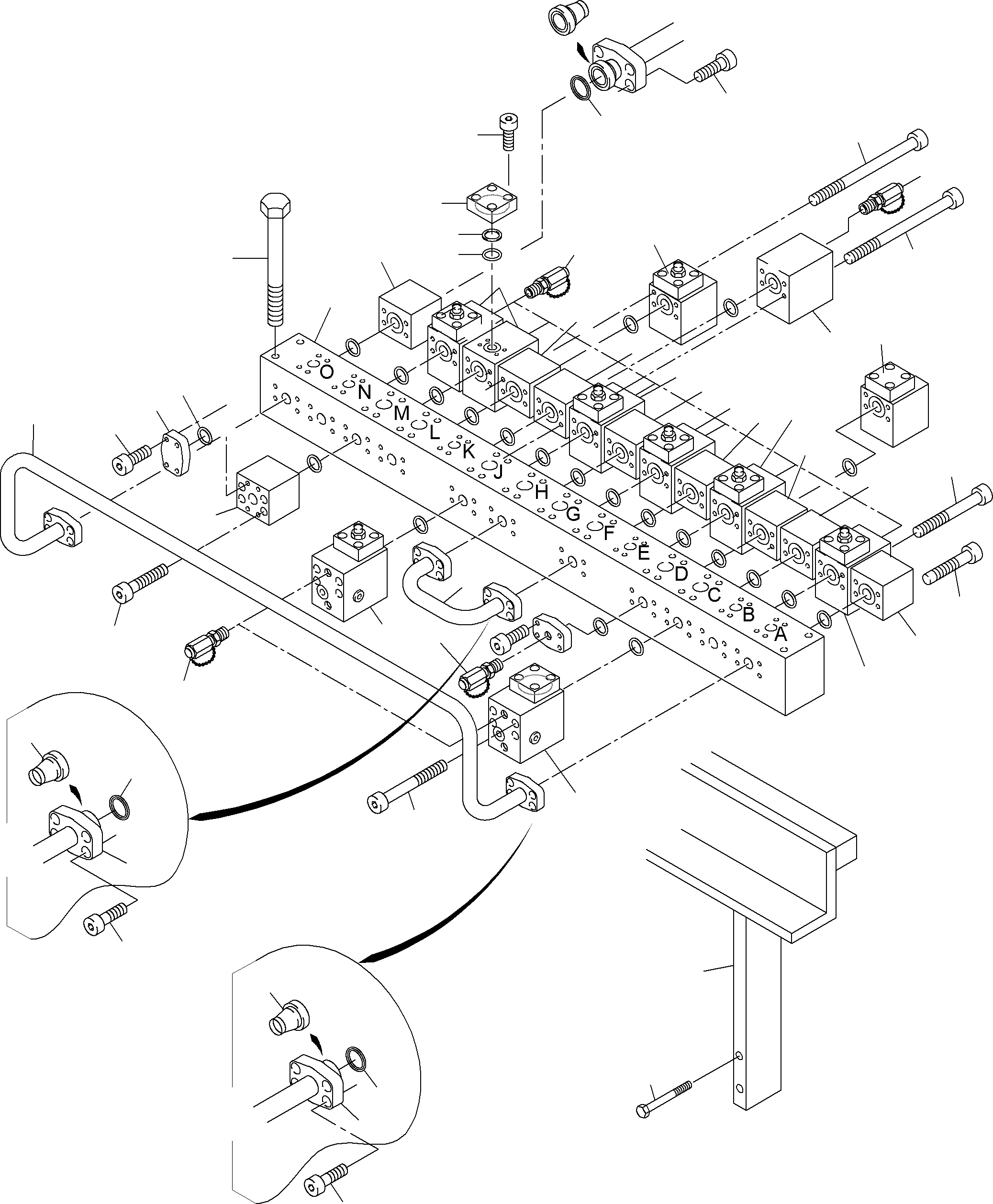

MANIFOLD (BE) | PC3000-6 S/N 46174 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01	935 241 40	Manifold	1	InternKon: 935 242 40 / 1
02	933 884 40	Block	1	InternBDB: 110x140 \| InternKon: 925 720 40 / 1
03		Throttle check valve	10	InternBDB: 461 640 40 \| InternKon: 925 720 40 / 9	090-0695
04		Anticavitation valve	6	InternBDB: 907 621 40 \| InternKon: 925 720 40 / 3	991-0474
05	215 627 99	Pipe Ш 10	-2	InternBDB: 10x2 / DIN 2391
08	514 598 98	Hose assy. DN 8x755	1	InternBDB: 240 DOL 10 DOL 10 /341 951 40 \| InternKon: 935 240 40 / 8
09	514 599 98	Hose assy. DN 8x1130	1	InternBDB: 240 DOL 10 DOL 10 90° /341 951 40 \| InternKon: 935 240 40 / 9
10	515 812 98	Coupling	11	InternBDB: AG 1/4 /241 957 40 \| InternKon: 935 240 40 / 10
11	506 581 98	Plug	1	InternBDB: A 1 1/2 - 6000 SAE \| InternKon: 935 240 40 / 11
12	356 209 40	Flange seal	6	InternBDB: 1 1/2 NBR 90 \| InternKon: 935 240 40 / 12
13	374 416 99	Socket	7	InternBDB: SDS-L10xG1/4A-Type E / ISO 8434 \| InternKon: 925 720 40 / 39
14	516 183 98	Socket	1	InternBDB: L 10-G / DIN 3945 \| InternKon: 935 240 40 / 14
15	516 156 98	Socket	2	InternBDB: L 10 / DIN 3942 \| InternKon: 925 720 40 / 40
16	516 173 98	Socket	6	InternBDB: L 10 / DIN 3944 \| InternKon: 935 240 40 / 16
17	906 806 40	Union	1	InternBDB: TH10-LR KDS \| InternKon: 935 240 40 / 15
18	655 182 40	Union	1	InternBDB: TR 10/15/10 PL / OMD \| InternKon: 935 240 40 / 18
19	517 073 98	Union	1	InternBDB: 10-LR / OMD \| InternKon: 935 240 40 / 19
20	906 806 40	Union	2	InternBDB: TH 10-LR KDS \| InternKon: 935 240 40 / 17
21	319 212 99	Bolt	32	InternBDB: M16x150 / DIN 912 \| InternKon: 935 240 40 / 21
22	319 294 99	Bolt	16	InternBDB: M16x110 / DIN 912 \| InternKon: 935 240 40 / 22
23	512 813 98	Bolt	4	InternBDB: M16x50 / DIN 912 \| InternKon: 935 240 40 / 20
24	631 069 40	Block	2	InternKon: 925 720 40 / 4
25	514 529 98	Bolt	16	InternBDB: M16x260 / DIN 912 \| InternKon: 935 240 40 / 26
26	631 063 40	Diffuser	1	InternKon: 925 720 40 / 5
27	935 469 40	Console	1	InternKon: 935 242 40 / 15
28	308 444 99	Bolt	4	InternBDB: M 16x100 \| InternKon: 935 242 40 / 16
30	793 404 73	Pipe Ш 38 assy.	1	InternBDB: 925 943 40 \| InternKon: 935 242 40 / 35
31	793 405 73	Pipe Ш 50 assy.	1	InternBDB: 925 944 40 \| InternKon: 936 500 40 / 23
32	500 129 98	Flange	2	InternBDB: FE-3800-20/6 \| InternKon: 935 242 40 / 40
33	501 871 98	Ring	2	InternBDB: K-3850-20 \| InternKon: 935 242 40 / 41
34	356 210 40	Flange seal	2	InternBDB: 1 1/4 NBR 90 \| InternKon: 935 242 40 / 42
35	512 814 98	Bolt	8	InternBDB: M14x45 / DIN 912 \| InternKon: 935 242 40 / 43
36	501 898 98	Collar ring	2	InternBDB: RING K -5060-24 ST WN 01174799 \| InternKon: 925 944 40 / 2
37	500 127 98	Flange	2	InternBDB: FLANSCH FE-5000-24/6 ST WN 01174799 \| InternKon: 925 944 40 / 3
39	319 289 99	Bolt	8	InternBDB: M16x60 / DIN 912 \| InternKon: 935 242 40 / 47
40	514 324 98	Bolt	4	InternBDB: M20x205 / DIN 931 \| InternKon: 935 260 40 / 88
45	436 058 40	Plate	2	InternKon: 925 720 40 / 53
46	006 729 98	O-Ring	2	InternBDB: 47,22x3,53B NB90 \| InternKon: 925 720 40 / 54
47	414 982 40	Seal ring	2	InternBDB: 48,8x55,0x0,7 P (Spiral) \| InternKon: 925 720 40 / 55
48	319 283 99	Bolt	8	InternBDB: M14x30 / DIN 912 \| InternKon: 925 720 40 / 56
