PC4000-6 S/N 08195

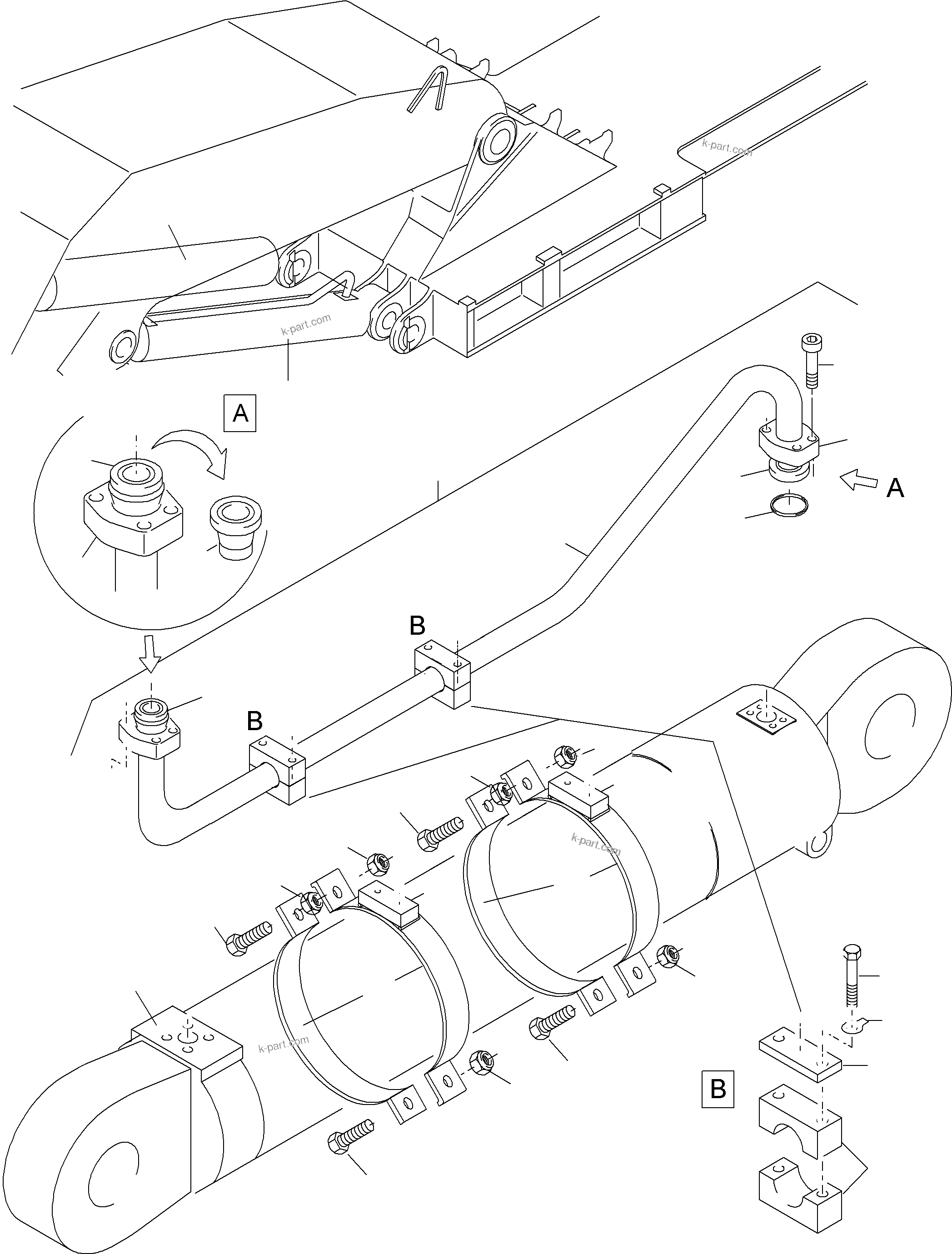

Komatsu parts book diagram for PC4000-6 S/N 08195: PIPING - BOOM CYLINDERBACKHOE BUCKET

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Hydr.-cylinder	1	InternBDB: 929 265 40, 948 435 40 TT-40°C \| InternKon: 948 422 40 / 1	355-4080d
	?	917 841 40	Piping assy. fig-nos. 05-23	1	InternKon: 948 422 40 / 2
	?	793 247 73	Pipe assy. Ш 65	1	InternBDB: 917 828 40 \| InternKon: 917 841 40 / 1
	?	504 448 98	Flange	2	InternBDB: FE-6500-32/6 \| InternKon: 917 841 40 / 3
	?	504 461 98	Collar ring	1	InternBDB: K-6580-32 \| InternKon: 917 841 40 / 4
	?	385 243 40	Quadring	1	InternBDB: 58,1x2,79x3,2 \| InternKon: 917 841 40 / 5
	?	504 449 98	Collar ring	1	InternBDB: K0-6580-32 \| InternKon: 917 841 40 / 6
	?	319 323 99	Bolt	4	InternBDB: M20x90 /912 10.9 \| InternKon: 917 841 40 / 7
	?	653 957 40	Weld on plate	2	InternKon: 917 841 40 / 8
	?	332 336 98	Nut	4	InternBDB: M 16 /934 \| InternKon: 917 841 40 / 9
	?	505 440 98	Half clamp	2	InternBDB: S-4-R-65 /3015 \| InternKon: 917 841 40 / 10
	?	534 008 99	Cover plate	2	InternBDB: S-DP-A-4 /3015 \| InternKon: 917 841 40 / 11
	?	307 839 99	Bolt	4	InternBDB: M16x80 /933 \| InternKon: 917 841 40 / 12
	?	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 917 841 40 / 13
	?	932 486 40	Half clamp	4	InternKon: 917 841 40 / 2
	?	308 614 99	Bolt	4	InternBDB: M12x120 /931 \| InternKon: 917 841 40 / 14
	?	509 310 98	Washer	2	InternBDB: 13 /93 \| InternKon: 917 841 40 / 15

Komatsu PC4000-6 S/N 08195 parts catalog PDF

PIPING - BOOM CYLINDERBACKHOE BUCKET (355-4036d) in PC4000-6 S/N 08195. Diagram image and parts list.
