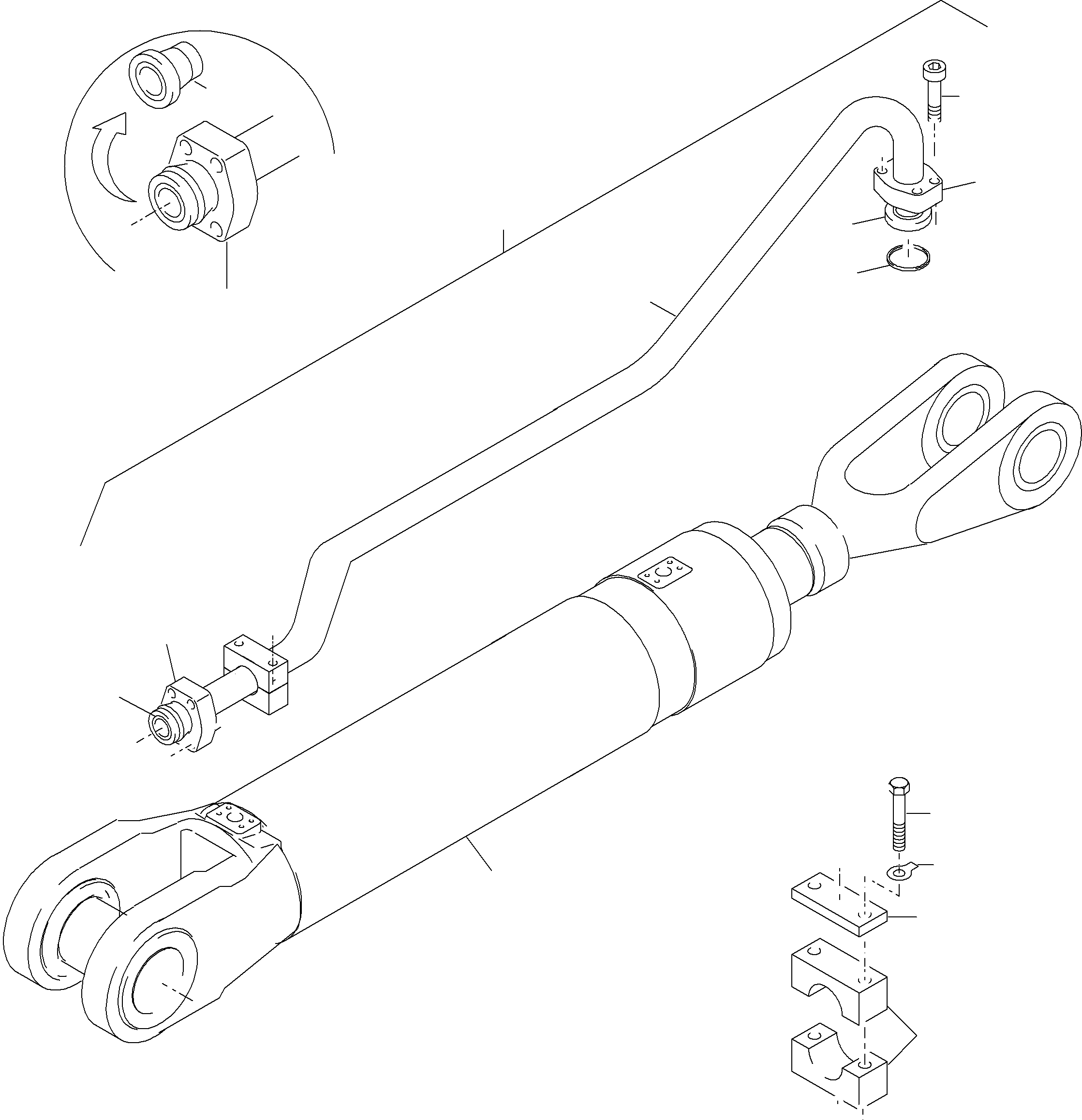

Komatsu parts book diagram for PC4000-6 S/N 08195: PIPING - STICK CYLINDER BACKHOE EQUIPMENT

01 02 03 03 04 05 06 06 06 07 07 08 09 10 11 12 13

	#	Part Number	Partname	Quantity	Options	Reference
	01		Hydraulic cylinder	1	InternBDB: 929 270 40 \| InternKon: 932 478 40 / 1	355-4180b
	02	909 571 40	Pipe assy.	1	InternBDB: E-ST \| InternKon: 932 478 40 / 2
	03	504 449 98	Collar ring	1	InternBDB: KO-6580-32 \| InternKon: 909 571 40 / 5
	04	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /3015 \| InternKon: 909 571 40 / 8
	05	769 932 73	Pipe assy. Ш 65	1	InternBDB: 909 532 40 \| InternKon: 909 571 40 / 1
	06	504 448 98	Flange	2	InternBDB: FE-6500-32/6 \| InternKon: 909 571 40 / 2
	07	504 461 98	Collar ring	1	InternBDB: K-6580-32 \| InternKon: 909 571 40 / 3
	08	385 243 40	Flange seal	1	InternBDB: 2" NBR 90 \| InternKon: 909 571 40 / 4
	09	505 440 98	Half clamp	2	InternBDB: S-4-R-65 /3015 \| InternKon: 909 571 40 / 7
	10	319 292 99	Bolt	4	InternBDB: M16x90 /912 10.9 \| InternKon: 909 571 40 / 6
	11	308 615 99	Bolt	2	InternBDB: M12x130 /931 \| InternKon: 909 571 40 / 9
	12	509 310 98	Locking plate	1	InternBDB: SI 6 \| InternKon: 909 571 40 / 10
	13	509 962 98	Washer	8	InternBDB: 16,5 WN 341 934 40 \| InternKon: 909 571 40 / 11

Komatsu PC4000-6 S/N 08195 parts catalog PDF

PIPING - STICK CYLINDER BACKHOE EQUIPMENT (355-4136b) in PC4000-6 S/N 08195. Diagram image and parts list.
