01 |
929 275 40
|

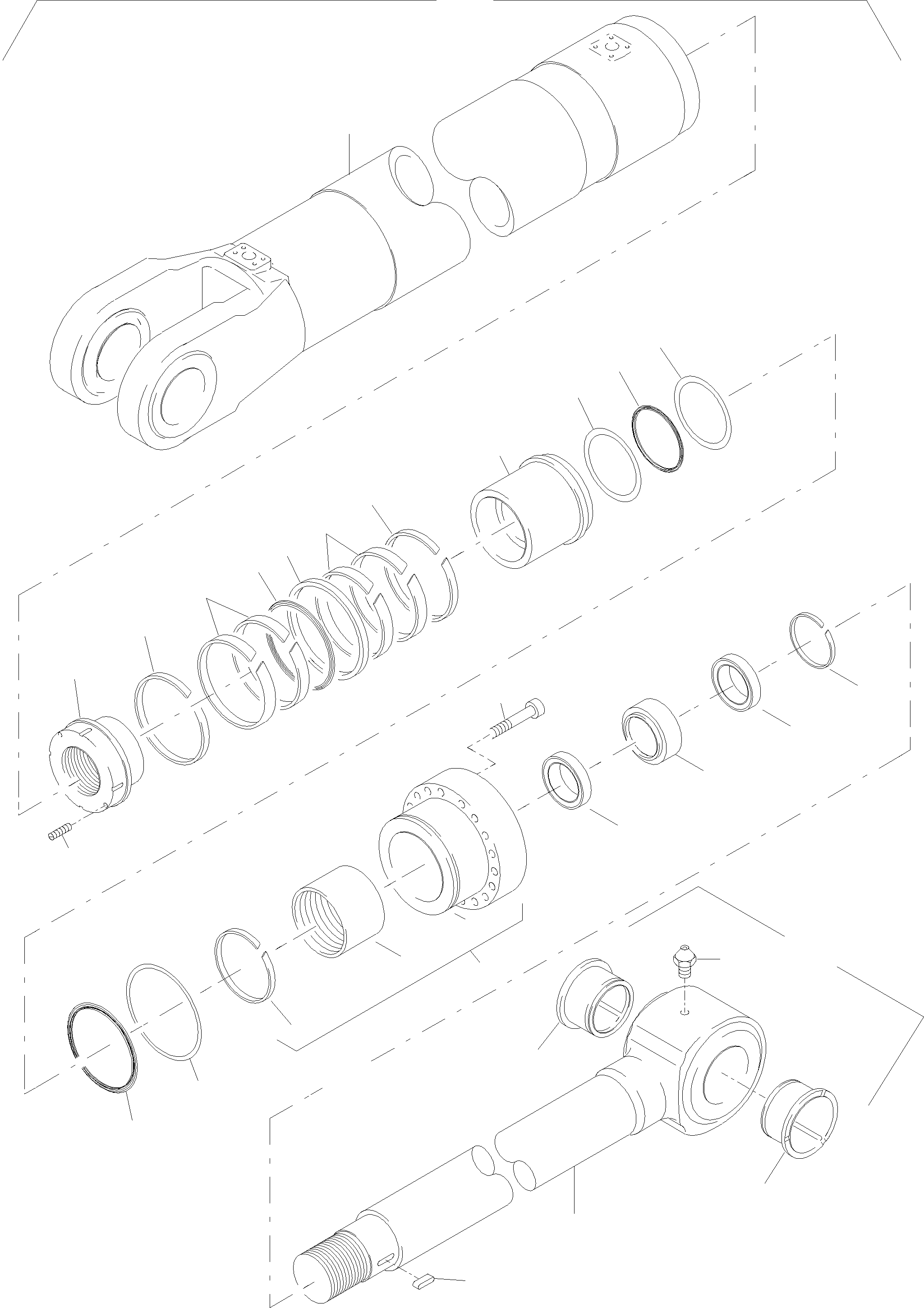

Hydraulic Cylinder consist. of fig-nos: 02-29 |
1 |
InternBDB: 280x190x2200 (3510) NOK
|
|
|
|
02 |
909 349 40
|
Cylinder |
1 |
InternKon: 929 275 40 / 1
|
|
|
|
03 |
947 184 40
|
Thread pin |
1 |
InternBDB: M12x40 45H | InternKon: 929 275 40 / 16
|
|
|
|
04 |
948 114 40
|
Groove nut |
1 |
InternBDB: M135x3 | InternKon: 929 275 40 / 5
|
|
|
|
05 |
909 394 40
|
Piston |
1 |
InternKon: 929 275 40 / 4
|
|
|
|
08 |
304 103 40
|
Piston slyding strip |
2 |
InternBDB: GM-99-00000-T47 | InternKon: 929 275 40 / 11
|
|
|
|
09 |
324 478 40
|
Piston wear-ring |
4 |
InternBDB: GP 75-02800-C900 | InternKon: 929 275 40 / 10
|
|
|
|
10 |
256 911 40
|
Seal |
1 |
InternBDB: PG-44-02800-T46 | InternKon: 929 275 40 / 8
|
|
|
|
11 |
502 112 98
|
O-ring |
1 |
InternBDB: 253,37x7 | InternKon: 929 275 40 / 9
|
|
|
|
12 |
270 355 40
|
Back-up ring |
2 |
InternBDB: BP-09-0A366-PT005 | InternKon: 929 275 40 / 21
|
|
|
|
13 |
501 900 98
|
O-ring |
1 |
InternBDB: 183,52x5,33B NB70 | InternKon: 929 275 40 / 20
|
|
|
|
14 |
269 476 40
|
O-ring |
1 |
InternBDB: 266,07x7B N7083 WN01174599 | InternKon: 929 275 40 / 18
|
|
|
|
15 |
907 780 40
|
Support ring |
1 |
InternBDB: BP-61-02678-PT00 | InternKon: 929 275 40 / 19
|
|
|
|
16 |
926 865 40
|
Sealing flange consist. of fig-nos: 17-19 (finish work after bush is installed) |
1 |
InternKon: 929 275 40 / 3
|
|
|
|
17 |
|
Bush |
1 |
InternBDB: 926 864 40 | InternKon: 926 865 40 / 1
|
|
|
|
18 |
926 863 40
|
Bush |
1 |
InternKon: 926 865 40 / 2
|
|
|
|
19 |
342 603 99
|
Snap ring |
1 |
InternBDB: 215x5 /472 | InternKon: 926 865 40 / 3
|
|
|
|
20 |
514 626 98
|
Bolt |
18 |
InternBDB: M 30x200/912 -10.9 | InternKon: 929 275 40 / 22
|
|
|
|
21 |
907 719 40
|
Support ring |
1 |
InternBDB: 190x215x9,6 U641 80NP HBY 7075119810 | InternKon: 929 275 40 / 12
|
|
|
|
22 |
907 721 40
|
Rod seal |
1 |
InternBDB: 190x215x20 A505 19YF IUY 7075119030 | InternKon: 929 275 40 / 13
|
|
|
|
23 |
907 723 40
|
Scraper |
1 |
InternBDB: 190x205x9x12 UR-4 SPCC DKBI 5686322620 | InternKon: 929 275 40 / 14
|
|
|
|
24 |
517 595 98
|
Snap ring |
1 |
InternBDB: A205 /WN01071899 | InternKon: 929 275 40 / 15
|
|
|
|
25 |
354 389 99
|
Feather key |
1 |
InternBDB: A20x12x70/ 6885 | InternKon: 929 275 40 / 23
|
|
|
|
26 |
794 802 73
|
Piston rod assy. consist. of fig-nos: 27-29 |
1 |
InternBDB: E-St
|
|
|
|
27 |
|
Piston rod |
1 |
InternBDB: 934 662 40 | InternKon: 929 275 40 / 2
|
|
|
|
28 |
909 504 40
|
Flanged bush |
2 |
InternBDB: n. Zchng. 566 830 40 | InternKon: 929 275 40 / 7
|
|
|
|
29 |
004 860 98
|
Nipple |
1 |
InternBDB: AR1/4 | InternKon: 929 275 40 / 25
|
|
|
|
|$$28 |
794 803 73
|
Sealing kit for piston consist. of fig-nos: 08-13 |
-2 |
InternBDB: E-St
|
|
|
|
|$$29 |
794 804 73
|
Sealing kit for sealing flange consist. of fig-nos: 14,15,21-23 |
-2 |
InternBDB: E-St
|
|
