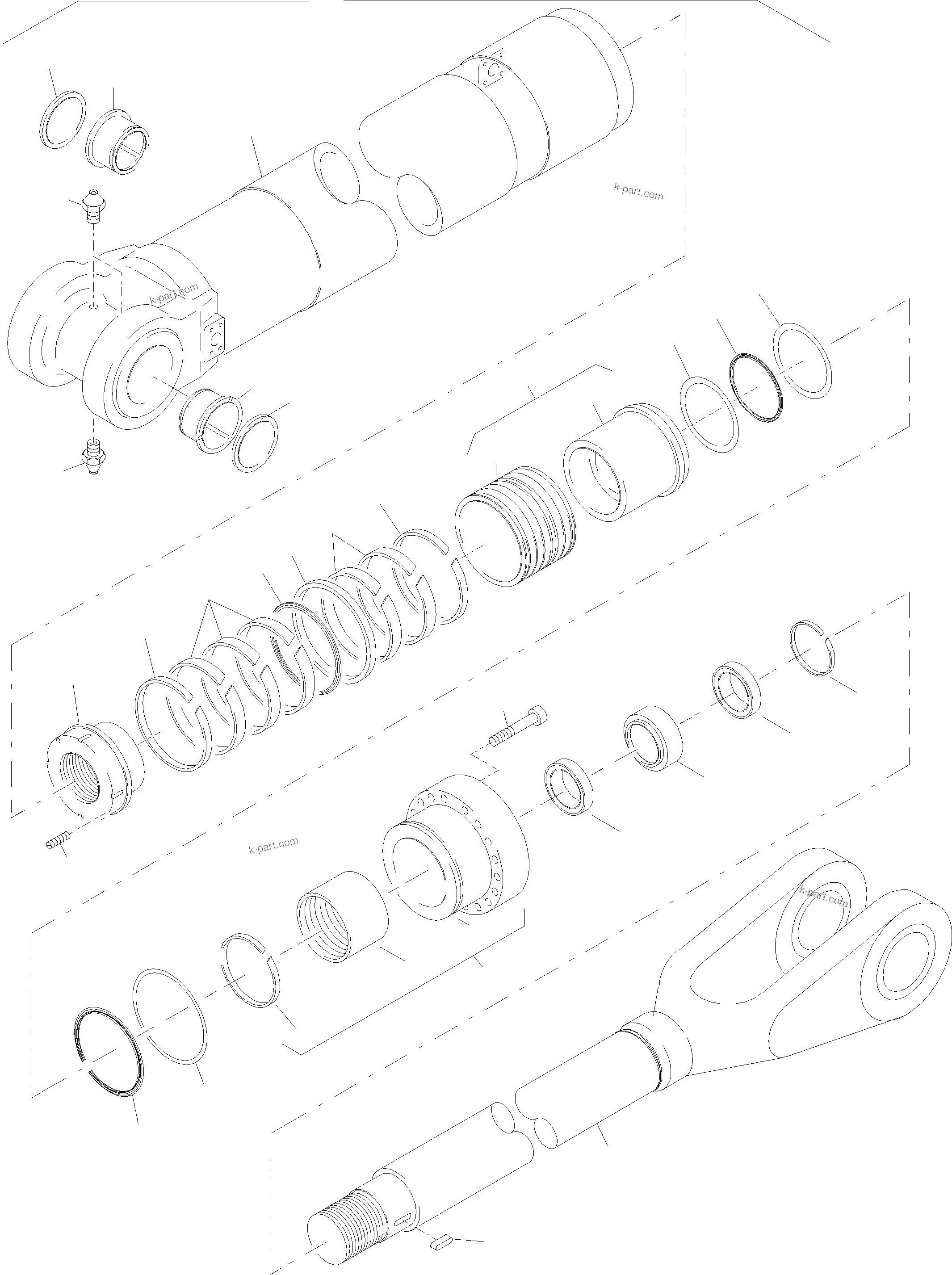

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	929 270 40	Hydraulic cylinder assy.	1	InternBDB: KMG 320x210x2000 (3840) NOK \| InternKon: / 1
?	769 933 73	Cylinder assy. fig-nos: 03-05 and 31	1	InternBDB: E-St
?		Cylinder	1	InternBDB: 909 314 40 \| InternKon: 929 270 40 / 1
?	909 312 40	Freeze-in bush	2	InternKon: 929 270 40 / 7
?	004 860 98	Nipple	4	InternBDB: AR1/4" 011 207 99 \| InternKon: 929 270 40 / 26
?	947 188 40	Thread pin	1	InternBDB: M16x50 45H \| InternKon: 929 270 40 / 23
?	947 190 40	Groove nut	1	InternBDB: M150x3 \| InternKon: 929 270 40 / 6
?	269 494 40	Piston slyding strip	2	InternBDB: Bu. u. Sh. GM-99-00000-T47 \| InternKon: 929 270 40 / 11
?	256 245 40	Piston wear ring	5	InternBDB: Bu. u. Sh. GP 75-03200-C900 \| InternKon: 929 270 40 / 10
?	256 248 40	O-ring	1	InternBDB: Bu. u. Sh. 291,47x7 NB 70 \| InternKon: 929 270 40 / 9
?	896 587 40	Seal	1	InternBDB: Bu. u. Sh. PT-08-03200-T46 \| InternKon: 929 270 40 / 8
?	430 964 40	Piston assy. fig-nos. 13 and 14 (finish work after bush is ( installed)	1	InternKon: 929 270 40 / 4
?	445 393 40	Piston bush	1	InternKon: 430 964 40 / 2
?		Piston	1	InternBDB: 430 986 40 \| InternKon: 430 964 40 / 1
?	269 217 40	O-ring	1	InternBDB: Bu. u. Sh.215,27x7 446-8307 \| InternKon: 929 270 40 / 17
?	896 400 40	Support ring	2	InternBDB: Bu. u. Sh. 210x221,6x2,5 \| InternKon: 929 270 40 / 18
?	500 990 98	O-ring	1	InternBDB: 306x6 NB 80 \| InternKon: 929 270 40 / 15
?	256 561 40	Support ring	1	InternBDB: 308x318x2,5 \| InternKon: 929 270 40 / 16
?	926 860 40	Sealing flange fig-nos: 20-22 (finish work after bush is installed)	1	InternKon: 929 270 40 / 3
?		Bush	1	InternBDB: 926 861 40 \| InternKon: 926 860 40 / 1
?	926 862 40	Bush	1	InternKon: 926 860 40 / 2
?	515 858 98	Snap ring	1	InternBDB: 235x5 /472 \| InternKon: 926 860 40 / 3
?	514 626 98	Screw	18	InternBDB: M30x200/912 -10.9 \| InternKon: 929 270 40 / 21
?	907 720 40	Support ring	1	InternBDB: 210x235x9,6 U641 80NP HBY \| InternKon: 929 270 40 / 12
?	907 722 40	Rod seal	1	InternBDB: 210x235x20 A505 19YF IUY \| InternKon: 929 270 40 / 13
?	907 724 40	Stripper	1	InternBDB: 210x230x12x17 U593 SPCC DKBI \| InternKon: 929 270 40 / 14
?	517 596 98	Snap ring	1	InternBDB: A230 /WN01071899 \| InternKon: 929 270 40 / 20
?	501 352 98	Feather key	1	InternBDB: A20x12x60/ 6885 \| InternKon: 929 270 40 / 22
?	794 799 73	Piston rod assy. fig-nos: 28 ,30	1	InternBDB: E-St
?		Piston rod	1	InternBDB: 934 666 40 \| InternKon: 929 270 40 / 2
?	907 022 40	Seal ring	2	InternBDB: 170/7x4 RXYD091603T46 \| InternKon: 929 270 40 / 19
?	794 800 73	Seal kit for piston fig-nos. 08-11,15 and 16	-2	InternBDB: E-St
?	794 801 73	Seal kit for sealing flange fig-nos: 17,18,24-26	-2	InternBDB: E-St
