Diagram image 1 of 2

H285S S/N 78129

01 02 03 04 05 06 07 07 08 08 09 09 10 11 110 111 112 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 37 38 38 39 40 41 42 43 44 45 46 47 48 49 50 50 51 52 52 52 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 70 70 71 72 73 73

H285S S/N 78129

100 101 102 103 104 104 105 106 107 74 75 76 77 78 79 80 81 82 83 84 86 87 88 89 90 91 92 93 94 95 96 97 98 99

#	Part Number	Partname	Quantity	Options

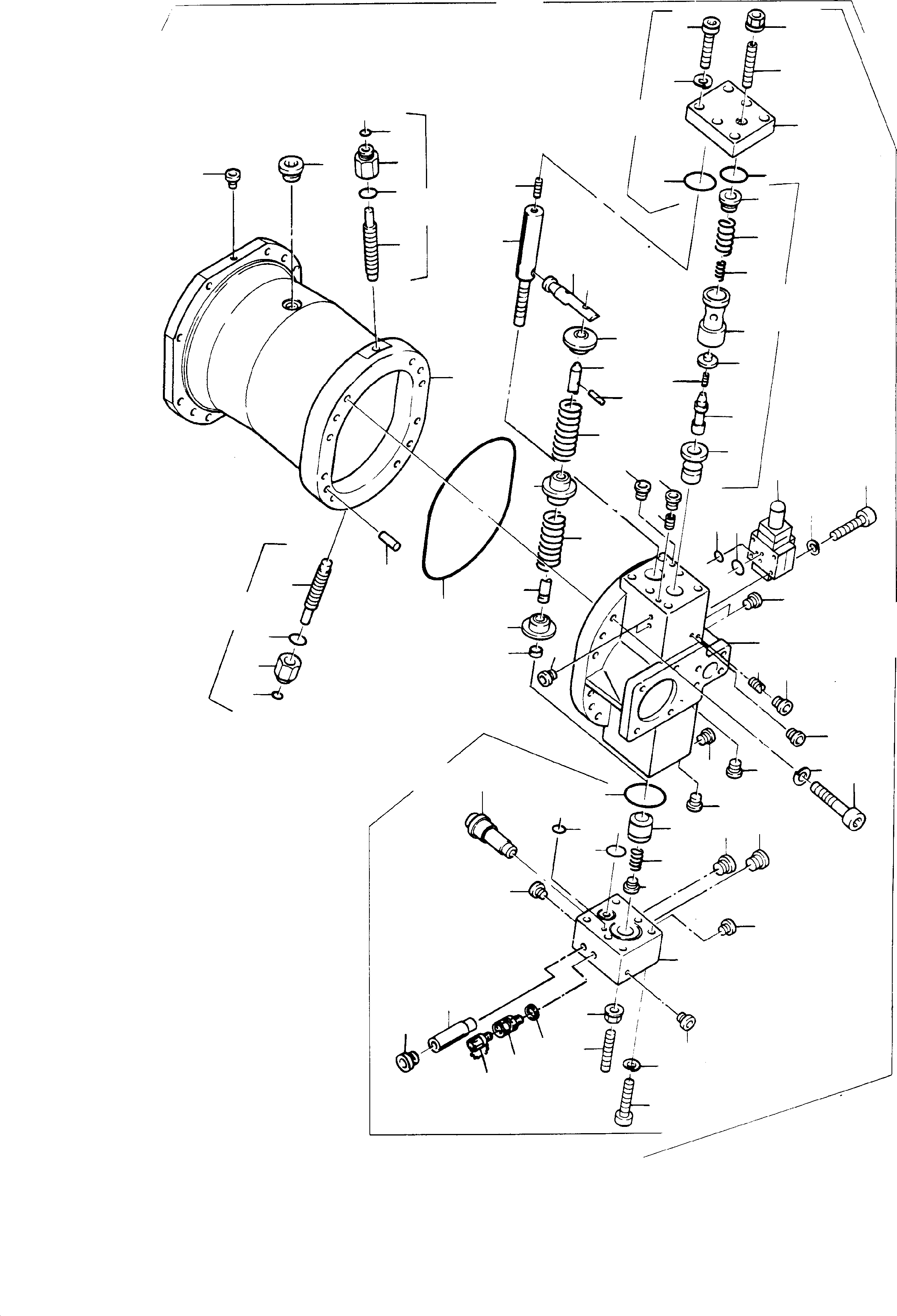

\|$$1		Graphic 1	-1
01	567 426 40	Hydr.-pump, assy.	1	InternBDB: Brьninghaus A7V-SL-1000 HD.5.1LZF HOD-S AT-Nr. 710 186 73
02		Housing	1	InternBDB: 802 069 \| InternKon: 961568 / 06
03	173 493 40	Plug	2	InternBDB: vsti M18x1,5 ed/sa 1 \| InternKon: 961568 / 12
04	313 456 99	Plug	2	InternBDB: vsti M42x2 ed/sa 1 \| InternKon: 961568 / 10
05	753 524	Displacement section, assy. consist. of fig-nos: 07-10	1	InternBDB: 842 826 \| InternKon: 961568 / 05
06	753 467	Displacement section, assy. consist. of fig-nos: 07-09,11	1	InternBDB: 589 896 \| InternKon: 961568 / 04
07	753 469	Nut	2	InternBDB: 590 363 \| InternKon: 842826 / 589896 / 02
08	180 023 40	O-ring	2	InternBDB: 20,22x3,53 \| InternKon: 842826 / 589896 / 05
09	971 020	O-ring	2	InternBDB: 31,47x1,78 \| InternKon: 842826 / 589896 / 04
10	753 537	Detent	1	InternBDB: 842 834 \| InternKon: 842826 / 589896 / 01
11	753 468	Detent	1	InternBDB: 590 355 \| InternKon: 842826 / 589896 / 01
12	754 501	Adjustment, assy. consist. of fig-nos: 13-15,23,31-57	1	InternBDB: 850 594 \| InternKon: 961568 / 02
13	502 399 98	O-ring	1	InternBDB: 354,97x5,33 383-7509 \| InternKon: 850594 / 06
14	344 888 99	Pin	2	InternBDB: 12 M6x24 /7 \| InternKon: 850594 / 29
15	753 527	Cover, assy. consist. of fig-nos: 16-22	1	InternBDB: 805 556 (406 791) \| InternKon: 850594 / 04
16	319 305 99	Screw	6	InternBDB: M20x60 /912 10.9 \| InternKon: 805556 / 14
17	343 859 99	Lock washer	6	InternBDB: 20 /7980 \| InternKon: 805556 / 15
18	325 350 99	Thread pin	1	InternBDB: M12x70 /914 10.9 \| InternKon: 805556 / 27
19	964 767	Nut	1	InternBDB: M 12 339 504 (152 459) \| InternKon: 805556 / 26
20	753 498	Cover	1	InternBDB: 805 424 (406 794) \| InternKon: 805556 / 01
21	958 231	O-ring	1	InternBDB: 66,27x3,53 231-7509 \| InternKon: 805556 / 21
22	500 268 98	O-ring	1	InternBDB: 59,92x3,53 \| InternKon: 805556 / 20
23	757 119 73	Control part, assy. consist. of fig-nos: 24-31	1	InternBDB: 802 668 \| InternKon: 850594 / 02
24	753 495	Spring plate	1	InternBDB: 590 193 (400 790) \| InternKon: 802668 / 04
25	754 781 73	Spring	1	InternBDB: 179 019 \| InternKon: 802668 / 06
26	753 496	Compression spring	1	InternBDB: 591 122 (069 934) \| InternKon: 802668 / 07
27	753 494	Spring plate	1	InternBDB: 590 215 (400 793) \| InternKon: 802668 / 03
28	753 493	Bush	1	InternBDB: 590 266 (400 787) \| InternKon: 802668 / 09
29	753 492	Sleeve	1	InternBDB: 590 258 (400 788) \| InternKon: 802668 / 02
30	757 120 73	Piston valve	1	InternBDB: 802 670 \| InternKon: 802668 / 01
31	754 503	Throttle screw	1	InternBDB: M8x8-4,0 825 654 \| InternKon: 802668 / 08
32	753 470	Thread pin	1	InternBDB: 807 079 (407 675) \| InternKon: 850594 / 31
33	753 471	Piston	1	InternBDB: 841 803 (413 266) \| InternKon: 850594 / 07
34	753 472	Regulation journal	1	InternBDB: 807 052 (407 674) \| InternKon: 850594 / 08
35	502 883 98	Dowel pin	1	InternBDB: 6x28 /7344 \| InternKon: 850594 / 30
36	753 473	Spring plate	1	InternBDB: 590 282 (400 786) \| InternKon: 850594 / 11
37	753 474	Guide rod	1	InternBDB: 590 304 (400 784) \| InternKon: 850594 / 09
38	753 475	Compression spring	2	InternBDB: 596 981 (402 398) \| InternKon: 850594 / 10
39	753 476	Spring guide	1	InternBDB: 596 949 (402 472) \| InternKon: 850594 / 19
40	753 471	Spring plate	1	InternBDB: 590 274 (400 785) \| InternKon: 850594 / 12
41	753 478	Ring	1	InternBDB: 590 207 (400 792) \| InternKon: 850594 / 13
42	754 504	Cover plate	1	InternBDB: 850 454 \| InternKon: 850594 / 05
43	319 262 99	Screw	4	InternBDB: M10x70 /912 10.9 \| InternKon: 850594 / 27
44	343 855 99	Lock washer	4	InternBDB: 10 /7980 \| InternKon: 850594 / 28
45	979 416 73	Sequence valve	1	InternBDB: Rexroth DZ 10 DP2-3x/350 XYM SO 88 937 324 \| InternKon: 850594 / 20
\|$$47	767 996 73	Seal kit to fig-no: 45	1	InternBDB: 314 039 Viton
46	210 955 40	O-ring	2	InternBDB: 9,25x1,78 Viton
47	767 723 73	O-ring	2	InternBDB: 17,12x2,62 Viton
48	319 339 99	Screw	12	InternBDB: M24x80 /912 10.9 \| InternKon: 850594 / 25
49	343 861 99	Lock washer	12	InternBDB: 24 /7980 \| InternKon: 850594 / 26
50	255 985 40	Plug	2	InternBDB: vsti M14x1,5 ed 531 308 \| InternKon: 850594 / 40
51	753 480	Throttle screw	1	InternBDB: M12x12-2,0 843 571 \| InternKon: 850594 / 16
52	804 851 73	Plug	6	InternBDB: vsti M12x1,5 ed 531 286 \| InternKon: 850594 / 37
53	173 493 40	Plug	1	InternBDB: vsti M18x1,5 ed/sa 1 415 235 \| InternKon: 850594 / 43
54	325 189 99	Thread pin	1	InternBDB: M16x16 /913 \| InternKon: 850594 / 47
55	992 655	Plug	1	InternBDB: vsti M8x1 ed 585 017 \| InternKon: 850594 / 45
56	998 592	Plug	1	InternBDB: vsti M16x1,5 ed/sa 1 632 511 \| InternKon: 850594 / 64
57	757 114 73	Cover, assy. consist. of fig-nos: 58-73,110-112	1	InternBDB: 802 548 (406 792) \| InternKon: 850594 / 01
58	319 293 99	Screw	6	InternBDB: M16x100 /912 10.9 \| InternKon: 802548 / 14
59	343 857 99	Lock washer	6	InternBDB: 16 /7980 \| InternKon: 802548 / 15
60	757 113 73	Cover	1	InternBDB: 802 547 \| InternKon: 802548 / 01
61	950 365	O-ring	1	InternBDB: 88,50x3,53 238-7507 \| InternKon: 802548 / 20
62	502 400 98	O-ring	1	InternBDB: 36,09x3,53 221-7509 \| InternKon: 802548 / 21
63	501 357 98	O-ring	2	InternBDB: 15,55x2,62 114-7509 \| InternKon: 802548 / 19
64	753 482	Piston valve	1	InternBDB: 590 347 (401 006) \| InternKon: 802548 / 02
65	992 745	Compression spring	1	InternBDB: 590 479 (072 246) \| InternKon: 802548 / 04
66	753 483	Spring plate	1	InternBDB: 590 339 (401 007) \| InternKon: 802548 / 06
67	502 403 98	Thread pin	1	InternBDB: M10x55 /914 12.9 \| InternKon: 802548 / 27
68	998 603	Nut	1	InternBDB: M 10 387 436 \| InternKon: 802548 / 26
69	964 736	Safety plug	1	InternBDB: M 8 977 645 (153 880) \| InternKon: 802548 / 18
70	173 448 40	Plug	2	InternBDB: vsti M22x1,5 ed 533 998 \| InternKon: 802548 / 22
71	753 489	Non-return valve	1	InternBDB: 805 521 (407 278) \| InternKon: 802548 / 24
72	753 484	Non-return valve	1	InternBDB: 805 513 (407 276) \| InternKon: 802548 / 23
73	255 679 40	Plug	2	InternBDB: vsti M12x1,5 ed 531 286 \| InternKon: 802548 / 17
110	959 989	Test union	1	InternBDB: 2103-01-33.10 \| InternKon: 802548 / 13
111	757 112 73	Union	1	InternBDB: 802 016 \| InternKon: 802548 / 12
112	757 111 73	Seal ring	1	InternBDB: 744 522 \| InternKon: 802548 / 11

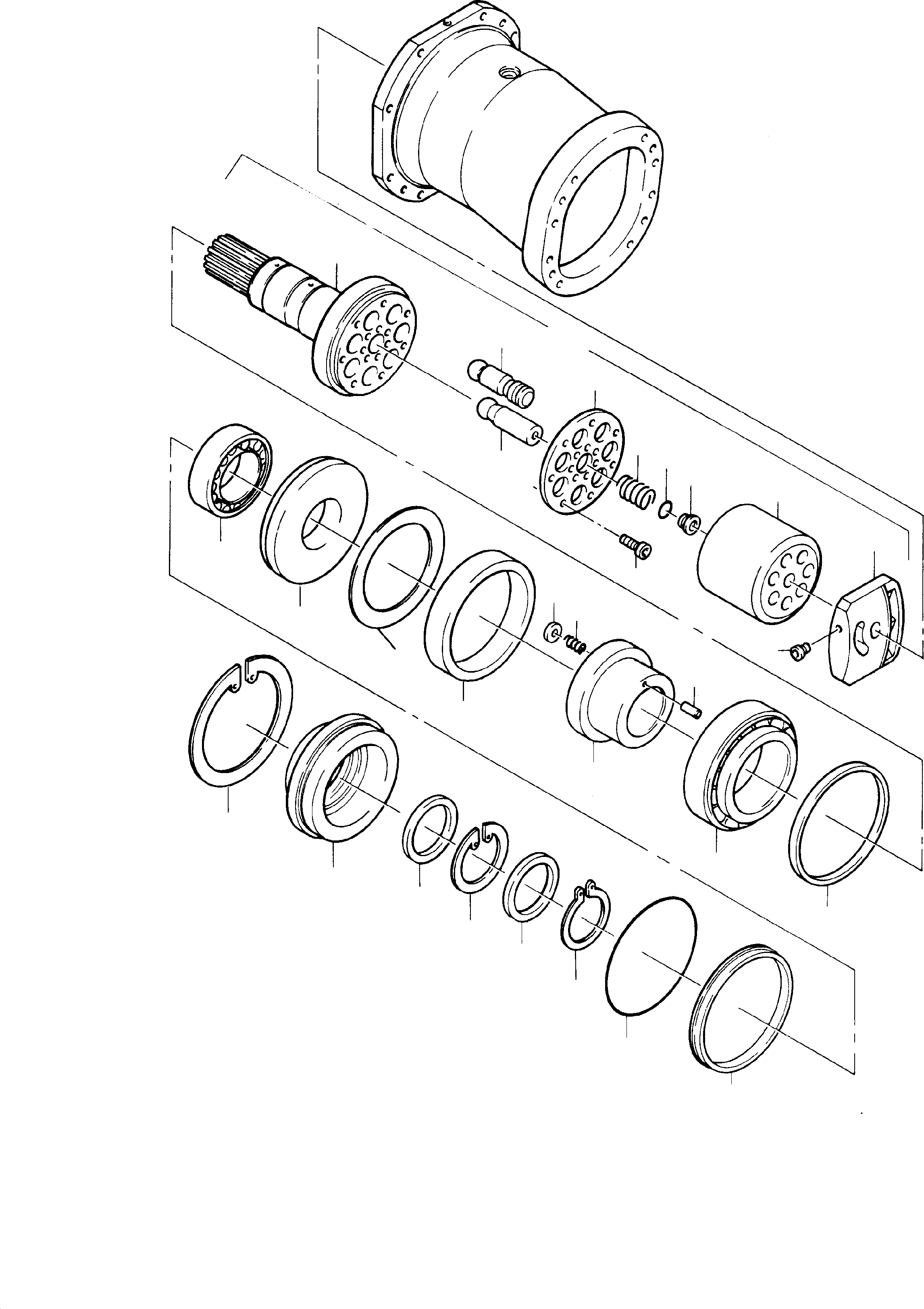

\|$$79		Graphic 2	-1
74	754 782 73	Transmission, assy. consist. of fig-nos: 75-107	1	InternBDB: 742 023 \| InternKon: 961568 / 01
75	762 732 73	Control lense, l.h. execution	1	InternBDB: 801 312 (406 329) \| InternKon: 742023 / 07
76	999 046	Safety plug	1	InternBDB: M 6 977 663 (153 879) \| InternKon: 742023 / 43
77	753 500	Cylinder	1	InternBDB: 638 048 \| InternKon: 742023 / 06
78	754 507	Adjusting ring	1	InternBDB: 941 875 \| InternKon: 742023 / 16
79	754 508	Spacer screw	1	InternBDB: 941 832 \| InternKon: 742023 / 17
80	753 506	Spring	1	InternBDB: 678 759 \| InternKon: 742023 / 18
81	753 536	Pivot	1	InternBDB: 795 097 \| InternKon: 742023 / 08
82	754 509	Piston	7	InternBDB: 741 957 \| InternKon: 742023 / 01
83	321 369 99	Screw	14	InternBDB: M12x25 /6912 10.9 \| InternKon: 742023 / 42
84	762 733 73	Withdrawal plate	1	InternBDB: 935 251 \| InternKon: 742023 / 09
86	762 734 73	Driving flange	1	InternBDB: 949 179 \| InternKon: 742023 / 04
87	754 512	Ring	1	InternBDB: 741 949 \| InternKon: 742023 / 15
88	754 513	Roller bearing	1	InternBDB: Saar-Wдlzlag. 93787I-93129A 742 112 \| InternKon: 742023 / 22
89	504 911 98	Dowel sleeve	1	InternBDB: 16x28 /1481 \| InternKon: 742023 / 30
90	345 181 99	Dowel sleeve	1	InternBDB: 10x28 /1481 \| InternKon: 742023 / 29
91	754 514	Bracket	1	InternBDB: 741892 \| InternKon: 742023 / 10
92	753 342	Spring	7	InternBDB: 715 247 \| InternKon: 742023 / 19
93	754 515	Guide shoe	7	InternBDB: 741 973 \| InternKon: 742023 / 11
94	754 516	Spacer	1	InternBDB: 741 965 \| InternKon: 742023 / 14
95	753 511	Shim ring 270x320x1.0	1	InternBDB: 638 242 \| InternKon: 742023 / 37
96	753 512	Shim ring 270x320x0.5	1	InternBDB: 638 234 \| InternKon: 742023 / 38
97	753 513	Shim ring 270x320x0.2	2	InternBDB: 638 226 \| InternKon: 742023 / 39
98	753 514	Shim ring 270x320x0.1	1	InternBDB: 638 218 \| InternKon: 742023 / 40
99	754 517	Slider	1	InternBDB: 742 651 \| InternKon: 742023 / 12
100	361 874 99	Roller bearing	1	InternBDB: NJ 2224 /5412 \| InternKon: 742023 / 23
101	342 574 99	Circlip	1	InternBDB: 120x4 /471 \| InternKon: 742023 / 33
102	754 518	Ring	1	InternBDB: 905 445 \| InternKon: 742023 / 21
103	504 758 98	O-ring	1	InternBDB: 310x5 Viton \| InternKon: 742023 / 27
104	504 756 98	Shaft seal	2	InternBDB: 120x140x7,5 BABSL-Viton \| InternKon: 742023 / 25
105	342 678 99	Circlip	1	InternBDB: 140x4 /472 \| InternKon: 742023 / 26
106	757 059 73	Sealing flange	1	InternBDB: 906 659 SL-A7V \| InternKon: 742023 / 13
107	753 534	Circlip	1	InternBDB: 320x6 SO /Geschl. 638 196 \| InternKon: 742023 / 32
\|$$113	754 520	Seal kit, assy. consist. of fig-nos: 08,09,13,21,22, 46,47,61-63,103,104	-2	InternBDB: E-ST
