H285S S/N 78129

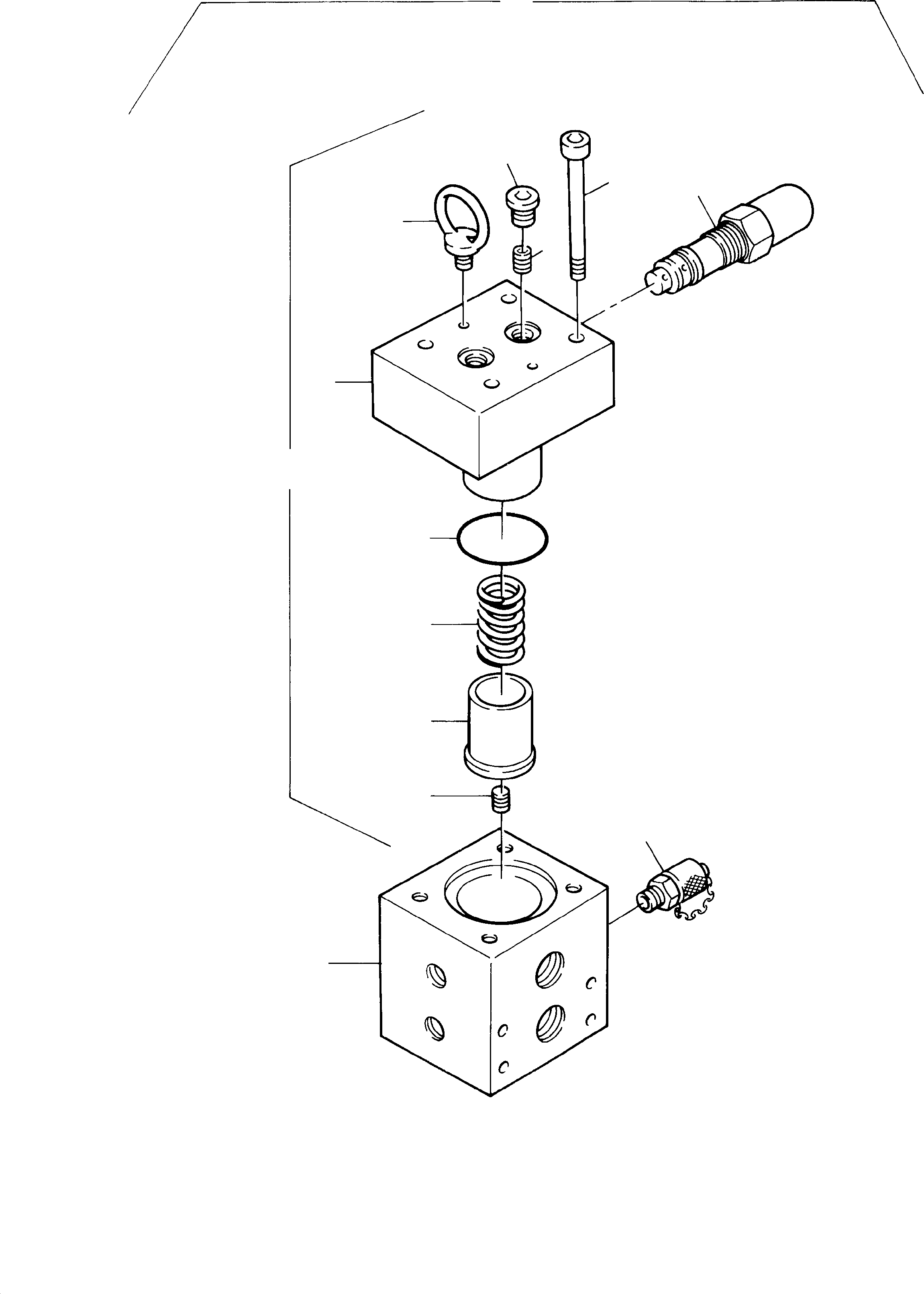

Komatsu parts book diagram for H285S S/N 78129: VALVE BLOCK

01 02 03 04 05 06 07 08 09 10 13 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	506 222 40	Valve block fig-nos: 02-04	1	InternBDB: DBM
	02	399 216 40	Valve block	1	InternKon: 506 222 40 / 1
	03	153 646 40	Test-screw coupling	1	InternBDB: Hydrotechnik 2103-01.5100 \| InternKon: 506 222 40 / 3
	04	490 739 40	Valve - mounting kit fig-nos: 05-16	1	InternBDB: Rexroth L-DBF 50-2-30 /16 YU-SO 555 \| InternKon: 506 222 40 / 2
	05	319 277 99	Screw	4	InternBDB: M12x70 /912
	06	255 694 40	Screw plug	2	InternBDB: Rexroth G 3/8 002 423
	07	313 500 99	Eyebolt	2	InternBDB: M 8 /580
	08		Bush These parts are not sold separately	1	InternBDB: Rexroth 173 825
	09	693 471	Piston	1	InternBDB: Rexroth 173 815
	10	693 472	Nozzle Ш 1,8	1	InternBDB: Rexroth 132 741
	13	693 475	Compression spring	1	InternBDB: Rexroth 009 184
	14	950 035	O-ring	1	InternBDB: 76x3
	15	693 476	Pressure relief valve	1	InternBDB: Rexroth DBDS 10 K 10/ 25 SO.52 7,5 bar
	16	313 404 99	Plug	1	InternBDB: M8x1 /906 003 443

Komatsu H285S S/N 78129 parts catalog PDF

VALVE BLOCK (112-1831-1) in H285S S/N 78129. Diagram image and parts list.
