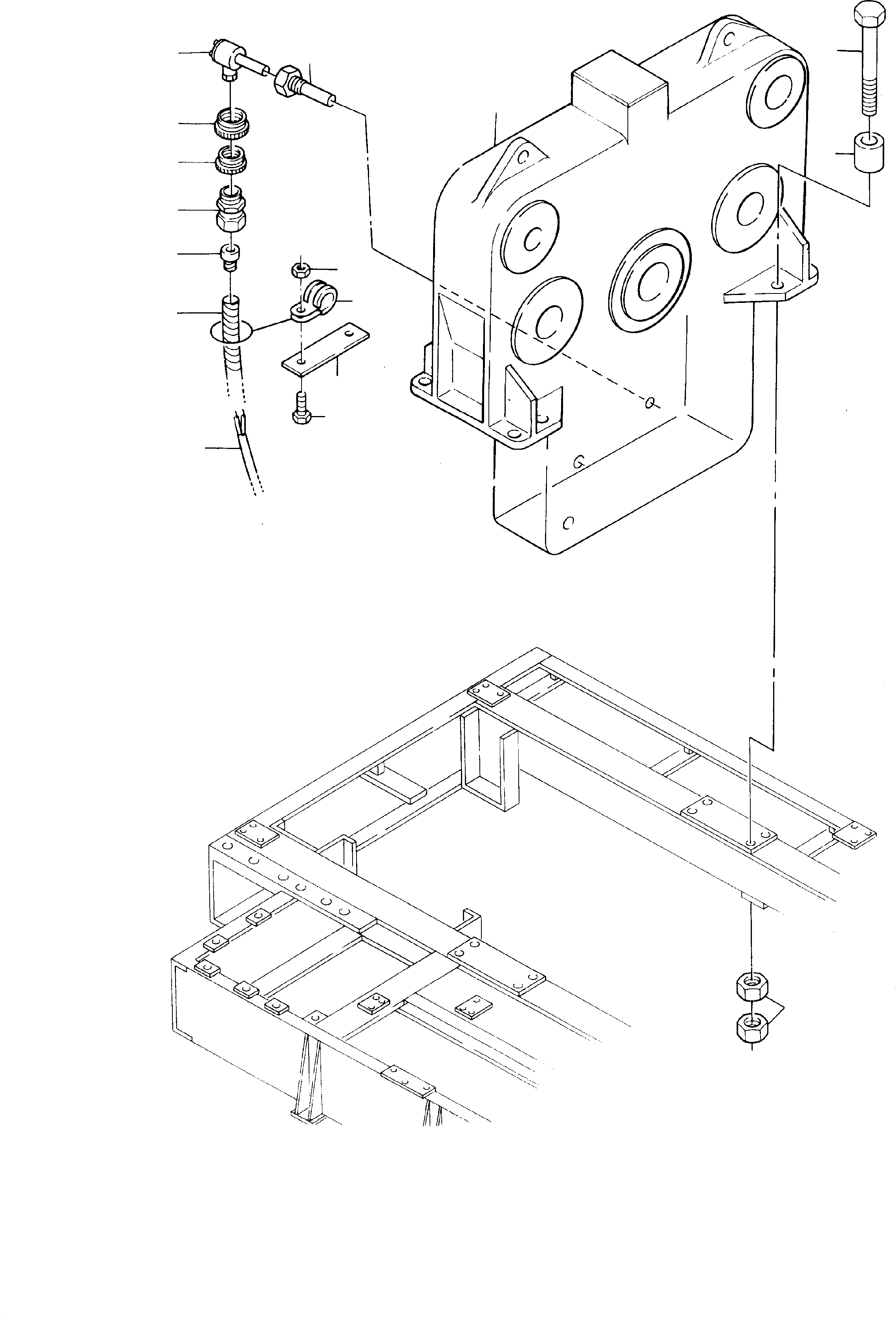

Komatsu parts book diagram for H285S S/N 78129: INSTALLATION - PUMP DISTRIBUTOR GEAR

01 02 03 04 10 11 15 16 17 18 19 20 21 22 23 24

	#	Part Number	Partname	Quantity	Options	Reference
	01		Pump distributor gear	1	InternKon: 366 599 40 / 22	090-0987
	02	304 368 99	Bolt Standard	8	InternBDB: M30 x 160 / 931 \| InternKon: 366 599 40 / 5
	02	501 129 98	Bolt Cold weather design	8	InternBDB: M30 x 160 / 931 kaltz \| InternKon: 366 599 40 / 5
	03	366 592 40	Bush	8	InternKon: 366 599 40 / 11
	04	332 361 99	Nut Standard	16	InternBDB: M 30 /934 \| InternKon: 366 599 40 / 8
	04	501 132 98	Nut Cold weather design	16	InternBDB: M 30 /934 kaltz \| InternKon: 366 599 40 / 8
	10	269 870 40	Cover tube	1	InternBDB: Noris MX2 /R12 R 1/2" \| InternKon: 399 790 40 / 8
	11	440 382 40	Temperature indicator	1	InternBDB: Noris TP 31 \| InternKon: 399 790 40 / 6
	15	600 909 99	Reducing nut	1	InternBDB: HPG 11-9
	16	502 921 98	Reducing nut	1	InternBDB: HPG 9-7
	17	323 949 40	Hose union	1	InternBDB: 5010.100.007
	18	323 954 40	Plug-in sleeve	1	InternBDB: 5031.028.007
	19	056 211 40	Conduit Bulk ware, state length required	-2	InternBDB: Flexa 2010.1001.007
	20	501 606 98	Cable Bulk ware, state length required	-2	InternBDB: 2x0,75
	21		Retainer	4
	22		Clamp	4
	23		Bolt	4
	24		Nut	4

Komatsu H285S S/N 78129 parts catalog PDF

INSTALLATION - PUMP DISTRIBUTOR GEAR (114-1220c) in H285S S/N 78129. Diagram image and parts list.
