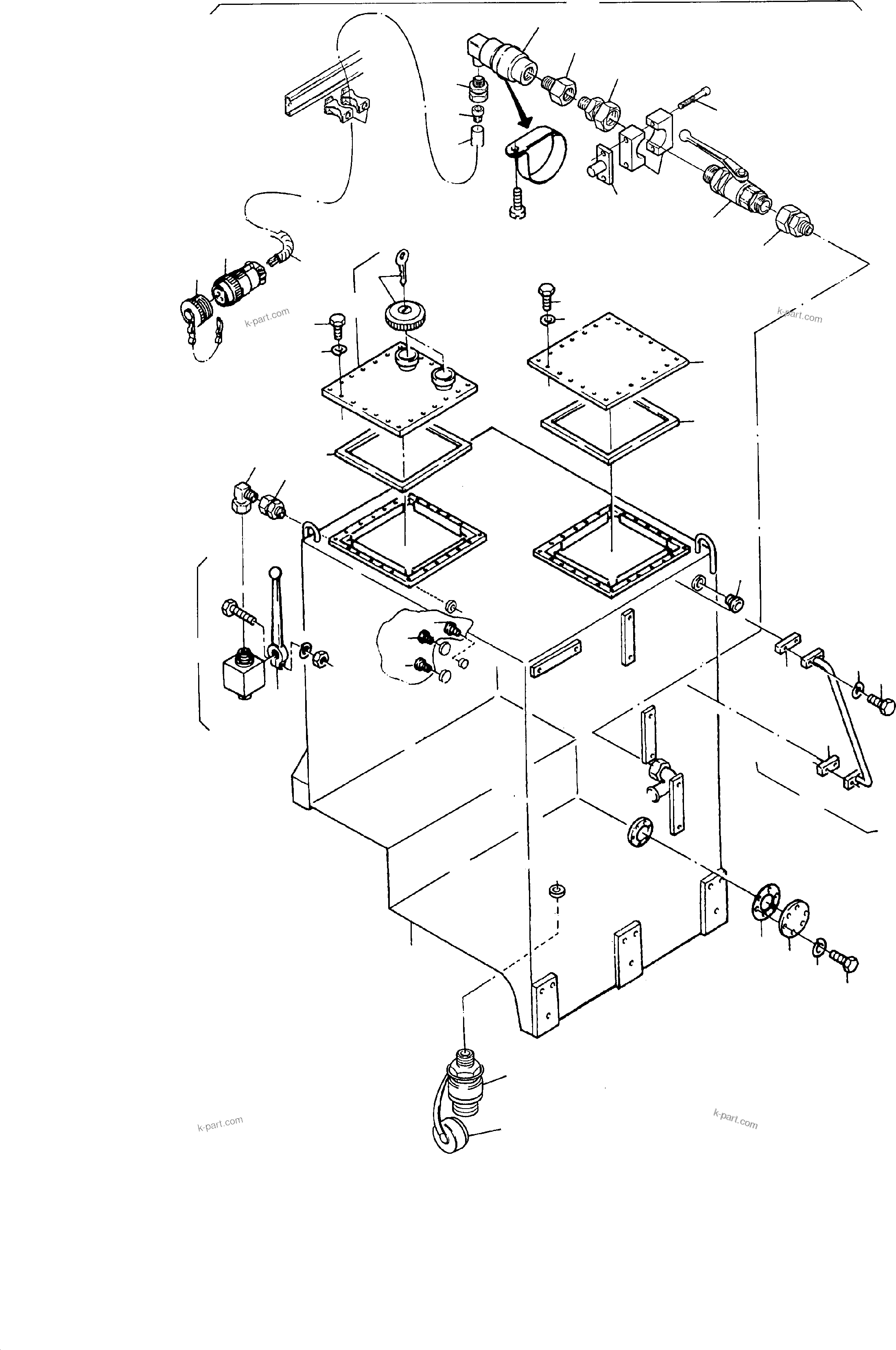

H285S S/N 78129

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	357 600 40	Fuel tank, assy.	1
?	322 554 40	Fuel tank	1	InternKon: 357 600 40 / 1
?	304 841 40	Cover with filler cap	1	InternKon: 357 600 40 / 2
?	208 910 40	Filler cap	2	InternBDB: Blau B 100 A \| InternKon: 304 841 40 / 2
?	377 750 99	Bolt	40	InternBDB: M8x16 /933 \| InternKon: 357 600 40 / 21
?	346 510 99	Lock washer	46	InternBDB: 8 /128 \| InternKon: 357 600 40 / 25
?	304 840 40	Cover	1	InternKon: 357 600 40 / 3
?	230 686 40	Gasket	2	InternKon: 357 600 40 / 8
?	490 655 40	Measuring transducer	1	InternBDB: Philips P 20 940427010031 \| InternKon: 357 600 40 / 27
?	372 833 99	Union	1	InternBDB: GAI 15-PLR \| InternKon: 357 600 40 / 28
?	371 928 99	Socket	2	InternBDB: EVGE 15-PLR-ed \| InternKon: 357 600 40 / 32
?	650 800 40	Retainer	1	InternKon: 357 600 40 / 29
?	461 806 40	Ball cock DN 12	1	InternBDB: Schwietzke ML 25.712 PN 25/R 1/2 \| InternKon: 357 600 40 / 31
?	371 941 99	Union	1	InternBDB: evGe 28-LM-ed 011 788 99 \| InternKon: 357 600 40 / 15
?	372 176 99	Union	1	InternBDB: DDL 28 /2353 \| InternKon: 357 600 40 / 16
?	368 190 40	Ball cock with top wrench DN 25 mit Hahnschlьssel	1	InternBDB: Argus 3021-0025- 59 42 10 \| InternKon: 357 600 40 / 17
?		Top wrench	-2	InternBDB: Argus 3922-0014- 58 90 25
?	501 559 98	Clamp	1	InternBDB: L-4-R-30 /3015 \| InternKon: 357 600 40 / 30
?	319 417 99	Screw	2	InternBDB: M6x35 /912 \| InternKon: 357 600 40 / 33
?	173 495 40	Plug	1	InternBDB: Ermeto vsti M48x2 ed \| InternKon: 357 600 40 / 18
?	255 985 40	Plug	1	InternBDB: vsti M14x1,5 -ed \| InternKon: 357 600 40 / 19
?	180 477 40	Plug	1	InternBDB: vsti R 1/2"- ed \| InternKon: 357 600 40 / 20
?	081 067 40	Oil-level glass	1	InternBDB: Kuhn 240/MR R 2" \| InternKon: 357 600 40 / 12
?	258 309 40	Cover	1	InternKon: 357 600 40 / 4
?	258 311 40	Gasket	1	InternKon: 357 600 40 / 6
?	307 754 99	Bolt	6	InternBDB: M8x25 /933 \| InternKon: 357 600 40 / 22
?	081 495 40	Coupling sleeve DN 20	1	InternBDB: TCH 60 3615 201 122 \| InternKon: 357 600 40 / 13
?	081 496 40	Protection cap	1	InternBDB: TCH 60 3686 205 000 \| InternKon: 357 600 40 / 14
?	357 632 40	Handle	1	InternKon: 322 554 40 / 42
?	237 129 40	Thread plate	2	InternKon: 357 632 40 / 3
?	343 112 99	Lock washer	4	InternBDB: 12 /128
?	307 477 99	Bolt	4	InternBDB: M12x22 /933
?	471 164 99	Cable Bulk ware, state length required	-2	InternBDB: NMH-J3x1,5/ 47 709
?	323 950 40	Cable union	1	InternBDB: Sievert 5010.100.009
?	356 238 40	Protecting hose Bulk ware, state length required	-2	InternBDB: Sievert 0220.101.010
?	057 299 40	Plug 3-polig	1	InternBDB: Cannon MS3106E10- S1-3SPF80
?	145 766 40	Dust cap	1	InternBDB: MS25042-10C
?	358 273 40	Series clamping	2	InternBDB: Sievert 225 5014
?	356 246 40	Socket	2	InternBDB: 520.0301.009
