Diagram image 1 of 2

H285S S/N 78129

01 01 01 01 01 01 01 01 01 01 01 02 02 02 02 02 03 04 08 08 09 10 11 12 12 13 14 15 16 16 17 17 17 17 18 18 19 19 20 21 22 22 23 23

H285S S/N 78129

30 31 31 31 32 32 33 34 35

#	Part Number	Partname	Quantity	Options

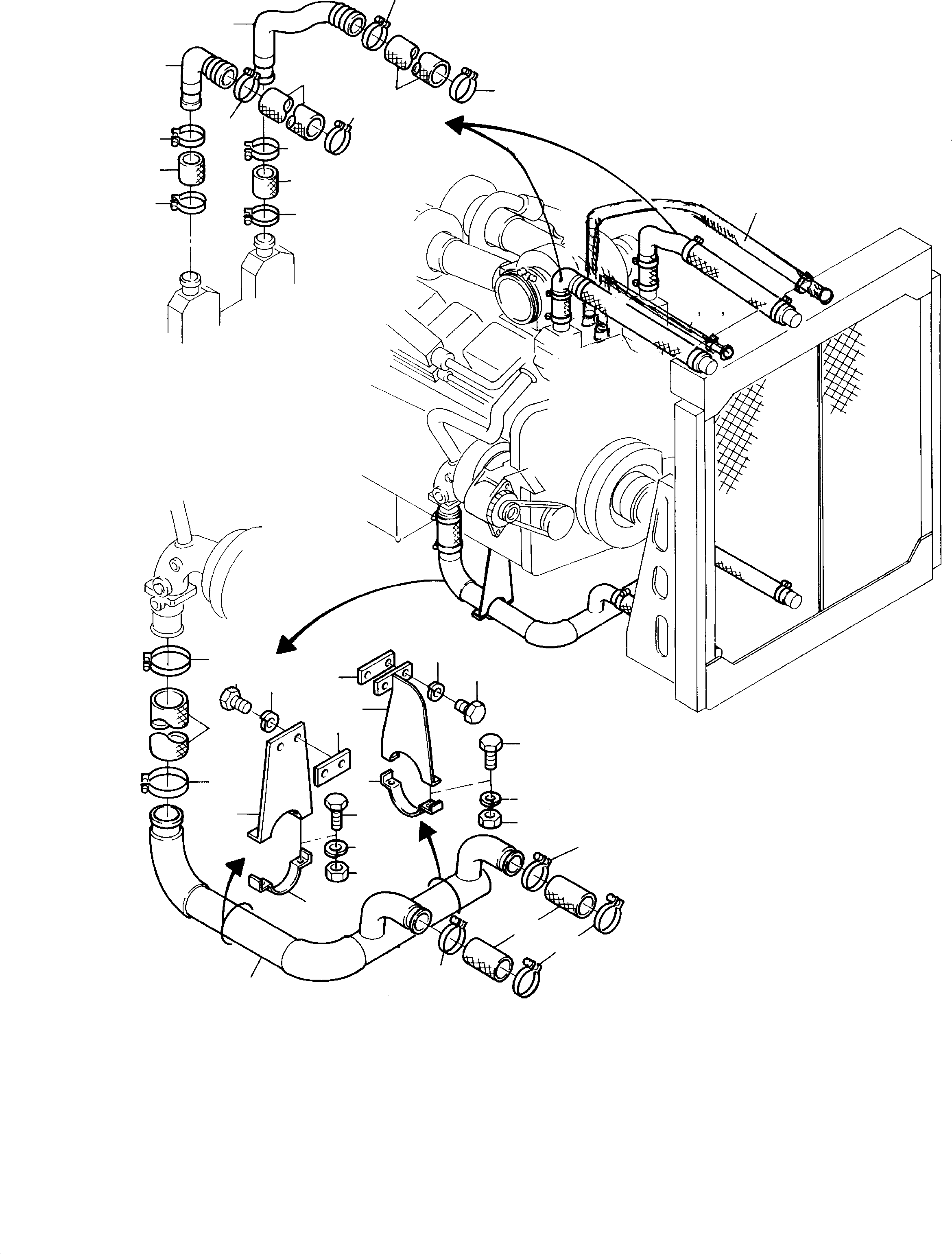

\|$$1		Graphic 1	-1
01	005 866 98	Clamp	12	InternBDB: 1 S 86x15 010 422 99 \| InternKon: 608 145 40 / 12
02	324 241 40	Radiator hose DN 75x300 lg. Bulk ware, state length required	6	InternBDB: Angst u. Pfi. 06.53.322.075 \| InternKon: 608 145 40 / 11
03	608 155 40	Water pipe	1	InternKon: 608 145 40 / 4
04	608 160 40	Water pipe	1	InternKon: 608 145 40 / 5
08	500 239 98	Clamp	2	InternBDB: 1 S 142x30 SK 2-teilig 010 422 99 \| InternKon: 608 145 40 / 10
09	330 970 40	Radiator hose DN 127x500lg. Bulk ware, state length required	1	InternBDB: 06.53.322.127 \| InternKon: 608 145 40 / 9
10	608 150 40	Water pipe	1	InternKon: 608 145 40 / 3
11	396 174 40	Holding plate	1
12	281 284 40	Clamp	2
13	281 282 40	Thread piece	1
14	371 513 40	Holding plate	1
15	281 283 40	Thread piece	1
16	307 802 99	Bolt	4	InternBDB: M12x25 /933
17	343 112 99	Lock washer	8	InternBDB: 12 /128
18	332 334 99	Nut	4	InternBDB: M 12 /934
19	307 805 99	Bolt	4	InternBDB: M12x35 /933
20	608 165 40	Water pipe	1	InternKon: 608 145 40 / 6
21	608 170 40	Water pipe	-2	InternKon: 608 145 40 / 7
22	255 604 40	Radiator hose DN 55x300 lg. Bulk ware, state length required	4	InternKon: 608 145 40 / 13
23	500 079 98	Clamp	8	InternBDB: 1S 67x15 010 422 99 \| InternKon: 608 145 40 / 14

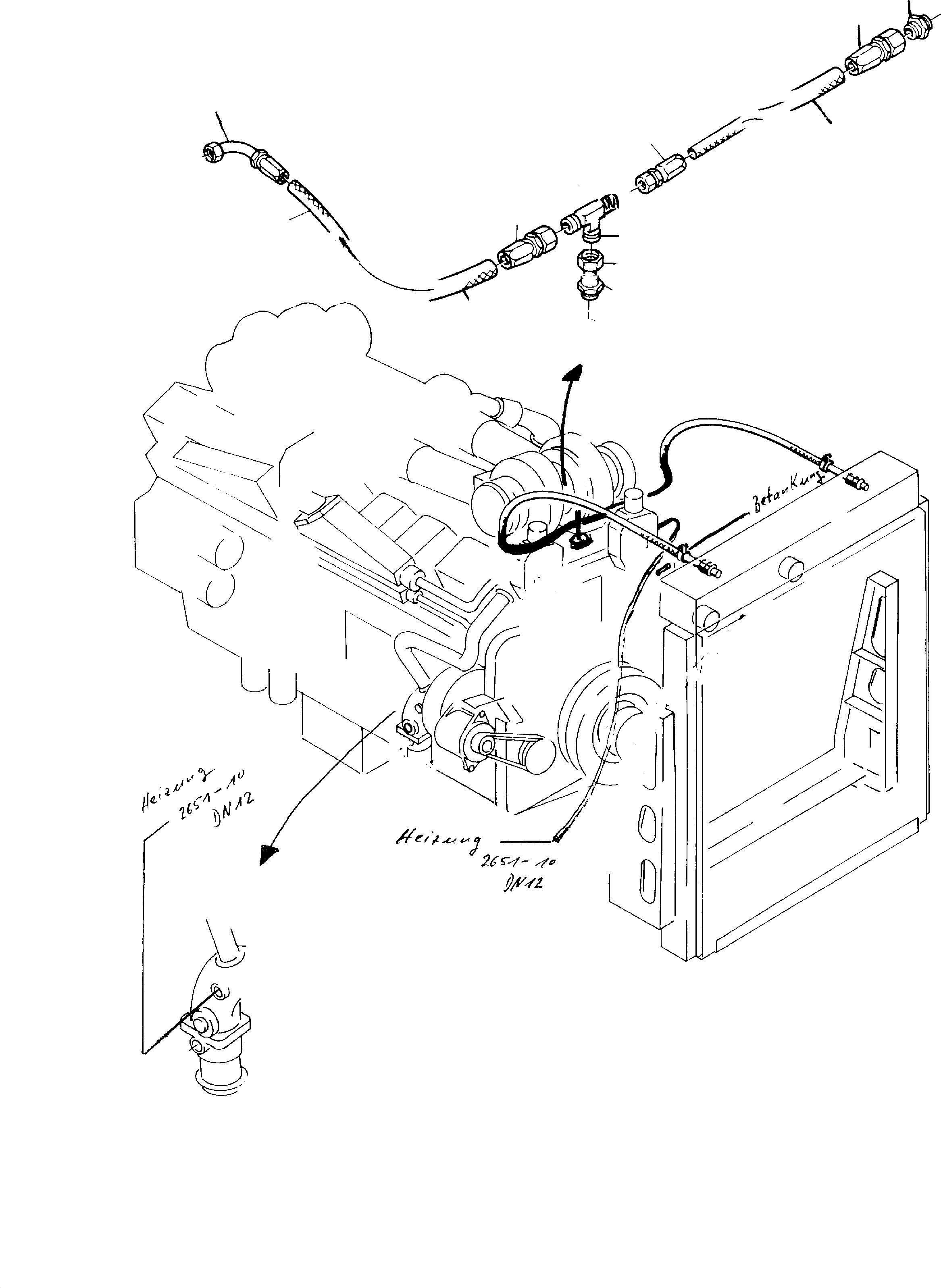

\|$$22		Graphic 2	-1
30	371 474 99	Union	2	InternBDB: GE 10-L / 3/8 NPT
31	269 292 40	Hose fittings	2	InternBDB: Aeroquip 07.002-8-6
32	256 584 40	Hose DN 8 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-6
33	372 612 99	Union	1	InternBDB: QL 10 /2353
34		Union	1
35	269 294 40	Hose fittings	1	InternBDB: Aeroquip 07.031-8-6
