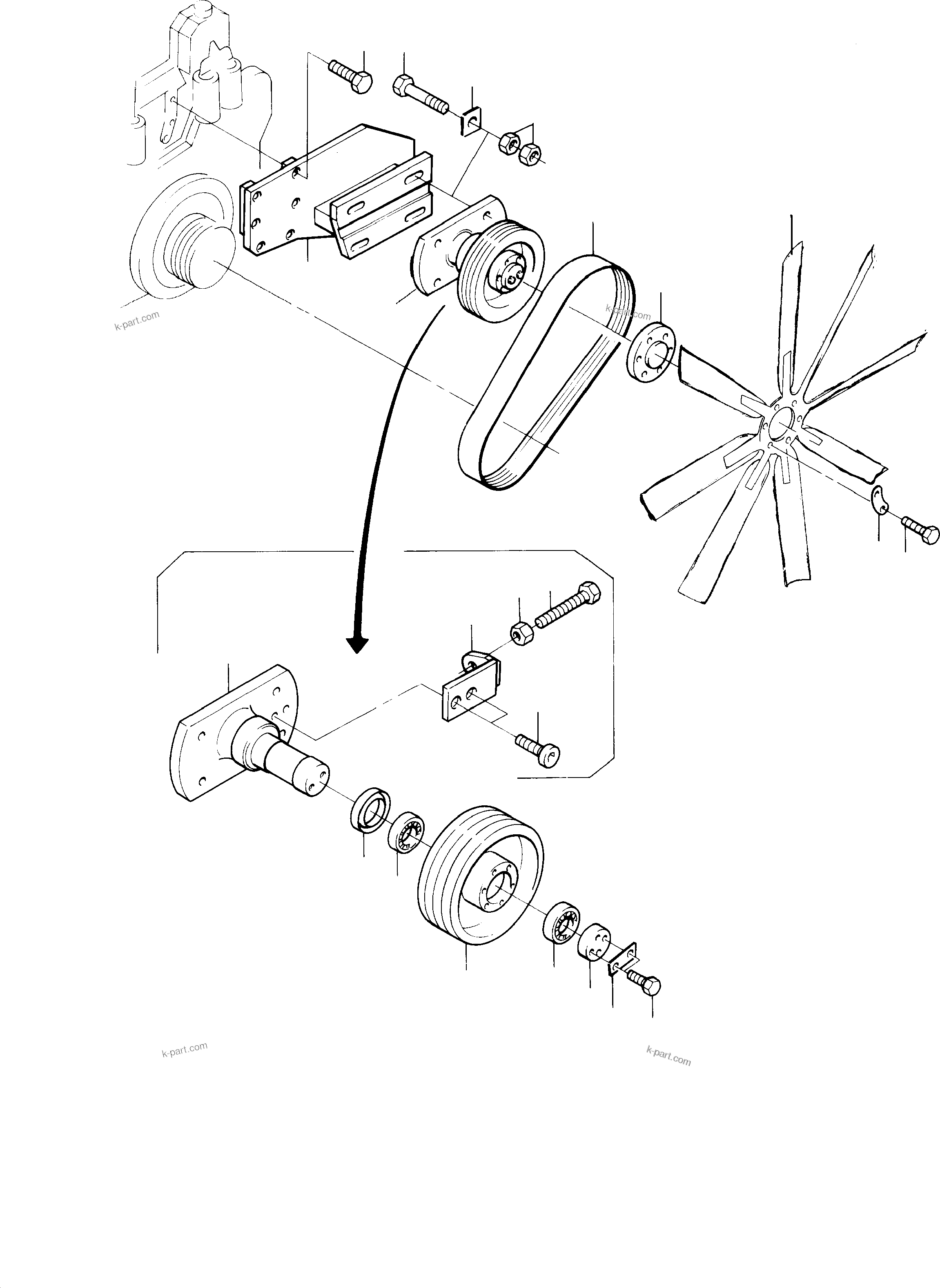

RADIATOR - FAN DRIVE, CUMMINS-ENGINE | H285S S/N 78129

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	428 995 40	Fan bar	1	InternKon: 386 903 40 / 11
?	505 115 98	Bolt	6	InternBDB: 3/4-10 UNC x8 10.9 010 500 99 \| InternKon: 386 903 40 / 17
?	308 321 99	Bolt	4	InternBDB: M16x90 /931 10.9 \| InternKon: 386 903 40 / 22
?	266 996 40	Washer	4	InternKon: 386 903 40 / 15
?	332 355 99	Nut	8	InternBDB: M 16 /934 10 \| InternKon: 386 903 40 / 44
?	269 275 40	Drive belt	1	InternBDB: Gates 23 K-1800 \| InternKon: 386 903 40 / 2
?	429 790 40	Spacer block	1	InternKon: 386 903 40 / 14
?	322 664 40	Suction fan	1	InternBDB: GM 514 4021 60" \| InternKon: 386 903 40 / 79
?	409 978 40	Locking plate	3	InternKon: 386 903 40 / 10
?	308 614 99	Bolt	6	InternBDB: M12x120 /931 \| InternKon: 386 903 40 / 23
?	282 612 40	Fan drive, assy. fig-nos: 16-27	1	InternKon: 386 903 40 / 12
?	261 795 40	Flange shaft, assy.	1	InternKon: 282 612 40 / 1
?	261 796 40	Flange shaft	1	InternKon: 261 795 40 / 1
?	334 285 40	Trestle	1	InternKon: 261 795 40 / 2
?	267 091 40	Set screw	1	InternKon: 261 795 40 / 3
?	332 338 99	Nut	1	InternBDB: M 20 /934 \| InternKon: 261 795 40 / 4
?	534 052 99	Screw	2	InternBDB: M16x40 /6912 10.9 \| InternKon: 261 795 40 / 5
?	501 298 98	Shaft seal	1	InternBDB: A 95x125x12/ 3760 \| InternKon: 282 612 40 / 5
?	361 723 99	Roller bearing	2	InternBDB: 32015X /720 75x115x25 \| InternKon: 282 612 40 / 4
?	539 832 40	Pulley	1	InternKon: 282 612 40 / 2
?	539 831 40	End plate	1	InternKon: 282 612 40 / 3
?	003 185 98	Locking plate	1	InternBDB: A 90x40x1 010 939 99 \| InternKon: 282 612 40 / 7
?	307 844 99	Bolt	2	InternBDB: M20x45 /933 \| InternKon: 282 612 40 / 6
