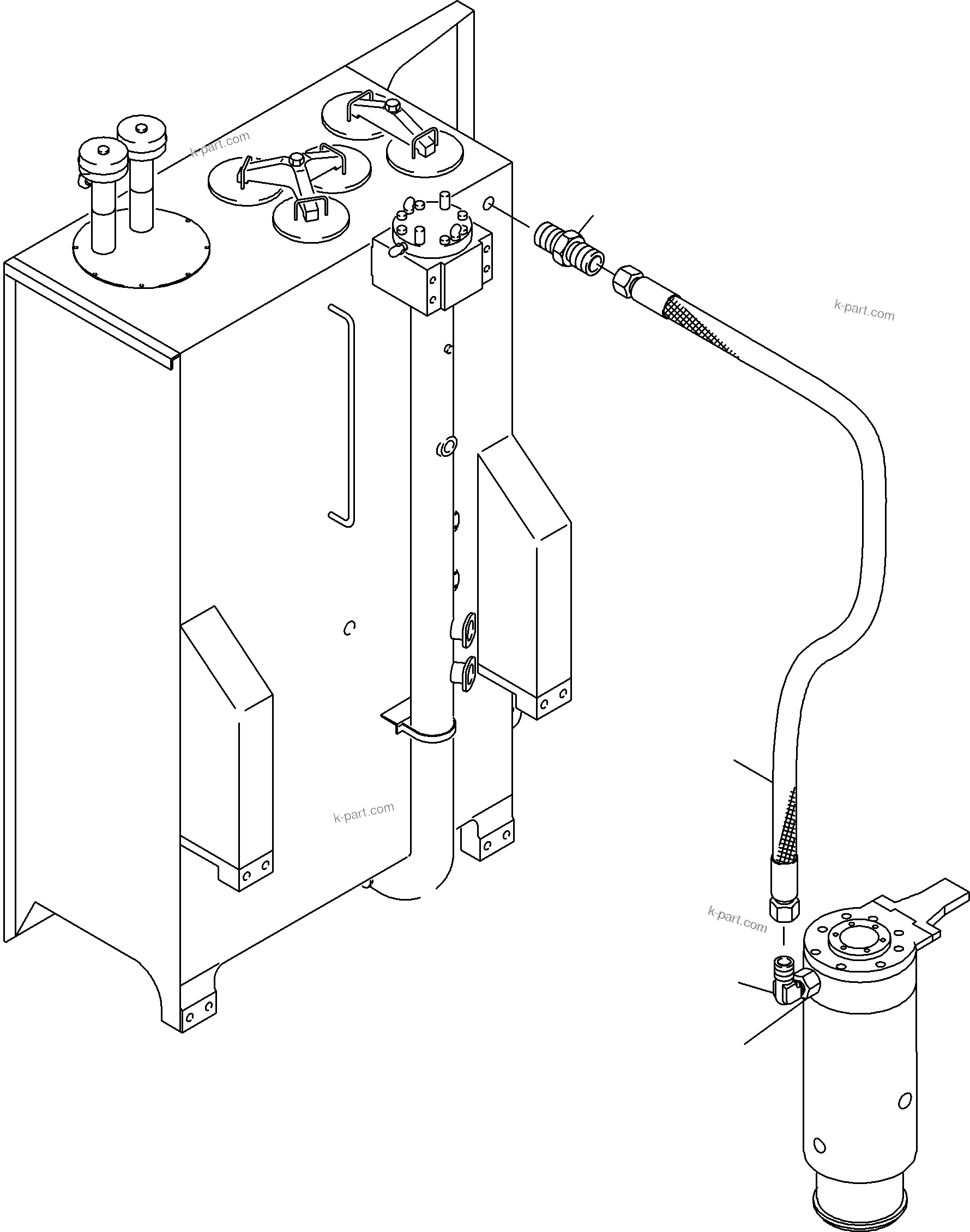

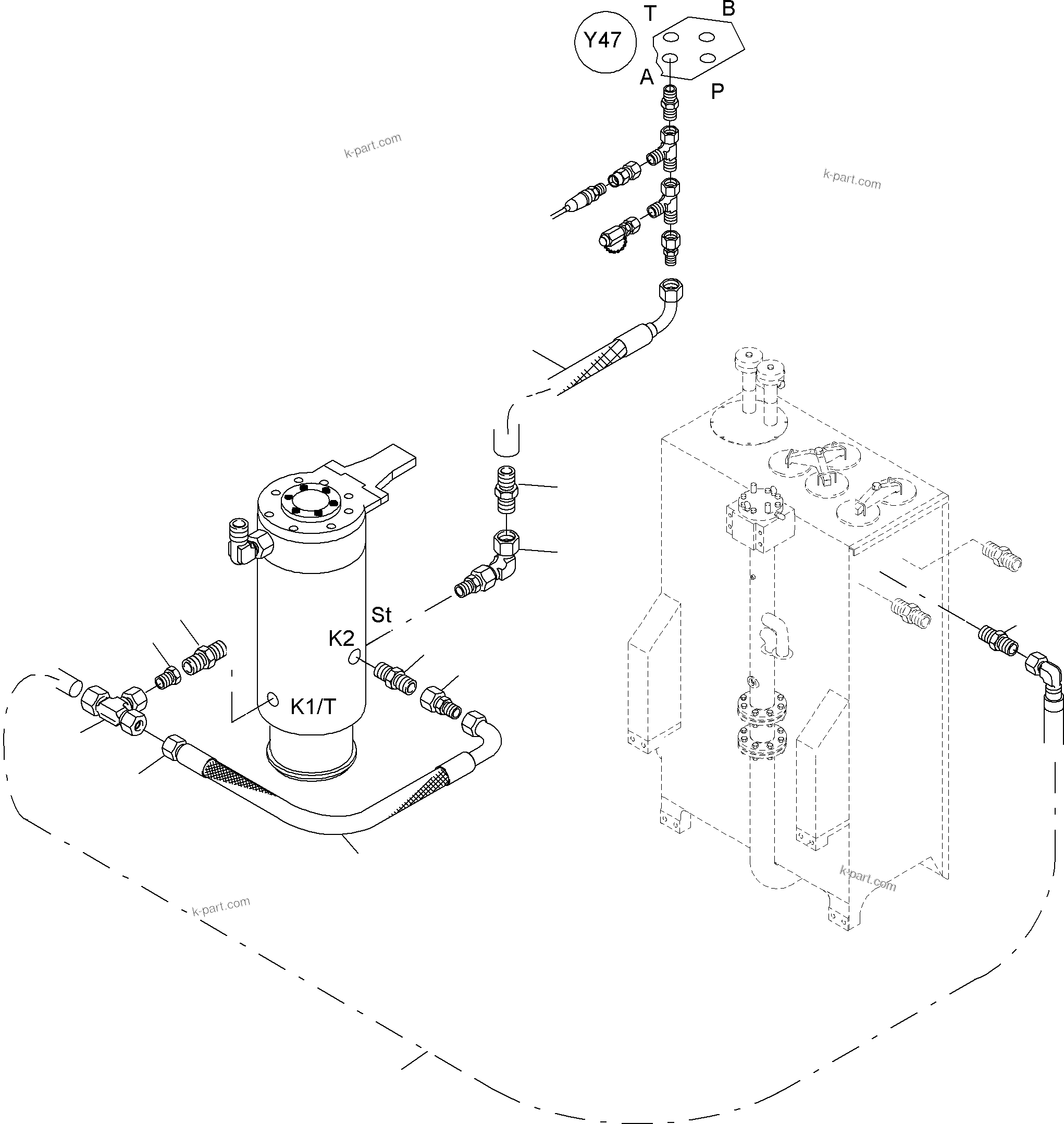

Diagram image 1 of 2

PC5500-6E S/N 15060

? ? ? ?

PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	515 650 98	Hose assy.	1	InternBDB: DOL 42 / DOL 42-90 \| InternKon: 918 858 40 / 38
?	374 415 99	Socket	1	InternBDB: L42B-M / 3901 \| InternKon: 918 858 40 / 67
?	516 163 98	Socket	1	InternBDB: SWE-L 42 / ISO 8434 \| InternKon: 934 559 40 / 35
?	516 952 98	Socket	1	InternBDB: SWSDS-L42xM48x2 Typ E / ISO 8434 \| InternKon: 934 559 40 / 33
?	511 064 98	Hose assy.	1	InternBDB: 240 12x9900 DOL 15 90 \| InternKon: 918 858 40 / 9
?	514 543 98	Hose assy.	1	InternBDB: 120 16x7600 DOL 18 / DOL 18 90 \| InternKon: 918 858 40 / 36
?	374 408 99	Socket	1	InternBDB: SDS-L18xM22x1,5 Typ E / ISO 8434 \| InternKon: 918 858 40 / 66
?	374 407 99	Socket	1	InternBDB: SDS-L15xM18x1,5 Typ E / ISO 8434 \| InternKon: 934 559 40 / 20
?	516 158 98	Socket	1	InternBDB: SWE-L 15 / ISO 8434 \| InternKon: 934 559 40 / 14
?	374 413 99	Socket	2	InternBDB: SDS-S20XM27x2 Typ E ISO 08434 \| InternKon: 934 559 40 / 21
?	634 479 40	Union	1	InternBDB: RED 20/12-PS/ OMD \| InternKon: 934 559 40 / 43
?	517 171 98	Hose assy.	1	InternBDB: 240 08x500 DOL 12 90 \| InternKon: 934 559 40 / 47
?	634 303 40	Union	1	InternBDB: RED 18/12-PL/OMD \| InternKon: 934 559 40 / 37
?	511 135 98	Socket	1	InternBDB: T-L18 / ISO 8434 \| InternKon: 934 559 40 / 36
?	517 089 98	Socket	1	InternBDB: GZR 20 /18-SL \| InternKon: 934 559 40 / 52
