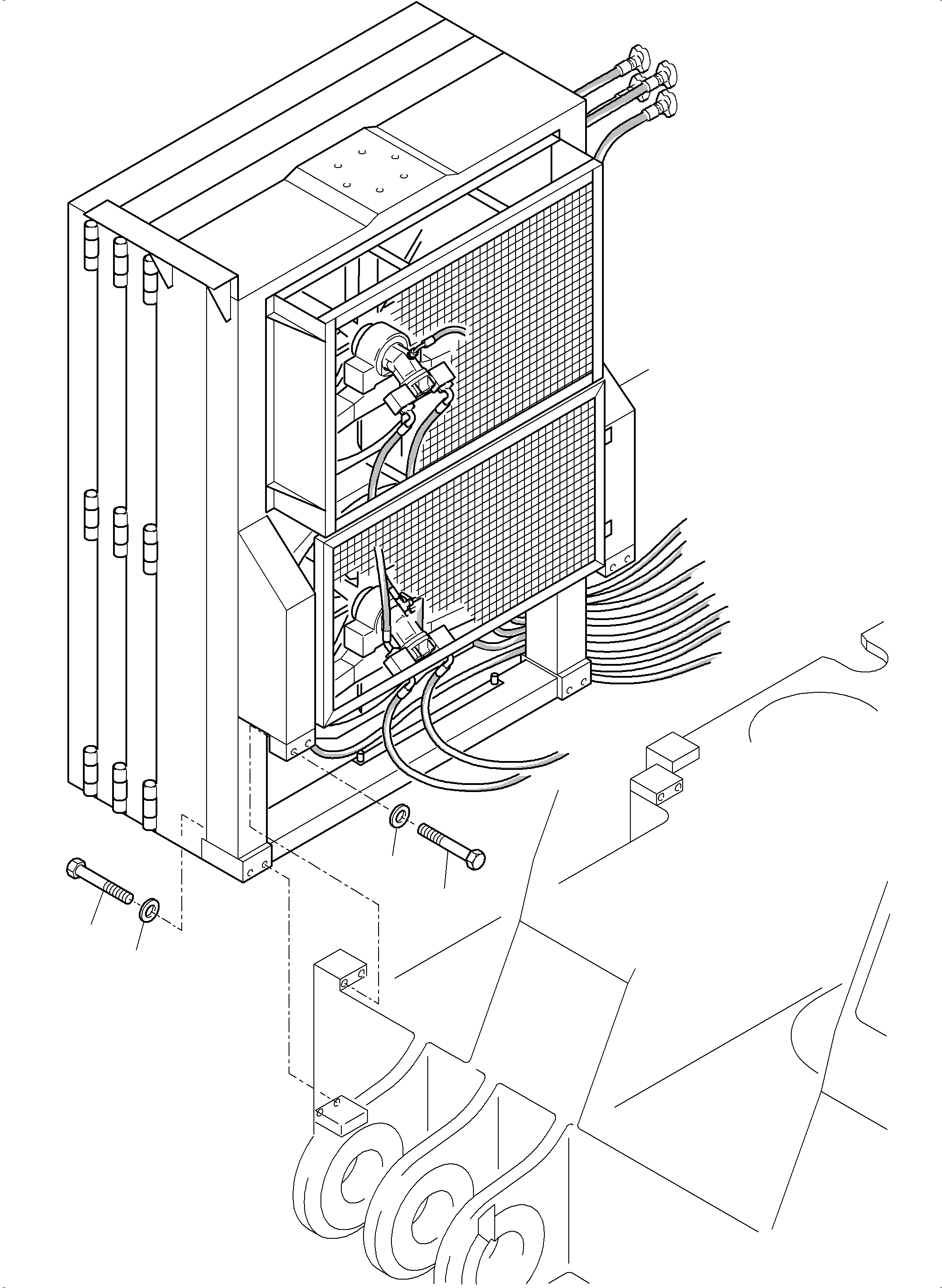

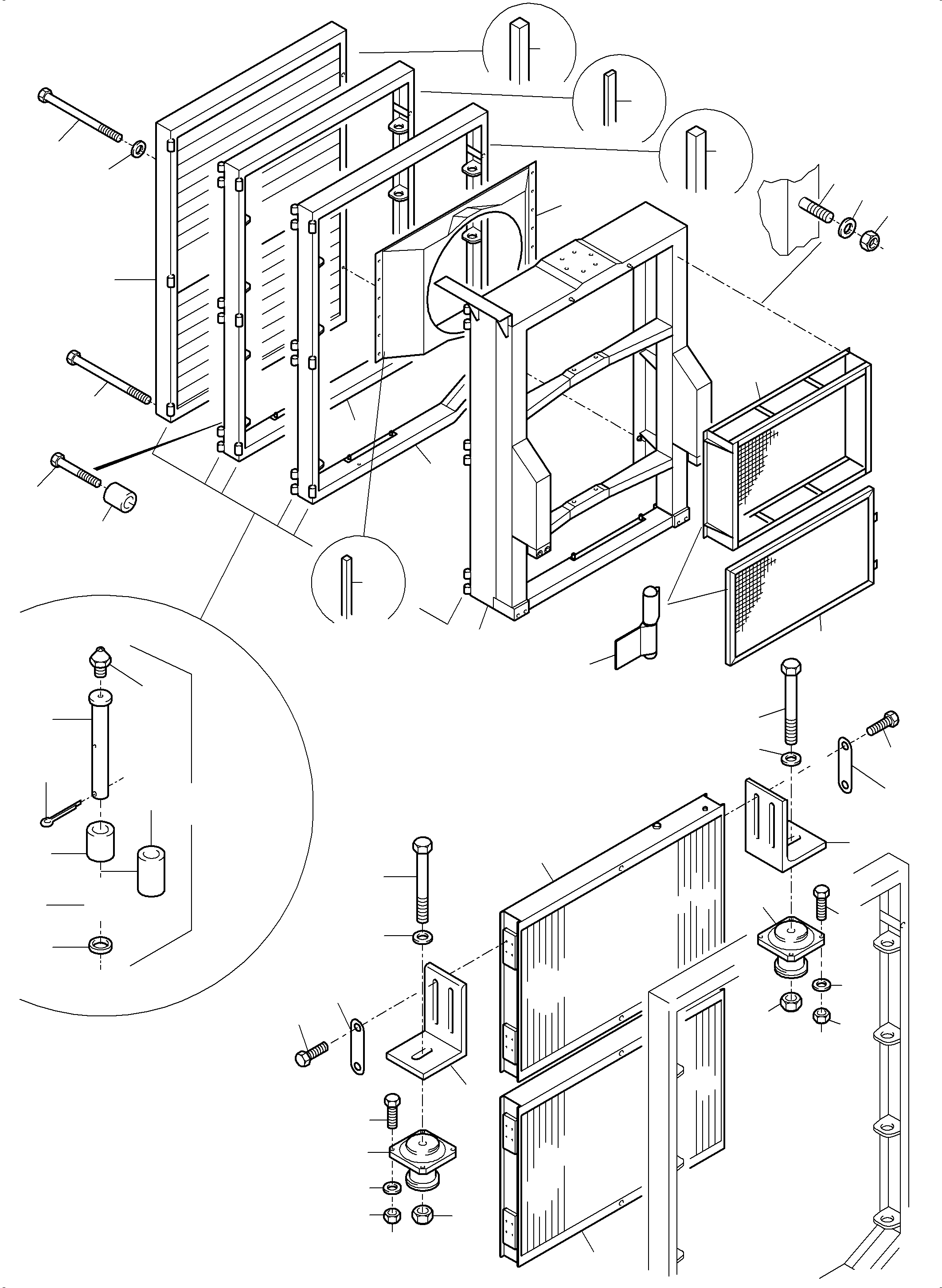

Diagram image 1 of 2

PC5500-6E S/N 15060

15 16 17 17 35 36 40

PC5500-6E S/N 15060

01 02 03 03 04 04 05 05 07 07 08 08 09 09 10 10 11 11 12 12 13 13 14 14 18 19 20 21 22 23 24 25 26 27 28 29 30 30 31 32 33 34 37 37 38 39 41 50 50 52

#	Part Number	Partname	Quantity	Options
01	910 914 40	Oil radiator mounting	1	InternKon: 910 914 40 / 1
02	574 502 40	Radiator mounting	1	InternKon: 574 501 40 / 1
03	655 476 40	Oil cooler	4	InternBDB: AKG \| InternKon: 574 501 40 / 2
04	898 373 40	Angle	16	InternKon: 574 501 40 / 3
05	461 587 40	Buffer elements	16	InternKon: 574 501 40 / 4
07	480 169 40	Locking plate	32	InternKon: 574 501 40 / 5
08	307 805 99	Bolt	64	InternBDB: M12x35 /933 \| InternKon: 574 501 40 / 7
09	308 640 99	Bolt	16	InternBDB: M16x120 /931 \| InternKon: 574 501 40 / 6
10	316 211 99	Washer	16	InternBDB: 17 \| InternKon: 574 501 40 / 11
11	334 601 99	Nut	16	InternBDB: M16 / 985 \| InternKon: 574 501 40 / 9
12	507 037 98	Nut	64	InternBDB: M10 / 985 \| InternKon: 574 501 40 / 10
13	308 575 99	Bolt	64	InternBDB: M10x40 /931 \| InternKon: 574 501 40 / 8
14	340 465 99	Washer	128	InternBDB: B 10,5 / 125 \| InternKon: 574 501 40 / 13
15	511 747 98	Bolt Cold weather design	4	InternBDB: M30x160 /931 \| InternKon: 910 901 40 / 13
16	511 761 98	Bolt Cold weather design	4	InternBDB: M30x240 /931 \| InternKon: 910 901 40 / 14
17	255 057 40	Washer	8	InternBDB: Ш 31 \| InternKon: 910 901 40 / 15
18	910 931 40	Door Fan Cage Top	1	InternKon: 910 910 40 / 6
19	910 920 40	Door Fan Cage Bottom	1	InternKon: 910 910 40 / 5
20	510 213 98	Thread pin	4	InternBDB: PM 12 x 30 / 32500 \| InternKon: 910 910 40 / 15
21	334 600 99	Nut	4	InternBDB: M12 / 985 \| InternKon: 910 910 40 / 25
22	653 691 40	Hinge	4	InternKon: 910 910 40 / 9
23	341 337 99	Washer	4	InternBDB: 13,5 / 436 \| InternKon: 910 910 40 / 26
24	574 527 40	Fan cowl	2	InternKon: 910 910 40 / 4
25	390 641 40	Hinge	9	InternKon: 910 910 40 / 8
26	350 562 99	Grease nipple	9	InternBDB: AM 10x1 \| InternKon: 390 641 40 / 6
27	912 882 40	Door	1	InternKon: 910 910 40 / 3
28	350 757 99	Washer	2	InternBDB: R 26,0 / 6919 \| InternKon: 910 910 40 / 27
29	509 588 98	Bolt	2	InternBDB: M24x610 \| InternKon: 910 910 40 / 18
30	592 126 40	Profiled joint 15x30	-2	InternKon: 910 910 40 / 29
31	440 821 40	Profiled joint 30x30	-2	InternKon: 910 910 40 / 30
32	592 127 40	Profiled joint 15x15	-2	InternKon: 910 910 40 / 31
33	912 861 40	Radiator mounting	1	InternKon: 912 862 40 / 1
34	621 107 40	Pin	9	InternKon: 390 641 40 / 1
35	304 306 99	Bolt Standard	4	InternBDB: M30x160 /931 \| InternKon: 910 901 40 / 13
36	308 342 99	Bolt Standard	4	InternBDB: M30x240 /931 \| InternKon: 910 901 40 / 14
37	390 642 40	Round bar steel	18	InternKon: 390 641 40 / 2
38	390 643 40	Round bar steel	9	InternKon: 390 641 40 / 3
39	340 619 99	Washer	9	InternBDB: 30 /1440 \| InternKon: 390 641 40 / 4
40	910 910 40	Oil cooler system assy.	1	InternKon: 910 906 40 / 10
41	342 121 99	Cotter pin	9	InternBDB: 8x50 /94 \| InternKon: 390 641 40 / 5
50	500 814 98	Bolt	6	InternBDB: M12x60 / 931 / 8.8 \| InternKon: 910 910 40 / 38
52	510 745 98	Resilent Sleeve	6	InternBDB: 13 / 25x40 / WN 341 948 40 \| InternKon: 910 910 40 / 39
