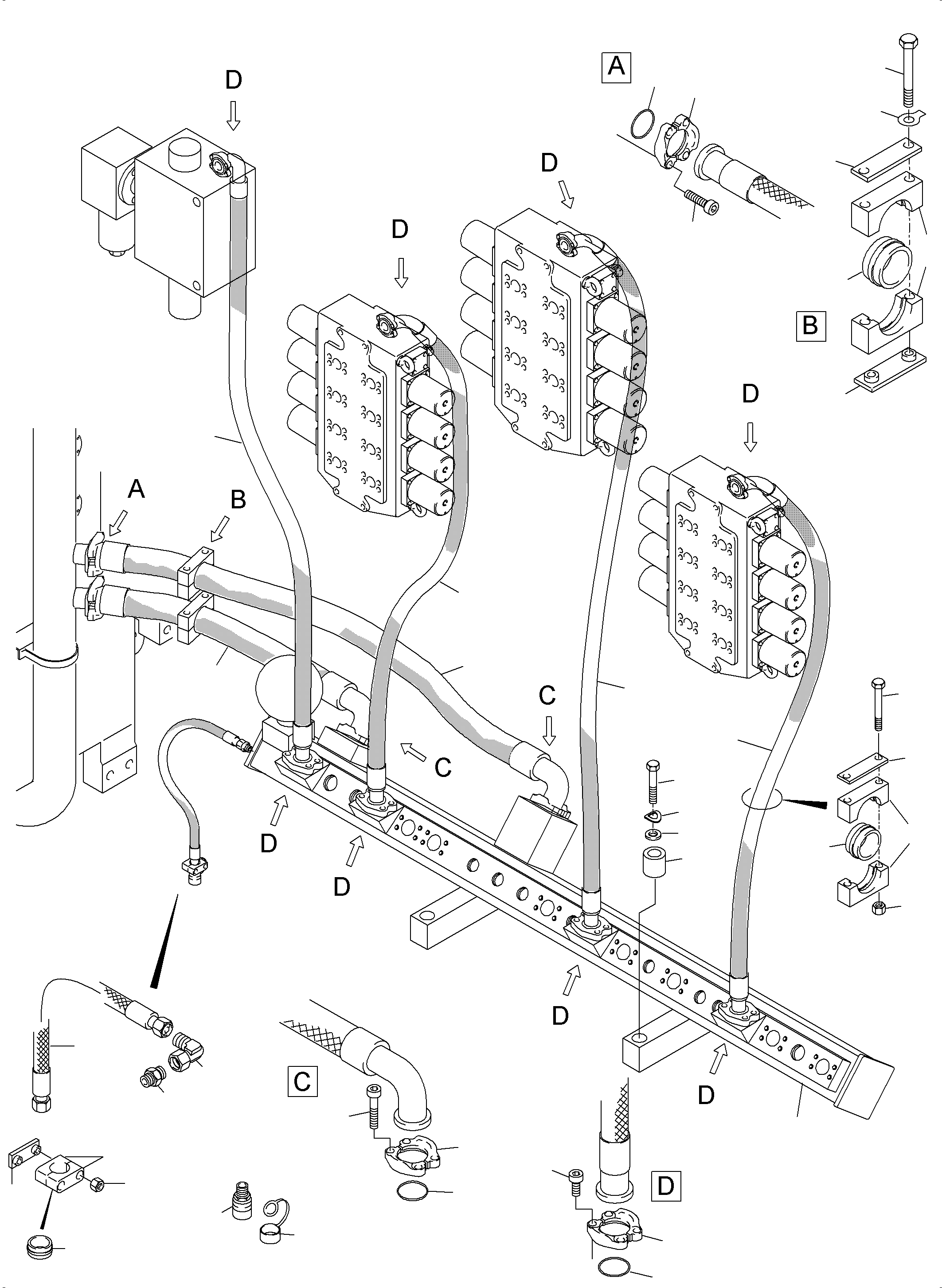

01 |
518 030 98
|
Hose assy. DN 50 x 2400 |
1 |
InternBDB: 090 FL 2 / FL 2 | InternKon: 933 920 40 / 44
|
|
|
|
02 |
517 945 98
|
Hose assy. DN 50 x 1550 |
2 |
InternBDB: 090 FL 2 / FL 2 | InternKon: 933 920 40 / 45
|
|
|
|
03 |
517 946 98
|
Hose assy. DN 50 x 2420 |
1 |
InternBDB: 090 FL 2 / FL 2 | InternKon: 933 920 40 / 46
|
|
|
|
04 |
385 243 40
|
Flange seal |
8 |
InternBDB: 2 NBR 90 | InternKon: 933 920 40 / 29
|
|
|
|
05 |
006 635 98
|
Half flange |
16 |
InternBDB: 50 /210 | InternKon: 933 920 40 / 31
|
|
|
|
06 |
319 272 99
|
Bolt |
32 |
InternBDB: M12x30 / 912/ 10.9 | InternKon: 933 920 40 / 32
|
|
|
|
07 |
933 930 40
|
Header |
1 |
InternKon: 933 920 40 / 3
|
|
|
|
17 |
517 706 98
|
Hose assy. DN 75 x 1360 |
1 |
InternBDB: SHL 35 / FL 3 / FL 3 - 90 / Interhydraulik | InternKon: 913 585 40 / 27
|
|
|
|
18 |
932 912 40
|
Hose assy. DN 75 x 2120 |
1 |
InternBDB: SHL 35 / FL 3 / FL 3 - 90 / Interhydraulik | InternKon: 913 585 40 / 28
|
|
|
|
19 |
501 543 98
|
O-ring |
4 |
InternBDB: 85,32x3,53 B NB 80 | InternKon: 913 585 40 / 101
|
|
|
|
20 |
501 542 98
|
Half flange |
8 |
InternBDB: 75 /210 | InternKon: 913 585 40 / 102
|
|
|
|
21 |
307 824 99
|
Bolt |
16 |
InternBDB: M16x40 / 933 / 8.8 | InternKon: 913 585 40 / 103
|
|
|
|
24 |
509 064 98
|
Clamp set |
10 |
InternBDB: S-5-E | InternKon: 933 962 40 / 1
|
|
|
|
25 |
500 398 98
|
Plate |
10 |
InternBDB: S-DP-A-5 | InternKon: 933 962 40 / 2
|
|
|
|
26 |
505 212 98
|
Insert |
8 |
InternBDB: S-5-68 / 3015 | InternKon: 933 962 40 / 3
|
|
|
|
27 |
334 601 99
|
Nut |
16 |
InternBDB: M16 /985 | InternKon: 933 962 40 / 4
|
|
|
|
28 |
308 643 99
|
Bolt |
16 |
InternBDB: M16x160 / 931 / 8.8 | InternKon: 933 962 40 / 17
|
|
|
|
35 |
374 409 99
|
Socket |
1 |
InternBDB: L22 E-M / 3901 | InternKon: 933 961 40 / 49
|
|
|
|
36 |
516 160 98
|
Socket |
1 |
InternBDB: L22 / 3942 | InternKon: 933 961 40 / 50
|
|
|
|
37 |
513 867 98
|
Hose assy. DN 20x1800 |
1 |
InternBDB: 120 DOL 22 / DOL 22 | InternKon: 933 961 40 / 51
|
|
|
|
38 |
081 495 40
|
Quick disconnect coupling |
1 |
InternBDB: 61-6511-620-022 | InternKon: 933 961 40 / 52
|
|
|
|
39 |
081 496 40
|
Protection cap |
1 |
InternBDB: 63-6591-620-051 | InternKon: 933 961 40 / 53
|
|
|
|
45 |
308 887 99
|
Bolt |
4 |
InternBDB: M 20x160 / 931 / 10.9 | InternKon: 930 156 40 / 29
|
|
|
|
46 |
515 713 98
|
Lock washer |
4 |
InternBDB: A 71G / 2093 | InternKon: 930 156 40 / 30
|
|
|
|
47 |
340 618 99
|
Washer |
4 |
InternBDB: 36 / 1440 | InternKon: 930 156 40 / 31
|
|
|
|
48 |
899 929 40
|
Resilient sleeve |
4 |
InternKon: 930 156 40 / 32
|
|
|
|
50 |
507 037 98
|
Nut |
4 |
InternBDB: M10 | InternKon: 933 962 40 / 5
|
|
|
|
51 |
534 004 99
|
Cover plate |
2 |
InternBDB: S-DP-A-3 /3015 | InternKon: 933 962 40 / 7
|
|
|
|
52 |
502 618 98
|
Clamp set |
2 |
InternBDB: S-3-E /3015 | InternKon: 933 962 40 / 6
|
|
|
|
53 |
504 926 98
|
Insert |
2 |
InternBDB: S-3-32 | InternKon: 933 962 40 / 8
|
|
|
|
54 |
504 854 98
|
Insert |
2 |
InternBDB: S-5-72
|
|
|
|
55 |
500 399 98
|
Weld on plate |
2 |
InternBDB: S-AP-A-5 | InternKon: 914 978 40 / 5
|
|
|
|
56 |
308 641 99
|
Bolt |
4 |
InternBDB: M16x130 / 931 | InternKon: 914 978 40 / 7
|
|
|
|
57 |
343 008 99
|
Washer |
4 |
InternBDB: 17/93 | InternKon: 914 978 40 / 8
|
|
