OIL COOLER - HOSES ASSY. | PC5500-6E S/N 15060 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

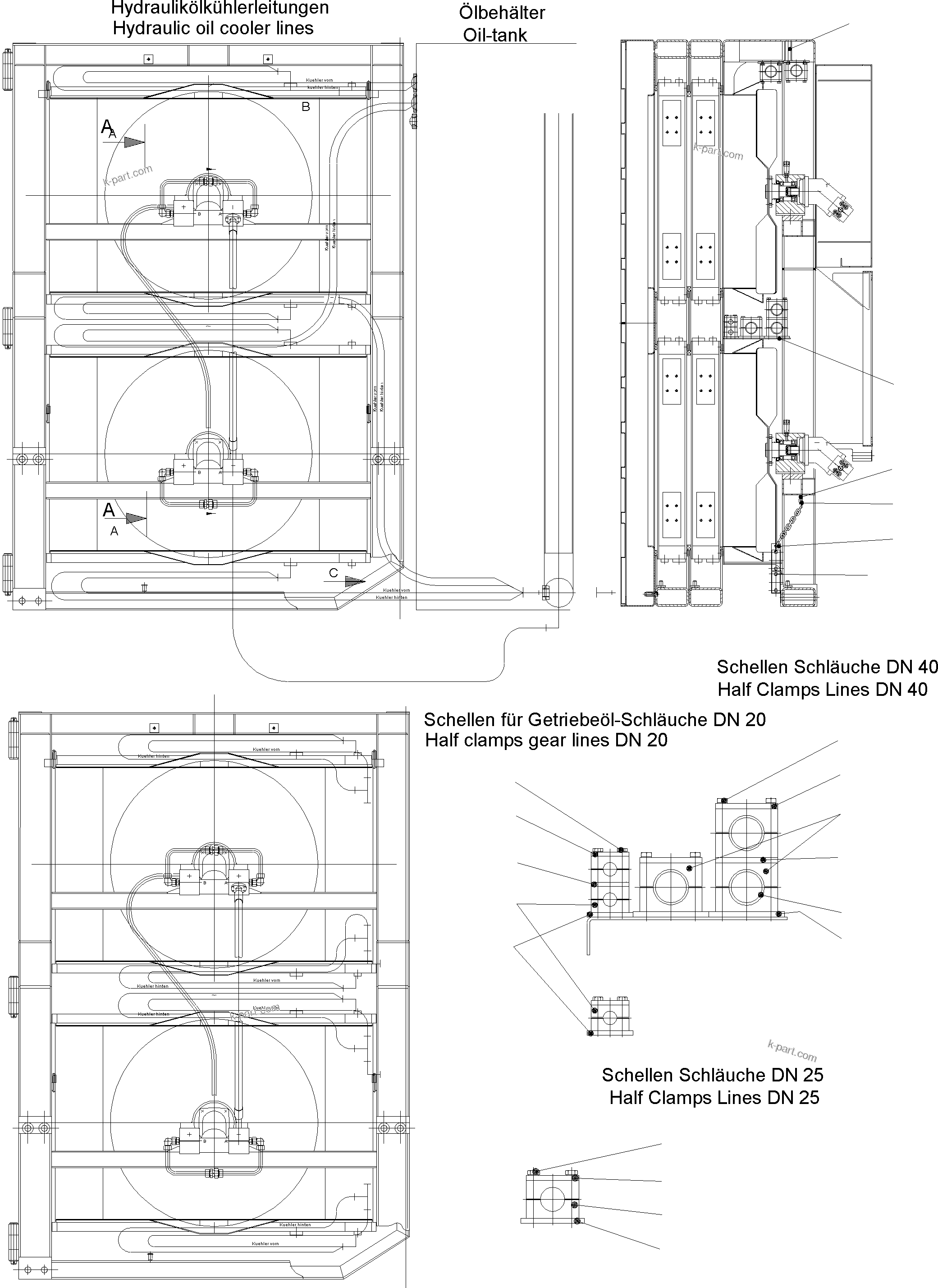

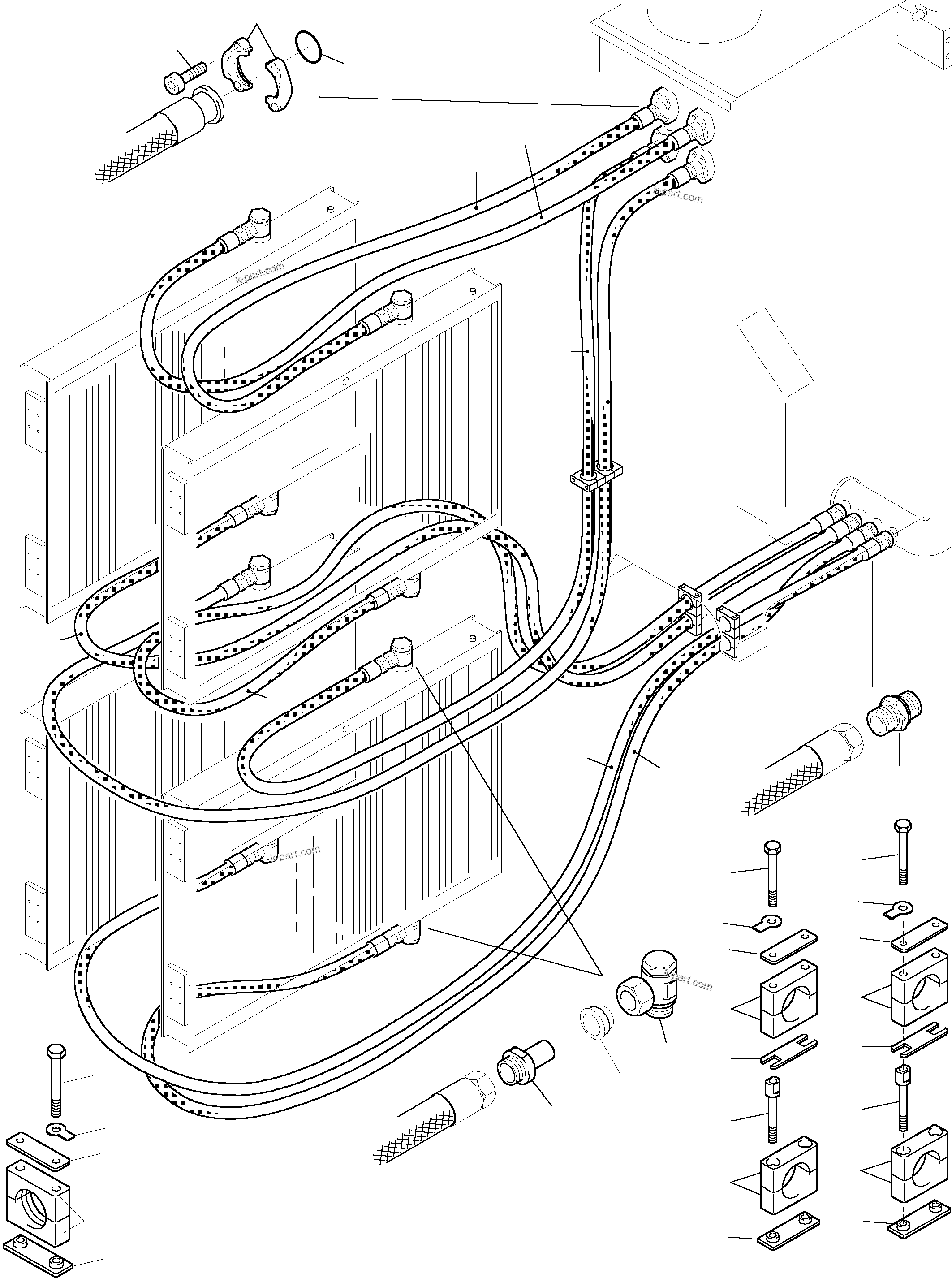

Diagram image 1 of 2

PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	513 438 98	Hose assy. DN 40 x 3100	1	InternBDB: DOL 42 / FL 2 \| InternKon: 574 550 40 / 02
?	513 437 98	Hose assy. DN 40 x 3550	1	InternBDB: DOL 42 / FL 2 \| InternKon: 574 550 40 / 01
?	512 344 98	Hose assy. DN 40 x 5750	1	InternBDB: DOL 42 / DOL 42 \| InternKon: 574 550 40 / 03
?	512 345 98	Hose assy. DN 40 x 5650	1	InternBDB: DOL 42 / DOL 42 \| InternKon: 574 550 40 / 04
?	513 440 98	Hose assy. DN 40 x 4600	1	InternBDB: DOL 42 / FL 2 \| InternKon: 574 550 40 / 06
?	513 439 98	Hose assy. DN 40 x 4750	1	InternBDB: DOL 42 / FL 2 \| InternKon: 574 550 40 / 05
?	512 348 98	Hose assy. DN 40 x 4600	1	InternBDB: DOL 42 / DOL 42 \| InternKon: 574 550 40 / 07
?	512 349 98	Hose assy. DN 40 x 4300	1	InternBDB: DOL 42 / DOL 42 \| InternKon: 574 550 40 / 08
?	907 045 40	Union	8	InternBDB: Voss 42-LM /011 754 99 \| InternKon: 574 550 40 / 20
?	385 243 40	Seal ring	4	InternBDB: 2 "
?	319 156 99	Bolt	16	InternBDB: M12x30 /912
?	130 630 40	Half flange	16	InternBDB: 50 / 210
?	374 415 99	Union	1	InternBDB: L 42 M
?	647 851 40	Orifice	4	InternBDB: DKG \| InternKon: 574 550 40 / 50
?	534 002 99	Weld on plate	4	InternBDB: S-AP-S-2 \| InternKon: 914 455 40 / 19
?	502 682 98	Half clamp Ш 25	12	InternBDB: S-2-G-28 \| InternKon: 914 455 40 / 17
?	504 585 98	Screw	2	InternBDB: S-2 \| InternKon: 914 455 40 / 22
?	504 586 98	Locking plate	2	InternBDB: S - 2 \| InternKon: 914 455 40 / 21
?	534 001 99	Cover plate	4	InternBDB: S-DP-A-2 \| InternKon: 914 455 40 / 18
?	308 579 99	Bolt	8	InternBDB: M10x60 /931 \| InternKon: 914 455 40 / 20
?	509 308 98	Locking plate	5	InternBDB: SI 4
?	534 009 99	Weld on plate	7	InternBDB: S-AP-A-4 \| InternKon: 914 455 40 / 9
?	506 371 98	Half clamp Ш 40	52	InternBDB: S-4-E-PA \| InternKon: 914 455 40 / 6
?	504 786 98	Screw	6	InternBDB: S-4 \| InternKon: 914 455 40 / 12
?	504 787 98	Locking plate	3	InternBDB: S - 4 \| InternKon: 914 455 40 / 11
?	534 008 99	Cover plate	23	InternBDB: S-DP-A-4 \| InternKon: 914 455 40 / 8
?	308 459 99	Bolt	22	InternBDB: M12x100 /931 \| InternKon: 914 455 40 / 10
?	509 310 98	Locking plate	14	InternBDB: SI 6
?	534 005 99	Weld on plate	2	InternBDB: S-AP-A-3 \| InternKon: 914 455 40 / 15
?	502 656 98	Half clamp Ш 25	4	InternBDB: S-3-G-38 \| InternKon: 914 455 40 / 13
?	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 \| InternKon: 914 455 40 / 14
?	308 581 99	Bolt	4	InternBDB: M10x70 /931 \| InternKon: 914 455 40 / 16
?	509 309 98	Locking plate	2	InternBDB: SI 5
?	906 480 40	Olive	8	InternBDB: ES-4 L42 VOSS 0011452000
?	502 626 98	Grommet	26	InternBDB: S-4-56,4 / 3015 \| InternKon: 914 455 40 / 7
?	914 454 40	Angle	1	InternBDB: 430 \| InternKon: 914 455 40 / 1
?	914 453 40	Retainer	2	InternKon: 914 455 40 / 2
?	627 779 40	Chain assy	3	InternKon: 914 455 40 / 3
?	122 705 40	Retainer	3	InternKon: 914 455 40 / 4
?	341 271 99	Trigger snap	3	InternKon: 914 455 40 / 5
?	506 701 98	Bolt	6	InternBDB: M12x230 / 8.8 / 931 \| InternKon: 914 455 40 / 23
?	334 600 99	Nut	6	InternBDB: M12 / 8 \| InternKon: 914 455 40 / 24
