Diagram image 1 of 2

PC5500-6E S/N 15060

01 01 04 05 05 06 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 10 10 11 11 11 13 39 40 41 41 42 43 44 45 46

PC5500-6E S/N 15060

03 03 1 1 1 1 1 14 14 20 20 25 26 26 26 27 28 29 30 30 31 31 32 32 34 34 35

#	Part Number	Partname	Quantity	Options
01	643 866 40	Hose assy. DN 10 x 850	1	InternBDB: DOL 12 / DOL 12 \| InternKon: 933 961 40 / 18
03	576 299 40	Hose assy. DN 12 x 1300	1	InternBDB: DOL 15 / DOL 15-90 \| InternKon: 933 961 40 / 17
04	512 933 98	Hose assy. DN 12 x 6000	1	InternBDB: DOL 15 / DOL 15 - 90 \| InternKon: 918 858 40 / 10
05	513 463 98	Hose assy. DN 10 x 6300	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 918 858 40 / 11
06	517 312 98	Hose assy DN08 x 7000	1	InternBDB: DOL 10 DOS 12 \| InternKon: 918 858 40 / 118
10	516 174 98	Socket	2	InternBDB: L 12 / 3944 \| InternKon: 933 961 40 / 37
11	371 452 99	Socket	2	InternBDB: GE 12 PL/R 1/4 / WN 01088799 \| InternKon: 933 961 40 / 36
13	502 752 98	Test socket	1	InternBDB: A 12-L \| InternKon: 933 961 40 / 39
14	374 407 99	Union	2	InternBDB: L 15 / 3901 \| InternKon: 933 961 40 / 41
20	516 158 98	Socket	2	InternBDB: L15 / 3942 \| InternKon: 933 961 40 / 42
25	516 175 98	Socket	1	InternBDB: L15 / 3908 \| InternKon: 933 961 40 / 44
26	516 156 98	Socket	3	InternBDB: L 10 / 3942 \| InternKon: 933 961 40 / 34
27	374 420 99	Socket	1	InternBDB: L 10 E-M / 3901 \| InternKon: 933 961 40 / 54
28	516 182 98	Socket	1	InternBDB: L 10 M / 3945 \| InternKon: 933 961 40 / 55
29	634 483 40	Union	1	InternBDB: TR 10/12/10 PL-OMD \| InternKon: 933 961 40 / 56
30	653 517 40	Hose assy.DN 10 x2120	1	InternBDB: DOL 10 /DOL 10-90 \| InternKon: 933 961 40 / 67
31	604 071 40	Hose assy.DN 10 x 8000	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 933 961 40 / 116
32	513 256 98	Hose assy.DN 8 x 980	1	InternBDB: DOL 10 / DOL 10 \| InternKon: 933 961 40 / 19
34	374 416 99	Socket	2	InternBDB: L 10 E-G 1/4 / 3901 \| InternKon: 933 961 40 / 33
35	516 173 98	Socket	1	InternBDB: L 10 / 3942 \| InternKon: 933 961 40 / 35
39	516 157 98	Socket	1	InternBDB: L12 /3942 \| InternKon: 933 961 40 / 69
40	512 926 98	Hose assy. DN 06 x 2050	1	InternBDB: DOS 10 / DOS 10 \| InternKon: 933 961 40 / 70
41	517 313 98	Valve	2	InternBDB: RHZ 08 SMED / OMD WN 655 930 40 \| InternKon: 933 961 40 / 71
42	516 446 98	Socket	1	InternBDB: GZR 10 / 8-PS / WN 655 910 40 \| InternKon: 933 961 40 / 72
43	517 354 98	Union	1	InternBDB: E-S 10 7 ISO 08474 \| InternKon: 933 961 40 / 73
44	517 314 98	Socket	1	InternBDB: GZR 12 / 8-PS / WN 655 910 40 \| InternKon: 933 961 40 / 74
45	907 471 40	Socket	1	InternBDB: TR 12/10/12 PS-OMD \| InternKon: 933 961 40 / 75
46	516 741 98	Union	1	InternBDB: S12 7/ DIN 3942 \| InternKon: 933 961 40 / 76

Komatsu PC5500-6E S/N 15060 parts catalog PDF

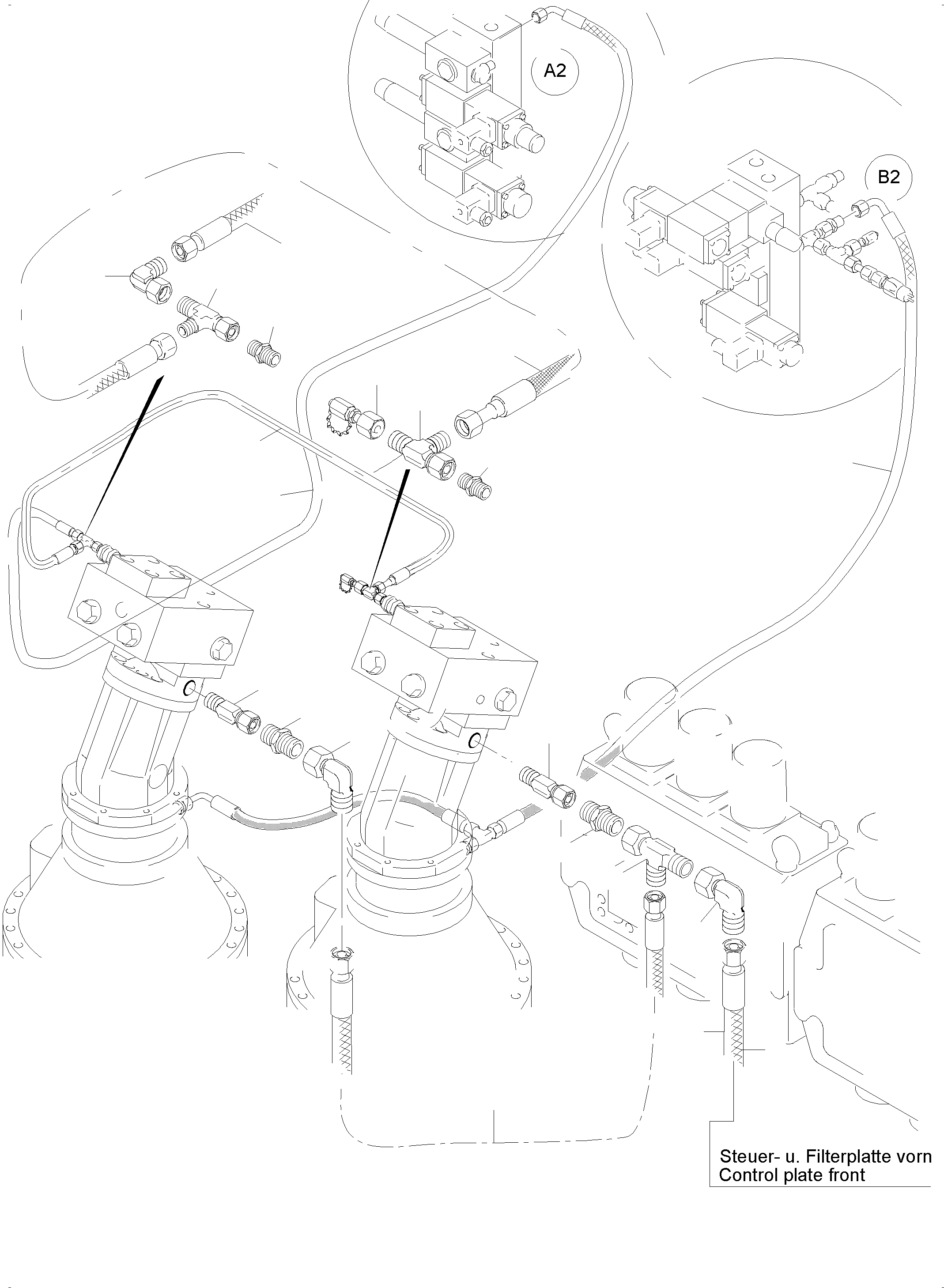

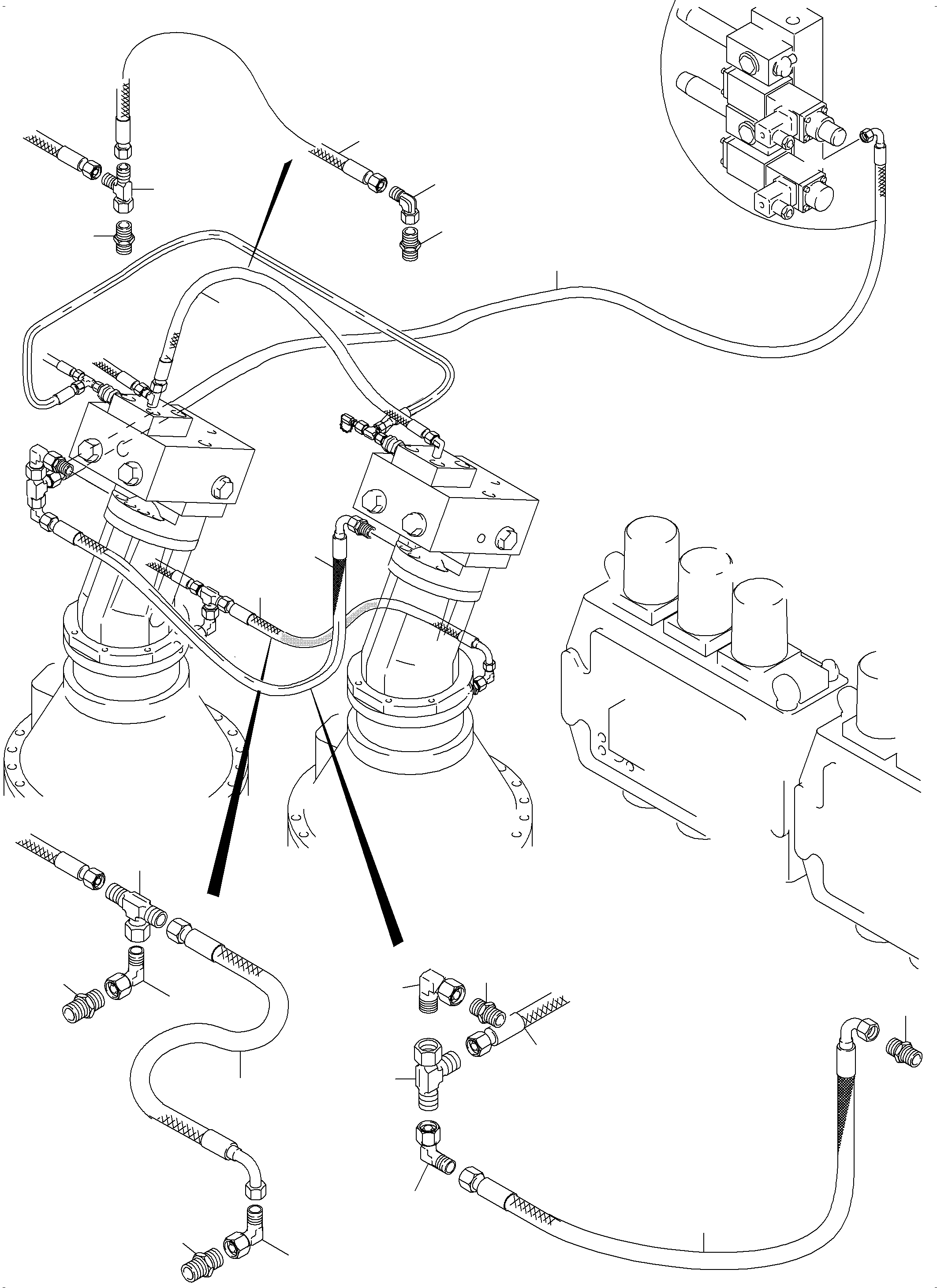

CONTROL - SLEW GEAR (515-1850g) in PC5500-6E S/N 15060. Diagram image and parts list.
