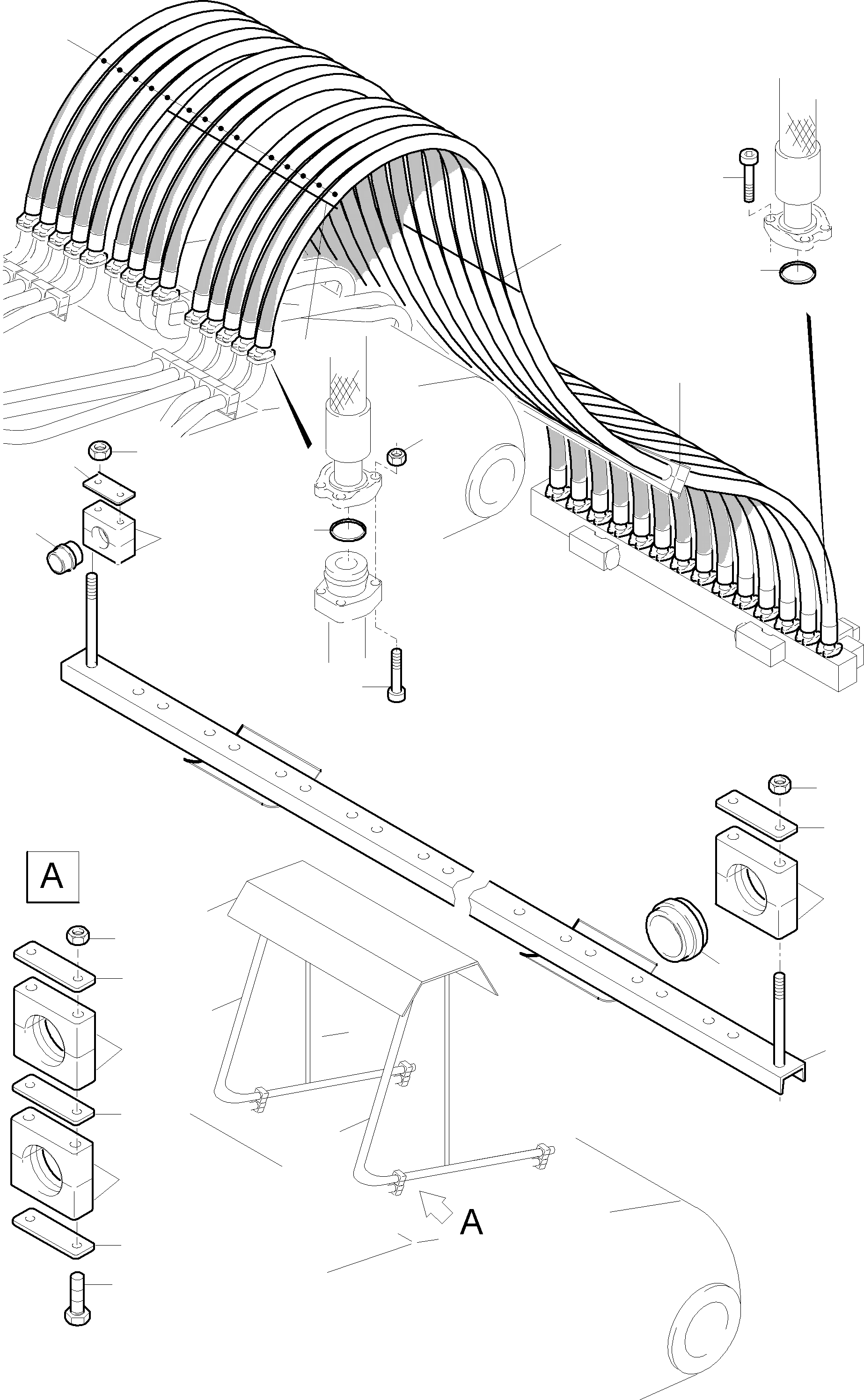

HOSES ASSY. - MANIFOLD- BOOM BULLCLAM EQUIPMENT | PC5500-6E S/N 15060

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	940 337 40	Hose assy.DN 50x4500	14	InternBDB: 350 FS 2 FS 2 \| InternKon: 933 961 40 / 6
02	385 243 40	Flange seal	28	InternBDB: 2 NBR 90 \| InternKon: 933 961 40 / 20
03	319 305 99	Bolt	88	InternBDB: M20x60 /912 10.9 \| InternKon: 933 961 40 / 21
04	319 313 99	Bolt	88	InternBDB: M20x120 /912 10.9 \| InternKon: 932 139 40 / 32
05	509 064 98	Pair of clamps	14	InternBDB: S-5-E \| InternKon: 933 962 40 / 1
06	500 398 98	Plate	14	InternBDB: S-DP-A-5 \| InternKon: 933 962 40 / 2
07	505 212 98	Insert	14	InternBDB: S-5-72 \| InternKon: 933 962 40 / 3
08	502 618 98	Pair of clamps	1	InternBDB: S-3-E \| InternKon: 933 962 40 / 6
09	534 004 99	Plate	1	InternBDB: S-DP-A-3 \| InternKon: 933 962 40 / 7
10	504 926 98	Insert	1	InternBDB: S-3-32 \| InternKon: 933 962 40 / 8
11	334 601 99	Nut	28	InternBDB: M 16 /985 \| InternKon: 933 962 40 / 4
12	507 037 98	Nut	2	InternBDB: M 10 /985 8 \| InternKon: 933 962 40 / 5
13	913 588 40	Clamp line	1	InternKon: 933 961 40 / 1
14	943 007 40	Clamp line	1	InternKon: 933 961 40 / 4
15	504 662 98	Nut	40	InternKon: 933 961 40 / 29
21	936 541 40	Support	1	InternKon: 936 540 40 / 1
22	936 543 40	Support	1	InternKon: 936 540 40 / 2
23	936 545 40	Plate	1	InternBDB: 10x316x600 \| InternKon: 936 540 40 / 3
25	504 445 98	Pair of clamps	4	InternBDB: S-4-R-65 AL DIN 03015 \| InternKon: 936 540 40 / 5
26	502 976 98	Pair of clamps	4	InternBDB: S-4-R-50 AL DIN 03015 \| InternKon: 936 540 40 / 6
27	534 008 99	Cover plate	4	InternBDB: S-DP-A-4 W1 DIN 03015 \| InternKon: 936 540 40 / 7
28	308 612 99	Bolt	8	InternBDB: M12X 230 8.8 DIN 00931 \| InternKon: 936 540 40 / 8
29	504 786 98	Nut	8	InternBDB: M 12 8 DIN 00985 \| InternKon: 936 540 40 / 9
30	504 787 98	Catch	4	InternBDB: S-4 /3015 \| InternKon: 936 540 40 / 10
31	534 009 99	Weld on plate	4	InternBDB: S-AP-A-4 /3015 \| InternKon: 936 540 40 / 11
