MAINFOLD-VALVE-PIPING (BBE) | PC4000-6E S/N 08202

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

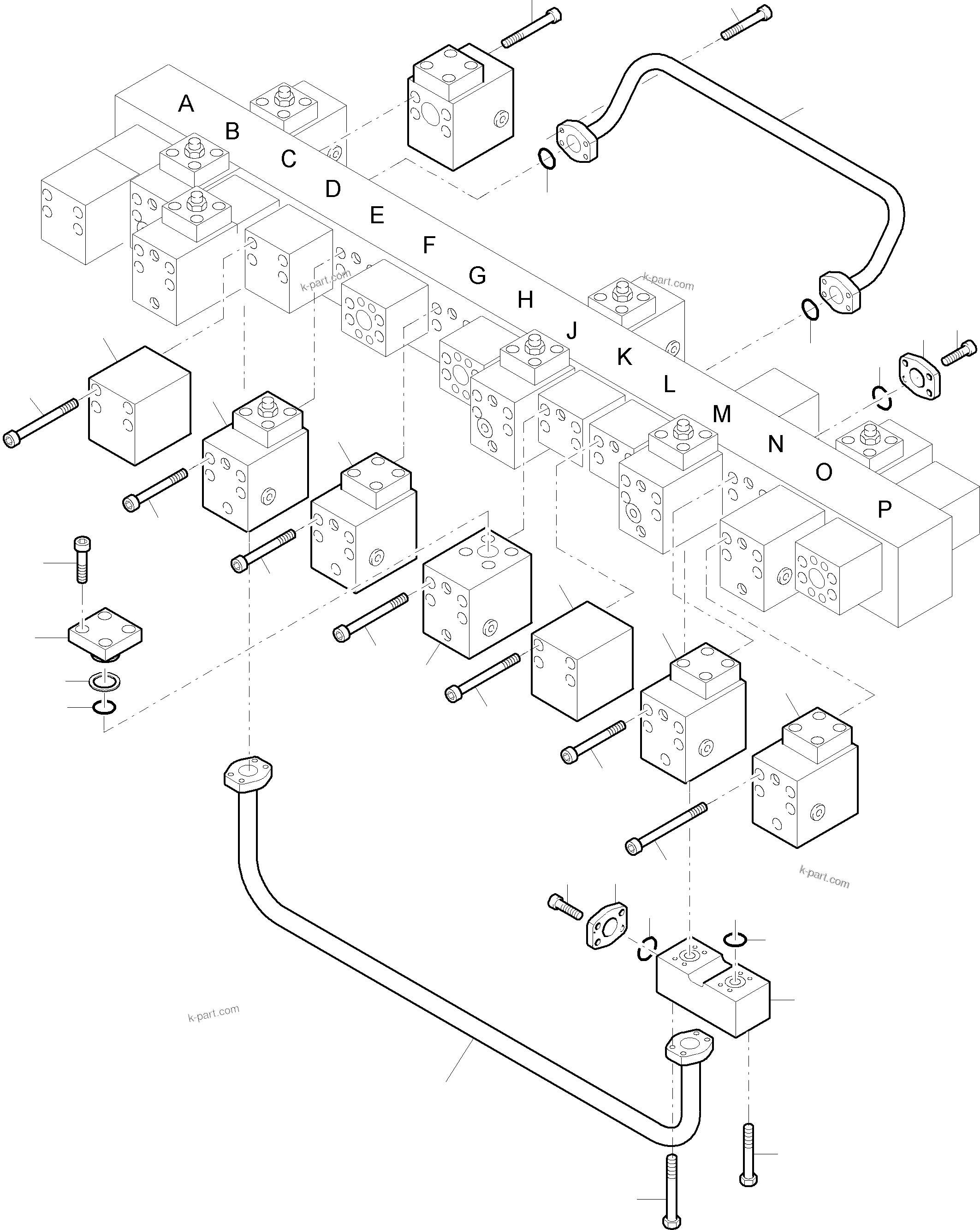

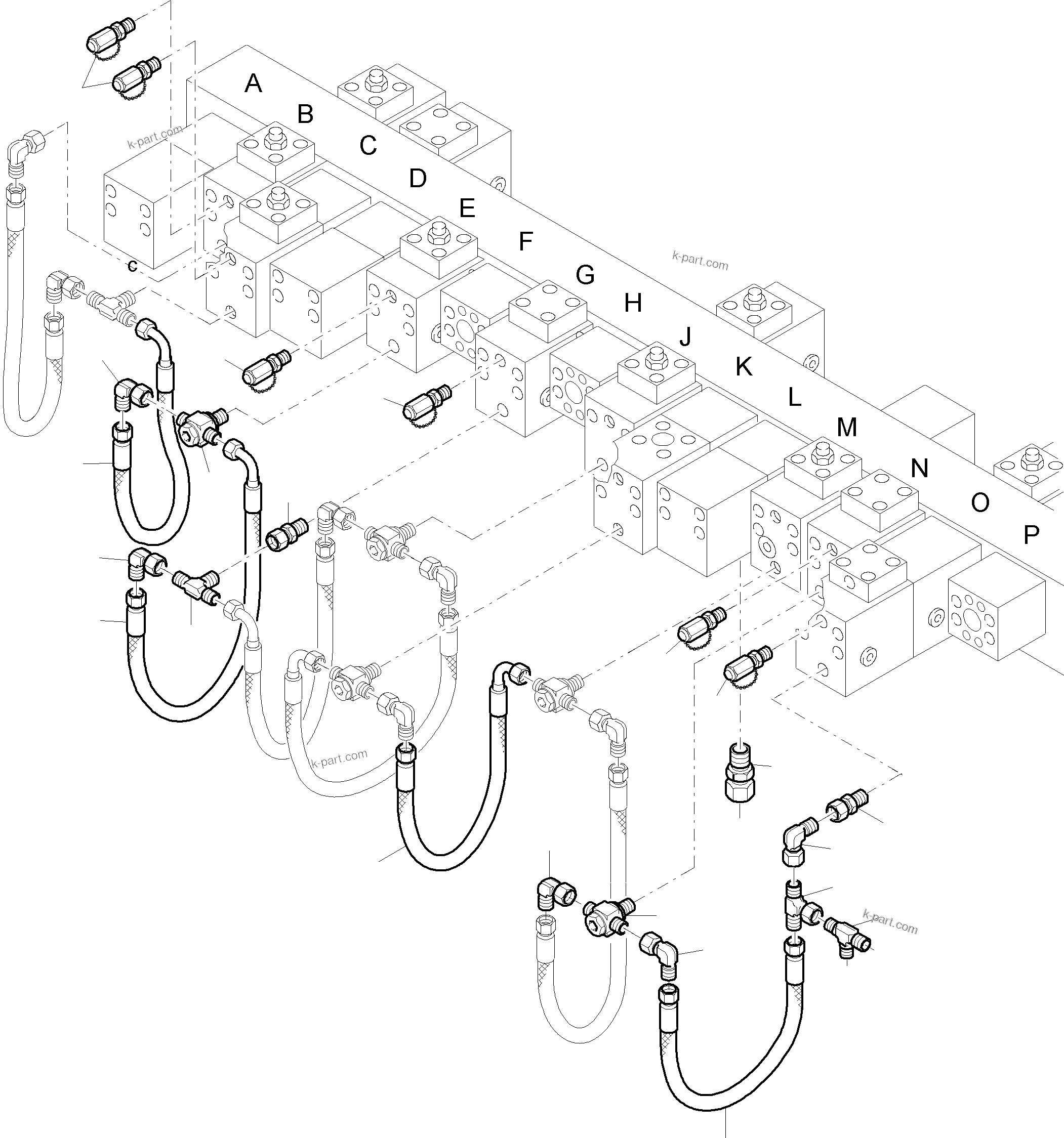

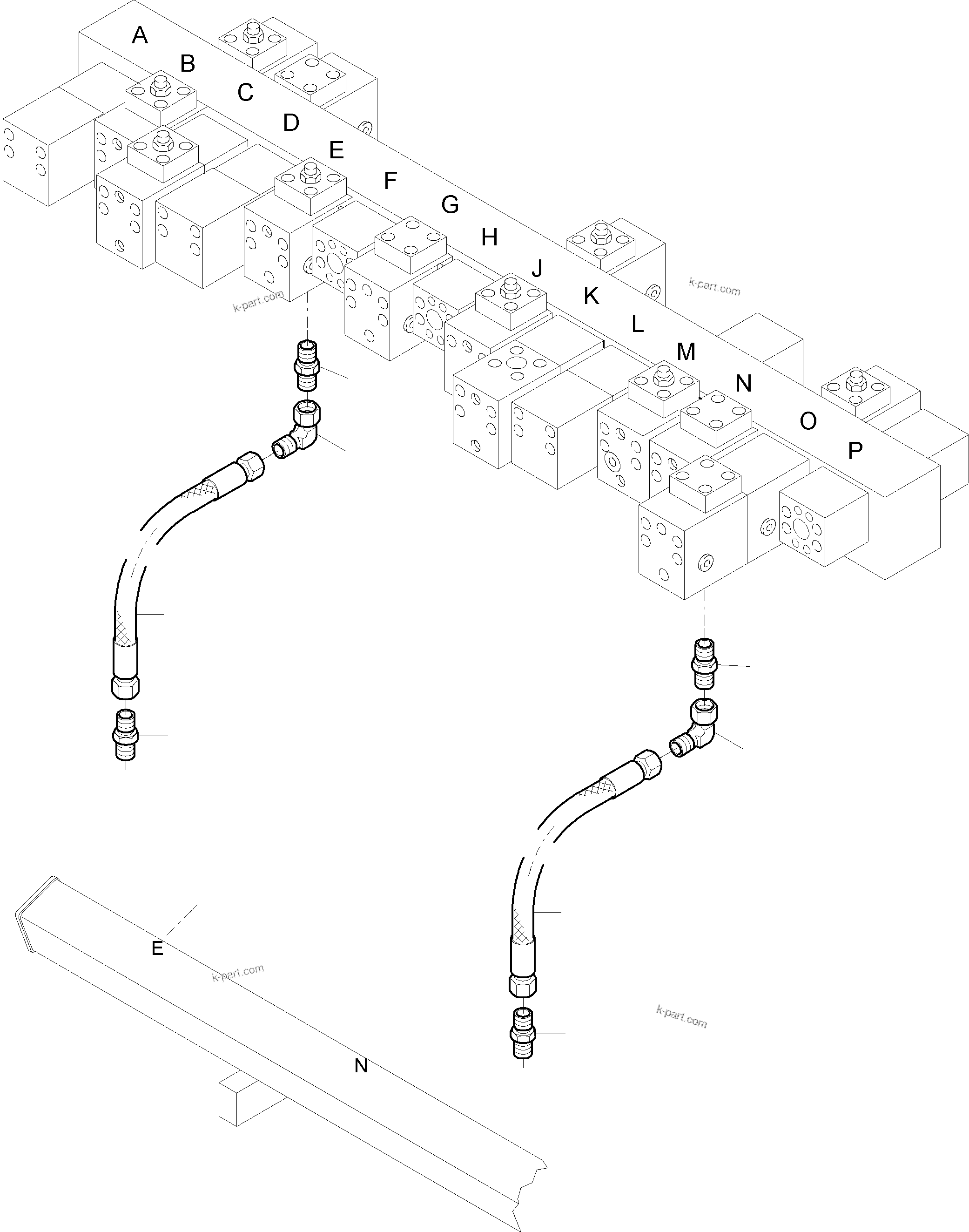

Diagram image 1 of 3

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08202

? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	631 063 40	Diffuser	2	InternKon: 938 520 40 / 1
?		Throttle check valve with pressure relief valve	1	InternBDB: 461 640 40 \| InternKon: 938 520 40 / 2	090-0695
?		Non-return valve	4	InternBDB: 461 641 40 \| InternKon: 938 520 40 / 3	090-0696
?	514 529 98	Bolt	12	InternBDB: M16x260 /912 10.9 \| InternKon: 938 520 40 / 15
?	319 212 99	Bolt	16	InternBDB: M16x150 /912 10.9 \| InternKon: 938 520 40 / 14
?	515 812 98	Coupling	4	InternBDB: G 1/4-PC \| InternKon: 938 520 40 / 5
?		Pressure relief valve	1	InternBDB: MHDBV 40 E2-1X/420YPM3T11 / 655 684 40 \| InternKon: 938 520 40 / 36	991-0159
?	894 211 40	Bridge	1	InternBDB: S 1 1/2 120x250 \| InternKon: 938 520 40 / 39
?	319 304 99	Bolt	4	InternBDB: M 16x170 / 912 / 10.9 \| InternKon: 938 520 40 / 50
?	436 058 40	Blank plate	1	InternKon: 938 520 40 / 60
?	906 806 40	Union	2	InternBDB: TH 10-LR KDS \| InternKon: 938 520 40 / 23
?	516 183 98	Socket	2	InternBDB: EVGE 10-PLR-ED \| InternKon: 938 520 40 / 18
?	516 156 98	Union	6	InternBDB: L 10 / 3942 \| InternKon: 938 520 40 / 19
?	372 612 99	Union	1	InternBDB: QL 10 / 2353 \| InternKon: 938 520 40 / 20
?	506 581 98	Plug	2	InternBDB: A1 1/2-6000 \| InternKon: 938 520 40 / 41
?	356 209 40	Flange seal	8	InternBDB: 1 1/2 NBR 90 \| InternKon: 938 520 40 / 12
?	319 288 99	Bolt	8	InternBDB: M16x50 /912 10.9 \| InternKon: 938 520 40 / 67
?	373 764 99	Union	1	InternBDB: TR 15/10/10 PL \| InternKon: 938 520 40 / 26
?	518 016 98	Bolt	4	InternBDB: M16x280 /912 10.9 \| InternKon: 938 520 40 / 21
?	516 224 98	Socket	1	InternBDB: L10/3943 \| InternKon: 938 520 40 / 27
?	516 309 98	Hose assy. DN 08x330	2	InternBDB: DOL 10 /DOL 10 WN 34195140 \| InternKon: 938 520 40 / 53
?	319 289 99	Bolt	16	InternBDB: M16x60 /912 10.9 \| InternKon: 938 520 40 / 13
?	516 308 98	Hose assy. DN 08x400	2	InternBDB: DOL 10 /DOL 10-90 WN 34195140 \| InternKon: 938 520 40 / 55
?	516 307 98	Hose assy. DN 08x300	1	InternBDB: DOL 10 /DOL 10-90 WN 34195140 \| InternKon: 938 520 40 / 52
?	006 729 98	O-ring	1	InternBDB: 47,22x3,53B NB 90 \| InternKon: 938 520 40 / 61
?	414 982 40	Support ring	1	InternBDB: 48,8x55,0x0,7 \| InternKon: 938 520 40 / 62
?	319 283 99	Bolt	4	InternBDB: M14x30 /912 \| InternKon: 938 520 40 / 63
?	308 874 99	Bolt	4	InternBDB: M 16x130 / 931 / 10.9 \| InternKon: 938 520 40 / 40
?	935 371 40	Pipe assy. Ш 50	1	InternKon: 937 155 40 / 9
?	935 370 40	Pipe assy. Ш 50	1	InternKon: 937 155 40 / 38
?	516 481 98	Hose assy. DN 20x1865	1	InternBDB: DOS 20 /DOS 25-45 WN 34195140 \| InternKon: 938 520 40 / 44
?	516 482 98	Hose assy. DN 20x1870	1	InternBDB: DOS 20 /DOS 25 Wn 34195140 \| InternKon: 938 520 40 / 45
?	374 414 99	Socket	1	InternBDB: S 25 E-M /3901 \| InternKon: 938 520 40 / 43
?	906 374 40	Socket	1	InternBDB: L 42 EOD CP 100 295 \| InternKon: 938 520 40 / 64
?	516 165 98	Union	2	InternBDB: SWE-S 20 ISO 08434 \| InternKon: 938 520 40 / 42
?	374 413 99	Socket	2	InternBDB: S 20 / 3902 \| InternKon: 938 520 40 / 70
