PRESSURE LINES - MAIN PUMPS - H.P.-FILTER | PC4000-6E S/N 08202

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

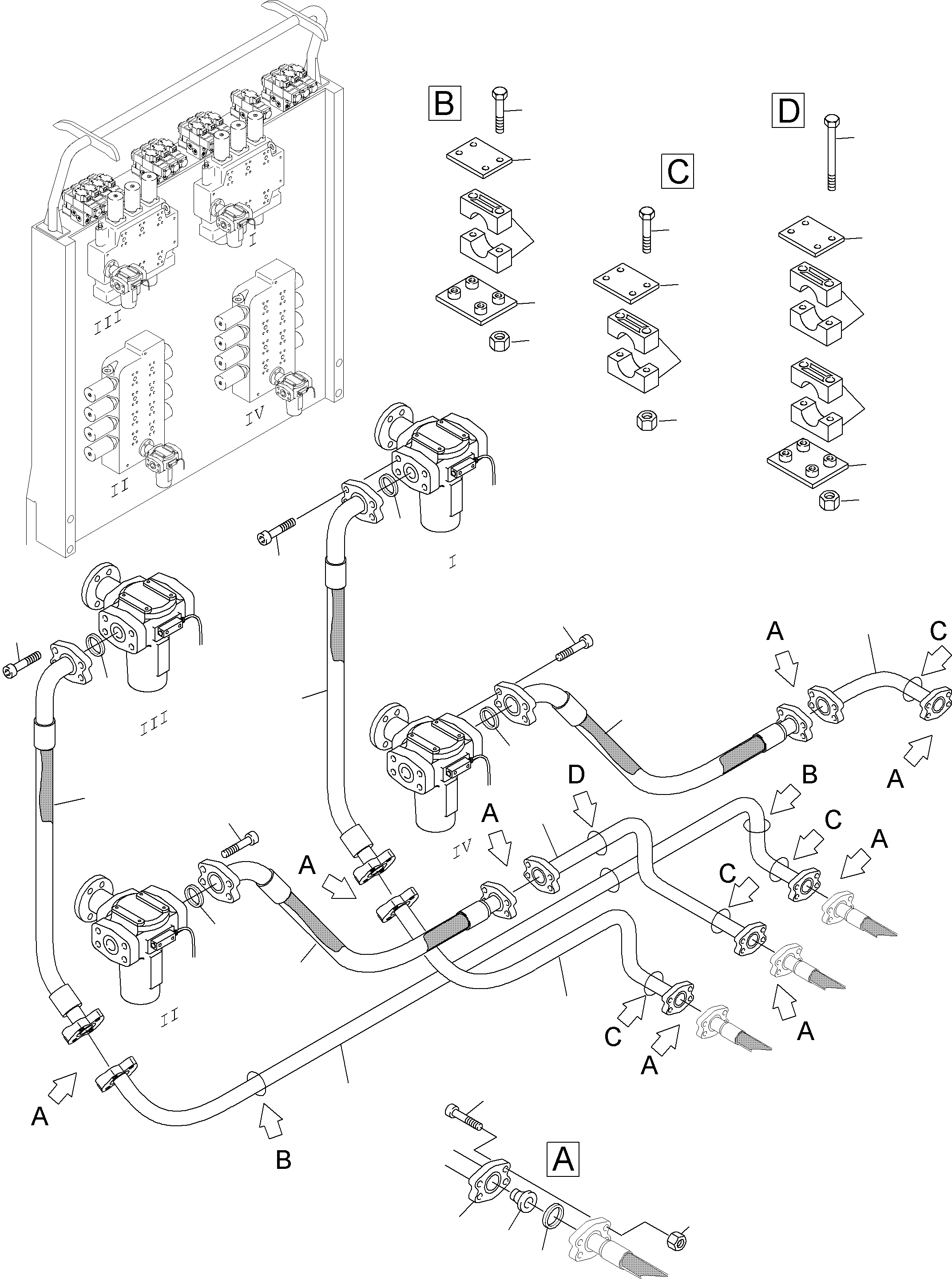

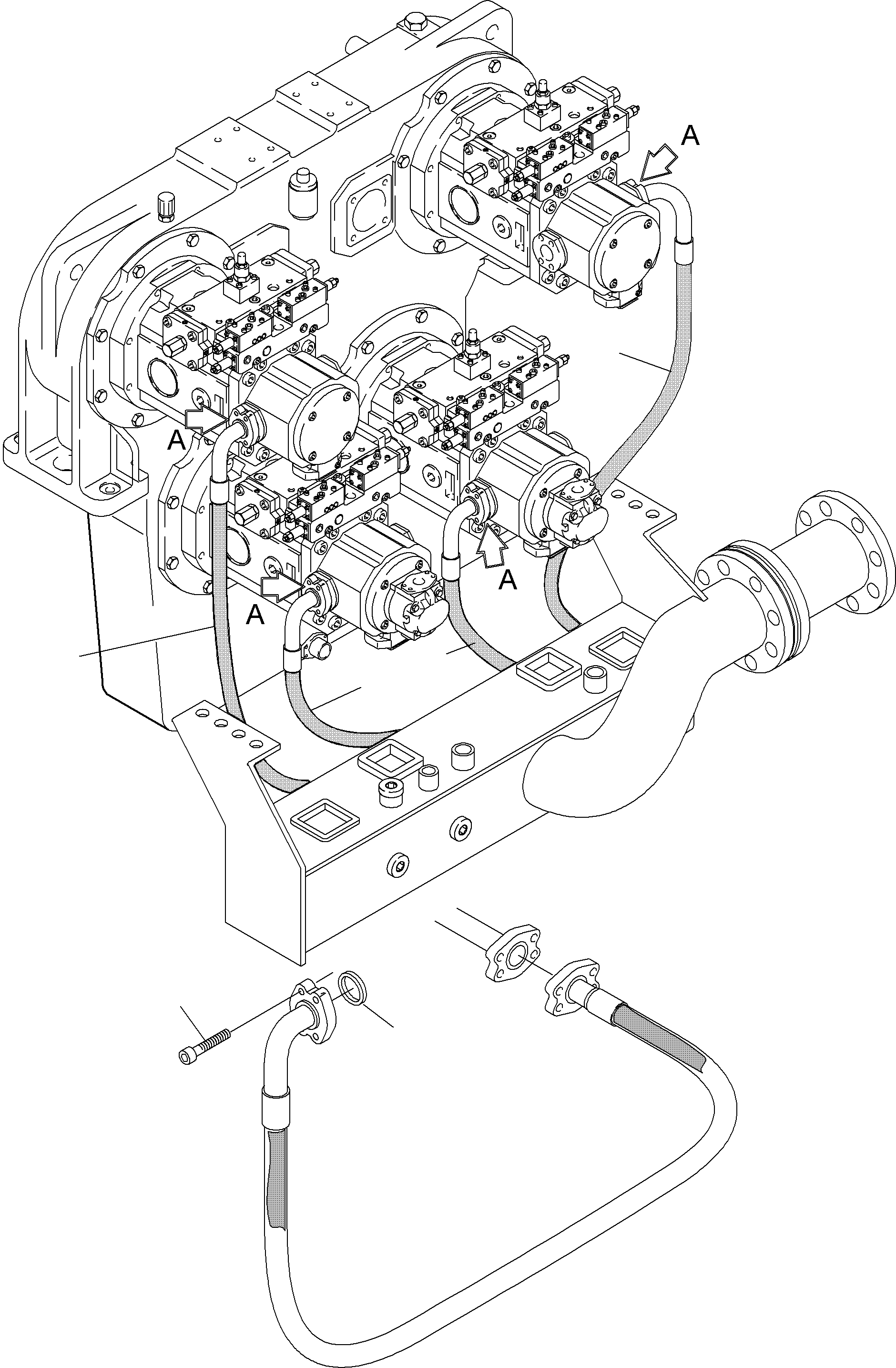

Diagram image 1 of 2

PC4000-6E S/N 08202

01 02 03 04 05 06

PC4000-6E S/N 08202

07 08 09 10 10 10 10 10 11 12 13 14 15 15 15 15 16 16 17 18 18 18 19 19 19 19 20 21 22 22 22 23 24 25 26 27

#	Part Number	Partname	Quantity	Options	Reference
01	940 395 40	Hose assy. DN 50x4050	1	InternBDB: FS 2 FS 2-90 \| InternKon: 931 059 40 / 1
02	940 380 40	Hose assy. DN 50x2700	1	InternBDB: FS 2 FS 2-90 \| InternKon: 931 059 40 / 2
03	940 368 40	Hose assy. DN 50x1980	1	InternBDB: FS 2 FS 2-90 \| InternKon: 931 059 40 / 3
04	940 366 40	Hose assy. DN 50x1810	1	InternBDB: FS 2 FS 2-90 \| InternKon: 931 059 40 / 4
05	385 243 40	Flange seal	16	InternBDB: 2 NBR 90 \| InternKon: 931 059 40 / 5
06	319 305 99	Bolt	32	InternBDB: M20x60 / DIN 912 / 10.9 \| InternKon: 931 059 40 / 6
07	940 407 40	Hose assy. DN 50x1010	1	InternBDB: 350 FS 2 /FS 2-45 \| InternKon: 904 215 40 / 6
08	940 410 40	Hose assy. DN 50x1200	1	InternBDB: 350 FS 2 /FS 2-45 \| InternKon: 904 215 40 / 7
09	940 362 40	Hose assy. DN 50x1630	1	InternBDB: 350 FS 2 /FS 2-90 \| InternKon: 904 215 40 / 8
10	385 243 40	Flange seal	20	InternBDB: 2 NBR 90 \| InternKon: 904 215 40 / 40
11	504 448 98	Flange	8	InternBDB: FE-6500-32/6 \| InternKon: 904 215 40 / 41
12	504 449 98	Ring	8	InternBDB: KO-6580-32 \| InternKon: 904 215 40 / 42
13	319 313 99	Bolt	32	InternBDB: M 20x120 / DIN 912 / 10.9 \| InternKon: 904 215 40 / 43
14	504 662 98	Nut	32	InternBDB: M 20 / DIN 934 / 10 \| InternKon: 904 215 40 / 44
15	319 305 99	Bolt	32	InternBDB: M20x60 / DIN 912 / 10.9 \| InternKon: 904 215 40 / 45
16	914 746 40	Weld-on plate	6	InternBDB: aus 502 961 98 \| InternKon: 904 215 40 / 75
17	308 431 99	Bolt	8	InternBDB: M 12x240 / DIN 931 / 10.9 \| InternKon: 904 215 40 / 76
18	502 965 98	Cover plate	10	InternBDB: S-DP-S-4 W1 / DIN 3015 \| InternKon: 904 215 40 / 77
19	504 446 98	Clamp set	24	InternBDB: S-4-G-65 PA / DIN 3015 \| InternKon: 904 215 40 / 78
20	506 533 98	Bolt	16	InternBDB: M 12x130 / DIN 931 / 10.9 \| InternKon: 904 215 40 / 80
21	504 682 98	Bolt	16	InternBDB: M 12x200 / DIN 931 / 8.8 \| InternKon: 904 215 40 / 82
22	334 600 99	Nut	16	InternBDB: M 12 / DIN 985 \| InternKon: 904 215 40 / 83
23	768 851 73	Pipe Ш 65	1	InternBDB: 904 211 40 / 904 215 40 Pos. 21 \| InternKon: 904 215 40 / 500
24	768 852 73	Pipe Ш 65	1	InternBDB: 904 212 40 / 904 215 40 Pos. 22 \| InternKon: 904 215 40 / 500
25	768 853 73	Pipe Ш 65	1	InternBDB: 904 213 40 / 904 215 40 Pos. 23 \| InternKon: 904 215 40 / 500
26	768 854 73	Pipe Ш 65	1	InternBDB: 904 214 40 / 904 215 40 Pos. 24 \| InternKon: 904 215 40 / 500
27	940 363 40	Hose assy. DN 50x1700	1	InternBDB: 350 50X 1700 FS2 \| InternKon: 904 215 40 / 87
\|$$28		Mounting parts, machinery house see	-2		355-1896
