#	Part Number	Partname	Quantity	Options
01	516 359 98	Hose assy	1	InternBDB: 120 / 40x3800 / DOL 42 / FL2 90 / WN 34195140 \| InternKon: 942 280 40 / 1
02	647 851 40	Orifice	4	InternBDB: D=22,0 / 42CRMO4V \| InternKon: 942 280 40 / 2
03	518 117 98	Hose assy	1	InternBDB: 120 / 40x3900 / DOL 42 / FL2 90 / WN 34195140 \| InternKon: 942 280 40 / 3
04	374 444 99	Union	6	InternBDB: S-L 42 / St A3C / ISO 8434 \| InternKon: 942 280 40 / 4
05	512 087 98	Union	4	InternBDB: E-L 42 / St A3C / ISO 8434 \| InternKon: 942 280 40 / 5
06	937 586 40	Pipe	1	InternBDB: DN42x2x1901 / ST37.4 NBK C \| InternKon: 942 280 40 / 10
07	937 587 40	Pipe	1	InternBDB: DN42x2x1879 / ST37.4 NBK C \| InternKon: 942 280 40 / 11
08	937 585 40	Pipe	1	InternBDB: DN42x2x1526 / ST37.4 NBK C \| InternKon: 942 280 40 / 12
09	937 584 40	Pipe	1	InternBDB: DN42x2x1621 / ST37.4 NBK C \| InternKon: 942 280 40 / 13
10	937 583 40	Pipe	2	InternBDB: DN42x2x2026 \| InternKon: 942 280 40 / 14
11	518 124 98	Hose assy	2	InternBDB: 120 / DN40x1270 / DOL 42 45 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 15
12	907 045 40	Union	8	InternBDB: 42 LM/OMD / StZn / WN 65593440 \| InternKon: 942 280 40 / 16
13	518 125 98	Hose assy	2	InternBDB: 120 / DN40x1420 / CEL 42 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 17
14	518 126 98	Hose assy	2	InternBDB: 120 / DN40x1770 / DOL 42 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 19
15	518 127 98	Hose assy	1	InternBDB: 120 / DN40x1580 / DOL 42 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 20
16	518 128 98	Hose assy	1	InternBDB: 120 / DN40x2600 / DOL 42 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 21
17	518 129 98	Hose assy	1	InternBDB: 120 / DN40x2700 / DOL 42 / DOL42 / WN 34195140 \| InternKon: 942 280 40 / 22
18	534 009 99	Weld-on plate	2	InternBDB: S-AP-A-4 / W1 / DIN 3015 \| InternKon: 942 280 40 / 23
19	506 371 98	Clamp set	12	InternBDB: S-4-E / PA / DIN 3015 \| InternKon: 942 280 40 / 24
20	502 626 98	Elastomeric part	12	InternBDB: S-4-56,4 / Gummi / DIN 3015 \| InternKon: 942 280 40 / 25
21	534 008 99	Cover plate	21	InternBDB: S-DP-A-4 / W1 / DIN 3015 \| InternKon: 942 280 40 / 26
22	509 310 98	Lock washer	11	InternBDB: SI 6 / USt1203 / WN 01183999 \| InternKon: 942 280 40 / 27
23	504 786 98	Screw	10	InternBDB: S-4 / W1 / DIN 3015 \| InternKon: 942 280 40 / 28
24	504 787 98	Lock washer	7	InternBDB: S-4 / W1 / DIN 3015 \| InternKon: 942 280 40 / 29
25	308 613 99	Bolt	18	InternBDB: M12x110 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 30
26	374 415 99	Socket	4	InternBDB: SDS-L42xM48x2 - Type E / ST A3C / ISO 8434 \| InternKon: 942 280 40 / 31
27	340 467 99	Washer	20	InternBDB: B 13,0 / 140HV / DIN 125 \| InternKon: 942 280 40 / 32
28	500 345 98	Clamp set	16	InternBDB: S-4-R-42 / PP / DIN 3015 \| InternKon: 942 280 40 / 33
29	308 615 99	Bolt	8	InternBDB: M12x130 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 34
30	334 600 99	Nut	16	InternBDB: M12 / 8 / DIN 985 \| InternKon: 942 280 40 / 35
31	506 728 98	Bolt	8	InternBDB: M12x135 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 36
32	502 879 98	Bolt	8	InternBDB: M12x125 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 37
33	518 130 98	Hose assy	1	InternBDB: 120 / DN40x1020 / DOL 42 / FL2 90 / WN 34195140 \| InternKon: 942 280 40 / 41
34	51821798	Hose assy	1	InternBDB: 120 / DN40x1250 / DOL 42 / FL2 90 / WN 34195140 \| InternKon: 942 280 40 / 42
35	516 341 98	Hose assy	1	InternBDB: 120 / DN40x1815 / DOL 42 / DOL 42 / WN 34195140 \| InternKon: 942 280 40 / 43
36	385 243 40	Flange seal	4	InternBDB: 2 / NBR90 / WN 34198640 \| InternKon: 942 280 40 / 45
37	319 157 99	Bolt	16	InternBDB: M12x35 / 8.8 / DIN 912 \| InternKon: 942 280 40 / 48
38	515 782 98	Hose assy	5	InternBDB: 120 / DN20x2000 / DOL 22 / DOL 22 90 / WN 34195140 \| InternKon: 942 280 40 / 50
39	51822198	Hose assy	2	InternBDB: 120 / DN20x1870 / DOL 22 / DOL 22 90 / WN 34195140 \| InternKon: 942 280 40 / 51
40	515 584 40	Hose assy	1	InternBDB: 120 / DN20x1900 / DOL 22 / DOL 22 90 / WN 34195140 \| InternKon: 942 280 40 / 55
41	385 889 40	Pipe	1	InternBDB: DN25x3x150 \| InternKon: 942 280 40 / 58
42	895 972 40	Pipe	1	InternBDB: 335 \| InternKon: 942 280 40 / 59
43	94221740	Pipe	1	InternBDB: DN22x1,5x2685,67 / St37.4 NBK C \| InternKon: 942 280 40 / 60
44	94221840	Pipe	1	InternBDB: DN22x1,5x2884,67 / St37.4 NBK C \| InternKon: 942 280 40 / 61
45	94222140	Pipe	3	InternBDB: DN22x1,5x1436 / St37.4 NBK C \| InternKon: 942 280 40 / 62
46	94222240	Pipe	1	InternBDB: DN22x1,5x1486 / St37.4 NBK C \| InternKon: 942 280 40 / 63
47	94221940	Pipe	1	InternBDB: DN22x1,5x2585 / St37.4 NBK C \| InternKon: 942 280 40 / 64
48	94222040	Pipe	1	InternBDB: DN22x1,5x2635,36 / St37.4 NBK C \| InternKon: 942 280 40 / 65
49	374 409 99	Socket	16	InternBDB: SDS-L22xM26x1,5 - TYPE E / St A3C / ISO 8434 \| InternKon: 942 280 40 / 68
50	516 160 98	Socket	8	InternBDB: SWE-L 22 / ST-NBR / ISO 8434-4
51	94221640	Distributor	1	InternBDB: 265x275 \| InternKon: 942 280 40 / 70
52	516 637 98	Bolt	2	InternBDB: M20x105 / 10.9 / DIN 931 \| InternKon: 942 280 40 / 71
53	340 470 99	Washer	2	InternBDB: B 21,0 / 140HV / DIN 125 \| InternKon: 942 280 40 / 72
54	332 338 99	Nut	2	InternBDB: M20 / 8 / DIN 934 \| InternKon: 942 280 40 / 73
55	308 582 99	Bolt	14	InternBDB: M10x75 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 75
56	343 005 99	Washer	24	InternBDB: 10,5 / USt13 03 / DIN 93 \| InternKon: 942 280 40 / 76
57	534 001 99	Cover plate	12	InternBDB: S-DP-A-2 / W1 / DIN 3015 \| InternKon: 942 280 40 / 77
58	502 953 98	Clamp set	16	InternBDB: S-2-R-22 / PP / DIN 3015 \| InternKon: 942 280 40 / 78
59	332 114 99	Nut	24	InternBDB: M10 / 10 / DIN 934 \| InternKon: 942 280 40 / 79
60	308 589 99	Bolt	8	InternBDB: M10x140 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 80
61	906 930 40	Union	2	InternBDB: 28 LM/OMD / ST ZN / WN 65593440 \| InternKon: 942 280 40 / 81
62	516 824 98	Socket	8	InternBDB: E-L 22 / ST A3C ISO08434 \| InternKon: 942 280 40 / 83
63	173 448 40	Locking plug	2	InternBDB: VSTI M22x1,5ED / StZn / WN 34191340 \| InternKon: 942 280 40 / 85
64	516 370 98	Hose assy	2	InternBDB: 350 / DN20x1380 / DOS 25 / DOS 25 / WN 34195140 \| InternKon: 942 280 40 / 90
65	516 372 98	Hose assy	1	InternBDB: 240 / DN12x1550 / DOL 15 / DOL 15 90 / WN 34195140 \| InternKon: 942 280 40 / 91
66	374 407 99	Socket	2	InternBDB: SDS-L15xM18x1,5 - TYPE E / ST A3C / ISO 8434 \| InternKon: 942 280 40 / 92
67	516 175 98	Socket	1	InternBDB: SWRT-L 15 / ST-NBR / ISO 8434-4 \| InternKon: 942 280 40 / 93
68	516 740 98	Socket	2	InternBDB: SWBT-S 25 / ST-NBR / ISO 8434-4 \| InternKon: 942 280 40 / 94
69	906 938 40	Valve	1	InternBDB: RHD 25-PS/OMD 0,2B / ST A3C / WN 65592840 \| InternKon: 942 280 40 / 95
70	516 248 98	Socket	1	InternBDB: SWE-S 25 / ST-NBR / ISO 8434-4 \| InternKon: 942 280 40 / 96
71	516 742 98	Socket	2	InternBDB: SWRT-S 25 / ST-NBR / ISO 8434-4 \| InternKon: 942 280 40 / 97
72	576 407 40	Union	2	InternBDB: RED 30/25-PS/OMD / ST A3C \| InternKon: 942 280 40 / 98
73	516 822 98	Socket	2	InternBDB: SWSDS-S25xM33x2 - TYPE E / ST-NBR / ISO 8434-4 \| InternKon: 942 280 40 / 99
74	374 414 99	Socket	2	InternBDB: SDS-S25xM33x2 - TYPE E / ST A3C / ISO 8434 \| InternKon: 942 280 40 / 100
75	371 264 99	Socket	4	InternBDB: N-S 25 / StZn / ISO 8434 \| InternKon: 942 280 40 / 101
76	906 868 40	Sleeve fitting	4	InternBDB: ES-4 S25 / 9SMNPB28K / WN 65593940 \| InternKon: 942 280 40 / 102
77	308 581 99	Bolt	10	InternBDB: M10x70 / 8.8 / DIN 931 \| InternKon: 942 280 40 / 103
78	534 004 99	Cover plate	5	InternBDB: S-DP-A-3 / W1 / DIN 3015 \| InternKon: 942 280 40 / 104
79	504 818 98	Clamp set	1	InternBDB: S-3-G-38 / PA / DIN 3015 \| InternKon: 942 280 40 / 105
80	502 656 98	Clamp set	5	InternBDB: S-3-G-34 / PP / DIN 3015 \| InternKon: 942 280 40 / 106
83	319 133 99	Bolt	4	InternBDB: M6x30 / 8.8 / DIN 912 \| InternKon: 942 280 40 / 109
84	533 992 99	Weld-on plate	1	InternBDB: L-AP-K-3 / W1 / DIN 3015 \| InternKon: 942 280 40 / 110
85	509 057 98	Clamp set	2	InternBDB: L-3-G-20 / PA / DIN 3015 \| InternKon: 942 280 40 / 111
86	319 136 99	Bolt	4	InternBDB: M6x50 / 8.8 / DIN 912 \| InternKon: 942 280 40 / 112
87	534 020 99	Weld-on plate	2	InternBDB: L-AP-K-5 / W1 / DIN 3015 \| InternKon: 942 280 40 / 113
88	509 060 98	Clamp set	2	InternBDB: L-5-G-32 / PA / DIN 3015 \| InternKon: 942 280 40 / 114
89	516 371 98	Hose assy	1	InternBDB: 120 / 25x3300 / CES 30 / DOS 30 90 / WN 34195140 \| InternKon: 942 280 40 / 115
90	374 412 99	Socket	1	InternBDB: SDS-S30xG1 1/4A - TYPE E / ST A3C / ISO 8434 \| InternKon: 942 280 40 / 116
91	907 753 40	Hose protection	-2	InternBDB: 16m / 60032 \| InternKon: 942 280 40 / 117
92	907 804 40	Hose protection	-2	InternBDB: 16m / 60075 \| InternKon: 942 280 40 / 118
93	518 218 98	Hose assy. DN25x8150	1	InternBDB: SHL120 / DOL 28 / DOL 28 45 / WN 34195140 \| InternKon: 931 410 40 / 11
94	518 219 98	Hose assy. DN25x8550	1	InternBDB: SHL120 / DOL 28 / DOL 28 / WN 34195140 \| InternKon: 931 410 40 / 12
95	504 788 98	Bolt	2	InternBDB: S-3 W1 DIN03015 \| InternKon: 942 280 40 / 119
96	504 789 98	Lock washer	1	InternBDB: S-3 W1 DIN03015 \| InternKon: 942 280 40 / 120

Komatsu PC4000-6E S/N 08202 parts catalog PDF

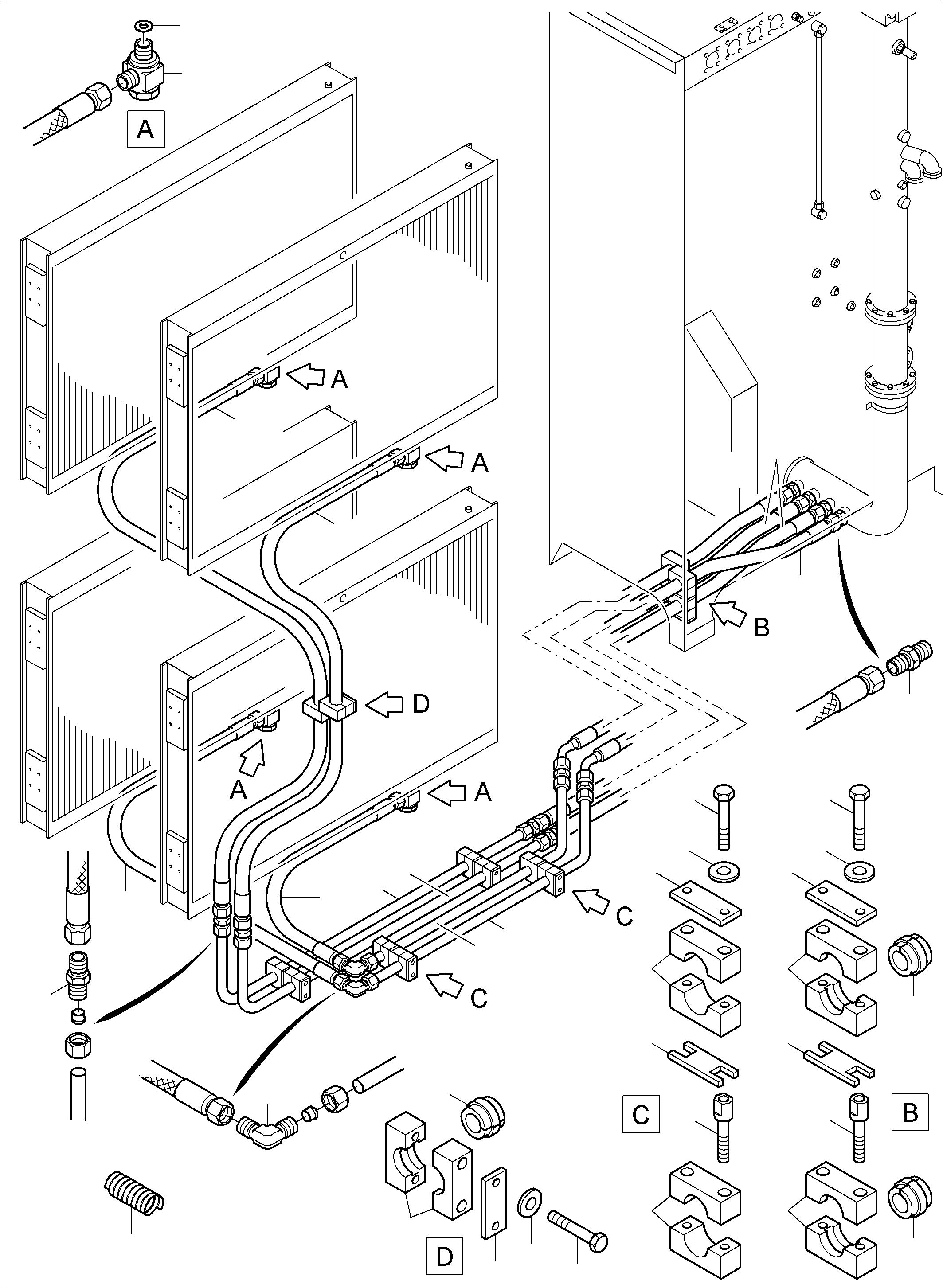

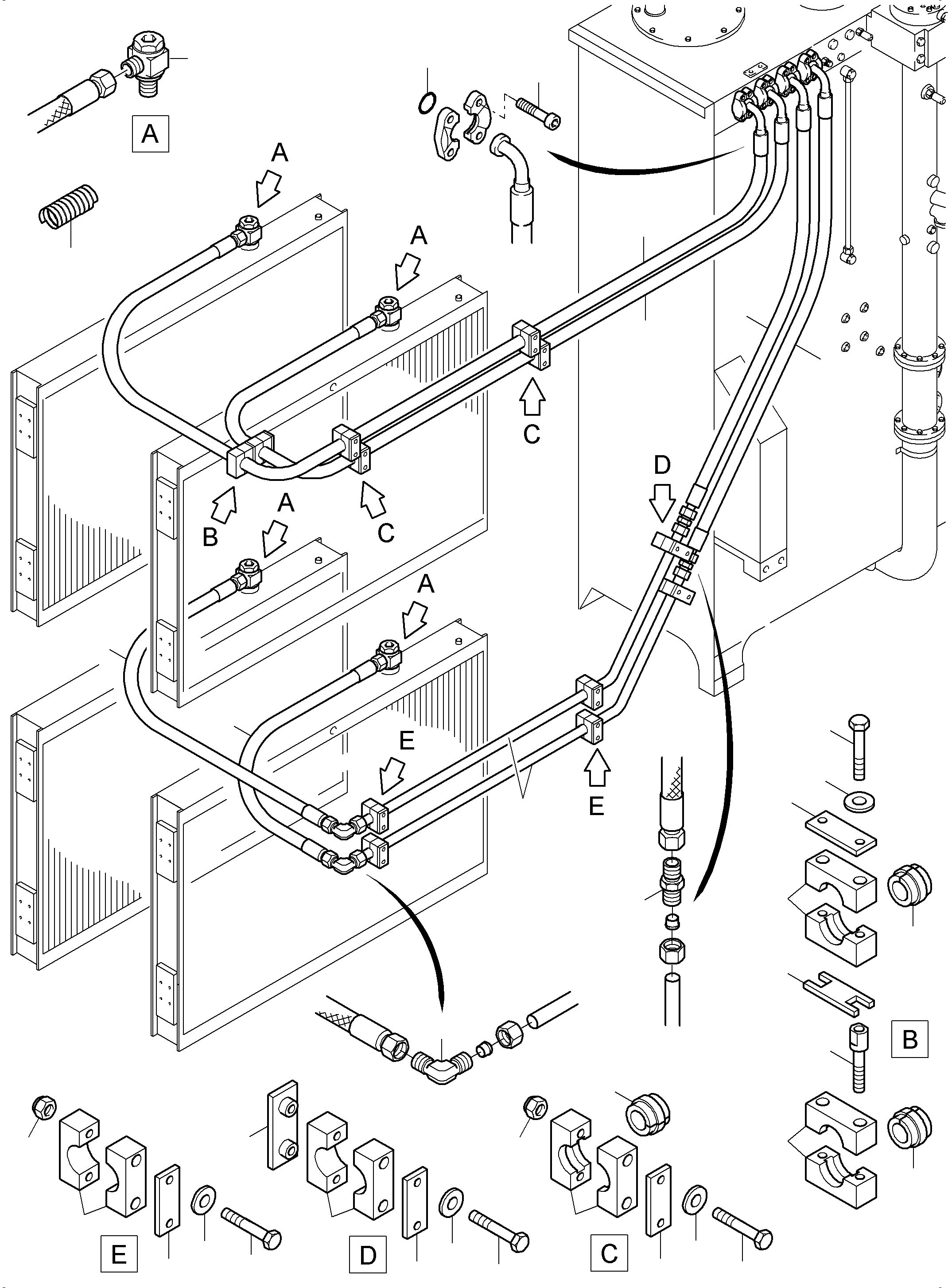

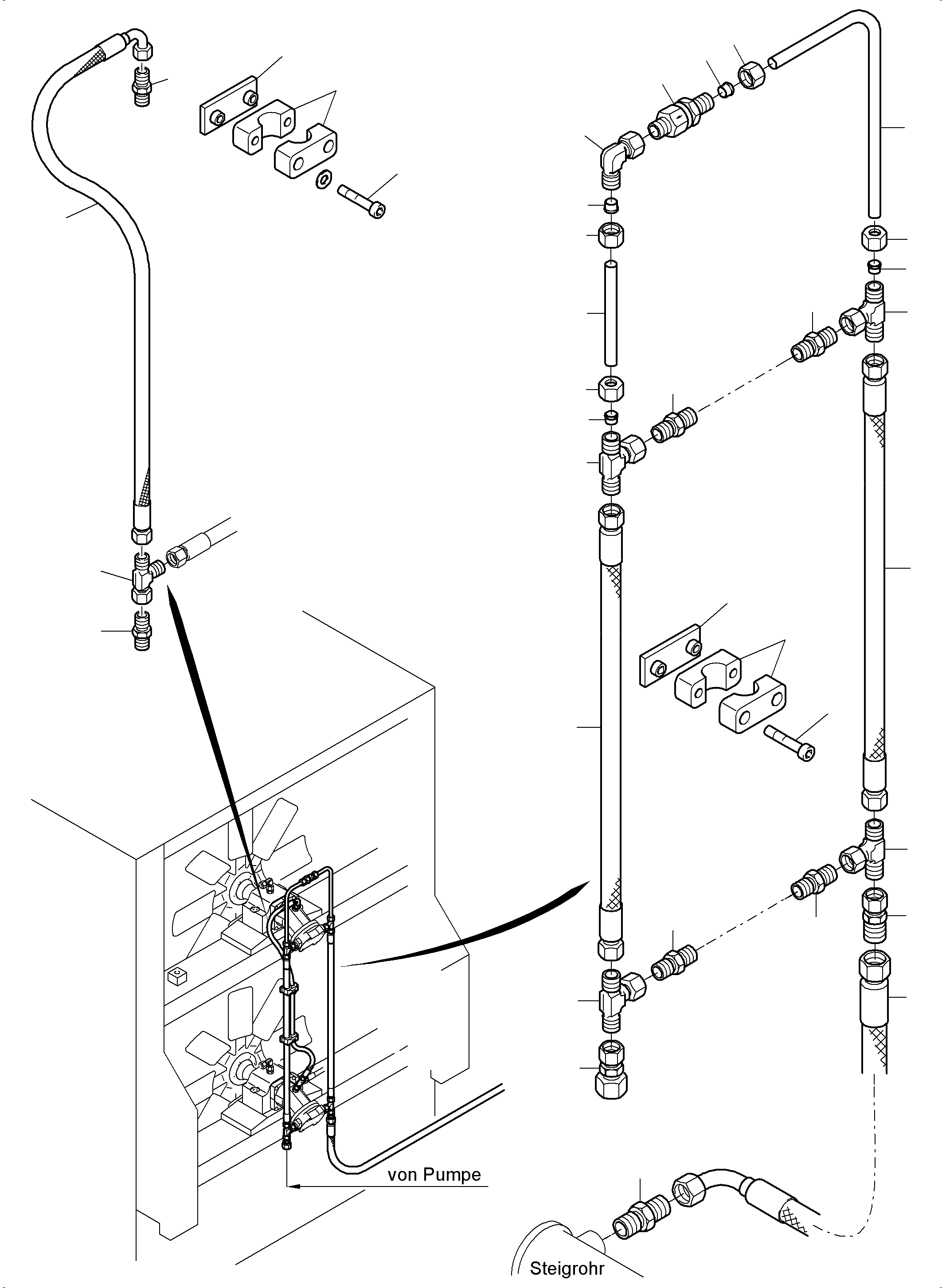

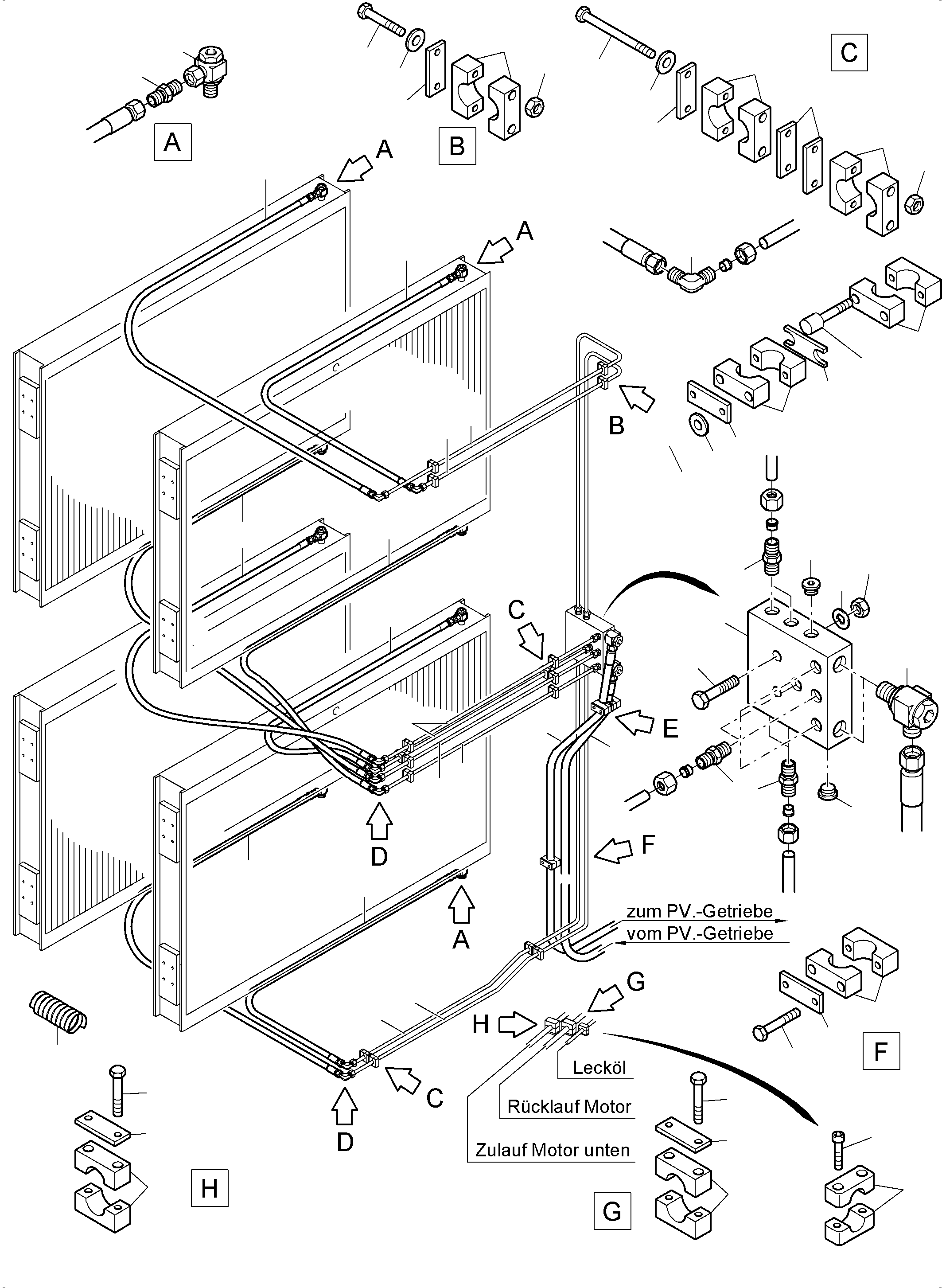

OIL COOLER - HOSE ASSY. (356-1816a) in PC4000-6E S/N 08202. Diagram image and parts list.
