PC4000-6E S/N 08202

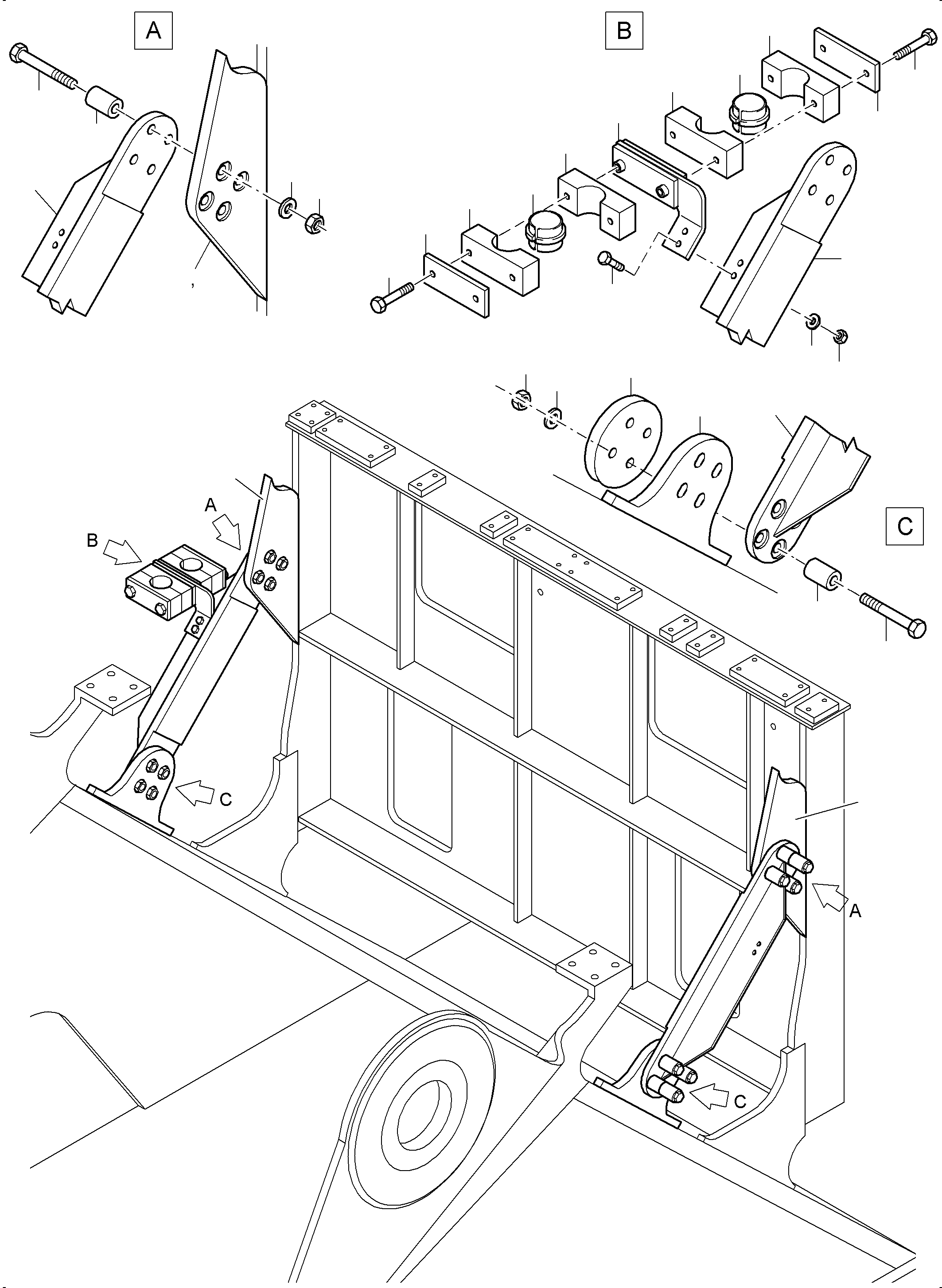

Komatsu parts book diagram for PC4000-6E S/N 08202: MODIFICATION SUPPORT CONTROL UNIT

01 01 02 02 03 03 03 04 05 06 07 07 08 08 09 09 10 10 11 11 11 11 12 12 13 13 14 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	952 239 40	Plate	1	InternKon: 952 240 40 / 1
	02	952 244 40	Plate	1	InternKon: 952 240 40 / 2
	03	952 236 40	Crosshead	2	InternKon: 952 240 40 / 3
	04	952 241 40	Plate	2	InternKon: 952 240 40 / 4
	05	952 242 40	Clamp retainer	1	InternKon: 952 240 40 / 5
	06	502 538 98	Bolt	8	InternBDB: M20X 150 10.9 DIN00931 \| InternKon: 952 240 40 / 6
	07	340 470 99	Washer	16	InternBDB: B 21,0 140HV DIN00125 \| InternKon: 952 240 40 / 7
	08	510 732 98	Resilient sleeve	16	InternBDB: 21 /40X 60 42CRMO4-TQ+T WN34194840 \| InternKon: 952 240 40 / 8
	09	517 755 98	Nut	16	InternBDB: M20 10 DIN00985 \| InternKon: 952 240 40 / 9
	10	308 612 99	Bolt	4	InternBDB: M12x100 8.8 DIN00931 \| InternKon: 952 240 40 / 10
	11	502 371 98	Clamp set	2	InternBDB: S-4-E PP DIN03015 \| InternKon: 952 240 40 / 11
	12	534 008 40	Cover plate	2	InternBDB: S-DP-A-4 W1 DIN03015 \| InternKon: 952 240 40 / 12
	13	502 626 98	Grommet	2	InternBDB: S-4-56,4 GUMMI DIN03015 \| InternKon: 952 240 40 / 13
	14	307 780 99	Bolt	2	InternBDB: M10 X 35 8.8 DIN00933 \| InternKon: 952 240 40 / 14
	15	507 037 98	Nut	2	InternBDB: M10 8 DIN00985 \| InternKon: 952 240 40 / 15
	16	340 465 99	Washer	2	InternBDB: B 10,5 140HV DIN00125 \| InternKon: 952 240 40 / 16
	17	939 474 40	Washer	2	InternBDB: 150x150 \| InternKon: 952 240 40 / 17
	18	502 156 98	Bolt	8	InternBDB: M20x155 10.9 DIN00931 \| InternKon: 952 240 40 / 18

Komatsu PC4000-6E S/N 08202 parts catalog PDF

MODIFICATION SUPPORT CONTROL UNIT (355-1890c) in PC4000-6E S/N 08202. Diagram image and parts list.
