PRESSURE LINES - SLEW GEAR | PC4000-6E S/N 08202

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

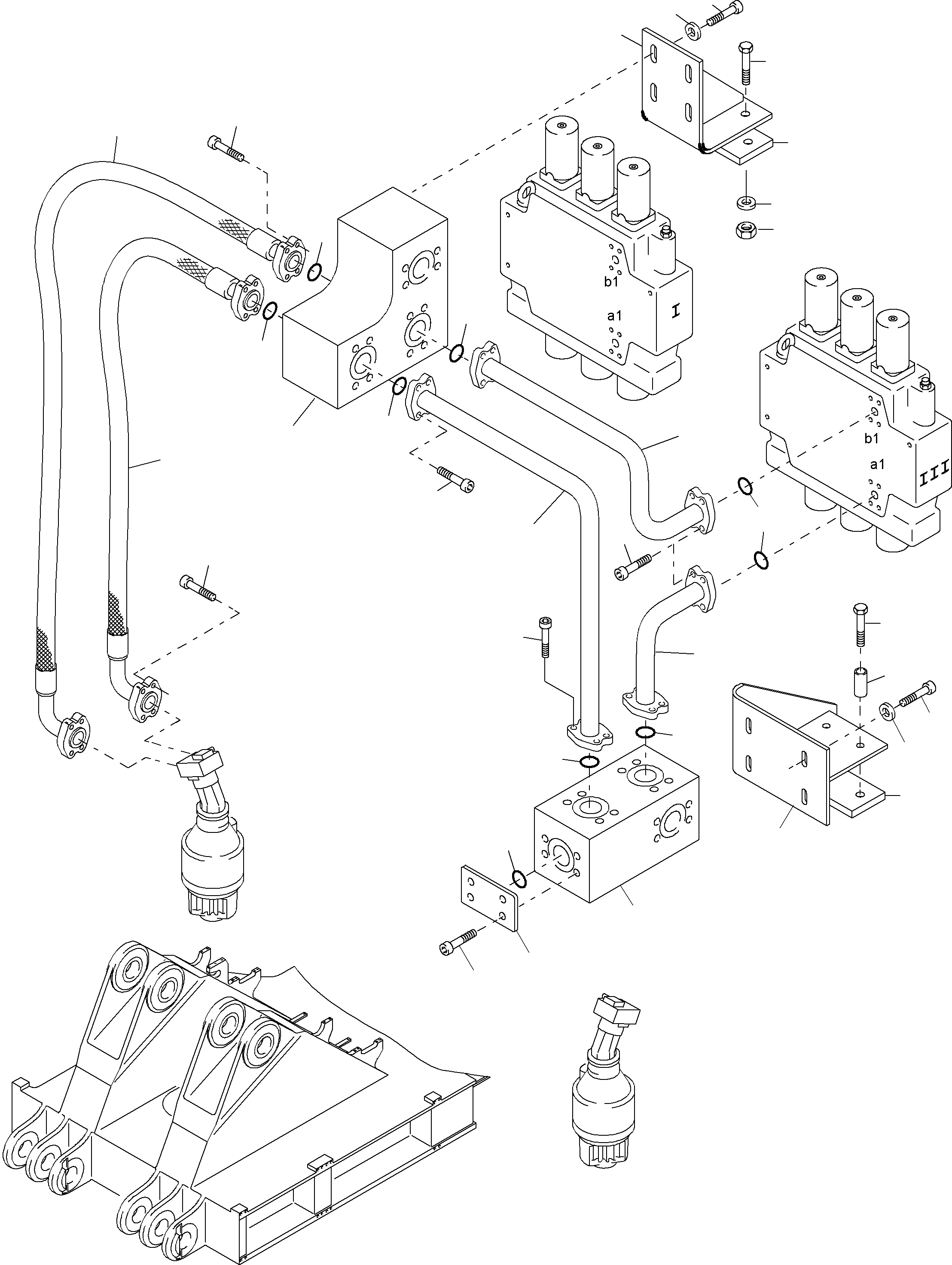

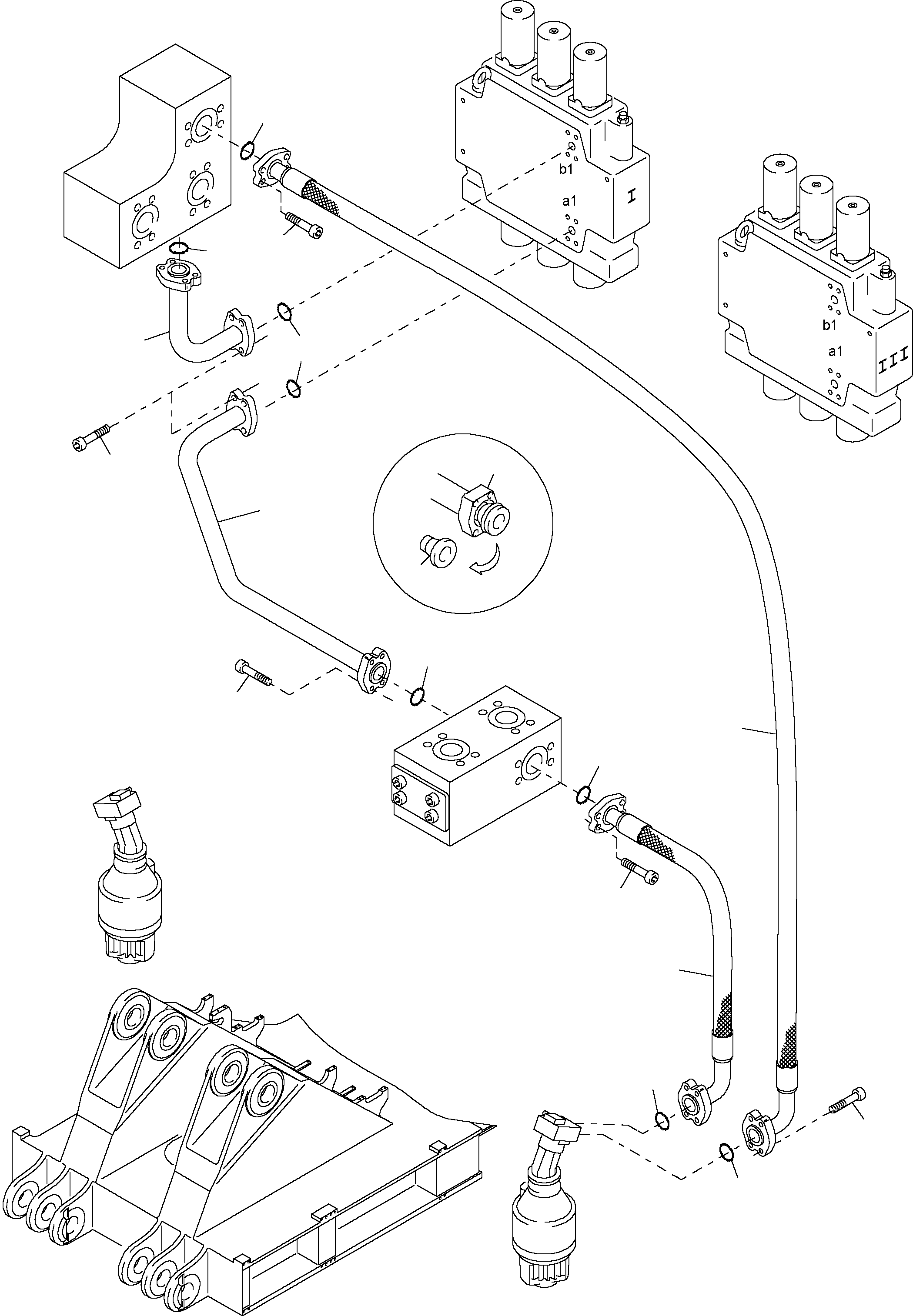

Diagram image 1 of 2

PC4000-6E S/N 08202

01 04 04 04 04 04 04 04 04 05 05 05 06 07 08 08 08 09 10 13 15 15 20 21 22 22 23 23 23 24 25 25 26 27 28

PC4000-6E S/N 08202

02 03 04 04 04 04 04 04 04 08 08 08 08 08 11 12 16 17

#	Part Number	Partname	Quantity	Options
01	904 649 40	Block	1	InternBDB: 1 1/2" 6000 Psi 225 \| InternKon: 887 580 40 / 4
02	500 127 98	Flange	52	InternBDB: FE-5000-24/6 \| InternKon: 887 580 40 / 29
03	501 898 98	Ring	52	InternBDB: K-5060-24 \| InternKon: 887 580 40 / 30
04	356 209 40	Flange seal	53	InternBDB: 1 1/2 NBR 90 \| InternKon: 887 580 40 / 31
05	319 289 99	Bolt	200	InternBDB: M16x60 /912 10.9 \| InternKon: 887 580 40 / 32
06	904 651 40	Block	1	InternBDB: 1 1/2" 6000 Psi 210x225 \| InternKon: 887 580 40 / 48
07	506 581 98	Plug	1	InternBDB: SAE A1 1/2-6000 \| InternKon: 887 580 40 / 49
08	319 288 99	Bolt	4	InternBDB: M16x50 /912 10.9 \| InternKon: 887 580 40 / 50
09	768 761 73	Pipe Ш 50	1	InternBDB: 890 556 40 1253 \| InternKon: 887 580 40 / 25
10	768 762 73	Pipe Ш 50	1	InternBDB: 890 557 40 447 \| InternKon: 887 580 40 / 26
11	768 763 73	Pipe Ш 50	1	InternBDB: 890 558 40 1193 \| InternKon: 887 580 40 / 27
12	768 764 73	Pipe Ш 50	1	InternBDB: 890 559 40 387 \| InternKon: 887 580 40 / 28
13	768 842 73	Pipe Ш 50	1	InternBDB: 904 669 40 \| InternKon: 887 580 40 / 51
15	512 795 98	Hose assy. DN 40x2500	2	InternBDB: 350 FS 1 1/2 / FS 1 1/2-90 \| InternKon: 904 215 40 / 10
16	516 016 98	Hose assy. DN 40x3200	1	InternBDB: 350 FS 1 1/2 / FS 1 1/2-90 \| InternKon: 904 215 40 / 12
17	516 504 98	Hose assy. DN 40x1630	1	InternBDB: 350 FS 1 1/2 / FS 1 1/2-90 \| InternKon: 904 215 40 / 13
20	916 785 40	Retainer	1	InternKon: 887 580 40 / 61
21	916 782 40	Retainer	1	InternKon: 887 580 40 / 62
22	307 802 99	Bolt	8	InternBDB: M 12x25 / 933 \| InternKon: 887 580 40 / 63
23	340 467 99	Washer	10	InternBDB: B 13,0 / 125 \| InternKon: 887 580 40 / 64
24	334 600 99	Nut	2	InternBDB: M 12 / 985 \| InternKon: 887 580 40 / 65
25	308 608 99	Bolt	4	InternBDB: M 12x70 / 931 \| InternKon: 887 580 40 / 66
26	928 331 40	Plate	1	InternBDB: 60x120 \| InternKon: 887 580 40 / 67
27	928 334 40	Plate	1	InternBDB: 60x130 \| InternKon: 887 580 40 / 68
28	512 958 98	Resilient sleeve	2	InternBDB: 13/25x45 \| InternKon: 887 580 40 / 69
