PC4000-6E S/N 08202

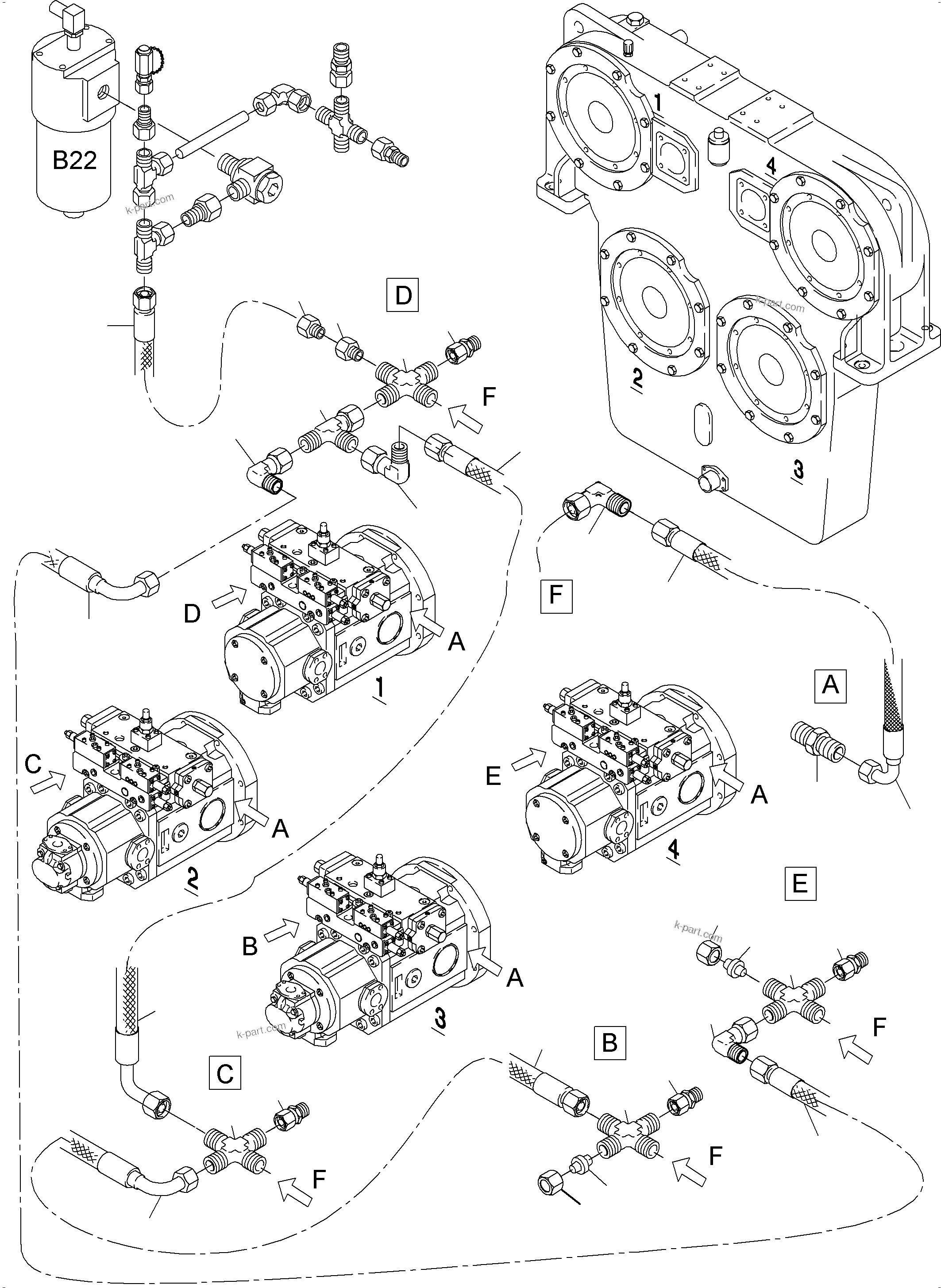

Komatsu parts book diagram for PC4000-6E S/N 08202: MAIN PUMPS CONTROL (P/U)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	516 387 98	Hose assy. DN 08 x 1030	4	InternBDB: DOL 10 / DOL 10-90 \| InternKon: 931 495 40 / 36
	?	516 038 98	Hose assy. DN 10 x 665	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 931 495 40 / 39
	?	516 047 98	Hose assy. DN 10 x 960	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 931 495 40 / 27
	?	516 500 98	Hose assy. DN 10 x 2500	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 931 495 40 / 34
	?	907 211 40	Union	4	InternBDB: GE 10-LM 18x1,5 ED m. Drossel 1,7mm \| InternKon: 931 495 40 / 22
	?	516 156 98	Socket	4	InternBDB: L 10 DIN03942 \| InternKon: 931 495 40 / 18
	?	371 274 99	Union nut	2	InternBDB: N-L12 ISO08434 \| InternKon: 931 495 40 / 45
	?	371 854 99	Plug	2	InternBDB: BUZ 12L WN01163899 \| InternKon: 931 495 40 / 46
	?	374 408 99	Union	4	InternBDB: L-18 DIN03901 \| InternKon: 931 495 40 / 28
	?	516 174 98	Union	1	InternBDB: L 12 DIN03943 \| InternKon: 931 495 40 / 38
	?	907 198 40	Union	4	InternBDB: VKO-N00-016-0002 \| InternKon: 931 495 40 / 29
	?	515 865 98	Union	1	InternBDB: GZR 18 / 12 PL WN65591040 \| InternKon: 931 495 40 / 30
	?	501 796 98	Union	1	InternBDB: S-L 18 ISO08434 \| InternKon: 931 495 40 / 32
	?	516 157 98	Socket	3	InternBDB: L 12 DIN03942 \| InternKon: 931 495 40 / 31
	?	516 493 98	Hose assy. DN 16 x 1050	1	InternBDB: DOL 18 / DOL 18 - 90 \| InternKon: 931 059 40 / 32

Komatsu PC4000-6E S/N 08202 parts catalog PDF

MAIN PUMPS CONTROL (P/U) (356-1824b) in PC4000-6E S/N 08202. Diagram image and parts list.
