PC4000-6 S/N 08195

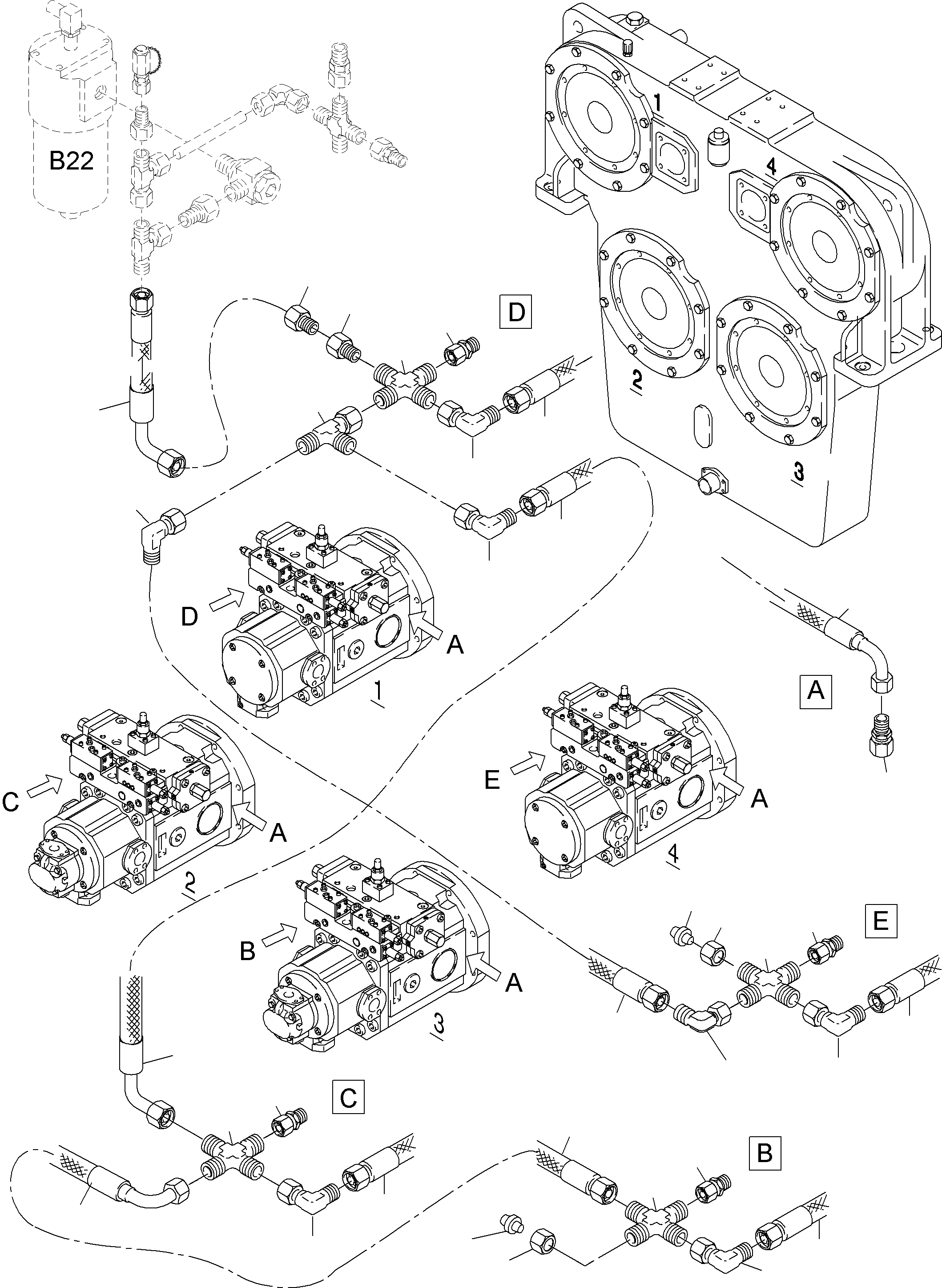

Komatsu parts book diagram for PC4000-6 S/N 08195: MAIN PUMPS CONTROL (P/U)

01 01 01 01 01 02 02 03 03 04 05 06 06 06 06 08 08 09 09 11 11 11 11 12 13 13 13 13 14 15 16 16 16 20

	#	Part Number	Partname	Quantity	Options	Reference
	01	516 387 98	Hose assy. DN 08 x 1030	4	InternBDB: DOL 10 / DOL 10-90 \| InternKon: 891 427 40 / 36
	02	516 038 98	Hose assy. DN 10 x 665	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 891 427 40 / 39
	03	516 047 98	Hose assy. DN 10 x 960	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 891 427 40 / 27
	04	516 500 98	Hose assy. DN 10 x 2500	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 891 427 40 / 34
	05	907 211 40	Union	4	InternBDB: GE 10-LM 18x1,5 ED m. Drossel 1,7mm \| InternKon: 891 427 40 / 22
	06	516 156 98	Socket	4	InternBDB: L 10 / 3942 \| InternKon: 891 427 40 / 18
	08	371 274 99	Union nut	2	InternBDB: N-L12 \| InternKon: 891 427 40 / 45
	09	371 854 99	Plug	2	InternBDB: BUZ 12L \| InternKon: 891 427 40 / 46
	11	374 408 99	Union	4	InternBDB: L-18 / 3901 \| InternKon: 891 427 40 / 28
	12	516 174 98	Union	1	InternBDB: L 12 / 3944 \| InternKon: 891 427 40 / 38
	13	907 198 40	Union	4	InternBDB: VKO-N00-016-0002 \| InternKon: 891 427 40 / 29
	14	515 865 98	Union	1	InternBDB: GZR 18 / 12 PL \| InternKon: 891 427 40 / 30
	15	501 796 98	Union	1	InternBDB: S-L18 ST A3C \| InternKon: 891 427 40 / 32
	16	516 157 98	Socket	3	InternBDB: L 12 \| InternKon: 891 427 40 / 31
	20	516 493 98	Hose assy. DN 16 x 1050	1	InternBDB: DOL 18 / DOL 18 - 90 \| InternKon: 902 075 40 / 32

Komatsu PC4000-6 S/N 08195 parts catalog PDF

MAIN PUMPS CONTROL (P/U) (355-1824b) in PC4000-6 S/N 08195. Diagram image and parts list.
