MAINFOLD, VALVE AND PIPELINES BE | PC4000-6 S/N 08195

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

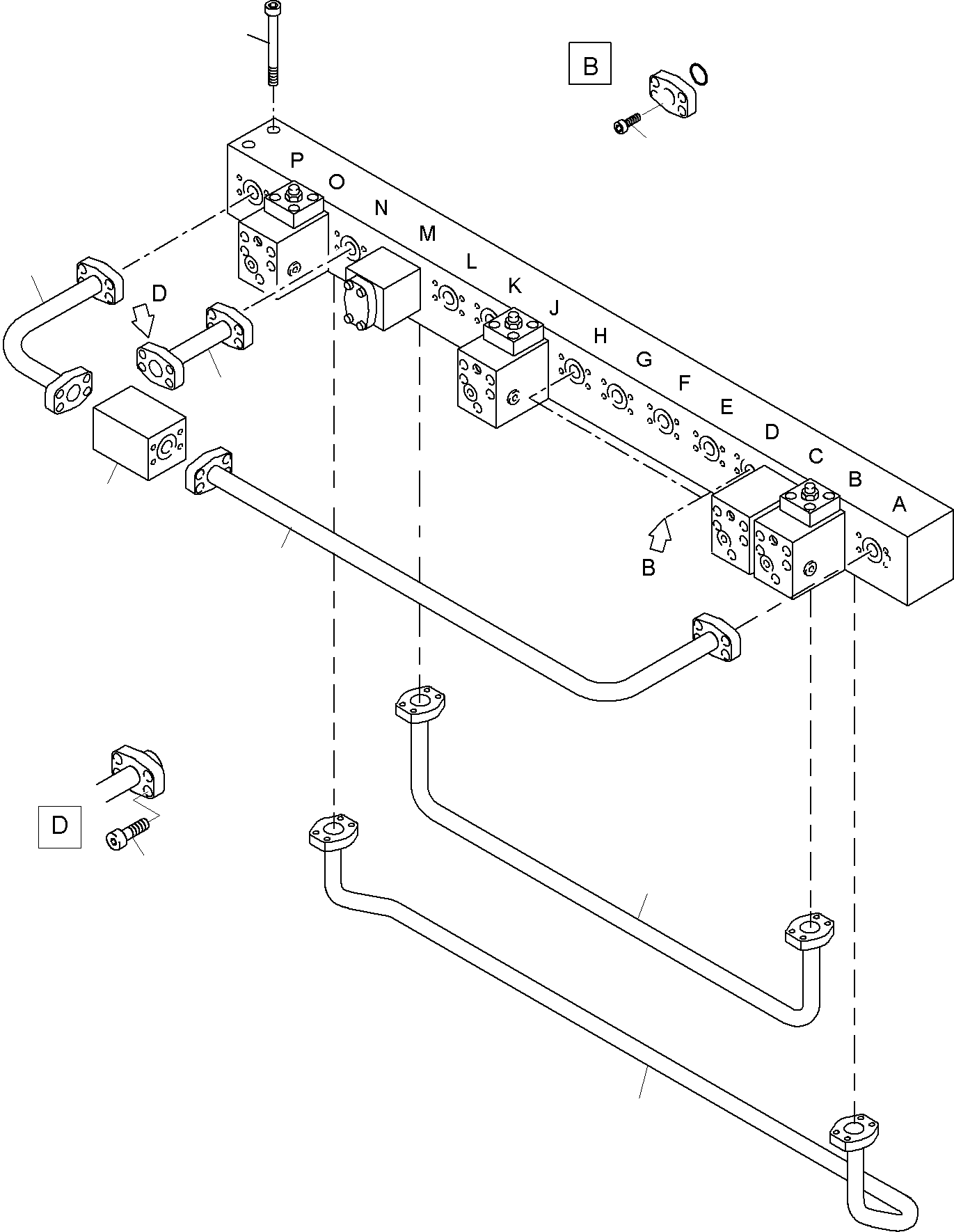

Diagram image 1 of 2

PC4000-6 S/N 08195

02 02 02 02 02 04 04 04 05 05 05 07 07 07 07 11 11 11 12 13 13 13 13 13 13 14 15 15 16 16 30 30 31 33 35 35 355 355 355 36 37 38 39 40 40 41 42

PC4000-6 S/N 08195

31 32 35 44 45 46 47 48 49

#	Part Number	Partname	Quantity	Options	Reference
02		Throttle check valve with pressure relief valve	6	InternBDB: 461 640 40 \| InternKon: 938 515 40 / 2	090-0695
04	514 529 98	Bolt	12	InternBDB: M16x260 10.9 DIN00912 \| InternKon: 938 515 40 / 15
05	319 212 99	Bolt	16	InternBDB: M16x150 10.9 DIN00912 \| InternKon: 938 515 40 / 14
07	515 812 98	Coupling	3	InternBDB: G 1/4-PC \| InternKon: 938 515 40 / 3
11	906 806 40	Union	6	InternBDB: TH 10-LR KDS \| InternKon: 938 515 40 / 30
12	516 183 98	Socket	2	InternBDB: L 10-G / DIN03945 \| InternKon: 938 515 40 / 17
13	516 156 98	Union	3	InternBDB: L 10 / DIN03942 \| InternKon: 938 515 40 / 18
14	374 471 99	Union	1	InternBDB: T-L 10 / ISO08434 \| InternKon: 938 515 40 / 19
15	506 581 98	Plug	6	InternBDB: SAE A1 1/2-6000 WN34194240 \| InternKon: 938 515 40 / 35
16	356 209 40	Flange seal	14	InternBDB: 1 1/2 / NBR 90 WN34198640 \| InternKon: 938 515 40 / 12
30	631 063 40	Returning block	2	InternBDB: 135x130x115 \| InternKon: 938 525 40 / 1
31	655 646 40	Block	1	InternBDB: SAE-T-Bl-605-605 \| InternKon: 938 525 40 / 5
32	319 289 99	Bolt	32	InternBDB: M16x60 10.9 DIN00912 \| InternKon: 938 525 40 / 13
33	373 764 99	Union	2	InternBDB: TR 15/10/10 PL / StZn / WN01087799 \| InternKon: 938 525 40 / 20
35	307 454 99	Bolt	20	InternBDB: M16x50 10.9 DIN00933 \| InternKon: 938 525 40 / 36
36	516 165 58	Union	2	InternBDB: SWE-S 20 / St-NBR ISO8434-4 \| InternKon: 938 525 40 / 39
37	516 308 98	Hose assy. DN 8 x 400	2	InternBDB: 050 / DOL 10 / DOL 10 90 WN34195140 \| InternKon: 938 525 40 / 43
38	514 707 98	Hose assy. DN 8 x 600	1	InternBDB: 050 / DOL 10 / DOL 10 90 WN34195140 \| InternKon: 938 525 40 / 44
39	516 309 98	Hose assy. DN 8 x 330	1	InternBDB: 050 / DOL 10 / DOL 10 WN34195140 \| InternKon: 938 525 40 / 45
40	516 307 98	Hose assy. DN 8 x 300	1	InternBDB: 050 / DOL 10 / DOL 10 WN34195140 \| InternKon: 938 525 40 / 46
41	518 016 58	Bolt	4	InternBDB: M16x280 10.9 DIN00912 \| InternKon: 938 525 40 / 58
42	374 413 99	Union	2	InternBDB: SDS-S20xM27x2 - Type E ISO08434 St A3C \| InternKon: 938 525 40 / 63
44	938 167 40	Pipe DN 50 x 6	1	InternKon: 937 157 40 / 6
45	938 168 40	Pipe DN 50 x 6	1	InternKon: 937 157 40 / 7
46	938 169 40	Pipe DN 50 x 6	1	InternKon: 937 157 40 / 8
47	938 170 40	Pipe DN 50 x 6	1	InternKon: 937 157 40 / 38
48	935 361 40	Pipe DN 50 x 6	1	InternKon: 935 336 40 / 47
49	515 863 98	Bolt	4	InternBDB: M20x210 10.9 DIN00931 \| InternKon: 93850040 / 15
