PRESSURE LINES - MAIN PUMPS - H.P.-FILTER | PC4000-6 S/N 08195

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

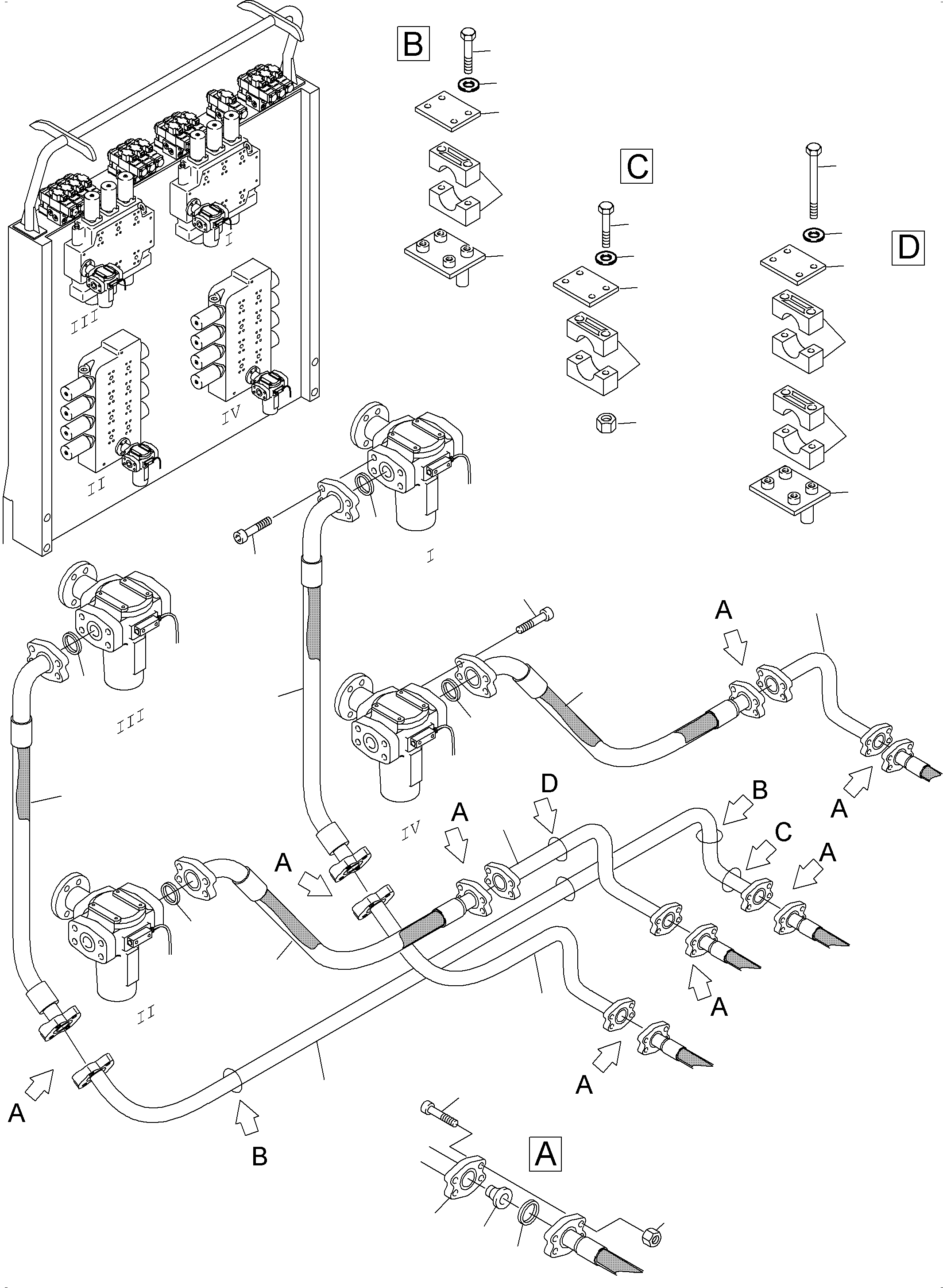

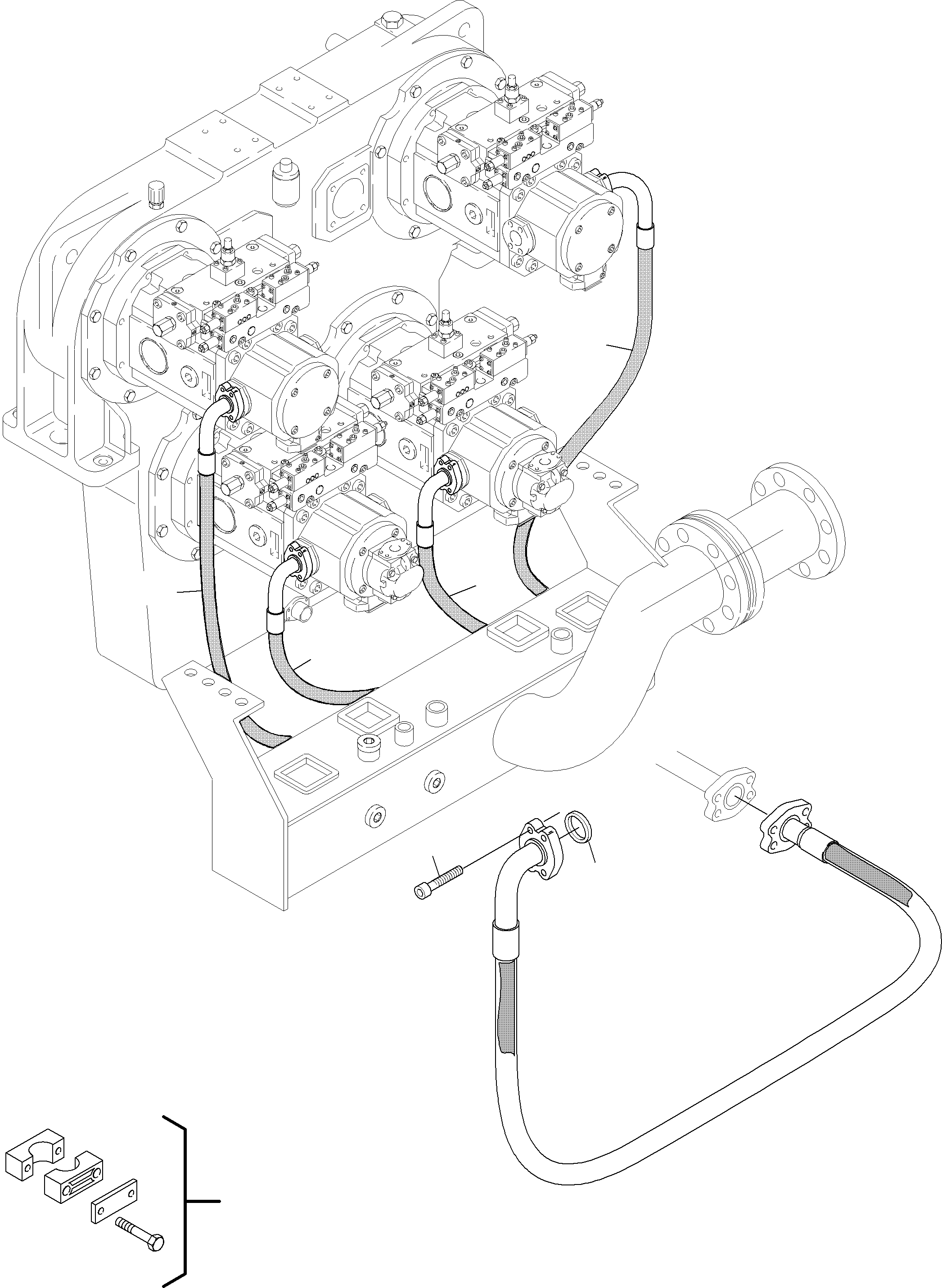

Diagram image 1 of 2

PC4000-6 S/N 08195

01 02 03 04 05 06 07

PC4000-6 S/N 08195

05 05 05 05 05 06 06 08 09 10 10 11 12 13 14 15 16 17 18 19 19 20 21 21 21 22 22 22 22 23 24 25 26 26 26

#	Part Number	Partname	Quantity	Options	Reference
01	940 395 40	Hose assy. DN 50 x 4050	1	InternBDB: GH466-32x4050 \| InternKon: 902 075 40 / 1
02	940 380 40	Hose assy. DN 50 x 2700	1	InternBDB: GH466-32x2700 \| InternKon: 902 075 40 / 2
03	940 368 40	Hose assy. DN 50 x 1980	1	InternBDB: GH466-32x1980 \| InternKon: 902 075 40 / 3
04	940 366 40	Hose assy. DN 50 x 1810	1	InternBDB: GH466-32x1810 \| InternKon: 902 075 40 / 4
05	385 243 40	Flange seal	16	InternBDB: 2 NBR 90 \| InternKon: 902 075 40 / 5
06	319 305 99	Bolt	32	InternBDB: M20x60 /912 10.9 \| InternKon: 902 075 40 / 6
07		Mounting parts	1	InternBDB: 924 820 40 \| InternKon: 902 075 40 / 71	355-1896
08	940 518 40	Hose assy. DN 50 x 1110	1	InternBDB: GH466-32x1110 \| InternKon: 937 545 40 / 6
09	940 519 40	Hose assy. DN 50 x 1150	1	InternBDB: GH466-32x1150 \| InternKon: 937 545 40 / 7
10	940 362 40	Hose assy. DN 50 x 1630	2	InternBDB: GH466-32x1630 \| InternKon: 937 545 40 / 8
11	796 555 73	Pipe cpl. Ш 65 , incl. Pos. 5,15,16	1	InternBDB: 938 517 40 \| InternKon: 937 545 40 / 21
12	796 556 73	Pipe cpl. Ш 65 , incl. Pos. 5,15,16	1	InternBDB: 938 518 40 \| InternKon: 937 545 40 / 22
13	796 557 73	Pipe cpl. Ш 65 , incl. Pos. 5,15,16	1	InternBDB: 938 519 40 \| InternKon: 937 545 40 / 23
14	796 558 73	Pipe cpl. Ш 65 , incl. Pos. 5,15,16	1	InternBDB: 938 521 40 \| InternKon: 937 545 40 / 24
15	504 448 98	Flange	8	InternBDB: FE-6500-32/6 \| InternKon: 937 545 40 / 41
16	504 449 98	Ring	8	InternBDB: KO-6580-32 \| InternKon: 937 545 40 / 42
17	319 313 99	Bolt	32	InternBDB: M 20x120 /912 10.9 \| InternKon: 937 545 40 / 43
18	504 662 98	Nut	32	InternBDB: M 20 /934 10 \| InternKon: 937 545 40 / 44
19	914 746 40	Weld-on plate	6	InternBDB: aus 502 961 98 \| InternKon: 937 545 40 / 75
20	308 431 99	Bolt	8	InternBDB: M 12x240 / 931 / 10.9 \| InternKon: 937 545 40 / 76
21	502 965 98	Cover plate	10	InternBDB: S-DP-S-4 W1 /3015 \| InternKon: 937 545 40 / 77
22	504 446 98	Clamp set	24	InternBDB: S-4-G-65 PA /3015 \| InternKon: 937 545 40 / 78
23	506 533 98	Bolt	16	InternBDB: M 12x130 / 931 / 10.9 \| InternKon: 937 545 40 / 80
24	504 682 98	Bolt	16	InternBDB: M 12x200 / 931 / 8.8 \| InternKon: 937 545 40 / 82
25	334 600 99	Nut	16	InternBDB: M 12 / 985 \| InternKon: 937 545 40 / 83
26	340 467 99	Washer	40	InternBDB: B 13,0 / 125 \| InternKon: 937 545 40 / 93
