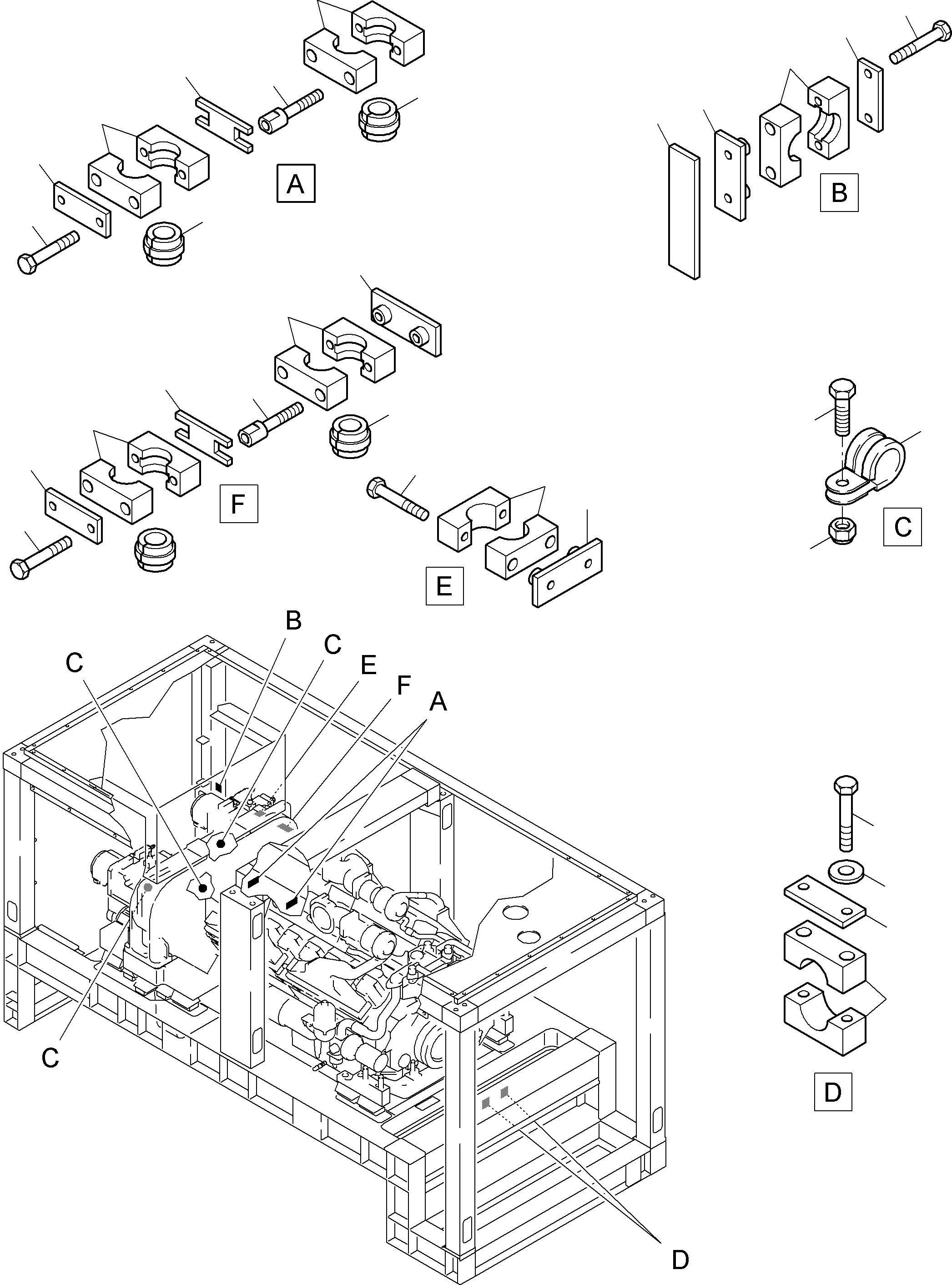

MOUNTING PARTS MACHINERY HOUSE | PC4000-6 S/N 08195

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	924 816 40	Retainer	1	InternKon: 924 820 40 / 1
02	500 398 98	Cover plate	9	InternBDB: S-5 W1 / 3015 \| InternKon: 924 820 40 / 2
03	509 064 98	Half clamp Ш 70	14	InternBDB: S-5-E PP / 3015 \| InternKon: 924 820 40 / 3
04	516 024 98	Grommet Ш 70	7	InternBDB: S-5-70-NBR / 3015 \| InternKon: 924 820 40 / 4
05	308 643 99	Bolt	14	InternBDB: M 16x160 / 931 / 8.8 \| InternKon: 924 820 40 / 5
06	334 601 99	Nut	14	InternBDB: M16 / 985 \| InternKon: 924 820 40 / 6
07	343 008 99	Washer	8	InternBDB: Shb 17 / 93 \| InternKon: 924 820 40 / 7
08	534 005 99	Welded-on plate	2	InternBDB: S-3-W1 / 3015 \| InternKon: 924 820 40 / 8
09	534 004 99	Cover Plate	2	InternBDB: S-3 W1 / 3015 \| InternKon: 924 820 40 / 9
10	504 818 98	Half clamp Ш 38	2	InternBDB: S-3-G-38 PP / 3015 \| InternKon: 924 820 40 / 10
11	502 618 98	Half clamp Ш 32	4	InternBDB: S-3-E PP / 3015 \| InternKon: 924 820 40 / 11
12	504 926 98	Grommet Ш 32	2	InternBDB: S-3-32-NBR / 3015 \| InternKon: 924 820 40 / 12
13	504 789 98	Rotation lock	1	InternBDB: S-3 / 3015 \| InternKon: 924 820 40 / 13
14	504 788 98	Build-up screw	2	InternBDB: S-3 /3015 \| InternKon: 924 820 40 / 14
15	308 581 99	Bolt	4	InternBDB: M 10x70 / 931 / 8.8 \| InternKon: 924 820 40 / 15
16	533 992 99	Welded-on plate	1	InternBDB: L-3-W1 / 3015 \| InternKon: 924 820 40 / 16
17	509 057 98	Half clamp Ш 20	2	InternBDB: L-3-G-20 PP / 3015 \| InternKon: 924 820 40 / 17
18	319 133 99	Bolt	2	InternBDB: M6x30 / 912 \| InternKon: 924 820 40 / 18
19	506 371 98	Half clamp Ш 48	26	InternBDB: S-4-E PP / 3015 \| InternKon: 924 820 40 / 19
20	512 053 98	Grommet Ш 48	11	InternBDB: S-4-48-NBR / 3015 \| InternKon: 924 820 40 / 20
21	502 831 98	Grommet Ш 38	1	InternBDB: S-4-38-NBR / 3015 \| InternKon: 924 820 40 / 21
22	512 902 98	Grommet Ш 32	1	InternBDB: S-4-32-NBR / 3015 \| InternKon: 924 820 40 / 22
23	504 787 98	Rotation lock	5	InternBDB: S-4 / 3015 \| InternKon: 924 820 40 / 23
24	504 786 98	Build-up screw	10	InternBDB: S-4 / 3015 \| InternKon: 924 820 40 / 24
25	308 612 99	Bolt	16	InternBDB: M12x100 / 931 \| InternKon: 924 820 40 / 25
26	534 008 99	Cover plate	8	InternBDB: S-4 W1 / 3015 \| InternKon: 924 820 40 / 26
27	534 009 99	Welded-on plate	1	InternBDB: S-4 W1 / 3015 \| InternKon: 924 820 40 / 27
28	534 002 99	Welded-on plate	1	InternBDB: S-2 W1 / 3015 \| InternKon: 924 820 40 / 28
29	502 682 98	Half clamp Ш 28	2	InternBDB: S-2-G-28 / 3015 \| InternKon: 924 820 40 / 29
30	534 001 99	Cover plate	2	InternBDB: S-2 W1 / 3015 \| InternKon: 924 820 40 / 30
31	308 579 99	Bolt	4	InternBDB: M10x60 / 931 \| InternKon: 924 820 40 / 31
32	508 947 40	Flat steel	1	InternKon: 924 820 40 / 32
33	504 817 98	Half clamp Ш 23	24	InternBDB: L-3-G-23 PP / 3015 \| InternKon: 924 820 40 / 33
34	006 301 98	Clamp	14	InternBDB: 12 / 15 \| InternKon: 924 820 40 / 34
35	006 302 98	Clamp	6	InternBDB: 15 / 15 \| InternKon: 924 820 40 / 35
36	307 646 99	Bolt	5	InternBDB: M6x16 / 933 \| InternKon: 924 820 40 / 36
37	307 730 99	Bolt	3	InternBDB: M6x20 / 933 \| InternKon: 924 820 40 / 37
38	507 025 98	Nut	8	InternBDB: M6 / 985 \| InternKon: 924 820 40 / 38
39	511 365 98	Half clamp Ш 80	4	InternBDB: S-5-G-80 PP / 3015 \| InternKon: 924 820 40 / 39
40	308 641 99	Bolt	4	InternBDB: M 16x130 / 931 / 8.8 \| InternKon: 924 820 40 / 40
