LINES SLEW GEAR | PC4000-6 S/N 08195 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

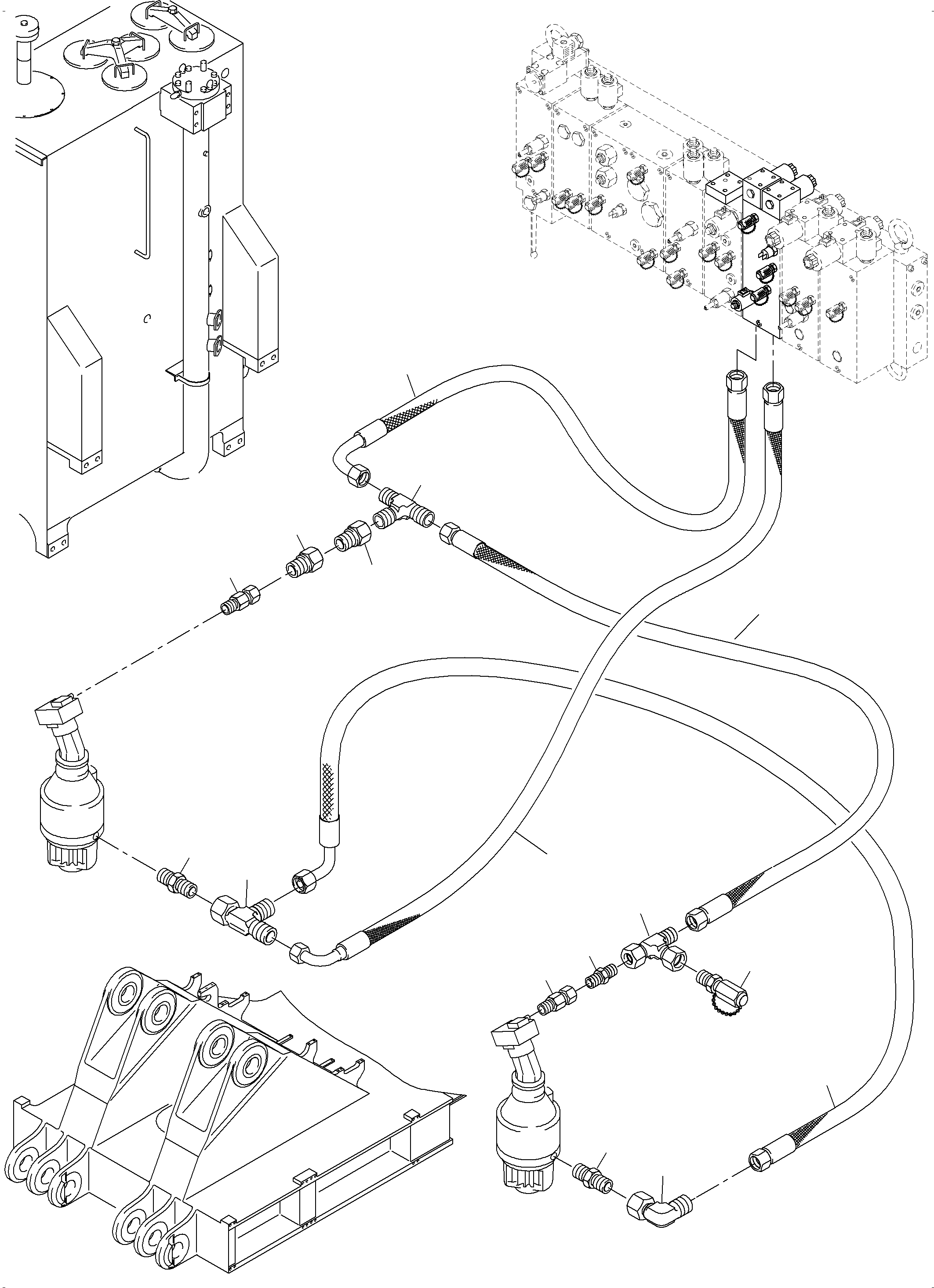

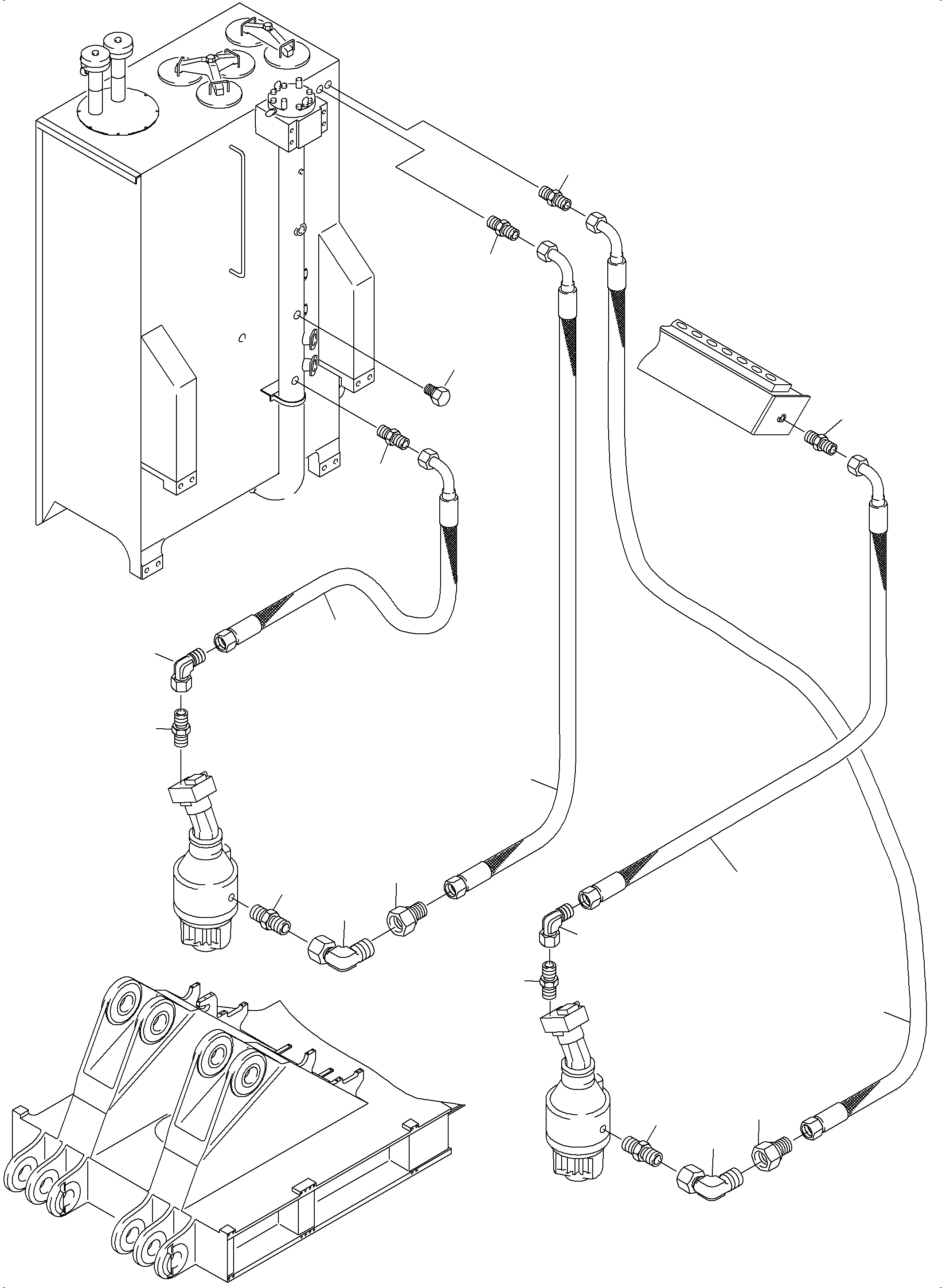

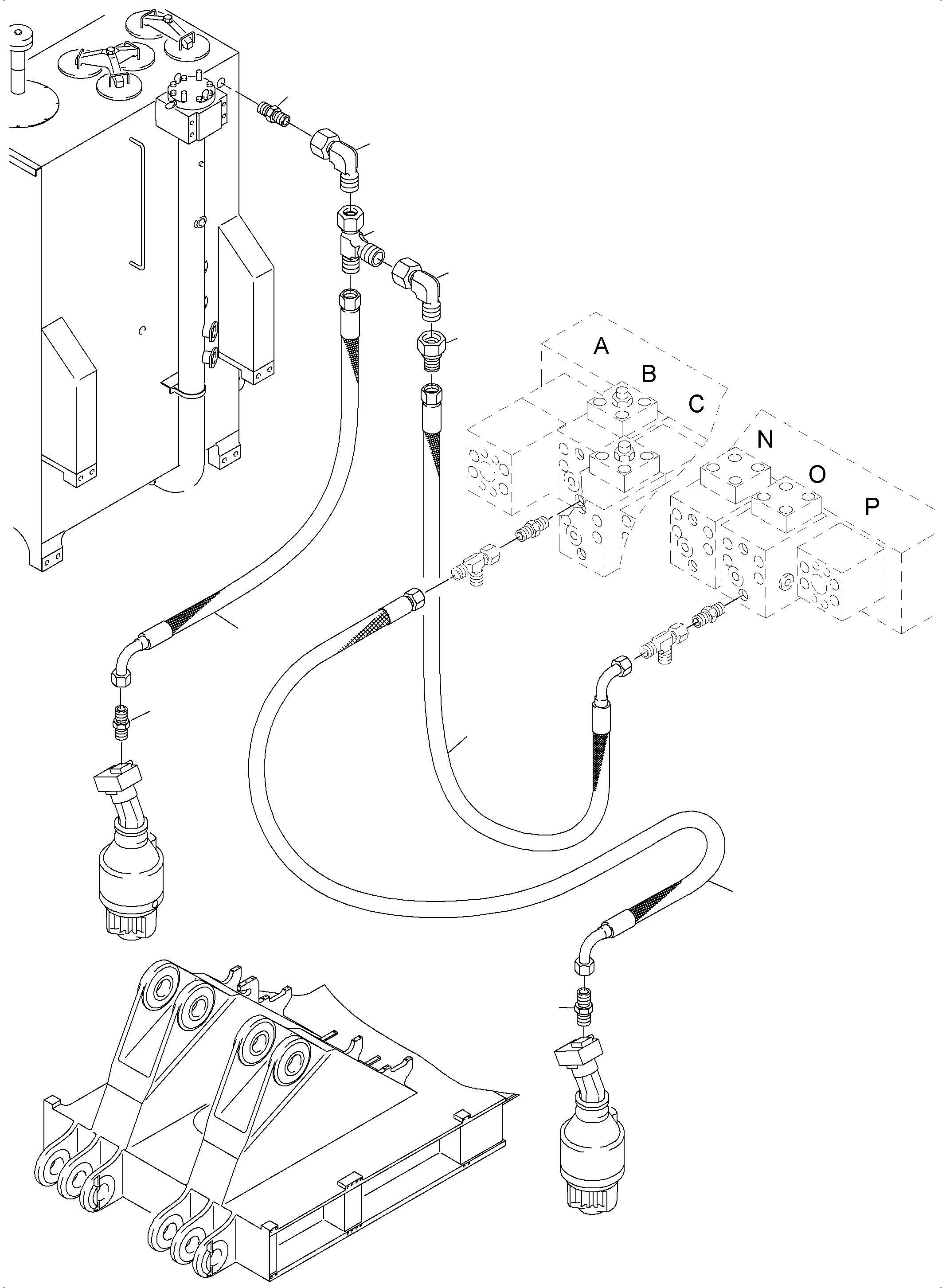

Diagram image 1 of 3

PC4000-6 S/N 08195

01 02 03 04 05 05 06 06 07 07 08 08 09 09 10 10 33 34 34

PC4000-6 S/N 08195

16 17 19 20 20 21 22 22 23 24 27 30 31 31 32 35 35

PC4000-6 S/N 08195

11 12 13 14 15 15 18 25 25 26

#	Part Number	Partname	Quantity	Options
01	516 595 98	Hose assy. DN 40x2500	1	InternBDB: 120 DOL 42 DOL 42-90 \| InternKon: 902 080 40 / 31
02	173 495 40	Plug	1	InternBDB: M 48x2,0 ED \| InternKon: 902 080 40 / 109
03	514 361 98	Hose assy. DN 20x3000	1	InternBDB: 120 DOL 22 DOL 22-90 \| InternKon: 902 080 40 / 27
04	516 532 98	Hose assy. DN 20x7000	1	InternBDB: 120 DOL 22 DOL 22-90 \| InternKon: 902 080 40 / 26
05	374 415 99	Socket	4	InternBDB: L 42E-M / 3901 \| InternKon: 902 080 40 / 45
06	374 431 99	Socket	2	InternBDB: L 28E-M / 3901 \| InternKon: 902 080 40 / 50
07	374 409 99	Socket	2	InternBDB: L 22E-M / 3901 \| InternKon: 902 080 40 / 36
08	516 163 98	Union	2	InternBDB: L 42 /3942
09	516 161 98	Union	2	InternBDB: L 28 /3942
10	551 345 40	Union	2	InternBDB: RED 28 / 22-PL / OMD \| InternKon: 902 080 40 / 39
11	516 511 98	Hose assy. DN 08x3500	1	InternBDB: 050 DOL 10 DOL 10-90 \| InternKon: 902 080 40 / 69
12	516 175 98	Union	1	InternBDB: L 15 / 3944 \| InternKon: 902 080 40 / 57
13	374 407 99	Socket	1	InternBDB: L 15 / 3901 \| InternKon: 902 080 40 / 47
14	551 456 40	Union	1	InternBDB: RED 15/10-PL / OMD \| InternKon: 902 080 40 / 68
15	516 158 98	Union	2	InternBDB: Voss 25-LM \| InternKon: 902 080 40 / 49
16	517 619 98	Hose assy. DN 10x3600	1	InternBDB: 050 DOL 12 DOL 12-90 \| InternKon: 902 080 40 / 24
17	516 807 98	Hose assy. DN 12x5500	1	InternBDB: 240 DOL 15 DOL 15-90 \| InternKon: 902 080 40 / 23
18	592 091 40	Hose assy. DN 12x6500	1	InternBDB: 240 DOL 15 \| InternKon: 902 080 40 / 28
19	512 933 98	Hose assy. DN 12x6000	1	InternBDB: 240 DOL 15 DOL 15-90 \| InternKon: 904 215 40 / 15
20	374 407 99	Socket	2	InternBDB: L 15 E-M /3901 \| InternKon: 904 215 40 / 30
21	516 175 98	Union	1	InternBDB: L 15 / 3944 \| InternKon: 904 215 40 / 31
22	371 452 99	Union	2	InternBDB: GE 12-PL /R 1/4 \| InternKon: 904 215 40 / 36
23	516 174 98	Union	1	InternBDB: L 12 / 3944 \| InternKon: 904 215 40 / 34
24	655 426 40	Union	1	InternBDB: GV 12-LR \| InternKon: 904 215 40 / 38
25	374 416 99	Socket	2	InternBDB: L 10 E-G 1/4 /3901 \| InternKon: 904 215 40 / 37
26	516 509 98	Hose assy. DN 08x1700	1	InternBDB: 050 DOL 10 DOL 10-90 \| InternKon: 904 215 40 / 16
27	511 015 98	Shuttle valve	1	InternBDB: 12-L / ISO 8434 \| InternKon: 904 215 40 / 39
30	502 752 98	Coupling	1	InternBDB: 12-L \| InternKon: 904 215 40 / 58
31	516 158 98	Union	1	InternBDB: L 15 /3942
32	516 507 98	Hose assy. DN 10x6700	1	InternBDB: 050 DOL 12 DOL 12 \| InternKon: 904 215 40 / 14
33	516 825 98	Hose assy. DN 40x1200	1	InternBDB: 120 DOL 42 DOL 42-90 \| InternKon: 904 215 40 / 72
34	374 415 99	Socket	2	InternBDB: L 42 E-M / 3901 \| InternKon: 904 215 40 / 73
35	941 504 40	Shuttle valve	3	InternBDB: Rex MHFS 06 CBO-1X/A04B04M01 Art-Nr.R900578404 \| InternKon: 904 215 40 / 101
