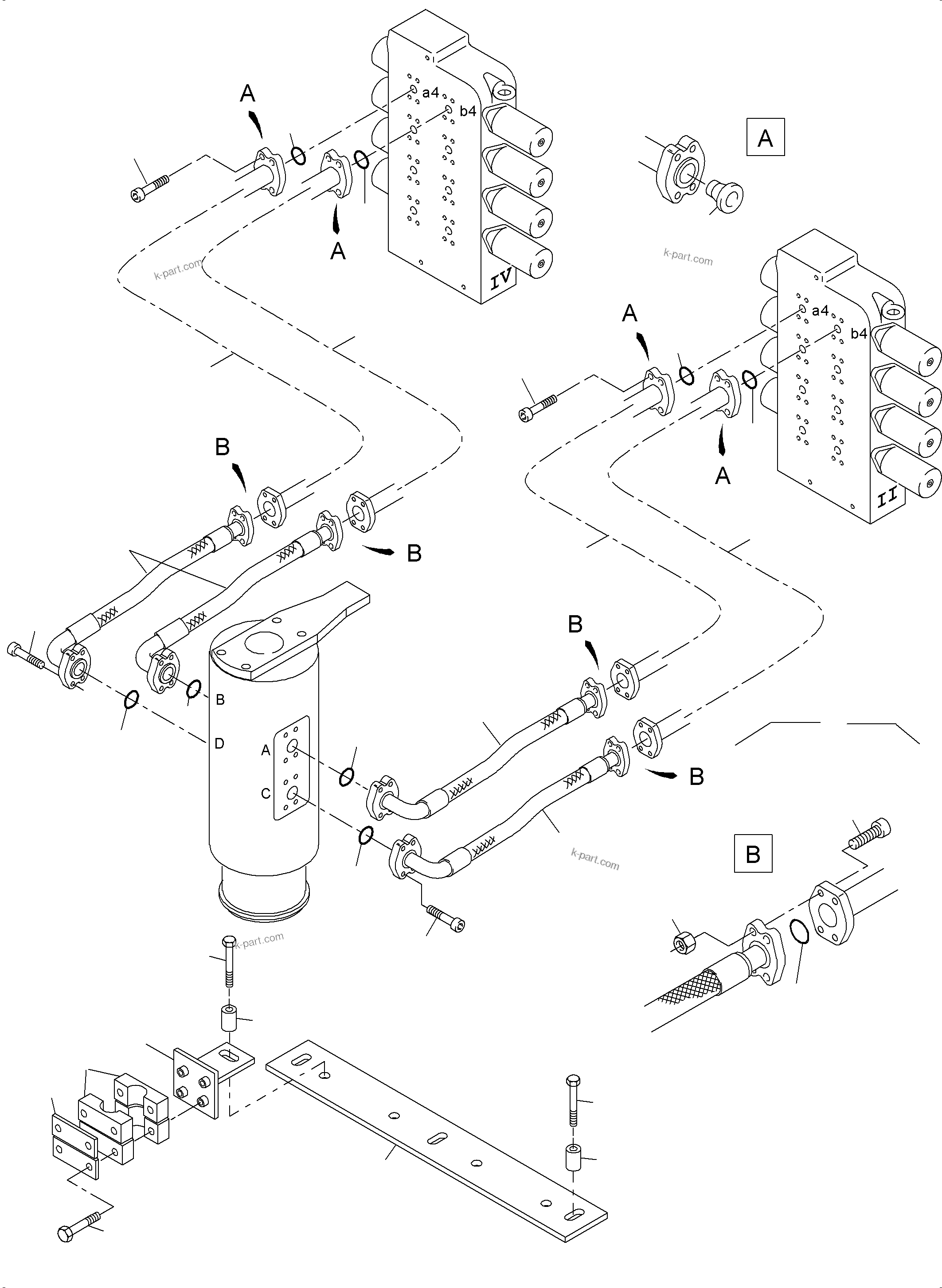

PRESSURE LINES CONTROL BLOCKS - ROTARY JOINT | PC4000-6 S/N 08195

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	517 589 98	Hose assy. DN 40x1200	4	InternBDB: FS 1 1/2" FS 2" 90 \| InternKon: 937 545 40 / 5
?	356 209 40	Flange seal	12	InternBDB: 1 1/2 NBR 90 \| InternKon: 937 545 40 / 46
?	319 288 99	Bolt	4	InternBDB: M16x50 /912 10.9 \| InternKon: 937 545 40 / 47
?	319 292 99	Bolt	16	InternBDB: M16x90 /912 10.9 \| InternKon: 937 545 40 / 48
?	332 355 99	Nut	16	InternBDB: M 16 /934 10 \| InternKon: 937 545 40 / 49
?	501 898 98	Ring	2	InternBDB: K-5060-24 \| InternKon: 937 545 40 / 55
?	319 289 99	Bolt	8	InternBDB: M16x60 /912 10.9 \| InternKon: 937 545 40 / 56
?	502 965 98	Cover plate	8	InternBDB: S-DP-S-4 W1 DIN03015 \| InternKon: 937 545 40 / 77
?	308 634 99	Bolt	4	InternBDB: M 16x70 / 931 8.8 \| InternKon: 937 545 40 / 94
?	510 733 98	Resilient sleeve	7	InternBDB: 17/30x50 WN 34194840 \| InternKon: 937 545 40 / 95
?	308 638 99	Bolt	3	InternBDB: M 16x100 / 931 8.8 \| InternKon: 937 545 40 / 96
?	953 301 40	Retainer	3	InternKon: 937 545 40 / 97
?	953 300 40	Plate	1	InternBDB: 100x580 \| InternKon: 937 545 40 / 98
?	502 976 98	Clamp set	8	InternBDB: S-4-R-50 AL DIN03015 \| InternKon: 937 545 40 / 99
?	308 612 99	Bolt	16	InternBDB: M 12x100 / 931 8.8 \| InternKon: 937 545 40 / 100
?	953 310 40	Pipe set	1	InternKon: 937 545 40 / 501
?	953 306 40	Pipe complete Ш 50	1	InternKon: 953 310 40 / 25
?	953 307 40	Pipe complete Ш 50	1	InternKon: 953 310 40 / 26
?	953 308 40	Pipe complete Ш 50	1	InternKon: 953 310 40 / 27
?	953 309 40	Pipe complete Ш 50	1	InternKon: 953 310 40 / 28
?			-2
?			-2
?			-2
