PC3000-6E S/N 06262

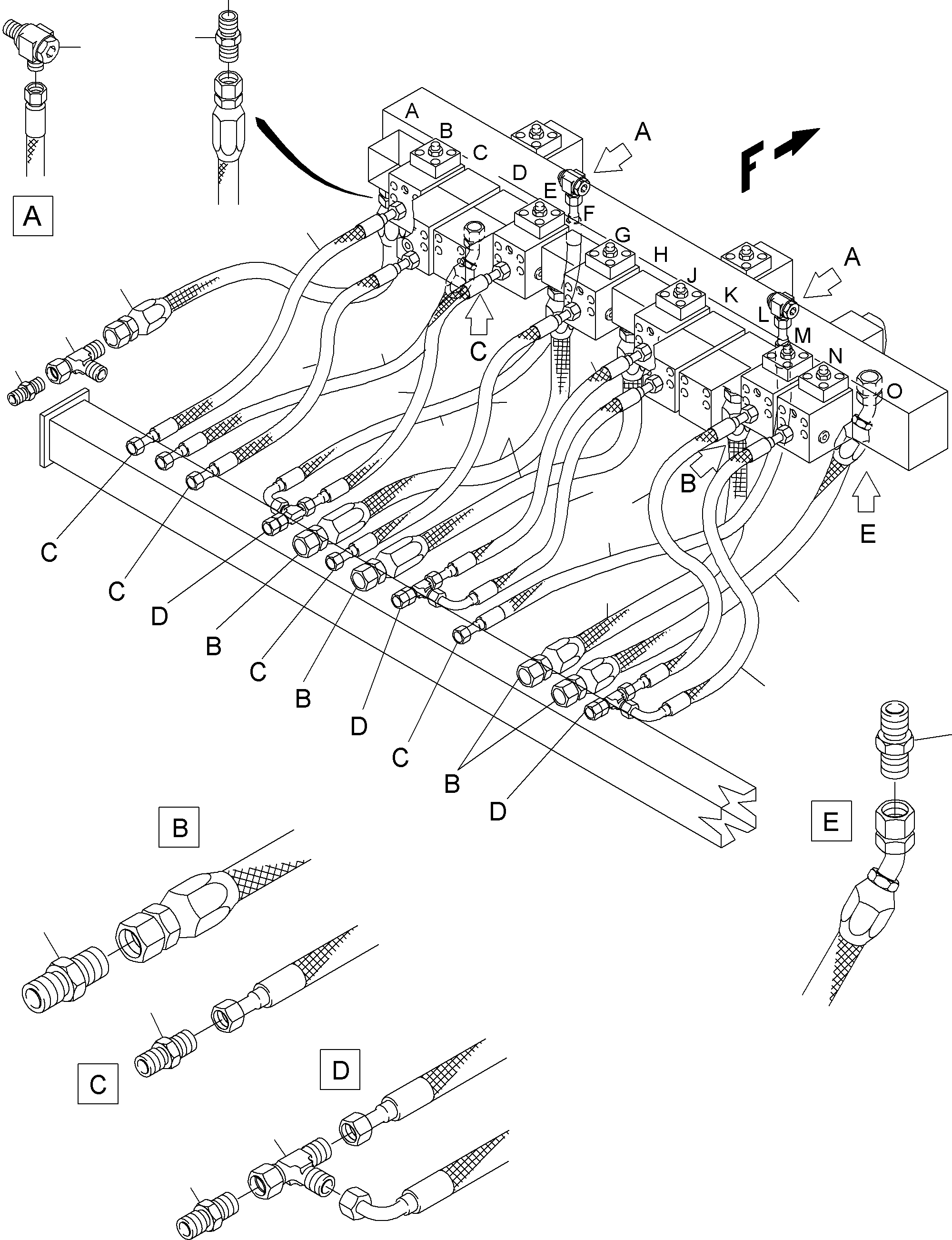

Komatsu parts book diagram for PC3000-6E S/N 06262: RETURN LINES - MANIFOLD (BBE)

01 02 03 04 05 05 05 06 07 08 09 10 10 10 10 11 11 12 13 14 15 16 25 40

	#	Part Number	Partname	Quantity	Options	Reference
	01	517 019 98	Hose assy. DN 40x1440	1	InternBDB: 120 DOL 42 DOL 42 45° \| InternKon: 935 242 40 / 60
	02	516 209 98	Hose assy. DN 40x1820	1	InternBDB: 025 DOL 42 / DOL 42 45° \| InternKon: 935 242 40 / 6
	03	516 210 98	Hose assy. DN 40x1600	2	InternBDB: 025 DOL 42 / DOL 42 45° \| InternKon: 935 242 40 / 7
	04	517 020 98	Hose assy. DN40x1620	2	InternBDB: 120 DOL 42 / DOL 42 \| InternKon: 925 718 40 / 54
	05	516 452 98	Hose assy. DN 20x1690	3	InternBDB: 350 DOS 20 / DOS 20 \| InternKon: 925 718 40 / 103
	06	516 453 98	Hose assy. DN 20x1800	1	InternBDB: 350 DOS 20 / DOS 20-90 \| InternKon: 935 242 40 / 9
	07	516 454 98	Hose assy. DN 20x1600	1	InternBDB: DOS 20 / DOS 20 \| InternKon: 935 242 40 / 10
	08	516 455 98	Hose assy. DN 20x1610	1	InternBDB: DOS 20 / DOS 20-90 \| InternKon: 935 242 40 / 11
	09	516 456 98	Hose assy. DN 20x1820	1	InternBDB: DOS 20 / DOS 20 \| InternKon: 935 242 40 / 12
	10	374 415 99	Socket	11	InternBDB: SDS-L42xM48x2 / ISO 8434 \| InternKon: 935 242 40 / 49
	11	374 413 99	Socket	12	InternBDB: S 20 B-M / DIN 3901 \| InternKon: 935 242 40 / 50
	12	516 180 98	Union	3	InternBDB: SWRT-S 20 / ISO 8434-4 \| InternKon: 935 242 40 / 51
	13	906 926 40	Union	2	InternBDB: 20-SM / OMD \| InternKon: 935 242 40 / 52
	14	516 449 98	Hose assy. DN 20x1740	1	InternBDB: 350 DOS 20 / DOS 20 \| InternKon: 925 718 40 / 102
	15	516 450 98	Hose assy. DN 20x1630	1	InternBDB: DOS 20 DOS 20 \| InternKon: 935 242 40 / 56
	16	516 212 98	Hose assy. DN 40x1650	1	InternBDB: 120 DOL 42 / DOL 42 \| InternKon: 925 718 40 / 14
	25	516 457 98	Hose assy. DN 20x1700	1	InternBDB: 350 DOS 20 / DOS 20 \| InternKon: 925 718 40 / 77
	40	516 178 98	Union	1	InternBDB: SWRT-L 42 \| InternKon: 935 242 40 / 61

Komatsu PC3000-6E S/N 06262 parts catalog PDF

RETURN LINES - MANIFOLD (BBE) (485-1862d) in PC3000-6E S/N 06262. Diagram image and parts list.
