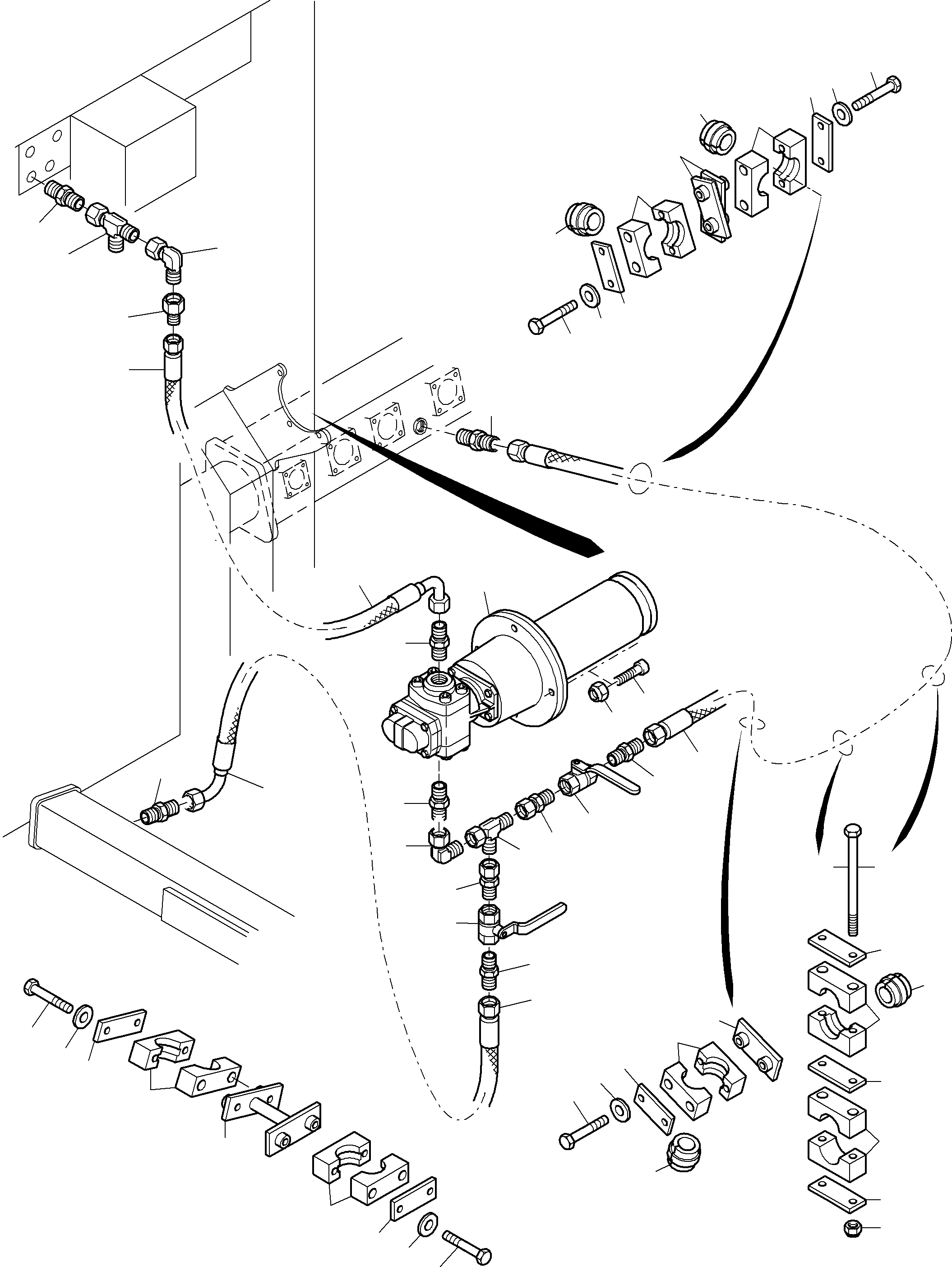

TRANSFUSING PUMP ARR. | PC3000-6E S/N 06262 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
02		Gear pump unit	1	InternBDB: 936 534 40 \| InternKon: 942 580 40 / 2	991-0449b
03	511 873 98	Bolt	3	InternBDB: M10 X 50 A4-70 DIN 00933 \| InternKon: 942 580 40 / 3
04	515 220 98	Nut	3	InternBDB: M10 A2-70 DIN 00985 \| InternKon: 942 580 40 / 4
05	374 415 99	Socket	1	InternBDB: SDS L 42 / ISO 8434 \| InternKon: 930 847 40 / 22
06	374 460 99	Socket	4	InternBDB: SDS-L35XG1 1/4A- TYPE E ST A3C ISO 08434 \| InternKon: 942 580 40 / 6
07	516 178 98	Socket	1	InternBDB: SWRT-L 42 ST-NBR ISO 08434-4 \| InternKon: 942 580 40 / 7
08	551 300 40	Union	1	InternBDB: VERSHR RED 42/35-PL/OMD ST A3C \| InternKon: 942 580 40 / 8
09	374 422 99	Socket	2	InternBDB: SDS-L35XM42x2 - TYPE E ST A3C ISO 08434 \| InternKon: 942 580 40 / 9
10	516 162 98	Socket	1	InternBDB: SWE-L 35 ST-NBR ISO 08434-4 \| InternKon: 942 580 40 / 10
11	516 473 98	Socket	1	InternBDB: SWRT-L 35 ST-NBR ISO 08434-4 \| InternKon: 942 580 40 / 11
12	516 188 98	Socket	2	InternBDB: SWSDS-L35XG1 1/4A- TYPE E ST-NBR ISO 08434-4 \| InternKon: 942 580 40 / 12
13	516 753 98	Ball cock	2	InternBDB: KUG-HAHN G 11/4 MSNI WN 34196040 \| InternKon: 942 580 40 / 13
14	517 893 98	Hose assy. DN 32x1150	1	InternBDB: SHL025 32X 1150 DOL 35 DOL 35 90 WN 34195140 \| InternKon: 942 580 40 / 14
15	518 400 98	Hose assy. DN 32x470	1	InternBDB: SHL025 32X 470 DOL 35 DOL 35 90 WN 34195140 \| InternKon: 942 580 40 / 15
16	516 395 98	Hose assy. DN 32x3300	1	InternBDB: SHL025 32X 3300 DOL 35 DOL 35 WN 34195140 \| InternKon: 942 580 40 / 16
17	934 481 40	Retainer	1	InternBDB: HALTER PC 3000- 6 \| InternKon: 942 580 40 / 17
18	308 612 99	Bolt	10	InternBDB: 6KTSHR M12X 100 8.8 DIN 00931 \| InternKon: 942 580 40 / 18
19	343 006 99	Washer	10	InternBDB: SHB 13 ST1203 DIN 00093 \| InternKon: 942 580 40 / 19
20	534 008 99	Cover plate	13	InternBDB: D-PLATTE S-DP-A-4 W1 DIN 03015 \| InternKon: 942 580 40 / 20
21	534 009 99	Weld on plate	2	InternBDB: A-PLATTE S-AP-A-4 W1 DIN 03015 \| InternKon: 942 580 40 / 21
22	506 371 98	Pair of clamps	5	InternBDB: KLEMMHPAAR S-4-E PA DIN 03015 \| InternKon: 942 580 40 / 22
23	511 246 98	Grommet	4	InternBDB: ELASTOMEREINS S-4-43 GUMMI DIN 03015 \| InternKon: 942 580 40 / 23
24	502 977 98	Half clamp	2	InternBDB: KLEMMHPAAR S-4-G-50 PA DIN 03015 \| InternKon: 942 580 40 / 24
25	506 701 98	Bolt	2	InternBDB: 6KTSHR M12X 230 8.8 DIN 00931 \| InternKon: 942 580 40 / 25
26	334 600 99	Nut	4	InternBDB: 6KTMU M12 8 DIN 00985 \| InternKon: 942 580 40 / 26
27	514 934 98	Bolt	2	InternBDB: 6KTSHR M12X 250 8.8 DIN 00931 \| InternKon: 942 580 40 / 27
28	518 035 98	Pair of clamps	2	InternBDB: KLEMMHPAAR S-4-G-70 PA DIN 03015 \| InternKon: 942 580 40 / 28
29	516 163 98	Socket	1	InternBDB: SWE-L 42 / ISO 8434-4 \| InternKon: 930 847 40 / 25
33	502 626 98	Grommet	1	InternBDB: S-4-56,4 GUMMI DIN 03015 \| InternKon: 935 030 40 / 33
