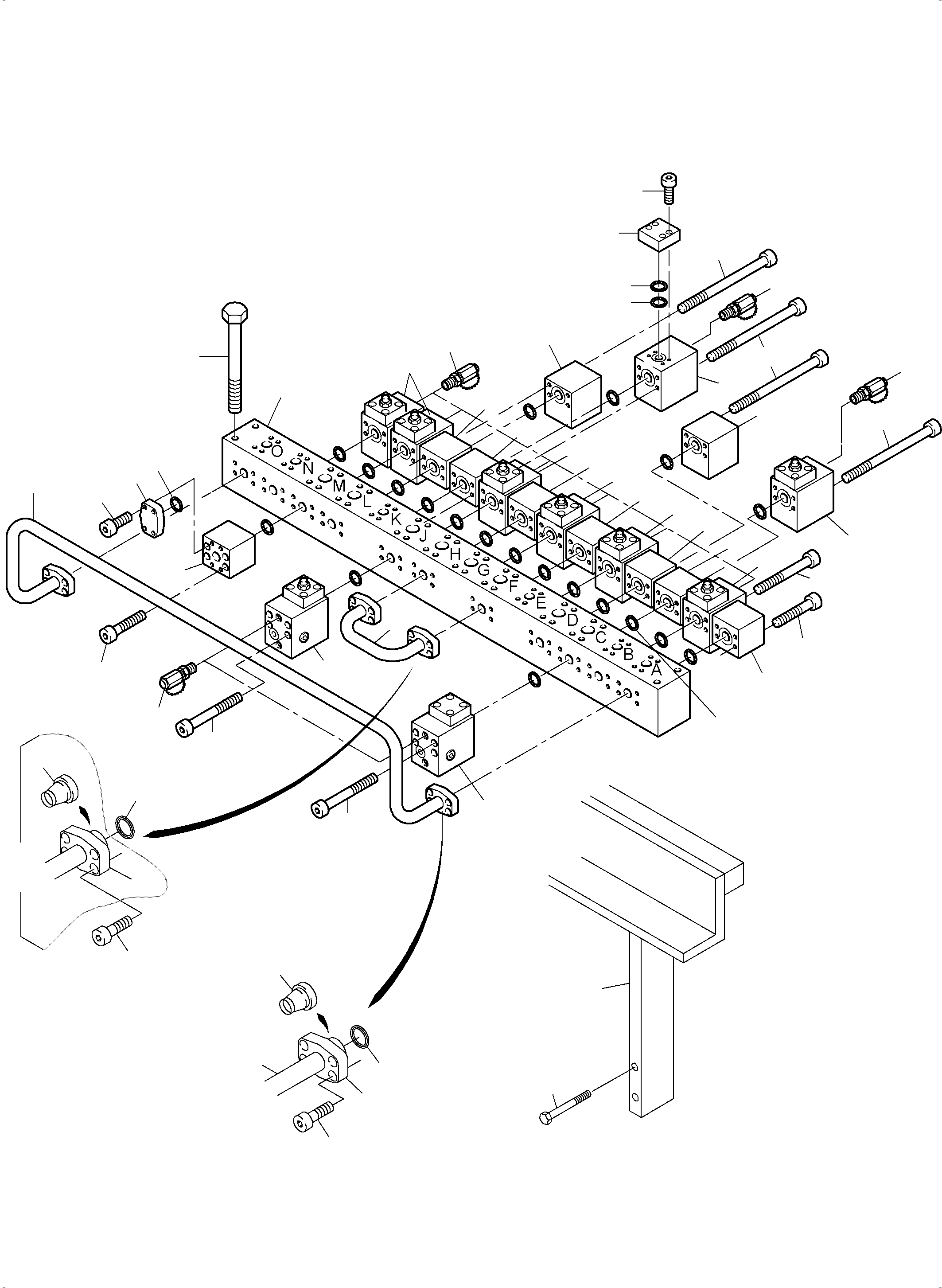

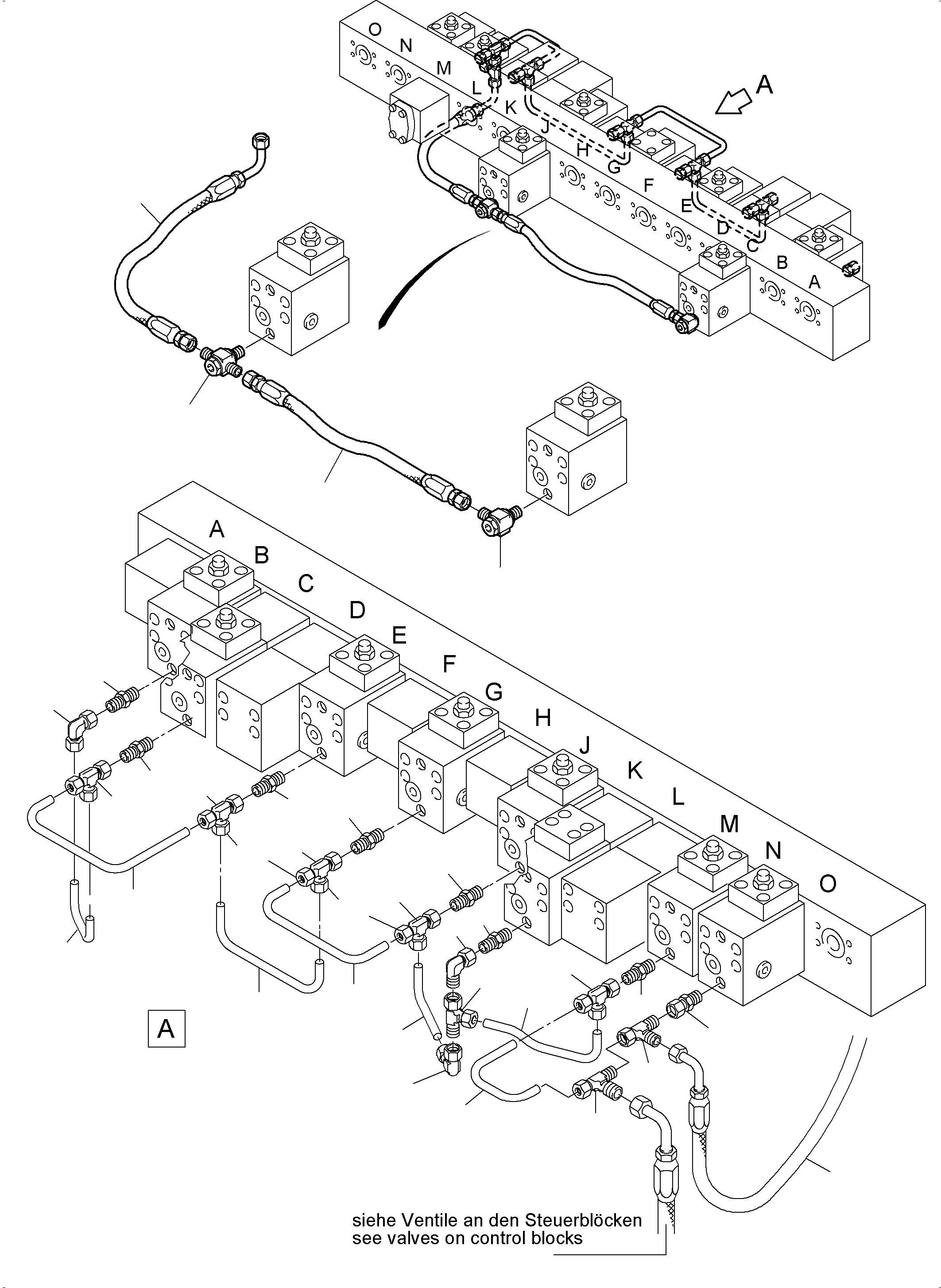

MANIFOLD (BBE) | PC3000-6E S/N 06262 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01	935 241 40	Manifold	1	InternKon: 943 625 40 / 1
02		Nonreturn check valve	2	InternBDB: 461 641 40 \| InternKon: 925 718 40 / 80	090-0696
03		Throttle check valve	7	InternBDB: 461 640 40 \| InternKon: 935 240 40 / 2	090-0695
04		Anticavitation valve	5	InternBDB: 907 621 40 \| InternKon: 935 240 40 / 3	991-0474
05	215 627 99	Pipe Ш 10	-2	InternBDB: 10x2 / DIN 2391 \| InternKon: 925 718 40 / 501
06		Pressure relief valve	1	InternBDB: 655 684 40 \| InternKon: 925 718 40 / 86	991-0159
08	514 598 98	Hose assy. DN 8x755	1	InternBDB: 240 DOL 10 DOL 10 /341 951 40 \| InternKon: 935 240 40 / 8
09	514 599 98	Hose assy. DN 8x1130	1	InternBDB: 240 DOL 10 DOL 10 90° /341 951 40 \| InternKon: 935 240 40 / 9
10	515 812 98	Coupling	10	InternBDB: G 1/4 \| InternKon: 935 240 40 / 10
11	506 581 98	Plug	1	InternBDB: A 1 1/2 - 6000 SAE \| InternKon: 935 240 40 / 11
12	356 209 40	Flange seal	3	InternBDB: 1 1/2 NBR 90 \| InternKon: 935 240 40 / 12
13	374 416 99	Socket	7	InternBDB: L 10 A-G 1/4 / ISO 8434 \| InternKon: 935 240 40 / 13
14	516 183 98	Socket	1	InternBDB: L 10 G / DIN 3945 \| InternKon: 935 240 40 / 14
15	516 156 98	Socket	3	InternBDB: L 10 / DIN 3942 \| InternKon: 935 240 40 / 33
16	516 173 98	Union	4	InternBDB: L 10 / DIN 3944 \| InternKon: 935 240 40 / 16
17	516 224 98	Union	1	InternBDB: L 10 \| InternKon: 935 240 40 / 15
18	655 182 40	Union	1	InternBDB: TR 10/15/10 PL / OMD \| InternKon: 935 240 40 / 18
19	517 073 98	Union	1	InternBDB: Voss 10-LR / OMD \| InternKon: 935 240 40 / 19
20	906 806 40	Union	2	InternBDB: TH 10-LR KDS \| InternKon: 935 240 40 / 17
21	319 212 99	Bolt	32	InternBDB: M16x150 /912 \| InternKon: 935 240 40 / 21
22	319 294 99	Bolt	16	InternBDB: M16x110 /912 \| InternKon: 935 240 40 / 22
23	319 288 99	Bolt	4	InternBDB: M16x50 /912 \| InternKon: 935 240 40 / 20
24	631 069 40	Block	2	InternKon: 925 718 40 / 104
25	514 529 98	Bolt	16	InternBDB: M16x260 / DIN 912 \| InternKon: 943 625 40 / 26
26	631 063 40	Diffuser	2	InternKon: 925 718 40 / 85
27	935 469 40	Console	1	InternKon: 943 625 40 / 15
28	308 444 99	Bolt	4	InternBDB: M 16x100 \| InternKon: 943 625 40 / 16
30	793 404 73	Pipe Ш 38 assy.	1	InternBDB: 925 943 40 \| InternKon: 943 625 40 / 35
31	793 405 73	Pipe Ш 50 assy.	1	InternBDB: 925 944 40 \| InternKon: 943 625 40 / 5
32	500 129 98	Flange	2	InternBDB: FE-3800-20/6 \| InternKon: 943 625 40 / 40
33	501 871 98	Ring	2	InternBDB: K-3850-20 \| InternKon: 943 625 40 / 41
34	356 210 40	Flange seal	2	InternBDB: 1 1/4 NBR 90 \| InternKon: 943 625 40 / 42
35	319 209 99	Bolt	8	InternBDB: M14x45 /912 \| InternKon: 943 625 40 / 43
36	501 898 98	Collar ring	2	InternBDB: RING K -5060-24 ST WN 01174799 \| InternKon: 925 944 40 / 2
37	500 127 98	Flange	2	InternBDB: FLANSCH FE-5000-24/6 ST WN 01174799 \| InternKon: 925 944 40 / 3
39	319 289 99	Bolt	8	InternBDB: M16x60 / DIN 912 \| InternKon: 943 625 40 / 47
40	304 329 99	Screw	4	InternBDB: 6KTSHR M20X 250 10.9 DIN 00931 \| InternKon: 943 618 40 / 88
45	436 058 40	Plate	1	InternKon: 925 718 40 / 88
46	006 729 98	O-ring	1	InternBDB: O-RING 47,22X 3,53B NB90 WN 01174599 \| InternKon: 925 718 40 / 89
47	414 982 40	Support ring	1	InternBDB: STUETZR 48,8X 55,0X 0,7 P (SPIRAL) \| InternKon: 925 718 40 / 90
48	319 283 99	Bolt	4	InternBDB: ZYLSHR M14 X 30 10.9 DIN 00912 \| InternKon: 925 718 40 / 91
49	356 209 40	Flange seal	28	InternBDB: FLANSCHDICHT 1 1/2 NBR90 WN 34198640 \| InternKon: 925 718 40 / 48
50	501 906 98	Union nut	20	InternBDB: N-L 10 X5CRNIMO18-10 ISO 08434 \| InternKon: 925 718 40 / 83
51	906 346 40	Olive	20	InternBDB: SCHNEIDRG ES-4 S10 9SMNPB28K WN 65593940 \| InternKon: 925 718 40 / 84
