01 |
913 385 40
|

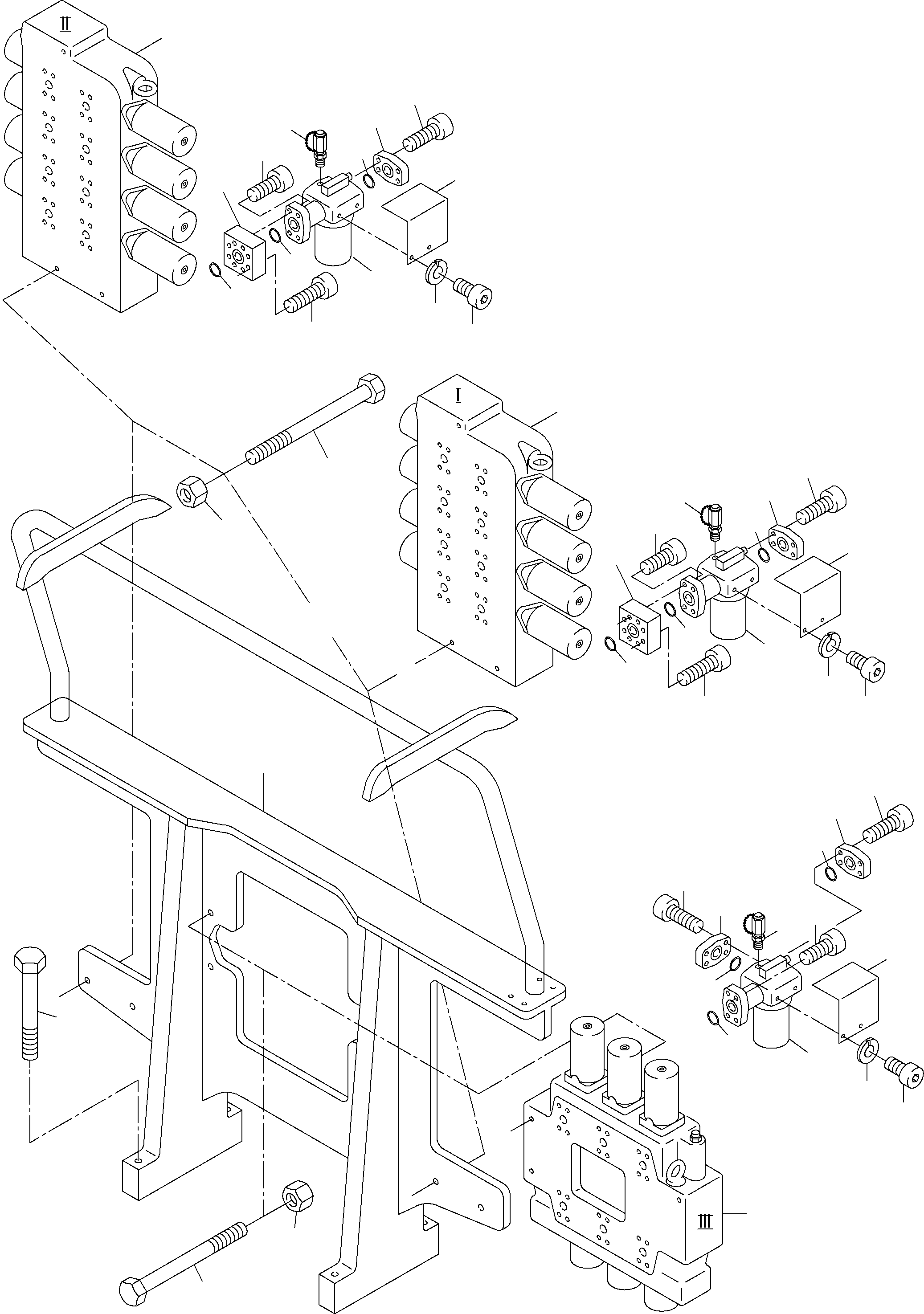

Support, control unit |
1 |
InternBDB: STEUERBLOCKTRAEGER PC 3000- 6 | InternKon: 925 715 40 / 1
|
|
|
|
03 |
928 826 40
|
Yoke |
1 |
InternBDB: BUEGEL ST52-3N | InternKon: 925 715 40 / 3
|
|
|
|
04 |
|
Control block |
1 |
InternBDB: 655 168 40 | InternKon: 925 715 40 / 4
|
991-0083 |
|
|
05 |
|
Control block |
1 |
InternBDB: 655 167 40 | InternKon: 925 715 40 / 5
|
991-0082 |
|
|
06 |
|
Control block |
1 |
InternBDB: 907 742 40 | InternKon: 925 715 40 / 6
|
991-0490 |
|
|
07 |
|
H.P. filter |
3 |
InternBDB: 906 971 40 | InternKon: 925 715 40 / 2
|
991-0047b |
|
|
08 |
515 812 98
|
Coupling |
3 |
InternBDB: KUPPLUNG G1/ 4-PC ST WN 65591440 | InternKon: 925 715 40 / 13
|
|
|
|
09 |
925 152 40
|
Locking flange |
3 |
InternBDB: VERSCHLUSSFLANSCH M MESSANSCHL | InternKon: 925 715 40 / 10
|
|
|
|
10 |
356 209 40
|
Flange seal |
9 |
InternBDB: FLANSCHDICHT 1 1/2 NBR90 WN 34198640 | InternKon: 925 715 40 / 11
|
|
|
|
11 |
319 289 99
|
Bolt |
12 |
InternBDB: ZYLSHR M16X 60 10.9 DIN 00912 | InternKon: 925 715 40 / 15
|
|
|
|
12 |
319 297 99
|
Bolt |
12 |
InternBDB: ZYLSHR M16X 45 10.9 DIN 00912 | InternKon: 925 715 40 / 14
|
|
|
|
13 |
655 195 40
|
Reducing flange |
2 |
InternBDB: SAE-REDFLA 1 1/2 | InternKon: 925 715 40 / 9
|
|
|
|
14 |
319 298 99
|
Bolt |
8 |
InternBDB: ZYLSHR M16X 55 10.9 DIN 00912 | InternKon: 925 715 40 / 16
|
|
|
|
15 |
307 859 99
|
Bolt |
6 |
InternBDB: 6KTSHR M14X25 8.8 DIN 00933 | InternKon: 925 715 40 / 20
|
|
|
|
16 |
343 866 99
|
Spring washer |
6 |
InternBDB: FED-RG 14 FEDST DIN 07980 | InternKon: 925 715 40 / 21
|
|
|
|
19 |
514 060 98
|
Bolt |
6 |
InternBDB: 6KTSHR M16X 260 8.8 DIN 00931 | InternKon: 925 715 40 / 17
|
|
|
|
20 |
308 689 99
|
Bolt |
3 |
InternBDB: 6KTSHR M16X 250 8.8 DIN 00931 | InternKon: 925 715 40 / 18
|
|
|
|
21 |
332 336 99
|
Nut |
9 |
InternBDB: 6KTMU M 16 8 DIN 00934 | InternKon: 925 715 40 / 19
|
|
|
|
22 |
913 380 40
|
Yoke |
1 |
InternBDB: BUEGEL KPL PC 3000- 6 | InternKon: 925 715 40 / 24
|
|
|
|
23 |
513 302 98
|
Connecting block |
1 |
InternBDB: SAE- L-BLOCK- 11/2/414 ST52-3 WN 34199040 | InternKon: 925 715 40 / 25
|
|
|
|
24 |
319 294 99
|
Bolt |
4 |
InternBDB: ZYLSHR M16X110 10.9 DIN 00912 | InternKon: 925 715 40 / 26
|
|
|
|
31 |
928 845 40
|
Yoke |
1 |
InternBDB: BUEGEL ST52-3N | InternKon: 925 715 40 / 31
|
|
|
|
35 |
304 133 99
|
Bolt |
4 |
InternBDB: 6KTSHR M20X 200 10.9 DIN 00931 | InternKon: 943 618 40 / 89
|
|
