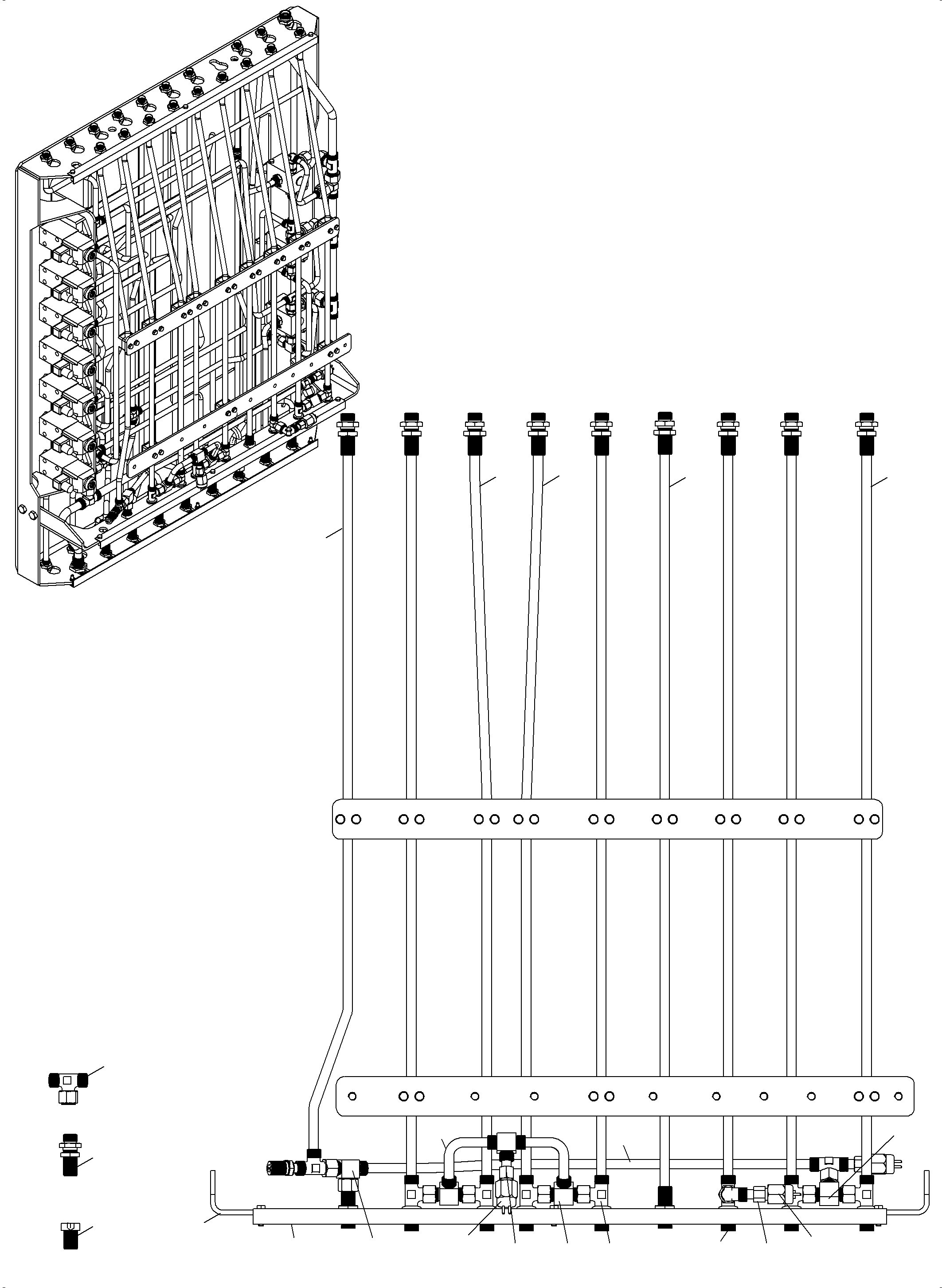

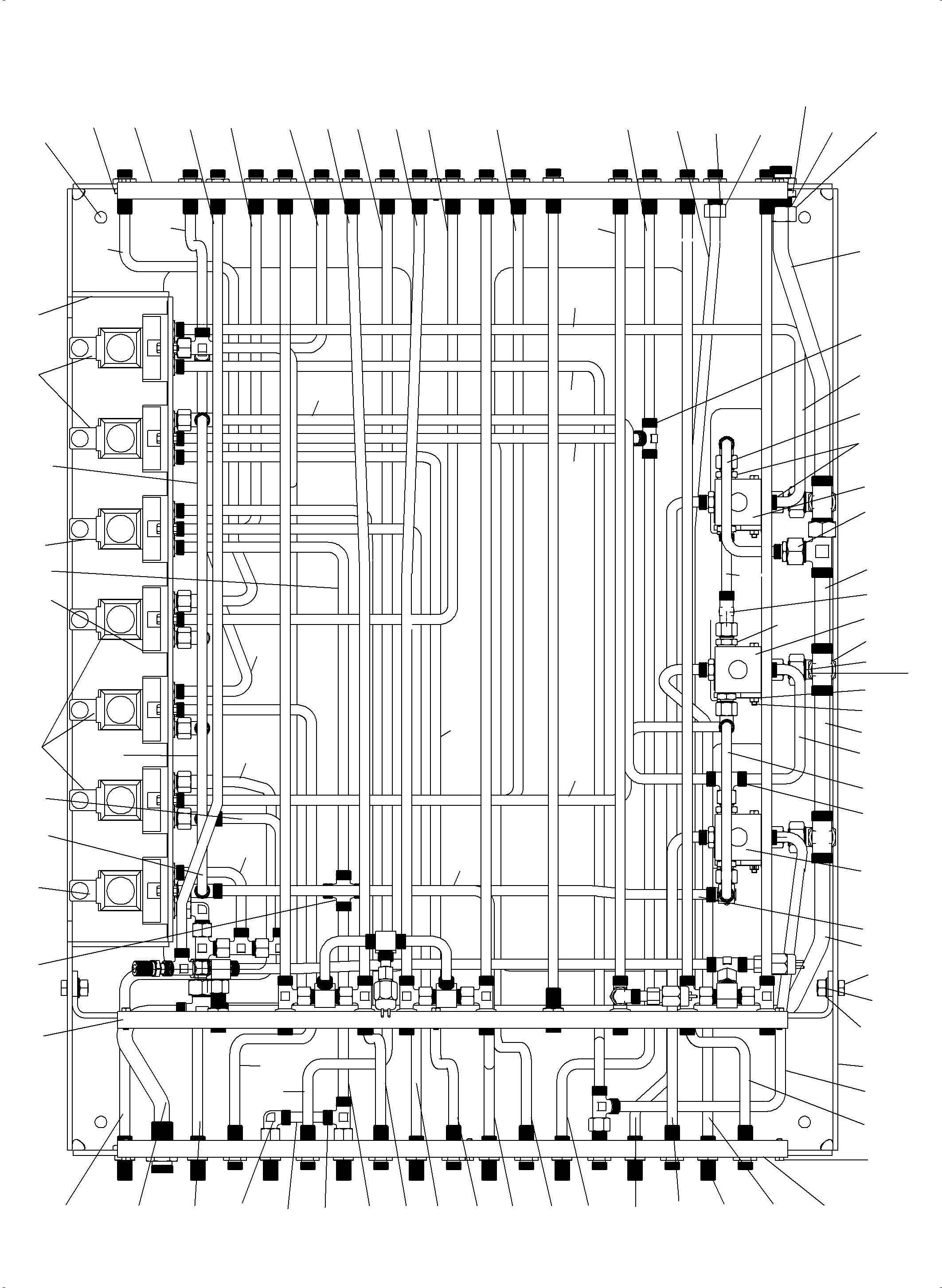

Diagram image 1 of 2

PC3000-6E S/N 06262

01 04 05 06 06 07 08 09 10 11 12 122 122 123 124 125 126 127 131 132 132 133 134 136 137 138 141 142 15 150 151 153 154 155 162 162 162 163 163 163 164 165 167 169 17 170 171 172 173 174 175 18 19 20 200 201 21 22 23 24 24 25 26 27 27 29 30 31 31 32 33 34 35 37 38 39 40 41 42 42 43 44 45 46 47 48 51 52 54 55 62 85 86 87 88 89 90

PC3000-6E S/N 06262

02 03 111 112 113 113 114 115 130 130 135 140 157 160 161 161 50 51 52 54 55 87 91 95 96

#	Part Number	Partname	Quantity	Options
01	928 059 40	Pipe assy.	1	InternKon: 928 000 40 / 1
02	928 058 40	Pipe assy.	2	InternKon: 928 000 40 / 2
03	928 057 40	Pipe assy.	1	InternKon: 928 000 40 / 3
04	928 056 40	Pipe assy.	2	InternKon: 928 000 40 / 4
05	928 005 40	Pipe assy.	1	InternKon: 928 000 40 / 5
06	928 006 40	Pipe assy.	1	InternKon: 928 000 40 / 6
07	928 007 40	Pipe assy.	1	InternKon: 928 000 40 / 7
08	928 008 40	Pipe assy.	1	InternKon: 928 000 40 / 8
09	928 009 40	Pipe assy.	1	InternKon: 928 000 40 / 9
10	928 010 40	Pipe assy.	1	InternKon: 928 000 40 / 10
11	933 812 40	Pipe assy.	1	InternKon: 928 000 40 / 11
12	928 012 40	Pipe assy.	1	InternKon: 928 000 40 / 12
15	928 015 40	Pipe assy.	1	InternKon: 928 000 40 / 15
17	928 017 40	Pipe assy.	1	InternKon: 928 000 40 / 17
18	928 018 40	Pipe assy.	1	InternKon: 928 000 40 / 18
19	928 019 40	Pipe assy.	1	InternKon: 928 000 40 / 19
20	928 020 40	Pipe assy.	1	InternKon: 928 000 40 / 20
21	928 021 40	Pipe assy.	1	InternKon: 928 000 40 / 21
22	928 022 40	Pipe assy.	1	InternKon: 928 000 40 / 22
23	928 023 40	Pipe assy.	1	InternKon: 928 000 40 / 23
24	928 024 40	Pipe assy.	1	InternKon: 928 000 40 / 24
25	928 025 40	Pipe assy.	1	InternKon: 928 000 40 / 25
26	928 026 40	Pipe assy.	1	InternKon: 928 000 40 / 26
27	928 027 40	Pipe assy.	1	InternKon: 928 000 40 / 27
29	928 029 40	Pipe assy.	1	InternKon: 928 000 40 / 29
30	928 030 40	Pipe assy.	1	InternKon: 928 000 40 / 30
31	928 031 40	Pipe assy.	1	InternKon: 928 000 40 / 31
32	928 032 40	Pipe assy.	1	InternKon: 928 000 40 / 32
33	928 033 40	Pipe assy.	1	InternKon: 928 000 40 / 33
34	928 034 40	Pipe assy.	1	InternKon: 928 000 40 / 34
35	928 035 40	Pipe assy.	1	InternKon: 928 000 40 / 35
37	928 037 40	Pipe assy.	1	InternKon: 928 000 40 / 37
38	928 038 40	Pipe assy.	1	InternKon: 928 000 40 / 38
39	928 039 40	Pipe assy.	1	InternKon: 928 000 40 / 39
40	928 040 40	Pipe assy.	1	InternKon: 928 000 40 / 40
41	928 041 40	Pipe assy.	1	InternKon: 928 000 40 / 41
42	928 042 40	Pipe assy.	1	InternKon: 928 000 40 / 42
43	928 043 40	Pipe assy.	1	InternKon: 928 000 40 / 43
44	928 044 40	Pipe assy.	1	InternKon: 928 000 40 / 44
45	928 045 40	Pipe assy.	1	InternKon: 928 000 40 / 45
46	928 046 40	Pipe assy.	1	InternKon: 928 000 40 / 46
47	928 047 40	Pipe assy.	1	InternKon: 928 000 40 / 47
48	928 048 40	Pipe assy.	1	InternKon: 928 000 40 / 48
50	928 050 40	Pipe assy.	5	InternKon: 928 000 40 / 50
51	928 051 40	Pipe assy.	1	InternKon: 928 000 40 / 51
52	928 052 40	Pipe assy.	1	InternKon: 928 000 40 / 52
54	928 054 40	Pipe assy.	1	InternKon: 928 000 40 / 54
55	928 055 40	Pipe assy.	1	InternKon: 928 000 40 / 55
62	933 816 40	Pipe assy.	1	InternKon: 928 000 40 / 62
85	928 099 40	Marking strips, top	1	InternKon: 928 000 40 / 85
86	928 097 40	Marking strips, lower	1	InternKon: 928 000 40 / 86
87	928 098 40	Marking strips, center	1	InternKon: 928 000 40 / 87
88	933 818 40	Base plate	1	InternBDB: S355J2G3 \| InternKon: 928 000 40 / 88
89	180 325 40	Base plate	7	InternBDB: G 342/1 3/8" Rexroth \| InternKon: 928 000 40 / 89
90	928 004 40	Rib	2	InternBDB: S355J2G3 \| InternKon: 928 000 40 / 90
91	928 003 40	Bridge	1	InternBDB: S355J2G3 \| InternKon: 928 000 40 / 91
95	932 609 40	Pressure switch	1	InternBDB: 7 bar SchlieЯer G 1/4" SUKO \| InternKon: 934 928 40 / 1
96	515 460 40	Bonded seal	1	InternBDB: 14,00X18,70X1 NSABusak+Shamb \| InternKon: 934 928 40 / 2
111	894 538 40	Pressure switch assy. consist. of fig-nos. 114+115	1	InternBDB: 22 bar SchlieЯer G 1/4" SUKO \| InternKon: 928 000 40 / 111
112	934 928 40	Pressure switch assy. consist. of fig-nos. 95+96	2	InternBDB: 7 bar SchlieЯer G 1/4" SUKO \| InternKon: 928 000 40 / 112
113	371 949 99	Union	3	InternBDB: MAV-EV 12-LR \| InternKon: 928 000 40 / 113
114	634 566 40	Pressure switch	1	InternBDB: 22 bar SchlieЯer G 1/4" SUKO \| InternKon: 894 538 40 / 1
115	515 460 40	Bonded seal	1	InternBDB: 14,00X18,70X1 NSABusak+Shamb \| InternKon: 894 538 40 / 2
122	933 822 40	Pipe assy.	1	InternKon: 928 000 40 / 122
123	933 823 40	Pipe assy.	1	InternKon: 928 000 40 / 123
124	933 824 40	Pipe assy.	1	InternKon: 928 000 40 / 124
125	933 825 40	Pipe assy.	1	InternKon: 928 000 40 / 125
126	933 826 40	Pipe assy.	1	InternKon: 928 000 40 / 126
127	933 827 40	Pipe assy.	1	InternKon: 928 000 40 / 127
130	907 819 40	Union	7	InternBDB: ET 12L SA2 OMD \| InternKon: 928 000 40 / 130
131	516 167 98	Socket	4	InternBDB: L 12 / DIN 3943 \| InternKon: 928 000 40 / 131
132	516 174 98	Socket	15	InternBDB: L 12 / DIN 3944 \| InternKon: 928 000 40 / 132
133	516 157 98	Socket	5	InternBDB: L 12 / DIN 3942 \| InternKon: 928 000 40 / 133
134	374 430 99	Union	15	InternBDB: SDS-L12XM16x1,5 ISO 8434 \| InternKon: 928 000 40 / 134
135	371 459 99	Union	26	InternBDB: SDS-L12XG 3/8A \| InternKon: 928 000 40 / 135
136	509 267 98	Nut	44	InternBDB: M18x1,5 / DIN 80705 \| InternKon: 928 000 40 / 136
137	634 499 40	Union	1	InternBDB: K-L 12 / ISO 8434 \| InternKon: 928 000 40 / 137
138	511 015 98	Union	1	InternBDB: T-L 12 / ISO 8434 \| InternKon: 928 000 40 / 138
140	502 752 98	Coupling	1	InternBDB: 12-L / WN 341 985 40 \| InternKon: 928 000 40 / 140
141	516 962 98	Union	37	InternBDB: BH-L 12 / ISO 8434 \| InternKon: 928 000 40 / 141
142	509 271 98	Nut	2	InternBDB: M26x1,5 / DIN 80705 \| InternKon: 928 000 40 / 142
150	513 854 98	Bolt	4	InternBDB: M12x25 / DIN 933 \| InternKon: 928 000 40 / 150
151	307 732 99	Bolt	23	InternBDB: M6x25 / DIN 933 \| InternKon: 928 000 40 / 151
153	507 025 98	Nut	29	InternBDB: M 6 / DIN 985 \| InternKon: 928 000 40 / 153
154	509 488 98	Nut	4	InternBDB: M 12 / DIN 985 \| InternKon: 928 000 40 / 154
155	340 467 99	Washer	4	InternBDB: A 13 / DIN 125 \| InternKon: 928 000 40 / 155
157	255 694 40	Plug	2	InternBDB: Vsti R 3/8 ED \| InternKon: 928 000 40 / 157
160	907 820 40	Shuttle valve	2	InternKon: 928 000 40 / 160
161	343 873 40	Shuttle valve	4	InternBDB: 12-L 690997 Voss \| InternKon: 928 000 40 / 161
162	414 370 40	Valve	3	InternBDB: NG 6 (MO-7204) MH3WA 06 UG1X/004MO2 \| InternKon: 928 000 40 / 162
163	932 617 40	4/2-Directional spool valve	4	InternBDB: DG4V-3-8BL-M-KU-H7-60 \| InternKon: 928 000 40 / 163
164	932 616 40	4/2-Directional spool valve	3	InternBDB: DG4V-3-0A-M-KU-H7-60 \| InternKon: 928 000 40 / 164
165	308 544 99	Bolt	6	InternBDB: M6x80 8.8/ DIN 931 \| InternKon: 928 000 40 / 165
167	515 865 98	Socket	4	InternBDB: GRZ 18/12-PL / WN 655 910 40 \| InternKon: 928 000 40 / 167
169	511 135 98	Union	4	InternBDB: T-L 18 \| InternKon: 928 000 40 / 169
170	516 159 98	Socket	3	InternBDB: SWE-L 18 \| InternKon: 928 000 40 / 170
171	634 303 40	Union	1	InternBDB: Red 18/12-PL / OMD Ermeto \| InternKon: 928 000 40 / 171
172	371 276 99	Union nut	10	InternBDB: N-L 18 / ISO 8434 \| InternKon: 928 000 40 / 172
173	906 349 40	Olive	10	InternBDB: ES-4L18 WN65593940 \| InternKon: 928 000 40 / 173
174	371 274 99	Union nut	100	InternBDB: N-L 12 / ISO 8434 \| InternKon: 928 000 40 / 174
175	906 347 40	Olive	100	InternBDB: ES-4S12 WN65593940 \| InternKon: 928 000 40 / 175
200	308 436 99	Bolt	4	InternBDB: M12x75 /931 \| InternKon: 925 161 40 / 200
201	510 741 98	Resilient sleeve	4	InternBDB: 13/25x50 \| InternKon: 925 161 40 / 201
\|$$104			-2
\|$$105			-2
\|$$106			-2
\|$$107	634 566 40	Pressure switch	1	InternBDB: DRUCKSCHALTER 0166 415 03 1059 22,0 BAR \| InternKon: 925 161 40 / 1
\|$$108	515 460 40	Seal ring	1	InternBDB: FLACHDICHTG 14,00X18,70X1 NSA \| InternKon: 925 161 40 / 2

Komatsu PC3000-6E S/N 06262 parts catalog PDF

PIPES - PILOT CONTROL PLATE (BBE) (485-1882f) in PC3000-6E S/N 06262. Diagram image and parts list.
