PC3000-6E S/N 06262

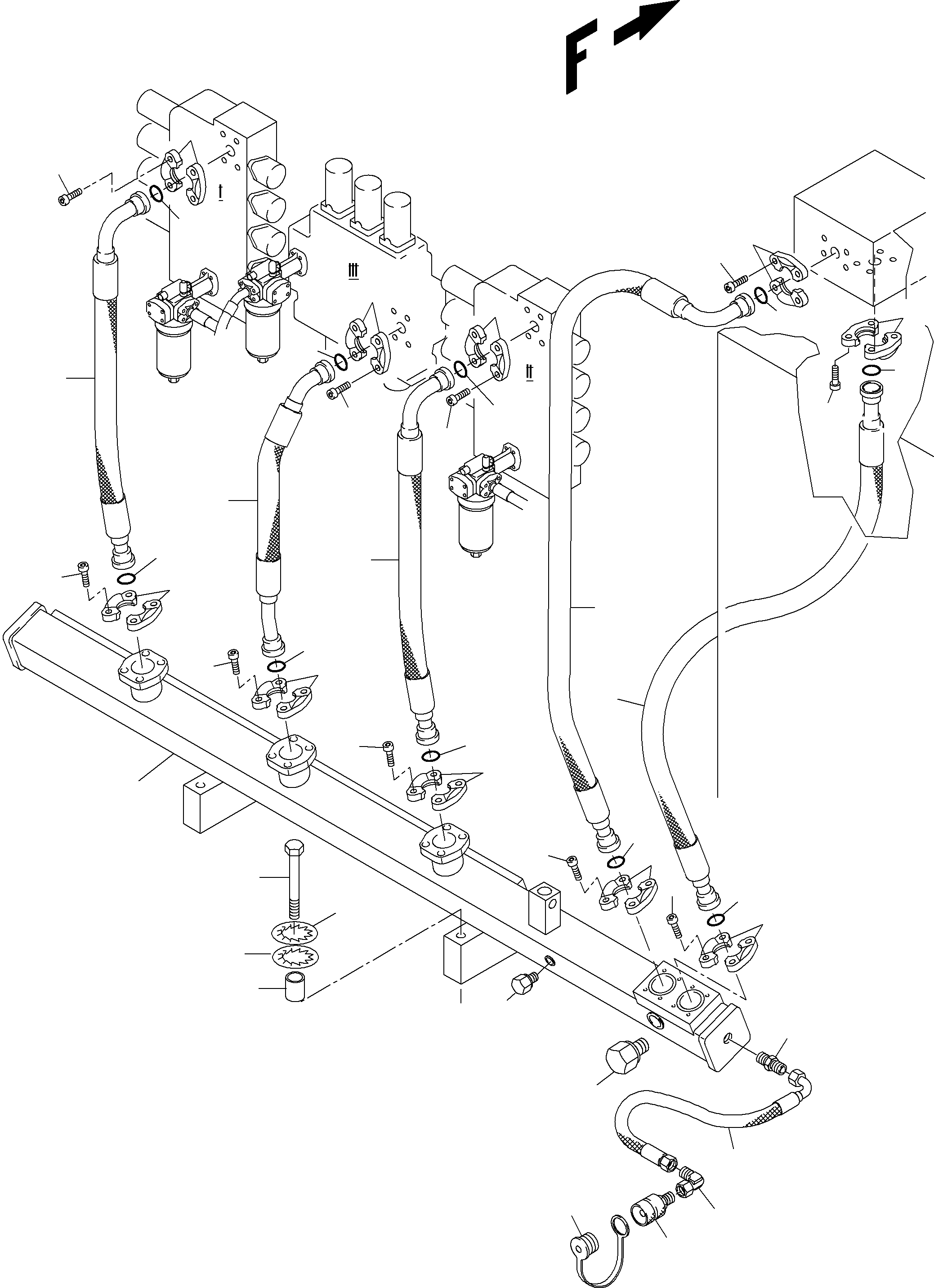

Komatsu parts book diagram for PC3000-6E S/N 06262: RETURN LINES - CONTROLBLOCKS

01 02 02 03 04 05 06 07 08 09 09 09 09 09 09 09 09 09 09 10 10 10 10 10 10 10 10 10 10 11 12 12 12 12 12 12 12 12 12 12 13 14 15 16 20 21 22

	#	Part Number	Partname	Quantity	Options	Reference
	01	518 399 98	Hose assy. DN 20x600	1	InternBDB: SHL120 20X 600 DOL 22 DOL 22 90 WN 34195140 \| InternKon: 943 618 40 / 8
	02	907 379 40	Hose assy. DN 60x880	2	InternBDB: 025 FL 2 1/2 FL 2 1/2 90 \| InternKon: 943 618 40 / 47
	03	907 380 40	Hose assy. DN 60x670	1	InternBDB: 025 FL 2 1/2 45° FL 2 1/2 45 \| InternKon: 943 618 40 / 48
	04	907 381 40	Hose assy. DN 60x1600	1	InternBDB: 025 FL 2 1/2 FL 2 1/2 \| InternKon: 943 618 40 / 49
	05	907 306 40	Hose assy. DN 60x1700	1	InternBDB: 025 FL 2 1/2 FL 2 1/2 90 \| InternKon: 943 618 40 / 50
	06	081 495 40	Quick disconnect coupling	1	InternKon: 943 618 40 / 53
	07	081 496 40	Protection cap	1	InternKon: 943 618 40 / 54
	08	516 160 98	Union	1	InternBDB: SWE- L22 \| InternKon: 943 618 40 / 56
	09	007 697 98	O-ring	10	InternBDB: 69,4x3,53 B NB 90 \| InternKon: 943 618 40 / 64
	10	007 630 98	Half flange	20	InternBDB: 63 /210 \| InternKon: 943 618 40 / 66
	11	374 409 99	Union	1	InternBDB: SDS- L 22xM 26x1,5 \| InternKon: 943 618 40 / 78
	12	319 273 99	Bolt	40	InternBDB: M12x35 /912 \| InternKon: 943 618 40 / 97
	13	515 863 98	Bolt	4	InternBDB: 6KTSHR M20X 210 10.9 DIN 00931 \| InternKon: 943 618 40 / 90
	14	515 713 98	Cup spring	8	InternBDB: A 71 G / 2093 \| InternKon: 943 618 40 / 104
	15	340 618 99	Washer	4	InternKon: 943 618 40 / 105
	16	899 929 40	Sleeve	4	InternKon: 943 618 40 / 9
	20	923 926 40	Header	1	InternKon: 943 625 40 / 3
	21	168 474 40	Plug	1	InternBDB: VSTI M 42 x 2,0 ed / 341 913 40 \| InternKon: 943 625 40 / 54
	22	180 113 40	Plug	1	InternBDB: VSTI 1 1/4 \| InternKon: 943 625 40 / 55

Komatsu PC3000-6E S/N 06262 parts catalog PDF

RETURN LINES - CONTROLBLOCKS (255-1865) in PC3000-6E S/N 06262. Diagram image and parts list.
