PRESSURE LINES - CONTROL BLOCKS - MANIFOLD BBE | PC3000-6E S/N 06262

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

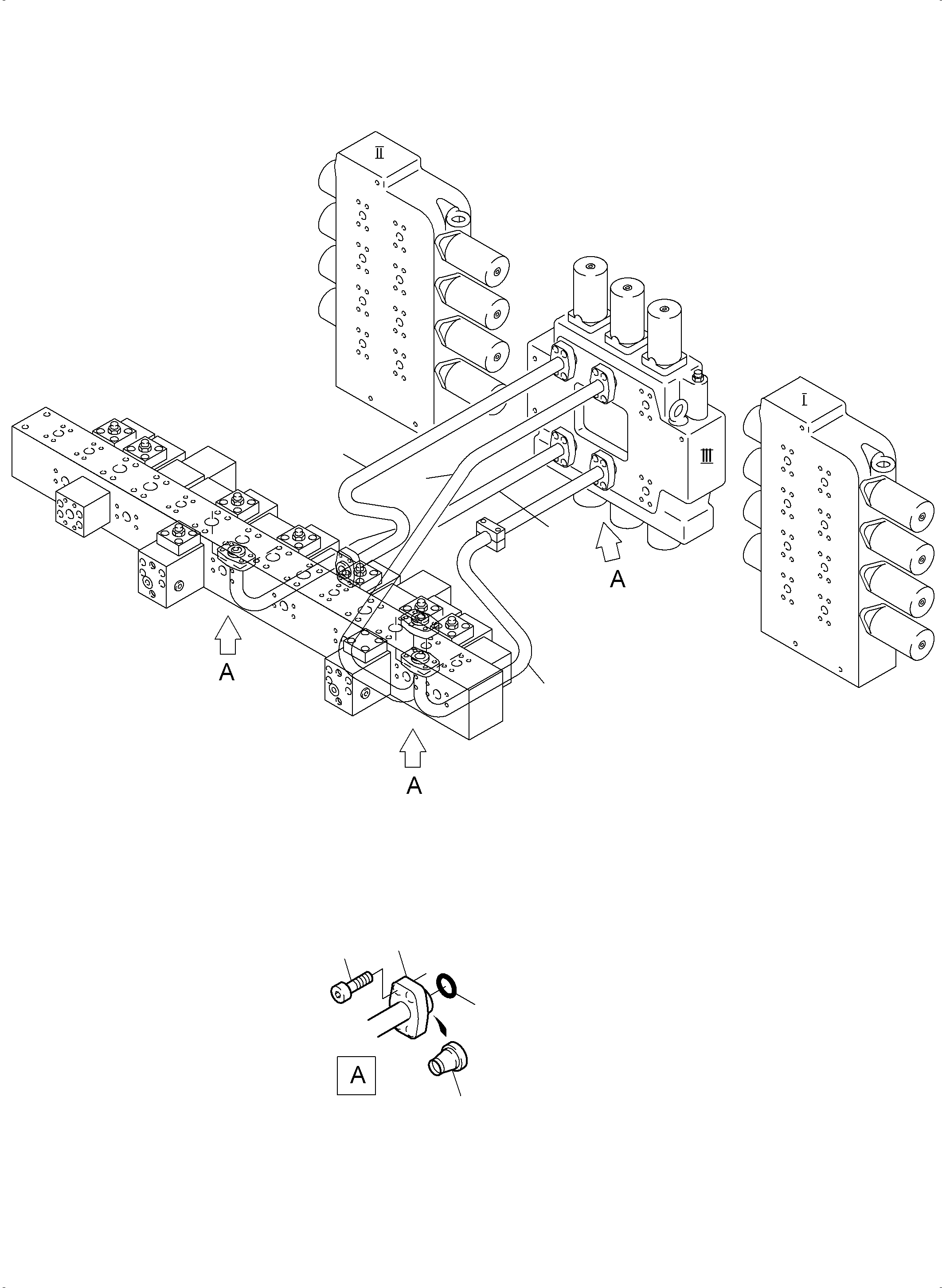

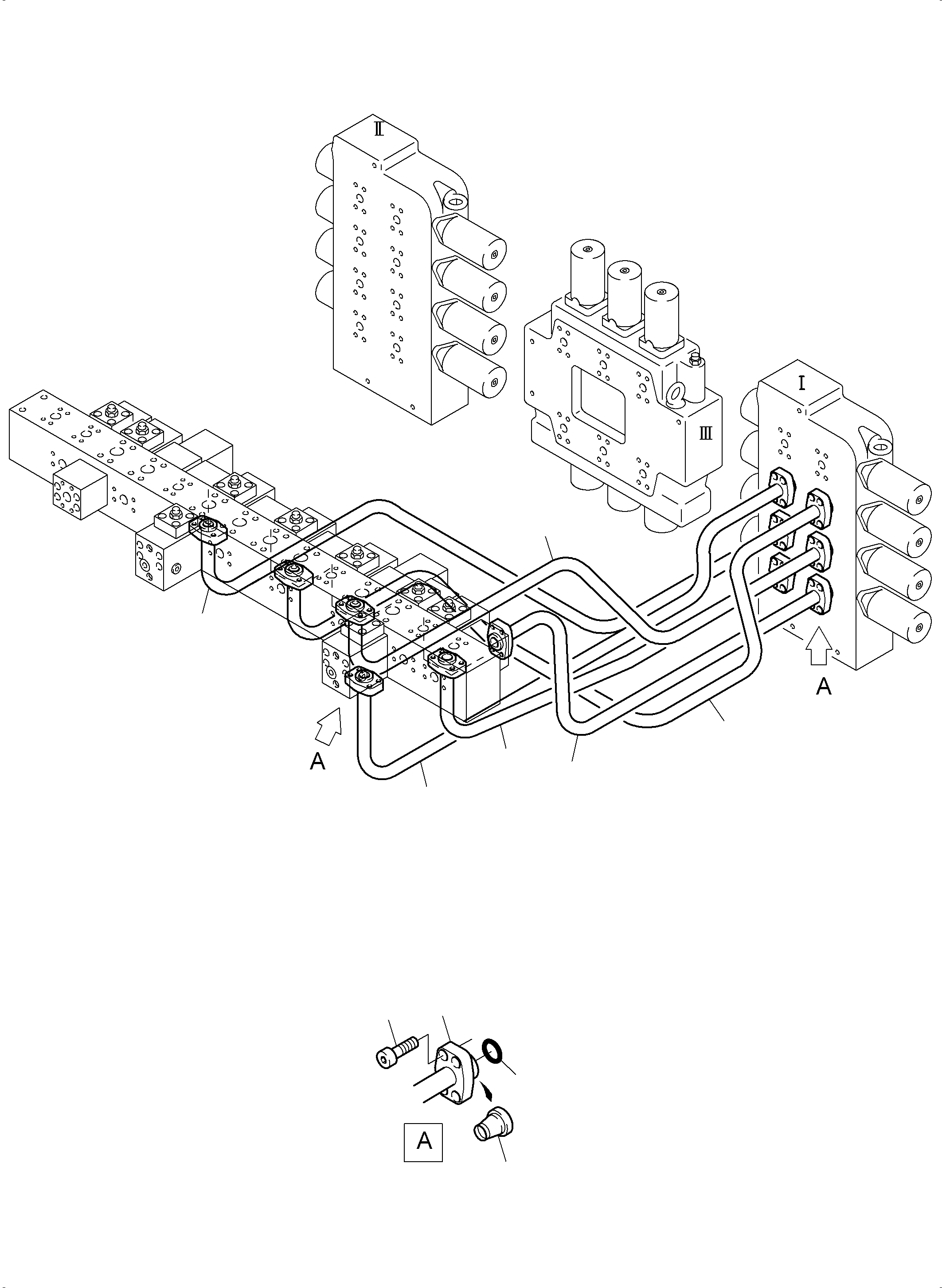

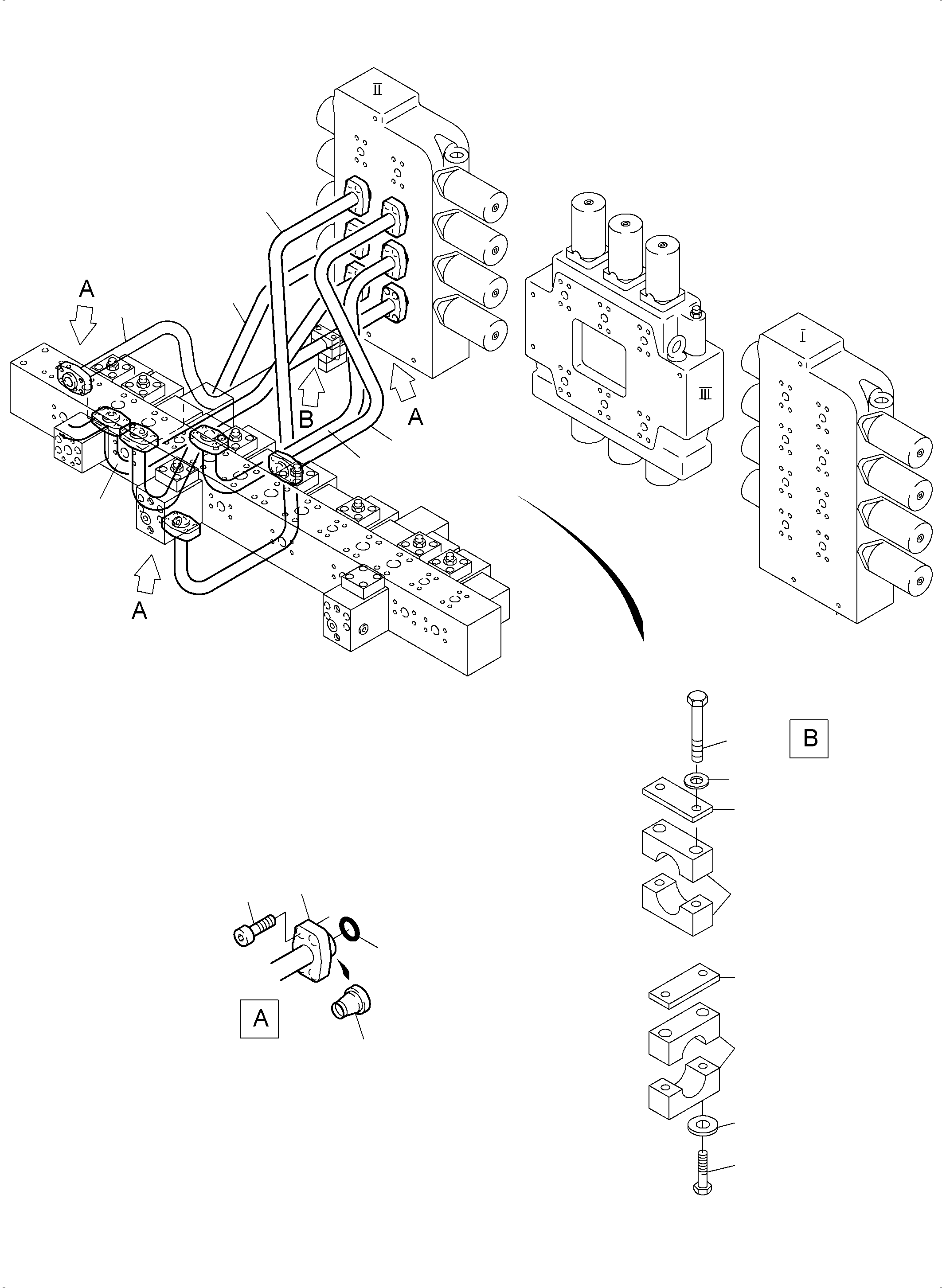

Diagram image 1 of 3

PC3000-6E S/N 06262

01 02 03 06 08 12 17 18 19 20

PC3000-6E S/N 06262

09 11 13 14 15 16 17 18 19 20 25 26 27 28 30 31 32 33

PC3000-6E S/N 06262

04 05 07 10 17 18 19 20

#	Part Number	Partname	Quantity	Options
01	793 440 73	Pipe assy. Ш 50	1	InternBDB: 925 921 40 \| InternKon: 947 706 40 / 1
02	796 997 73	Pipe assy. Ш 50	1	InternBDB: 947 733 40 \| InternKon: 947 706 40 / 2
03	793 442 73	Pipe assy. Ш 50	1	InternBDB: 925 923 40 \| InternKon: 947 706 40 / 3
04	793 381 73	Pipe assy. Ш 50	1	InternBDB: 927 981 40 \| InternKon: 925 718 40 / 120
05	793 443 73	Pipe assy. Ш 50	1	InternBDB: 925 925 40 \| InternKon: 947 706 40 / 5
06	793 444 73	Pipe assy. Ш 50	1	InternBDB: 925 926 40 \| InternKon: 947 706 40 / 6
07	793 445 73	Pipe assy. Ш 50	1	InternBDB: 925 927 40 \| InternKon: 947 706 40 / 7
08	793 446 73	Pipe assy. Ш 50	1	InternBDB: 925 928 40 \| InternKon: 947 706 40 / 8
09	793 447 73	Pipe assy. Ш 50	1	InternBDB: 925 929 40 \| InternKon: 947 706 40 / 9
10	796 738 73	Pipe assy. Ш 50	1	InternBDB: 930 197 40 \| InternKon: 947 706 40 / 10
11	793 449 73	Pipe assy. Ш 50	1	InternBDB: 925 931 40 \| InternKon: 947 706 40 / 11
12	793 450 73	Pipe assy. Ш 50	1	InternBDB: 925 932 40 \| InternKon: 947 706 40 / 12
13	793 451 73	Pipe assy. Ш 50	1	InternBDB: 925 933 40 \| InternKon: 947 706 40 / 13
14	793 452 73	Pipe assy. Ш 50	1	InternBDB: 925 934 40 \| InternKon: 947 706 40 / 14
15	793 453 73	Pipe assy. Ш 50	1	InternBDB: 925 935 40 \| InternKon: 947 706 40 / 15
16	793 454 73	Pipe assy. Ш 50	1	InternBDB: 925 936 40 \| InternKon: 925 718 40 / 121
17	500 127 98	Flange	32	InternBDB: FLANSCH FE-5000-24/6 ST WN 01174799 \| InternKon: 925 921 40 / 3
18	501 898 98	Collar ring	32	InternBDB: RING K -5060-24 ST WN 01174799 \| InternKon: 925 921 40 / 2
19	356 209 40	Flange seal	32	InternBDB: 1 1/2 NBR 90 \| InternKon: 943 625 40 / 46
20	319 289 99	Bolt	128	InternBDB: M16x60 / DIN 912 \| InternKon: 943 625 40 / 47
25	512 885 98	Pair of clamps	1	InternBDB: S-4-R-50 PA / 3015 \| InternKon: 925 719 40 / 3
26	534 008 40	Cover plate	1	InternBDB: S-DP-A-4 W1 / 3015 \| InternKon: 925 719 40 / 5
27	343 006 99	Washer	2	InternBDB: 13 / DIN 93 \| InternKon: 925 719 40 / 7
28	308 612 99	Bolt	2	InternBDB: M 12x100 / 8.8 DIN 931 \| InternKon: 925 719 40 / 6
30	518 036 98	Pair of clamps	1	InternBDB: S-3-G-32 PA / 3015 \| InternKon: 925 719 40 / 9
31	534 004 99	Cover plate	1	InternBDB: S-DP-A-3 W1 / 3015 \| InternKon: 925 719 40 / 10
32	308 581 99	Bolt	2	InternBDB: M 10x70 / 8.8 DIN 931 \| InternKon: 925 719 40 / 11
33	343 005 99	Washer	2	InternBDB: 10,5 / DIN 93 \| InternKon: 925 719 40 / 12
