PC5500-6E S/N 15060

01 02 04 05 06 07 08 09 10 11 12 13 15 16 17 18 19 20 21 22 23 24 24 25 26 27 28 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 48 49 50 51 52 53 56 57 58 59 62 62 63 63 64 65 65 66 69 72 75 76 77 84 85 86 86 87

#	Part Number	Partname	Quantity	Options	Reference
01	927 842 40	Drive gear box,without drive shaft	1	InternBDB: L&S GFA 305 K-1017 / 16574812
\|$$2		Spring pressure disk brake	2	InternBDB: 793 604 73	991-0615
02	793 641 73	Ring gear	1	InternBDB: 16575343 z=52/98 \| InternKon: 16211140 / 2
04	793 642 73	Support ring	1	InternBDB: 16575256 \| InternKon: 16211140 / 4
05	793 643 73	Support ring	1	InternBDB: 16575254 \| InternKon: 16211140 / 5
06	793 644 73	Planet carrier	1	InternBDB: 16575200 \| InternKon: 16211140 / 6
07	793 645 73	Spacer ring	4	InternBDB: 16931836 \| InternKon: 16211140 / 7
08	793 646 73	Planet carrier	4	InternBDB: 16575196 \| InternKon: 16211140 / 8
09	806 386 73	Support Disk	1	InternBDB: 16932045 \| InternKon: 16211140 / 9
10	793 647 73	Sun gear shaft	1	InternBDB: 16575300 z=13 \| InternKon: 16211140 / 10
11	793 648 73	Planet gear	3	InternBDB: 16575275 z=41 \| InternKon: 16211140 / 11
12	793 649 73	Sun gear shaft	1	InternBDB: 16575299 z=12 \| InternKon: 16211140 / 12
13	793 650 73	Planet gear	4	InternBDB: 16575274 z=20 \| InternKon: 16211140 / 13
15	793 651 73	Spur wheel	1	InternBDB: 16575350 \| InternKon: 16211140 / 15
16	793 652 73	Input shaft	2	InternBDB: 16575371 z=15 \| InternKon: 16211140 / 16
17	793 653 73	Support ring	1	InternBDB: 16575231 \| InternKon: 16211140 / 17
18	793 654 73	Planet bolt	4	InternBDB: 16575237 \| InternKon: 16211140 / 18
19	793 655 73	Bearing ring	1	InternBDB: 16575238 \| InternKon: 16211140 / 19
20	793 656 73	Cover	1	InternBDB: 16575241 \| InternKon: 16211140 / 20
21	793 657 73	Cover	1	InternBDB: 16575347 \| InternKon: 16211140 / 21
22	793 658 73	Spacer ring	4	InternBDB: 16938314 \| InternKon: 16211140 / 22
23	513 518 98	Spherical roller bearing	3	InternBDB: 16306784 / 23134 MS / DIN 635 \| InternKon: 16211140 / 23
24	504 839 98	Cylindrical roller bearing	8	InternBDB: 16411653 / RSL 182322 /DIN 5412 \| InternKon: 16211140 / 24
25	504 496 98	Cylindrical roller bearing	1	InternBDB: 16411677 / SL 181864 C3 / DIN 5412 \| InternKon: 16211140 / 25
26	509 231 98	Cylindrical roller bearing	1	InternBDB: 16411780 / SL 1818/530 C3 / DIN 5412 \| InternKon: 16211140 / 26
27	361 455 99	Cylindrical roller bearing	2	InternBDB: 16411303 / NJ 313 EM / DIN 5412 \| InternKon: 16211140 / 27
28	361 299 99	Cylindrical roller bearing	2	InternBDB: 16411283 / NJ 224 \| InternKon: 16211140 / 28
29	517 922 98	Ball bearing	1	InternBDB: 16410293 / 6024 J / DIN 625 \| InternKon: 16211140 / 29
30	793 659 73	Locating ring	8	InternBDB: 16462516 / F 92075 \| InternKon: 16211140 / 30
31	793 660 73	Cover	1	InternBDB: 16929052 \| InternKon: 16211140 / 31
32	506 893 98	Disc	1	InternBDB: 16451063 \| InternKon: 16211140 / 32
33	793 661 73	Bolt	1	InternBDB: 16937026 \| InternKon: 16211140 / 33
34	517 919 98	Radial shaft seal ring	2	InternBDB: 16461353 / 500x540x20 C /3760 \| InternKon: 16211140 / 34
35	342 668 99	Circlip	2	InternBDB: 16452061 / 90x3 / DIN 471 \| InternKon: 16211140 / 35
36	342 675 99	Circlip	4	InternBDB: 16452275 / 120x5 / DIN 472 \| InternKon: 16211140 / 36
37	255 055 40	Circlip	1	InternBDB: 16452375 / 250x5 / DIN 472 \| InternKon: 16211140 / 37
38	342 497 99	Circlip	1	InternBDB: 16452111 / 190x4 / DIN 471 \| InternKon: 16211140 / 38
39	342 696 99	Circlip	8	InternBDB: 16452325 / 220x5 / DIN 472 \| InternKon: 16211140 / 39
40	342 682 99	Circlip	2	InternBDB: 16452295 / 160x4 / DIN 472 \| InternKon: 16211140 / 40
41	342 666 99	Circlip	1	InternBDB: 16452257 / 85x3 / DIN 471 \| InternKon: 16211140 / 41
42	342 684 99	Circlip	3	InternBDB: 16452300 / 170x4 / DIN 472 \| InternKon: 16211140 / 42
43	342 707 99	Circlip	6	InternBDB: 16452355 / 280x5 / DIN 471 \| InternKon: 16211140 / 43
44	517 923 98	Support disk	1	InternBDB: 16452492 / 160x190x3,5 / DIN 988 \| InternKon: 16211140 / 44
45	504 596 98	O-ring	2	InternBDB: 16463242 / 160x3 / DIN 3771 \| InternKon: 16211140 / 45
46	508 922 98	Cylindrical roller bearing	2	InternBDB: 16411265 / NJ 218 EM1F55 / DIN 5412 \| InternKon: 16211140 / 46
48	414 012 40	O-ring	5	InternBDB: 16463396 / 120x3 / DIN 3771 \| InternKon: 16211140 / 48
49	342 566 99	Snap ring	4	InternBDB: 16452058 / 85x3 / DIN 471 \| InternKon: 16211140 / 49
50	500 414 98	O-ring	1	InternBDB: 16463310 / 400x5 / DIN 3771 \| InternKon: 16211140 / 50
51	082 821	O-ring	1	InternBDB: 16463159 / 80x3 / DIN 3771 \| InternKon: 16211140 / 51
52	315 507 99	Eye bolt	1	InternBDB: 16444227 / M36 / DIN 580 \| InternKon: 16211140 / 52
53	514 423 98	Bolt	4	InternBDB: 16441136 / M8x25 / ISO 4017 8.8 \| InternKon: 16211140 / 53
56	319 186 99	Bolt	16	InternBDB: 16445138 / M16x35 / DIN 931 \| InternKon: 16211140 / 56
57	319 287 99	Bolt	24	InternBDB: 16445140 / M16x40 / DIN 912 \| InternKon: 16211140 / 57
58	514 233 98	Bolt	8	InternBDB: 16445092 / M12x25 / DIN 912 \| InternKon: 16211140 / 58
59	319 571 99	Bolt	16	InternBDB: 16445706 / M16x25 / DIN 912 \| InternKon: 16211140 / 59
62	501 532 98	Plug	2	InternBDB: 16444159 / M45x1,5 / DIN 910 \| InternKon: 16211140 / 62
63	339 796 99	Seal ring	2	InternBDB: 16462009 / A 45x52x2 / DIN 7603 \| InternKon: 16211140 / 63
64	313 314 99	Plug	2	InternBDB: 16444186 / M22x1,5 / DIN 910 \| InternKon: 16211140 / 64
65	340 294 99	Seal ring	1	InternBDB: 16462045 / A22x27x1,5 / DIN 7603 \| InternKon: 16211140 / 65
66	795 098 73	Dipstick	1	InternBDB: 16575458 / M22x1,5x130 \| InternKon: 16211140 / 66
69	517 574 98	Bolt	24	InternBDB: 16441759 / M12x40 / DIN 931 \| InternKon: 16211140 / 69
72	795 096 73	Seal ring	2	InternBDB: 16575377 \| InternKon: 16211140 / 72
75	795 097 73	Shaft	1	InternBDB: 16575349 \| InternKon: 16211140 / 75
76	307 785 99	Bolt	30	InternBDB: 16575352 / M20x60 / ISO 4017 \| InternKon: 16211140 / 76
77	517 924 98	Wire Ш 2mm / Lg. 50 mm	-2	InternBDB: 16455334 / DIN 177 \| InternKon: 16211140 / 77
87	517 920 98	Radial shaft seal ring	4	InternBDB: 16461227 / 90x125x13 C / DIN 3760 \| InternKon: 16211140 / 87
84	793 663 73	Planet carrier assy consist of Pic-No.06, 09, 11, 12, 23, 43	1	InternBDB: 16628252
85	793 664 73	Planet carrier assy 07,08,09, 10, 18 19, 22, 24, 29, 36, 37, 38, 39, 44, 48, 50	1	InternBDB: 16628253
86	940 443 40	Drive gear box, plus drive shaft 927 893 40	1	InternBDB: L&S GFA 305 K-1028 / 16630531 \| InternKon: 933 624 40 / 14
\|$$70	793 108 73	Disc assy with springs	1	InternBDB: 570 829
\|$$71	793 109 73	Seal kit brake	1	InternBDB: 570 830

Komatsu PC5500-6E S/N 15060 parts catalog PDF

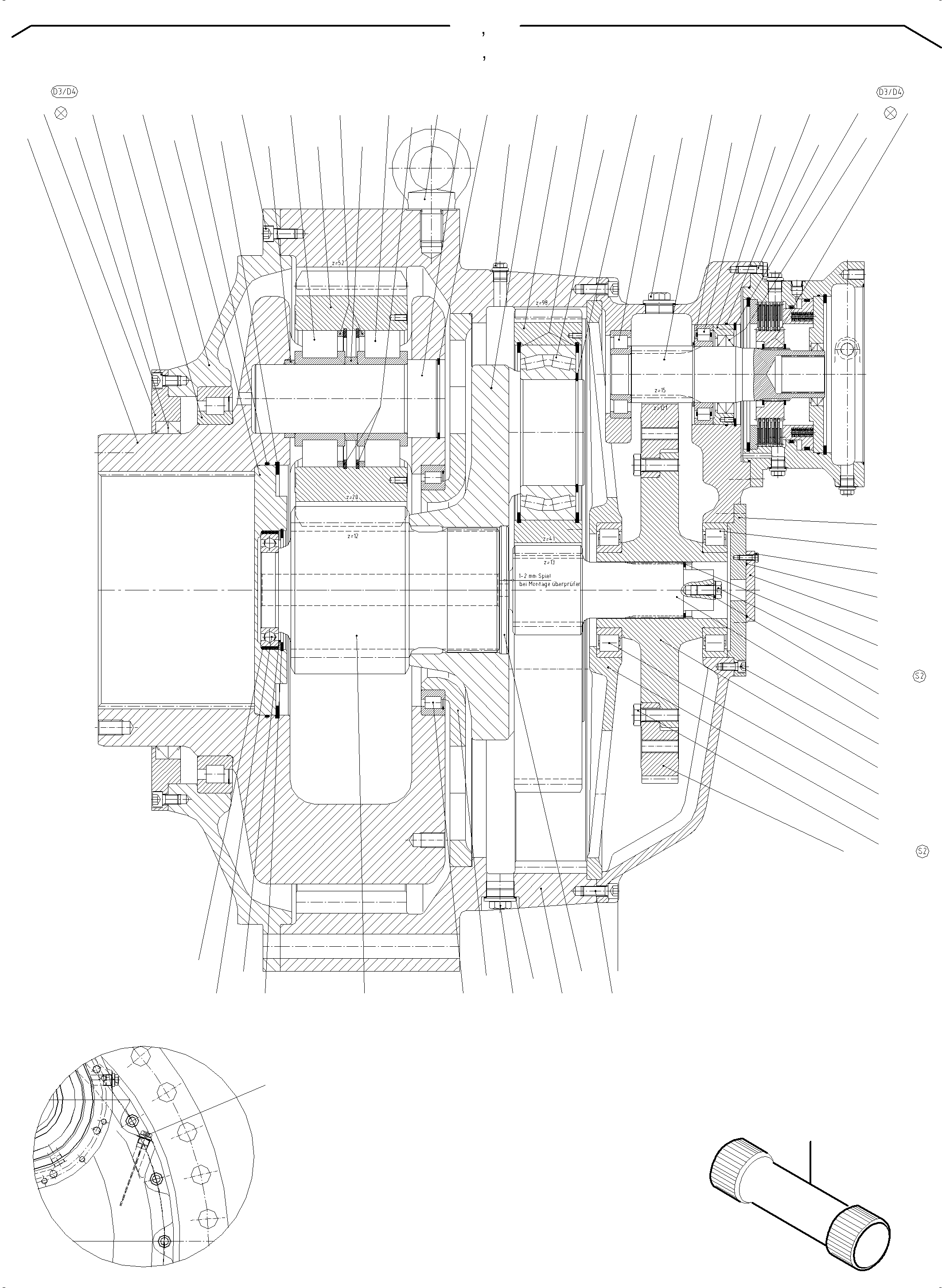

DRIVE GEAR BOX (991-0612a) in PC5500-6E S/N 15060. Diagram image and parts list.
