PC5500-6E S/N 15060

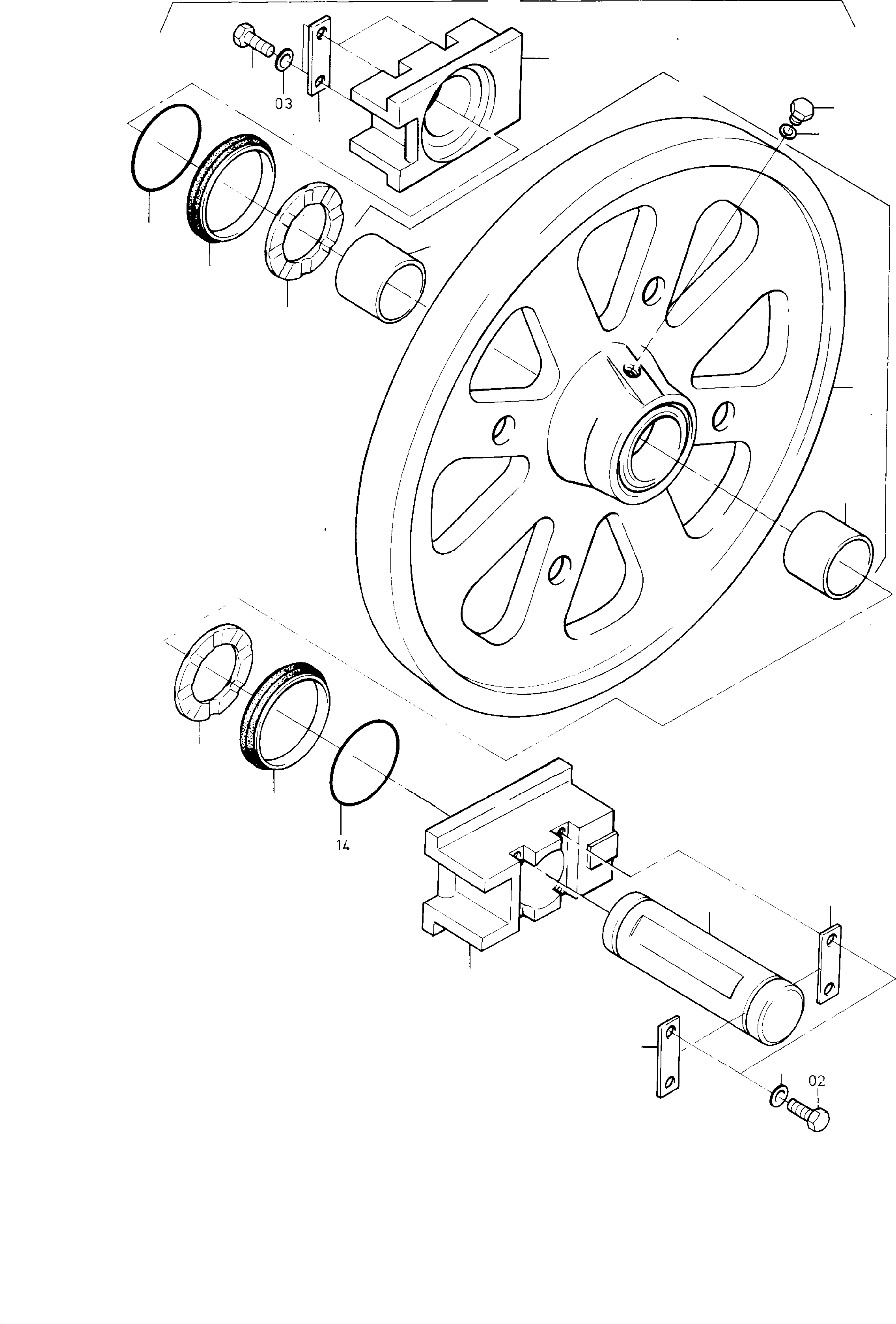

Komatsu parts book diagram for PC5500-6E S/N 15060: IDLER ASSY.

01 02 03 04 04 04 05 05 06 06 07 07 08 09 10 10 11 12 13 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	575 630 40	Idler assy.	1	InternBDB: Ш1790 AT-Nr. 710 497 73
	02	307 612 99	Bolt	8	InternBDB: M16x40 /933 10.9 \| InternKon: 575 630 40 / 8
	03	316 211 99	Washer	8	InternBDB: 17 /6916 \| InternKon: 575 630 40 / 9
	04	426 045 40	Axle stirrup	4	InternKon: 575 630 40 / 5
	05	575 633 40	Sliding pad	2	InternKon: 575 630 40 / 2
	06	255 058 40	Lifetime seal	2	InternBDB: Goetze 76.90 H-27 \| InternKon: 575 630 40 / 6
	07	313 320 40	Stop washer	2	InternKon: 575 630 40 / 4
	08	575 620 40	Idler, assy.	1	InternKon: 575 630 40 / 1
	09	575 625 40	Idler	1	InternKon: 575 620 40 / 1
	10	448 958 40	Freeze-in bush	2	InternBDB: keine Nacharbeit erforderlich \| InternKon: 575 620 40 / 2
	11	349 989 99	Plug	1	InternBDB: AM26x1,5 / 7604 \| InternKon: 575 630 40 / 10
	12	339 918 99	Seal ring	1	InternBDB: A26x32 /7603 \| InternKon: 575 630 40 / 11
	13	575 632 40	Axle	1	InternKon: 575 630 40 / 3
	14	504 102 98	O-ring	2	InternBDB: 212 x 10B / 70/3770 \| InternKon: 575 630 40 / 7
	\|$$15		Idler assy. is filled with oil	-2	InternBDB: 3,2 l C-LP220 002 018 99 \| InternKon: 575 630 40 / 12

Komatsu PC5500-6E S/N 15060 parts catalog PDF

IDLER ASSY. (515-3115) in PC5500-6E S/N 15060. Diagram image and parts list.
