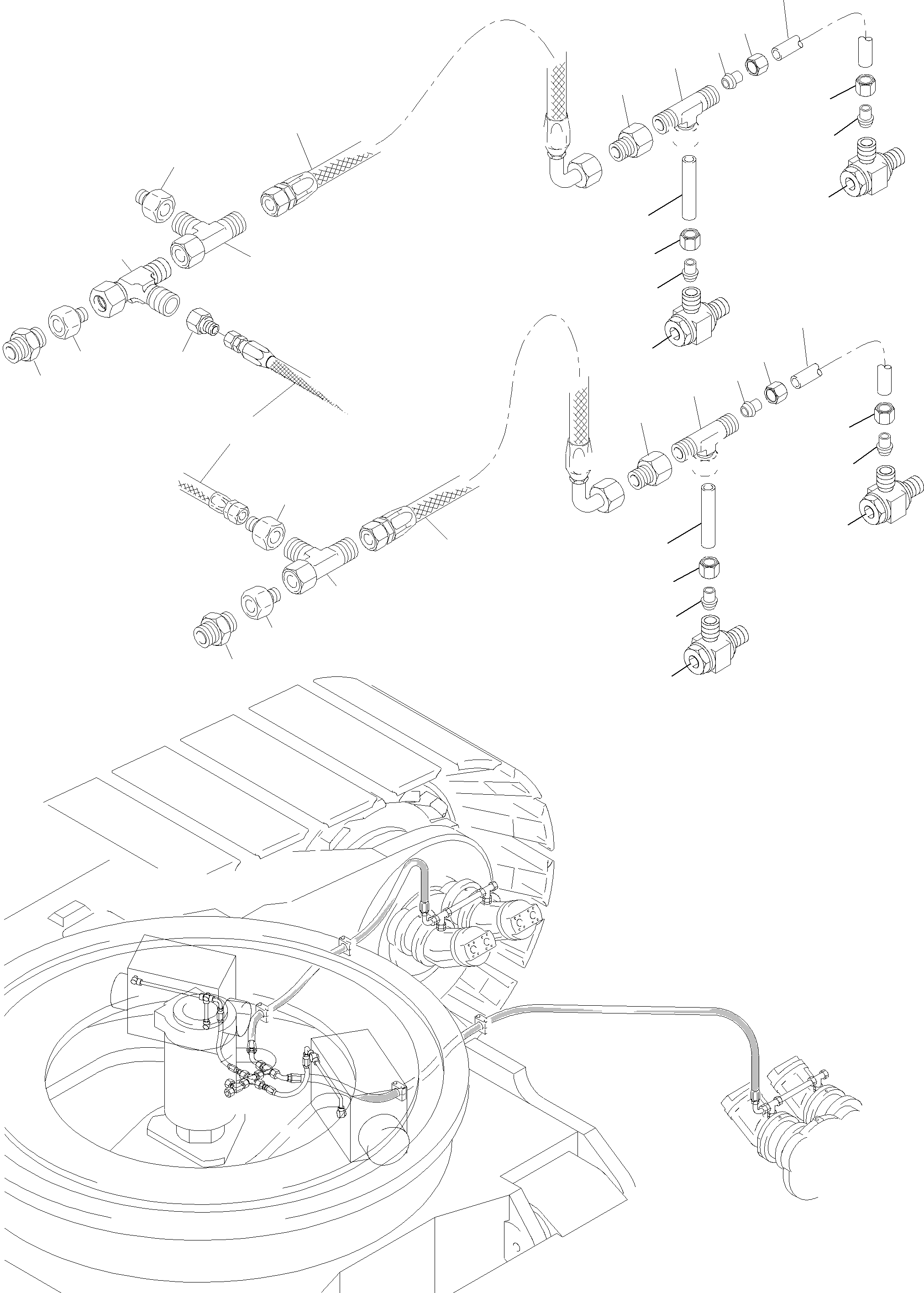

Diagram image 1 of 2

PC5500-6E S/N 15060

01 01 01 01 02 02 02 02 02 02 03 03 03 03 03 03 04 04 05 05 06 06 07 07 08 08 09 09 09 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 10 10 11 11 11 11 12 12 13 14

PC5500-6E S/N 15060

1 1 14 14 15 15 16 16 16 16 17 17 3

#	Part Number	Partname	Quantity	Options
01	906 930 40	Union	4	InternBDB: 28 LM/OMD /65593440 \| InternKon: TT 933 624 40 / 36
02	906 350 40	Olive	8	InternBDB: ES-4 L28 \| InternKon: TT 933 624 40 / 70
03	371 278 99	Nut	8	InternBDB: N-L 28 \| InternKon: TT 933 624 40 / 71
04	934 562 40	Pipe	2	InternBDB: 28x2,5x494 \| InternKon: TT 933 624 40 / 39
05	516 177 98	Socket	4	InternBDB: SWRT-L 28 \| InternKon: TT 933 624 40 / 38
06	634 494 40	Union	4	InternBDB: GR35 / 28-L/OMD \| InternKon: TT 933 624 40 / 69
07	934 563 40	Pipe	4	InternBDB: 28x2,5x120 \| InternKon: TT 933 624 40 / 37
08	517 916 98	Hose assy 16x2700	4	InternBDB: DOL 18 \| InternKon: 932 336 40 / 11
09	516 473 98	Socket	6	InternBDB: SWRT-L 35 / 8434-4 \| InternKon: 933 611 40 / 22
10	634 494 40	Union	4	InternBDB: GR35 / 28-L/OMD/65593240 \| InternKon: 933 611 40 / 23
11	516 189 98	Socket Typ E / ISO 8434	4	InternBDB: SWSDS-L28xM33x2Type E / ISO 8434-4 \| InternKon: 933 611 40 / 19
12	576 408 40	Union	4	InternBDB: RED 35 12 PL/OMD \| InternKon: 933 611 40 / 24
13	551 459 40	Union	2	InternBDB: RED 35 15 PL/OMD \| InternKon: 933 611 40 / 46
14	623 452 40	Hose assy. DN 10x550	2	InternBDB: DOL 12 /DOL 12 - 90 \| InternKon: 933 611 40 / 17
15	517 892 98	Socket DN 10x700	2	InternBDB: SWBT-L12 / 8434-1 \| InternKon: 933 611 40 / 15
16	371 459 99	Socket	4	InternBDB: SDS-L12-G 3/8 Type E /8434 \| InternKon: 933 611 40 / 13
17	515 572 98	Hose assy DN 10x700	2	InternBDB: DOL 12 / DOL 12-90 \| InternKon: 933 611 40 / 16

Komatsu PC5500-6E S/N 15060 parts catalog PDF

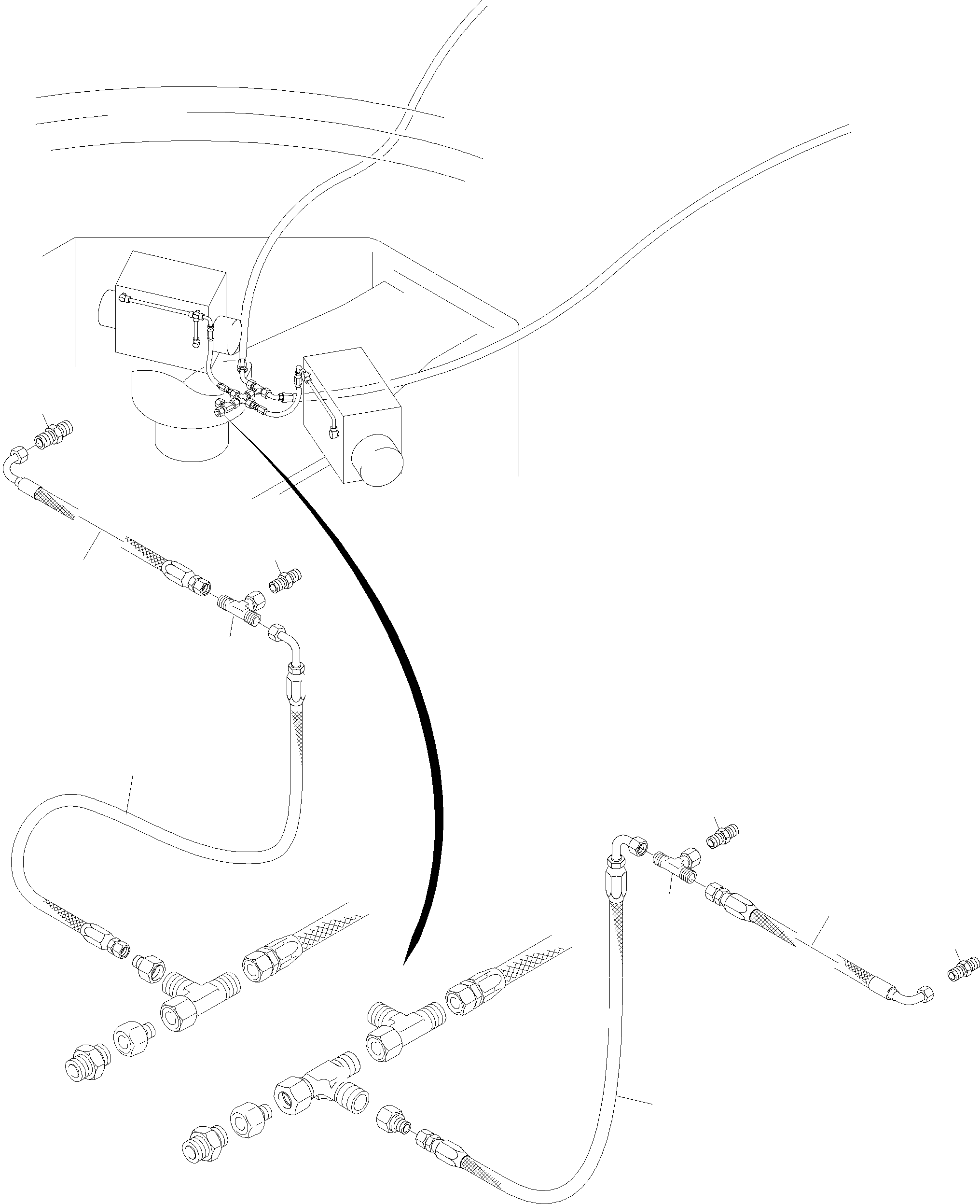

DRIVE MOTOR - LEAKAGELINES (515-3176a) in PC5500-6E S/N 15060. Diagram image and parts list.
