PC5500-6E S/N 15060

01 02 03 04 05 06 07 07 08 08 09 10 100 11 12 13 14 15 16 17 18 19 20 21 22 22 23 24 25 26 27 28 30 31 32 33 34 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 59 60 61 62 63 64 65 66

#	Part Number	Partname	Quantity	Options
01	796 154 73		1	InternBDB: 70.209/655/9/1-5100:00 \| InternKon: E70209_455_5_5000_00 / 1
02	796 130 73	Guide angle	1	InternBDB: 70.209/455/5-5000:01 \| InternKon: E70209_455_5_5000_00 / 2
03	796 131 73	Console assy.	1	InternBDB: 70.209/455/5-5200:00 \| InternKon: E70209_455_5_5000_00 / 3
04	794 639 73	Guide U-profile	1	InternBDB: 70.209/655/6-5200:03 \| InternKon: E70209_455_5_5000_00 / 4
05	796 132 73	Chain cover assy.	1	InternBDB: 70.209/455/5-5300:00 \| InternKon: E70209_455_5_5000_00 / 5
06	769 277 73	Disc	2	InternBDB: 70.209/655/1-5100:03 \| InternKon: E70209_455_5_5000_00 / 6
07	769 278 73	Tension arr. assy.	1	InternBDB: 70.209/455/5-5900:00 \| InternKon: E70209_455_5_5000_00 / 7
08	765 223 73	Tensioning trestle	1	InternBDB: 70.209/655/8-5500:00 \| InternKon: E70209_455_5_5000_00 / 8
09	765 234 73	see page bevel gear assy.	1	InternBDB: 70.209/655/1-5500:00 \| InternKon: E70209_455_5_5000_00 / 9
10	796 152 73	Sensor retainer, cable drum full	1	InternBDB: 70.209/655/9/1-5010:00 \| InternKon: E70209_455_5_5000_00 / 10
11	796 153 73	Sensor retainer, cable drum empty	1	InternBDB: 70.209/655/9/1-5020:00 \| InternKon: E70209_455_5_5000_00 / 11
12	765 224 73	Pinion WMH 201-601-011	1	InternBDB: 70.209/655/9/1-5420:00 \| InternKon: E70209_455_5_5000_00 / 12
13	765 236 73	Pinion WMH 201-601-011	1	InternBDB: 70.209/655/9/1-5410:00 \| InternKon: E70209_455_5_5000_00 / 13
14	761 012 73	Chain WMH 300-601-001	1	InternBDB: 70.209/655/1-5400:01 \| InternKon: E70209_455_5_5000_00 / 14
15	796 179 73	Inductive sensor	2	InternBDB: Ni20U-EG30SK-VP4X (Wechsler) \| InternKon: E70209_455_5_5000_00 / 15
16	340 472 99	Washer	4	InternBDB: DIN 125 - B 31 \| InternKon: E70209_455_5_5000_00 / 16
17	516 091 98	Threaded pin	2	InternBDB: M8x25 /916 \| InternKon: E70209_455_5_5000_00 / 17
18	512 557 98	Nut	4	InternBDB: M8 / DIN 982 \| InternKon: E70209_455_5_5000_00 / 18
19	307 822 99	Bolt	2	InternBDB: M16x30 /933 \| InternKon: E70209_455_5_5000_00 / 19
20	343 116 99	Lock washer	2	InternBDB: A 16 /127 \| InternKon: E70209_455_5_5000_00 / 20
21	320 426 99	Countersunk screw	6	InternBDB: M16x40 /7991 \| InternKon: E70209_455_5_5000_00 / 21
22	307 777 99	Bolt	5	InternBDB: M10x25 /933 \| InternKon: E70209_455_5_5000_00 / 22
23	307 825 99	Bolt	14	InternBDB: M16x45 /933 \| InternKon: E70209_455_5_5000_00 / 23
24	512 466 98	Nut	31	InternBDB: M 16 /982 \| InternKon: E70209_455_5_5000_00 / 24
25	512 476 98	Nut	7	InternBDB: M 10 /982 \| InternKon: E70209_455_5_5000_00 / 25
26	511 257 98	Bolt	7	InternBDB: M16x50/7991 \| InternKon: E70209_455_5_5000_00 / 26
27	504 126 98	Square washer	7	InternBDB: 17 /6918 \| InternKon: E70209_455_5_5000_00 / 27
28	307 756 99	Bolt	2	InternBDB: M8x30 /933 \| InternKon: E70209_455_5_5000_00 / 28
30	307 779 99	Bolt	1	InternBDB: M10x30/933 \| InternKon: E70209_455_5_5000_00 / 30
31	307 805 99	Bolt	4	InternBDB: M12x40 /933 \| InternKon: E70209_455_5_5000_00 / 31
32	512 467 98	Nut	4	InternBDB: M12/982 \| InternKon: E70209_455_5_5000_00 / 32
33	307 780 99	Bolt	1	InternBDB: M 10 X 35 / ISO 4017 \| InternKon: E70209_455_5_5000_00 / 33
34	796 553 73	Sprocket 200-301-052	1	InternBDB: 70.209/455/4-0110:03 \| InternKon: E70209_455_5_5000_00 / 34
36	769 282 73	Dowel sleeve	1	InternBDB: 70.209/455/1-5900:02 \| InternKon: E70209_455_5_5000_00 / 36
37	769 283 73	Fixing nut	1	InternBDB: 70.209/655/1-5600:03 \| InternKon: E70209_455_5_5000_00 / 37
38	769 284 73	Draw spindle	1	InternBDB: 70.209/455/1-5900:06 \| InternKon: E70209_455_5_5000_00 / 38
39	769 233 73	Pin	1	InternBDB: 70.209/655/1-5600:04 \| InternKon: E70209_455_5_5000_00 / 39
40	512 477 98	Nut	1	InternBDB: M 20 / DIN 980 \| InternKon: E70209_455_5_5000_00 / 40
41	332 338 99	Nut	2	InternBDB: M 20 / ISO 4032 \| InternKon: E70209_455_5_5000_00 / 41
42	340 181 99	Cup spring	48	InternBDB: B 50x20,4x2 /2093 B 50 G \| InternKon: E70209_455_5_5000_00 / 42
43	512 465 98	Nut	1	InternBDB: M 6 / DIN 982 \| InternKon: E70209_455_5_5000_00 / 43
44	511 635 98	Threaded pin	1	InternBDB: M 6 X 20DIN 916 \| InternKon: E70209_455_5_5000_00 / 44
45	516 090 98	Cotter pin	2	InternBDB: 5 X 25 / DIN 94 \| InternKon: E70209_455_5_5000_00 / 45
46	340 047 99	Washer	4	InternBDB: 20 / DIN 126 \| InternKon: E70209_455_5_5000_00 / 46
47	765 228 73	Housing	1	InternBDB: 70.209/655/1-5600:07 \| InternKon: E70209_455_5_5000_00 / 47
48	765 225 73	Shaft	1	InternBDB: 70.209/655/1-5600:01 \| InternKon: E70209_455_5_5000_00 / 48
49	765 227 73	Tension washer	1	InternBDB: 70.209/655/1-5600:03 \| InternKon: E70209_455_5_5000_00 / 49
50	765 226 73	Ball bearing cover, front	1	InternBDB: 70.209/655/1-5600:02 \| InternKon: E70209_455_5_5000_00 / 50
51	765 229 73	Ball bearing cover, rear	1	InternBDB: 70.209/655/1-5600:04 \| InternKon: E70209_455_5_5000_00 / 51
52	765 230 73	Angle foot	2	InternBDB: 70.209/655/1-5600:06 \| InternKon: E70209_455_5_5000_00 / 52
53	765 231 73	Axle	1	InternBDB: 70.209/655/1-5600:05 \| InternKon: E70209_455_5_5000_00 / 53
54	307 730 99	Bolt	4	InternBDB: M6x20 /933 \| InternKon: E70209_455_5_5000_00 / 54
55	307 732 99	Bolt	4	InternBDB: M6x25 /933 \| InternKon: E70209_455_5_5000_00 / 55
56	343 106 99	Lock washer	8	InternBDB: A 6 /127 \| InternKon: E70209_455_5_5000_00 / 56
57	354 320 99	Feather key	1	InternBDB: A 12x8x50 /6885 \| InternKon: E70209_455_5_5000_00 / 57
58	507 326 98	Bearing	1	InternBDB: 202 08 / DIN 625 \| InternKon: E70209_455_5_5000_00 / 58
59	342 505 99	Circlip	2	InternBDB: 40 X 1.75 / DIN 471 \| InternKon: E70209_455_5_5000_00 / 59
60	360 556 99	Roller bearing	1	InternBDB: 6206 / DIN 625 \| InternKon: E70209_455_5_5000_00 / 60
61	769 285 73	Scraper	1	InternBDB: AVAS AM44-20 A 20-30-7-10 \| InternKon: E70209_455_5_5000_00 / 61
62	342 061 99	Cotter pin	2	InternBDB: 4 X 32 / DIN 94 \| InternKon: E70209_455_5_5000_00 / 62
63	360 698 99	Felt ring	1	InternBDB: DIN 5419 d=50; D=67; b=5 \| InternKon: E70209_455_5_5000_00 / 63
64	307 817 99	Bolt	4	InternBDB: M16 x 55 / ISO 4017 \| InternKon: E70209_455_5_5000_00 / 64
65	343 094 99	Lock washer	4	InternBDB: B 8 / DIN 127 - FST \| InternKon: E70209_455_5_5000_00 / 65
66	307 754 99	Bolt	4	InternBDB: M 8 X 25 / ISO 4017 \| InternKon: E70209_455_5_5000_00 / 66
100	796 520 73	Guide tube	-2	InternBDB: 70.209/455/6-5000:00

Komatsu PC5500-6E S/N 15060 parts catalog PDF

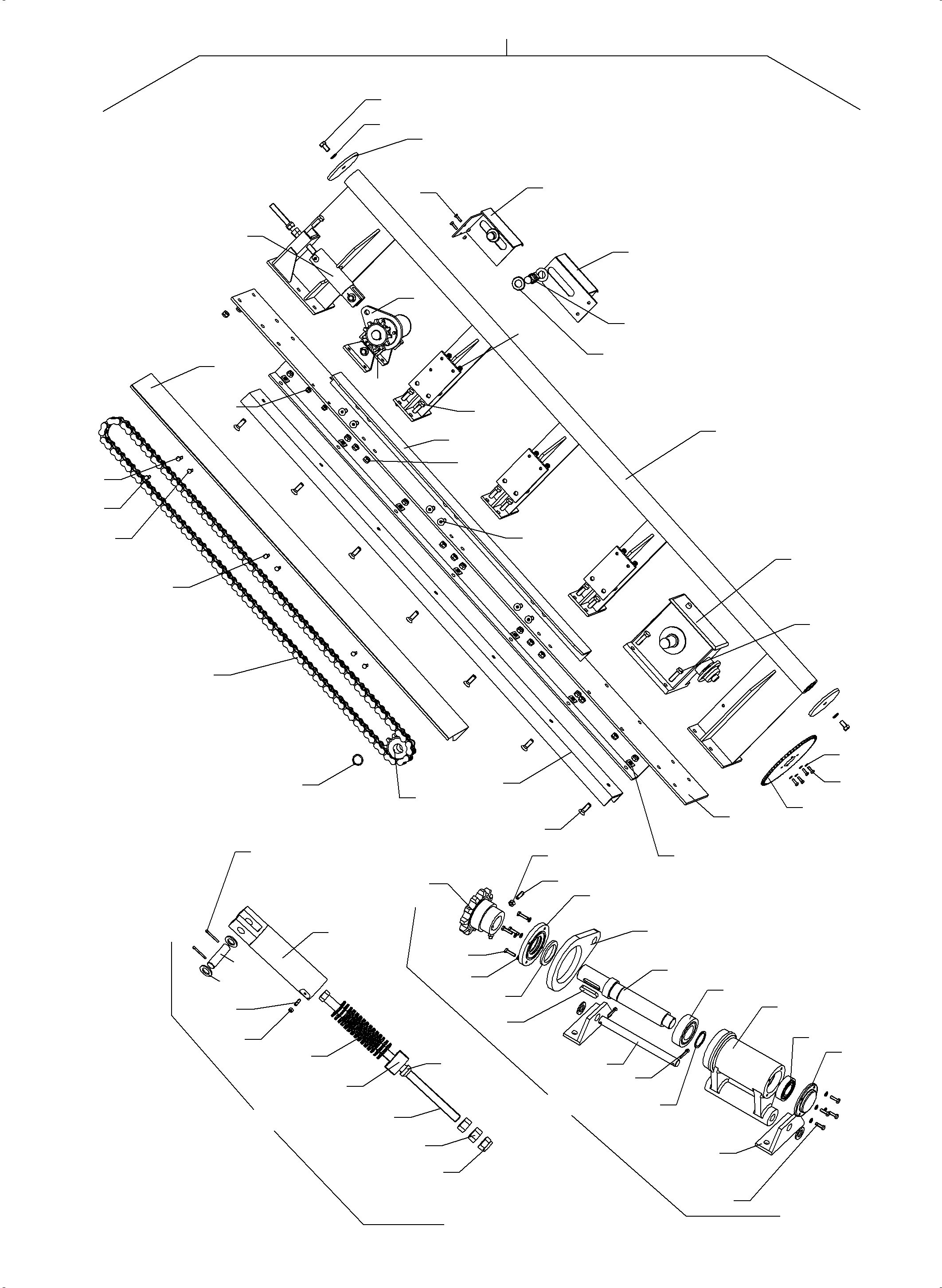

GUIDE TUBE (991-0757a) in PC5500-6E S/N 15060. Diagram image and parts list.
